ARIA
7
31
8 "
43" Adult
39" Ages 7-11
34" Ages 5-7
29" Ages 3-5

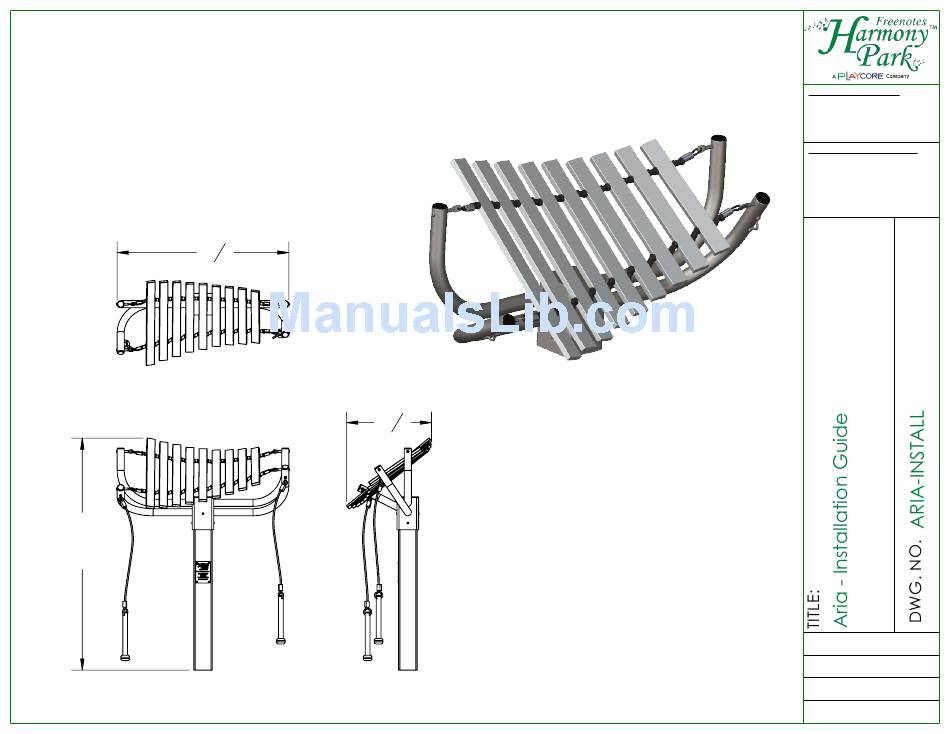

INSTALLATION GUIDE
3
15
4 "
Main Features:
•
C Major Pentatonic
•
Steel Powder Coated Frame
•
Anodized Aluminum Bars
•
Stainless Steel Hardware
Contents:
•
SHEET 2 - Parts List and Instrument to Post Installation
•
SHEET 3 - In Ground Installation
•
SHEET 4 - Surface Mount Installation
Weights:
•
Instrument Weight, 35lbs.
•
Boxed Instrument Weight, 44lbs.
•
Boxed Post Weight, 28-36lbs.
FREENOTES HARMONY PARK
194 BODO DRIVE, UNIT F
DURANGO CO 81303
TEL: (970) 375-7825
FAX: (970) 247-0856
WWW.FREENOTESHARMONYPARK.COM
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
FREENOTES HARMONY PARK. ANY
REPRODUCTION IN PART OR AS A
WHOLE WITHOUT THE WRITTEN
PERMISSION OF FREENOTES HARMONY
PARK IS PROHIBITED.
REVISION: A
SCALE: 1:16
DATE: 2/9/2018
SHEET 1 OF 4
Advertisement
Table of Contents
Related Manuals for Freenotes Harmony Park Aria
Summary of Contents for Freenotes Harmony Park Aria
- Page 1 FAX: (970) 247-0856 WWW.FREENOTESHARMONYPARK.COM PROPRIETARY AND CONFIDENTIAL THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF FREENOTES HARMONY PARK. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF FREENOTES HARMONY PARK IS PROHIBITED. 8 "...
- Page 2 ITEM NO. PART DESCRIPTION Recycled Post/QTY. Steel Post/QTY. Recycled Post/QTY. Steel Post/QTY. Aria Instrument Assembly In Ground Recycled Post, 68"lg. FREENOTES HARMONY PARK Surface Mount Recycled Post, 32"lg. 194 BODO DRIVE, UNIT F Surface Mount Base, For Recycled Post DURANGO CO 81303 TEL: (970) 375-7825 #10 Button Head Screw, 2"lg.
- Page 3 DRAWING IS THE SOLE PROPERTY OF Step 4: Last pour concrete around the post. It is recommended to brace the Instrument to hold it rigid while the concrete cures. FREENOTES HARMONY PARK. ANY REPRODUCTION IN PART OR AS A Leave to set according to the concrete manufacturers guidelines. Approximately (3) 80lb. bags will be needed.
- Page 4 5/16" Hex Head Lag Bolt DRAWING IS THE SOLE PROPERTY OF FREENOTES HARMONY PARK. ANY REPRODUCTION IN PART OR AS A Step 4: With two people place the Instrument Assembly with Post attached onto the concrete pad and mark the center of the holes...
