Page 1: User Manual
USER MANUAL CCTV CAMERA PANACOM 2.4GHz WIRELESS 7’’ VIDEO DOORPHONE KIT MODEL No.: PAN810WK It is very important to install and operate this product Caution: Please read the manual carefully before use. according to the following instruction. Failure to do so may render your guarantee void. -
Page 2: Part Description

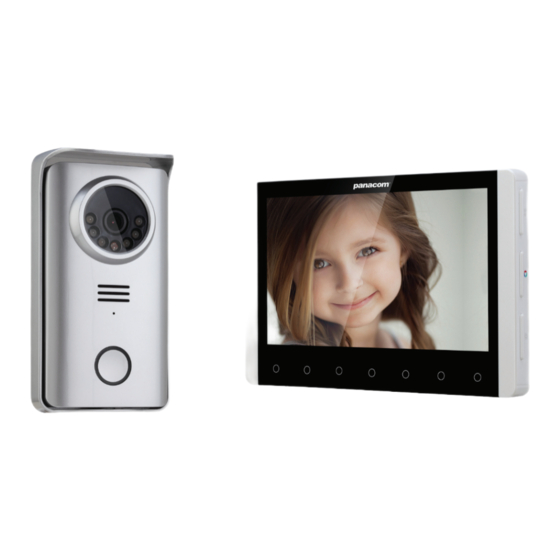

Packing list: Part Description 1 x 7” Indoor Monitor (PAN810WM) Indoor monitor (PAN810WM) 1 x Wireless Door Station (PAN810WD) 1 x Indoor Monitor Power Supply 1 x Indoor Monitor Wall Bracket 1 x USB charging cable for door station 1 x Screws & Plugs 1 x User Manual *NOTE: Door Station &... -
Page 3: Optional Item
Please Note: Operating Instructions: • Door station requires external power supply for below features to operate: - Call button indicator is on during standby mode and will flash when pressed. - Door release function (12Vdc 400mA max) - Monitoring of door station from internal monitor •... -
Page 4: Monitoring Interface
Indoor Battery Display Time Display Gate Unit No. Display Manual Snapshot Manual Recording Answer/Hang Up Unlock Return Touch the light buttons that match display icons for operation. Button 1 is the HOME key. On standby, the light is red with slow flash. Call Interface Press to turn ON/OFF display screen. - Page 5 Code Matching: Time Setup Hold for 3s to enter Code Matching & System Restore Mode Ring Setup Electronic Instructions / Press to enter Code Matching Mode Code Matching / Reset Automatic Snapshot / recordingSetup For Door Camera, Press to choose the corresponding outdoor unit. Memory display / Formatting Press...
-
Page 6: Specifications
Specifications: Automatic Recording Settings Display 7’’ TFT- LCD, 800*480 resolution In this mode, when outdoor unit is called, 3 pictures are taken automatically Door Station 480TVL, 90º viewing angle, IP45 Frequency 2.4GHz Digital Wireless In this mode, when outdoor unit is called, a 15sec video will be recorded Motion-JPEC and JPEG encoder and decoder for image snapshoot Video... -
Page 7: Warranty And Liability
WARRANTY & LIABILITY PSA Products Pty Ltd (ABN: 99 076 468 703) of 17 Millicent Street, Burwood 3125 Victoria, Australia warrants this product for a period of one year from the date of purchase, as reflected on the Authorised Resellers or Distributors invoice/ receipt provided to you. PSA Products Pty Ltd will repair or replace the product (at the option of PSA Products) due to any manufacturing defect, at the cost of PSA Products Pty Ltd (excluding any labour costs relating to removal or re-installation of product, and transport costs).
