Robus R360-01 Instructions

Specification:

Installation:

1. Please note the requirement to dispose of Waste Electrical & Electronic Equipment separately from household waste (WEEE
marked with crossed out wheelie bin symbol).
2. Please consider your role in contributing to re-use and recycling by returning this product at end of life to a collection centre
for waste electrical equipment or a Civic Amenity site, or to a retail outlet from which you are purchasing a replacement.
3. This equipment may contain substances that are hazardous to health and the environment if disposed of carelessly. It is
important that it is separated from normal household waste and recycled in the WEEE chain
4. The "crossed out wheelie bin symbol" on a product indicates this equipment must not be disposed of in normal household
waste, but should be disposed of according to local WEEE regulations
The Installation must be carried out by an electrician
LED Group
Western Retail Park
Nangor Road
Dublin 12
Ireland
Issue 1 020310

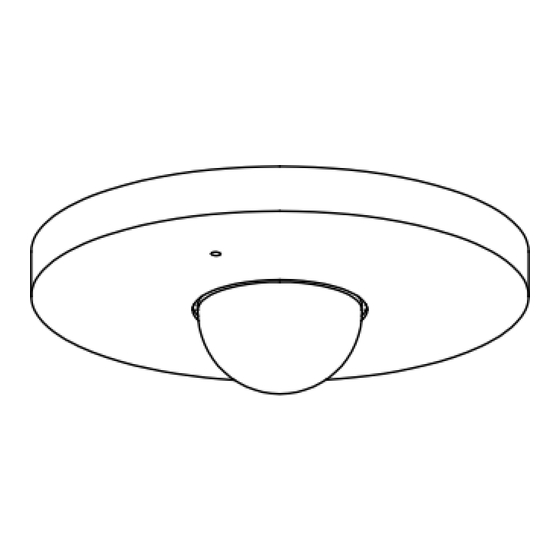

Stand alone PIR presence detector
R360-01
Please read instructions before commencing installation and
retain for future reference.
Passive infra-red sensor switch for lighting energy saving applications, ceiling
mounted indoor use only.
Protection against electric shock: Class 11: no earth required
Output load:
Detection range:
On time duration:
(+/-3min)
Supply:
Temperature range:
Light level adjustment
Terminals sizes:
Suitable for mounting on normally flammable surface
Ingress protection: IP20,
Complies with EN61058-1/-12 EN55015, EN61547, EN61000-3-2/-3
! Electrical products can cause death or injury, or damage to property. If in any doubt
about the installation or use of this product, consult a competent electrician.
1 Ensure mains supply is switched off before commencing work.
2 Location:
a. max 3m above ground level
b. Avoid: positions close to exhaust gas flues, heat extraction vents, or heat
sources to avoid false triggering. Also avoid pointing toward bright lights which may
prevent operation (or cause hunting i.e. flashing lights on and off) when Lux level set for
night operation. Do not mount on surfaces subject to vibration.
3 Check location of buried wires before drilling fixing holes.
4 Remove cover moulding by undoing the front locking screw and turning anticlockwise
to access the terminal block.
5 Remove plastic sensor cover and to access terminals.
6 Fix back moulding to ceiling and connect supply cables Live, Neutral to Lin and N
respectively. Connect switched live to load to terminal marked 'Lout'. Set Lux control to
day position (*) and Time to minimum (-) and fit cover for initial test.
7 ATTENTION: It is very important that the plastic sensor cover is replaced and then refit
white plastic cover.
8 Switch on mains supply: The R360 will warm-up for approx 30 seconds and then switch
to auto detection mode.
Walk testing can then be carried out to determine detection area with slow walking
pace. When the detector senses movement, the load will be switched on for the preset
time. When finished, set light level and delay time. Turning the Lux control toward the
moon position will stop switching action during bright daylight (for energy saving). To
increase on time turn time control towards +, max time delay 16 minutes. Note: once
sensor has been triggered, subsequent detection restarts timing period from beginning,
so light stays on until set time elapses after last triggering.
Information for the Product user
Tel: +353 1 7099000
Fax: +353 1 7099060
Email: info@led.ie
Website: www.led.ie
Max 1000W 5A resistive (e.g. incandescent)
Max 300W inductive (e.g. fluorescent)
5m max at 3m mounting height/ 360degrees
min 10seconds (+/-5sec) to max 16min
230/240V 50Hz
5°C < ta < 40°C
Day to night level
0.75mm2 to 1.5mm2 cables.
Q UAL IT Y ASSU RE D CO MPANY
ISO 9001:2008
Page 1
