Summary of Contents for Coriant 8600
- Page 1 8600 Smart Routers 8602 Smart Router FP7.0 Reference Manual 76.8670-40130A 04.05.2015...
-
Page 2: Revision History
This revision of the manual documents the following network elements and the corresponding feature packs or higher. 8602 Smart Router FP7.0 If you have a different feature pack of 8600 products, please refer to the relevant product document program on the Tellabs and Coriant Portal by navigating to www.portal.tellabs.com > Product Documentation &... - Page 3 Explanation Asynchronous Transfer Mode Border Gateway Protocol Bidirectional Forwarding Detection Broadband Management Protocol. A communication protocol that is used between 8600 network elements and 8000 intelligent network manager. Controlled Introduction Ready Command Line Interface Central Processor Unit DSCP DiffServ Code Point...
- Page 4 System Release Time Division Multiplexing Traffic Engineering Type of Service VCCV Virtual Circuit Connectivity Verification VLAN Virtual LAN (Local Area Network) Virtual Private Network Weighted Fair Queueing 8600 Smart Routers 76.8670-40130A 8602 Smart Router FP7.0 Reference Manual © 2015 Coriant.
-
Page 5: Compliance Statement
Document Information Compliance Statement Hereby, Coriant Oy declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC and Directive 2011/65/EU. VCCI Compliance Statement FCC Notification Statement Federal Communications Commission (FCC) Rules require that you be notified of the following: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. - Page 6 Industry Canada interference-causing equipment regulations require that you be notified of the following: This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. 8600 Smart Routers 76.8670-40130A 8602 Smart Router FP7.0 Reference Manual © 2015 Coriant.
-
Page 7: Table Of Contents
Objectives..................................9 Audience..................................9 8600 Smart Routers Technical Documentation......................9 Document Conventions ..............................12 Documentation Feedback............................... 12 8600 Smart Routers Discontinued Products ..............13 Safety Notes ........................14 Intended Purpose ................................14 Class 1 Laser Product..............................14 Jewelry Removal ................................15 Installation and Maintenance ............................ - Page 8 8602 Smart Router Baseboard Technical Specifications ..................40 5.2.1 Ethernet Specifications ........................40 5.2.2 Timing Block ............................41 5.2.3 CLI Specifications ..........................41 End of Life Treatment ....................... 42 8600 Smart Routers 76.8670-40130A 8602 Smart Router FP7.0 Reference Manual © 2015 Coriant.
-
Page 9: About This Manual
About This Manual About This Manual This chapter discusses the objectives and intended audience of this manual, 8600 Smart Routers 8602 Smart Router FP7.0 Reference Manual and consists of the following sections: • Objectives • Audience • 8600 Smart Routers Technical Documentation •... - Page 10 • 8600 Smart Routers FP7.0 Interface Configuration Guide (76.8670-50180) (for 8630 Smart Router and 8660 Smart Router) 8600 Smart Routers Provides an overview of 8600 NEs IP, forwarding and traffic IP Forwarding and Traffic management functionality, including: IP addressing; IP hosting Management Configuration Guide (ARP, DHCP);...
- Page 11 BFD; BGP; BGP MP; ECMP; IS-IS; OSPF and VRRP as well as Guide (76.8600-50121) instructions on how to configure them with CLI. 8600 Smart Routers Describes SNMP MIB support by the 8600 NEs and provides SNMP MIB Support information on the supported objects and traps. For further (76.8600-50116) information on SNMP MIBs, see the related RFCs.
-
Page 12: Document Conventions
About This Manual Document Title Description 8600 Smart Routers Provides an overview of 8600 NEs measurement and connectivity Test and Measurement Configuration verification tools, including Ethernet loopback; IP ping and Guide (76.8600-50124) traceroute; MAC swap loopback; MPLS ping and traceroute;... -
Page 13: 8600 Smart Routers Discontinued Products
8600 Smart Routers Discontinued Products 8600 Smart Routers Discontinued Products 8600 Smart Routers Manufacture Discontinued (MD) notifications are available on the Tellabs and Coriant Portal, www.portal.tellabs.com > Product Documentation & Software > Data Networking > [8600 Smart Router product name] > Product Notifications. -
Page 14: Safety Notes
ACHTUNG: Stecken Sie keine RJ-11 (Telefon) Stecker in die Ethernet oder E1/T1 Anschlüsse da dieses zu einer Beschädigung des Gerätes führen kann. CAUTION: Do not climb on or stand on the 8600 network element. Neither the network element nor its enclosure is designed to support the weight of a person. -
Page 15: Jewelry Removal
WARNING: This equipment is to be installed and maintained by qualified service personnel only. WARNUNG: Dieses Gerät darf nur von qualifiziertem Fach- oder Servicepersonal installiert oder gewartet werden. 76.8670-40130A 8600 Smart Routers © 2015 Coriant. 8602 Smart Router FP7.0 Reference Manual... - Page 16 Modules, SCM, CDC, Line Cards, Power Modules, Power Input Modules and Fan Modules) of the 8600 network elements, always take care of proper handling, e.g. do not bend or twist the modules, do not touch the components on the modules, take care of good ESD working practices, do not use excessive force while inserting or removing the modules, do not drop the modules.
-
Page 17: Lightning Activity
WARNING: Do not work on the system or connect or disconnect cables during periods of lightning activity. WARNUNG: Arbeiten Sie während eines Gewitters mit Blitzschlag nicht an dem Gerät oder schließen Sie auch keine Kabel an bzw. trennen Sie keine ab. 76.8670-40130A 8600 Smart Routers © 2015 Coriant. 8602 Smart Router FP7.0 Reference Manual... -
Page 18: Network Element Overview

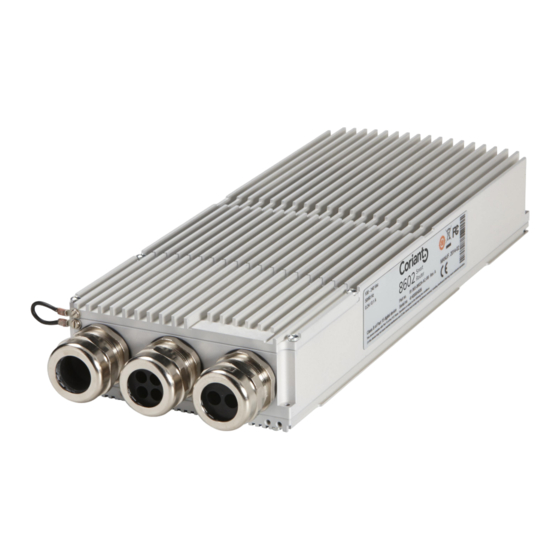

Gigabit Ethernet interfaces, all SFP-based. 8602 Smart Router is a perfect fit for IP- or Ethernet-based traffic aggregation with full QoS awareness and IP routing capabilities. Enclosure Fig. 1 8602 Smart Router Enclosure with Outdoor Kit Installed 8600 Smart Routers 76.8670-40130A 8602 Smart Router FP7.0 Reference Manual © 2015 Coriant. -
Page 19: Baseboard
• 8602-D DC (support for both -48 Vdc and +24 Vdc nominal input voltages). Different installation accessories and kits are available for the network element (please see the table below). Refer to the 8600 Smart Routers Hardware Installation Guide for more information. Product Description Product Code 81.86K-8602ADPT-R6... -
Page 20: Interfaces
AC/DC or DC/DC converter to create the needed supply voltage to operate the NE. The AC power module features are the following: • AC/DC converter • Input over-current protection (fuse) • EMI filtering 8600 Smart Routers 76.8670-40130A 8602 Smart Router FP7.0 Reference Manual © 2015 Coriant. -
Page 21: Ne Synchronization
• IEEE1588 L2 Boundary Clock (partial support for G.8273.2) • IEEE1588 L2 Grandmaster Clock (pre-standard) • IEEE1588 L3 Boundary Clock (pre-standard) • IEEE1588 L3 Grandmaster Clock (pre-standard). For more information on synchronization, please refer to the 8600 Smart Routers Synchronization Configuration Guide. 76.8670-40130A 8600 Smart Routers ©... -
Page 22: Baseboard
filtering and traffic management functions. The CPU subsystem is used to control the baseboard functionality. The figures below present the functional block diagrams of 8602-A and 8602-D. 8600 Smart Routers 76.8670-40130A 8602 Smart Router FP7.0 Reference Manual © 2015 Coriant. - Page 23 2 Baseboard Fig. 3 8602-A Smart Router Block Diagram 76.8670-40130A 8600 Smart Routers © 2015 Coriant. 8602 Smart Router FP7.0 Reference Manual...
-
Page 24: Cpu Block
The application software has been stored in the FLASH memory. Thus, it is possible to update the software on the field, for example, with a new feature. Similarly, the card and interface parameters are stored in FLASH, so those are restored after reset. 8600 Smart Routers 76.8670-40130A 8602 Smart Router FP7.0 Reference Manual... -
Page 25: Npu Block
The NE has a watchdog to reset itself in case of a fatal failure in the CPU subsystem. Interfaces 2.4.1 8602-A Variant Traffic interfaces: • 2 x 1000BASE-X SFP interfaces • 4 x 100/1000BASE-T interface: RJ-45 connector 76.8670-40130A 8600 Smart Routers © 2015 Coriant. 8602 Smart Router FP7.0 Reference Manual... -
Page 26: 8602-D Variant
The 1000BASE-X Ethernet interface is according to [IEEE 802]. The flow control is full duplex. The transceiver is of an SFP type. For detailed information on the SFPs supported in 8600 Smart Routers, please refer to 8600 Smart Routers Hardware Installation Guide. - Page 27 2 Baseboard [IEC60825-1, A1, A2] Laser safety [IEC60825-2] 76.8670-40130A 8600 Smart Routers © 2015 Coriant. 8602 Smart Router FP7.0 Reference Manual...
-
Page 28: Electrical Ethernet Interface
BI_DD+ BI_DD- BI_DA- BI_DC+ BI_DC- RJ-45 Connector Pin Map (Fast Ethernet) PMA Signal Name (MDI-X) RX_DB+ RX_DB- TX_DA+ TX_DA- Cabling 100BASE-TX/1000BASE-T supports FTP CAT5E or better cables. 8600 Smart Routers 76.8670-40130A 8602 Smart Router FP7.0 Reference Manual © 2015 Coriant. -
Page 29: Cli Interface
Do not connect Do not connect Ground Ground Differential PPS+ Input or Output, RS-422 Differential PPS- Input or Output, RS-422 2.5.4 Power Input Connector Fig. 8 Power Input Connector 76.8670-40130A 8600 Smart Routers © 2015 Coriant. 8602 Smart Router FP7.0 Reference Manual... -
Page 30: Leds
Note that a NE that is online may still contain errors. BLINKING when manually set to forced blinking. OFF otherwise. 2.6.2 Ethernet LEDs There are two LEDs to indicate the Ethernet port status. 8600 Smart Routers 76.8670-40130A 8602 Smart Router FP7.0 Reference Manual © 2015 Coriant. - Page 31 BLINKING when manually set to forced blinking. OFF when the administrative status for the Ethernet interface is shutdown. Not supported in SFP interfaces (GE4/0 and GE5/0). 76.8670-40130A 8600 Smart Routers © 2015 Coriant. 8602 Smart Router FP7.0 Reference Manual...
-
Page 32: Dc Power Supply
The power supply inputs are protected against over-current with fuses. There should be no need for a fuse change with the 8602 Smart Router DC. The fuse is located inside the metallic case, and changing the fuse is allowed only for Coriant Customer Service (please contact http://www.coriant.com/services_support). - Page 33 DC power + DC power – Ground shall be connected to the screw connection next to the terminal strip. Fig. 9 8602 Smart Router DC Power Screw Terminal 76.8670-40130A 8600 Smart Routers © 2015 Coriant. 8602 Smart Router FP7.0 Reference Manual...
-
Page 34: Ac Power Supply
The power supply input is protected against over-current with two fuses. There should be no need for a fuse change with 8602 Smart Router AC. The fuse is located inside the metallic case, and changing the fuse is allowed only for Coriant Customer Service (please contact http://www.coriant.com/services_support). - Page 35 AC power line AC power neutral Ground shall be connected to the screw connection next to the terminal strip. Fig. 10 8602 Smart Router AC Power Screw Terminal 76.8670-40130A 8600 Smart Routers © 2015 Coriant. 8602 Smart Router FP7.0 Reference Manual...
-
Page 36: Technical Specifications
8602 Smart Router Technical Specifications Hardware and software capabilities are listed in the table below. See 8600 Smart Routers SR7.0 Product Definition (document ID 76.8670-40125) for more information on the features supported in 8602 Smart Router FP7.0. 8602-A and 8602-D Technical Specifications Enclosure dimensions 135 x 55 x 335 mm (w x h x d). - Page 37 Power consumption Typical 18 W. Max. 21 W. In practice, all electrical power turns into heat in 8600 NEs. Thus, when calculating the power dissipation of the NE, the same figure represents the heat dissipation in watts. Rain is not allowed.
- Page 38 IEEE1588 L3 Grandmaster Clock (pre-standard). GNSS (GPS) SFP based synchronization. [G.8264] SSM over Ethernet. [IEEE1588v2] frequency synchronization slave. Oven Controlled Crystal Oscillator - OCXO. Link layer technologies Ethernet, VLAN. 8600 Smart Routers 76.8670-40130A 8602 Smart Router FP7.0 Reference Manual © 2015 Coriant.
- Page 39 Note that the temperature of the SFP case can be approximately 15 degrees higher than the ambient temperature. For more information on the allowed SFP case temperature range see chapter Pluggable Transceivers in 8600 Smart Routers Hardware Installation Guide.
-
Page 40: 8602 Smart Router Baseboard Technical Specifications
8602 Smart Router Baseboard Technical Specifications 5.2.1 Ethernet Specifications SFP Interfaces Interface - 1000BASE-X SFP interfaces See the Pluggable Transceivers chapter in the 8600 Smart Routers Hardware Installation Guide. Number of ports 8602-A Max. 2 8602-D Max. 6... -
Page 41: Timing Block
< 0.1 Hz in Stratum-3 mode Phase transient response ITU-T [G.813] option 1, Stratum-3 [GR-253] 5.2.3 CLI Specifications Asynchronous CLI port RS-232 Baud rate 38400 bps Connector type RJ-45 76.8670-40130A 8600 Smart Routers © 2015 Coriant. 8602 Smart Router FP7.0 Reference Manual... -
Page 42: End Of Life Treatment
Correct handling of the disposed equipment contributes to reuse, recycling and other form of recovery to protect the environment. The equipment is marked with the figure shown below, to indicate that the equipment must be collected separately. 8600 Smart Routers 76.8670-40130A 8602 Smart Router FP7.0 Reference Manual © 2015 Coriant.
