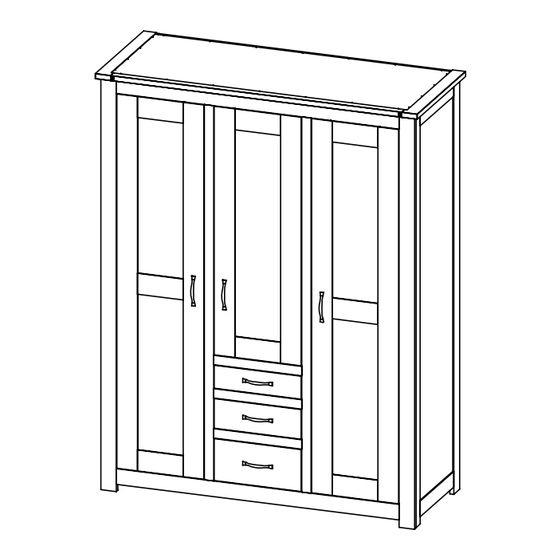

448648 OXFORD TRIPLE ROBE
Tools Needed
All you need to assemble this piece of
furniture is a flat and crosshead screwdriver
as well as a hammer
(Not supplied)
Helpline
If you have any problems with this product or
require any replacement fittings please contact
Customer Services Tel: 0844 844 8999
Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the items
are found to be faulty. Should you need to return the unassembled product, please repack in its original
packaging.
Important
•
We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
•
Carefully check that you have all the parts before beginning assembly.
•
Keep fittings out of children's reach and keep children well away from construction area.
•
We suggest you retain these instructions for future reference.
•
We recommend that the packaging is used to protect the surfaces during assembly.
•
A minimum of 2 persons is required to assemble this product.
Product Information
•
Made with solid oak and oak veneer with a clear lacquer finish.
•
Natural features ensure that each piece is individual. Every effort is made to ensure colour continuity between
pieces, however this is a natural product, slight colour variations and natural grain markings may occur.
•
Oak wood and veneers often have random pale markings in the grain, these are medullary rays which are a
natural unique feature of this wood
•
Made in China.
Assembly Instructions
Please keep these instructions for future reference
1 of 25
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Next OXFORD TRIPLE ROBE
Summary of Contents for Next OXFORD TRIPLE ROBE

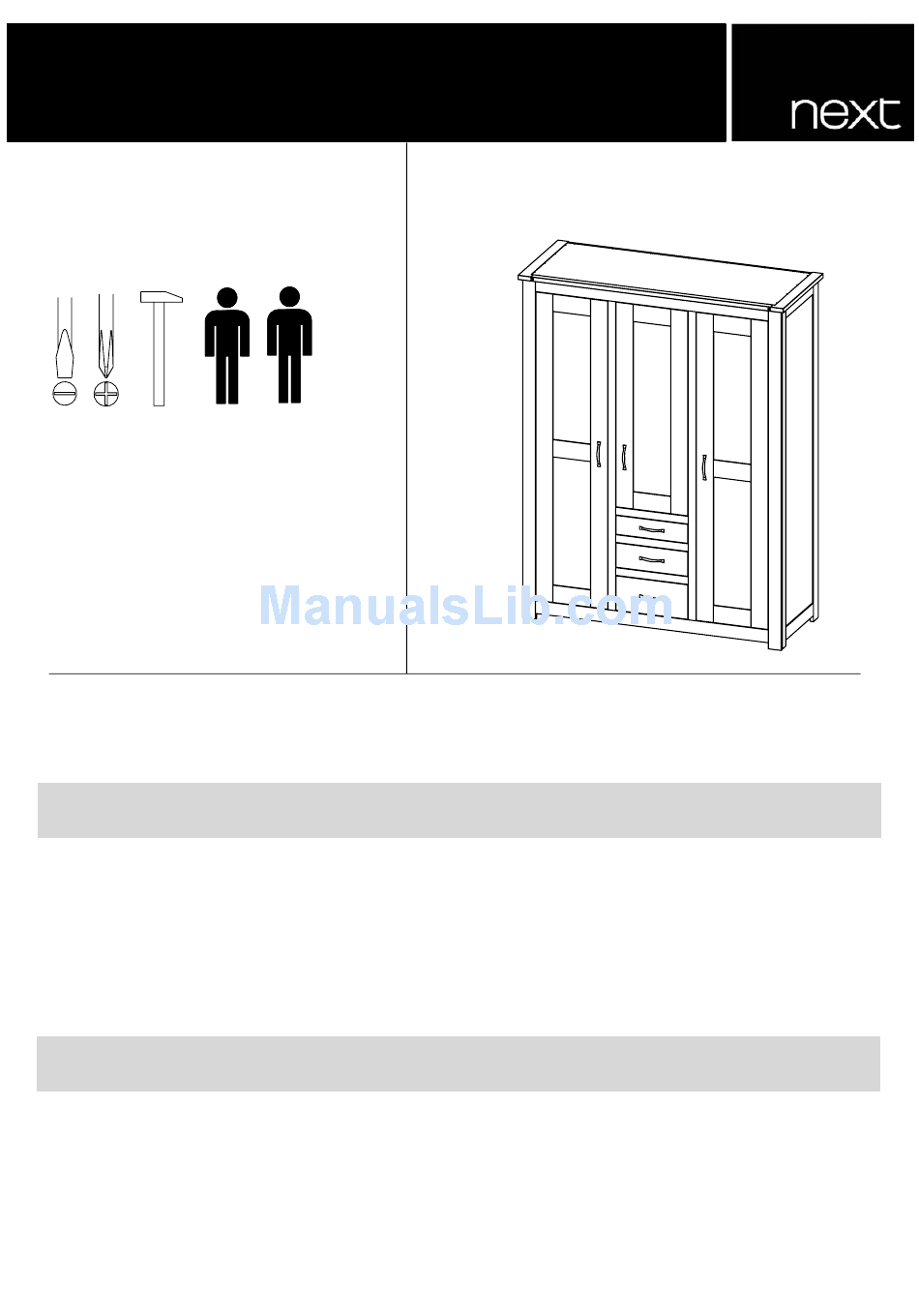

- Page 1 448648 OXFORD TRIPLE ROBE Tools Needed Assembly Instructions All you need to assemble this piece of Please keep these instructions for future reference furniture is a flat and crosshead screwdriver as well as a hammer (Not supplied) Helpline If you have any problems with this product or...
-
Page 2: Care Instructions
Care Instructions • Avoid exposing the furniture to excessive heat or direct sunlight as this can cause cracking of the wood and deterioration of the colour. • Periodically dust lightly with a soft cloth. • Any spills should be removed immediately with a damp cloth. •... - Page 3 Parts PACK PANELS LIST PACK PANELS LIST PACK PANELS LIST PACK PANELS LIST 1 - 4 2 - 4 3 - 4 4 - 4 & x 1 34 x3 3 of 25...
- Page 4 Step One (Assemble on a flat and even surface) • Insert dowels (A) into panel (5) with a hammer. • Insert cam bolts (C) into panel (5) tighten with a screwdriver. • Install runners (H) to panel (5) and tighten with screws (L). •...
- Page 5 Step Three • Insert dowels (A) into panel (7) with a hammer. • Insert cam bolts (C) into panel (7), tighten with a screwdriver. Step Four • Attach panels (5) and (6) to panel (7), insert cam locks (#) to panels (6) and (7) and tighten with a screwdriver.
- Page 6 Step Five • Insert dowels (A) into panels (4), (15) and (16) with a hammer. Step Six • Attach panels (5) and (6) to panel (4), tighten with screws (E) and allen key (F). 6 of 25...
- Page 7 Step Seven • Insert dowels (A) into panels (2) and (3) with a hammer. • Insert cam bolts (C) into panels (2) and (3), tighten with a screwdriver. • Attach hanging rail supports (S) into panels (2) and (3), tighten with screws (M). Cx10 Step Eight •...
- Page 8 Step Nine • Insert dowels (A) into panels (14a) and (14b) with a hammer. • Insert cam bolts (C) into panels (14a) tighten with a screwdriver. 14b x2 Step Ten • Insert dowels (A) into panels (12) and (13) with a hammer. •...
- Page 9 Step Eleven • Attach panels (12) and (13) to panels (14a) and (14b), insert cam locks (#) into panels (14a) and (14b), tighten with a screwdriver. Step Twelve • Insert dowels (A) into panels (10) and (11) with a hammer. •...
- Page 10 Step Thirteen • Attach panels (10) and (11) to panels (12) and (13), insert cam locks (#) to panels (12) and (13), tighten with a screwdriver. Step Fourteen • Insert cam bolts (C) into panels (8) and (9), tighten with a screwdriver. •...
- Page 11 Step Fifteen • Attach panels (8) and (9) to panels (10) and (11), insert cam locks (#) to panels (10) and (11), tighten with a screwdriver. • Attach blocks (34) to panel (10) and tighten with screws (X). Step Sixteen •...
- Page 12 Step Seventeen • Insert cam bolts (B) into panel (1), tighten with a screwdriver. Bx19 Step Eighteen • Attach panel (1) to the body of wardrobe, insert cam locks (#) to panels (2), (3), (5), (10) and (15), tighten with screwdriver. •...
- Page 13 Step Nineteen • Attach panel (16) to panels (2), (3) and (5), insert cam locks (#) to panel (16), tighten with a screwdriver. • Attach panel (16) to panel (5) using screw (E) and tighten with Allen key (F). Step Twenty •...
- Page 14 Step Twenty-One • Attach hinges (Q) to doors (19), attach hinges ( ) to door (20) and tighten with screws (M). • Fix magnet plates (U) to doors (19) and (20), and tighten with screws (W). • Install handles (N) to doors (19) and (20), tighten with screws (P). Mx16 Wx12 Step Twenty-Two...
- Page 15 Step Twenty-Three • Insert cam bolts (C) into panel (21), tighten with a screwdriver. Step Twenty-Four • Attach panels (22) and (23) to panel (21), insert cam locks (D) into panels (22) and (23), tighten with a screwdriver. 15 of 25...
- Page 16 Step Twenty-Five • Slide in panel (25) along the grooves into the drawer frame. • Attach panel (24) to body of drawer, and tighten with screws ($). Step Twenty-Six • Install metal slides (J) and (K) to the panels (22) and (23), tighten with screws (M). 16 of 25...
- Page 17 Step Twenty-Seven • Install handles (N) to the front panel of drawer (21), and tighten with bolts (P). Step Twenty-Eight • Insert cam bolts (C) into panel (26), tighten with a screwdriver. 17 of 25...
- Page 18 Step Twenty Nine • Attach panels (27) and (28) to panel (26), insert cam locks (D) into panels (27) and (28), tighten with a screwdriver. Step Thirty • Slide in panel (25) along the grooves into the drawer frame. • Attach panel (29) to body of drawer, and tighten with screws ($).
- Page 19 Step Thirty One • Install metal slides (J) and (K) to the panels (27) and (28), tighten with screws (M). Step Thirty Two • Install handles (N) to the front panel of drawer (26), and tighten with bolts (P). 19 of 25...
- Page 20 Step Thirty Three • Insert cam bolts (C) into panel (30), tighten with a screwdriver. Step Thirty Four • Insert dowels (A) into panels (31) and (32) with a hammer. • Attach panels (31) and (32) to panel (30), insert cam locks (D) into panels (31) and (32), tighten with a screwdriver.
- Page 21 Step Thirty Five • Slide in panel (25) along the grooves into the drawer frame. • Attach panel (33) to body of drawer, and tighten with screws ($). Step Thirty Six • Install metal slides (J) and (K) to the panels (31) and (32), tighten with screws (M). 21 of 25...
- Page 22 Step Thirty Seven • Install handles (N) to the front panel of drawer (30), and tighten with bolts (P). Step Thirty Eight • Place the drawers into the body of wardrobe . 22 of 25...
- Page 23 Step Thirty Nine • Place the rails (Y) and ( ) into &x1 the body of wardrobe . Step Forty We recommend the use of the wall strap provided for safety reasons. Please follow the instructions included with the strap. N.B. Wall fixings are not included please source suitable fixings for your wall type.
- Page 24 Step Forty One To help level the frame and doors on uneven floors please use the levelling wedges provided as shown below. 24 of 25...
-
Page 25: Hinge Adjustment
Once the product is in required position, doors may need to be aligned as follows: Laterally (side to side) Front-to-back Vertically (up and down) PLEASE KEEP THIS CARE GUIDE FOR FUTURE REFERENCE Next Retail Ltd, Desford Road, Enderby, Leicester, LE19 4AT. 25 of 25...
