NUU Mobile N5L Getting Started With

N5L Overview Setting up Your Phone
Follow these step-by-step instructions to set up your N5L.
Front/Back
Power off the phone and remove battery before inserting any cards!
Proximity
Sensor
Remove Back Cover
Remove the back cover by prying
the upper corner of your device
with your fingers.
Getting Started
Insert microSD
Power off the phone and remove
With Your
battery before inserting memory
card.
Replace Back Cover
After installing the SIM card, memory
Top card, and battery, align the cover and
snap it closed. Make sure you press all
around the edge to ensure a secure fit.
Charge/Sync
Plug in the microUSB connector to
charge the phone or transfer data.
Bottom
Warning: SIM cards are small enough to become a choking hazard,
so please keep them away from children. SIM cards are also quite
www.nuumobile.com
delicate. Please be careful when handling your card.

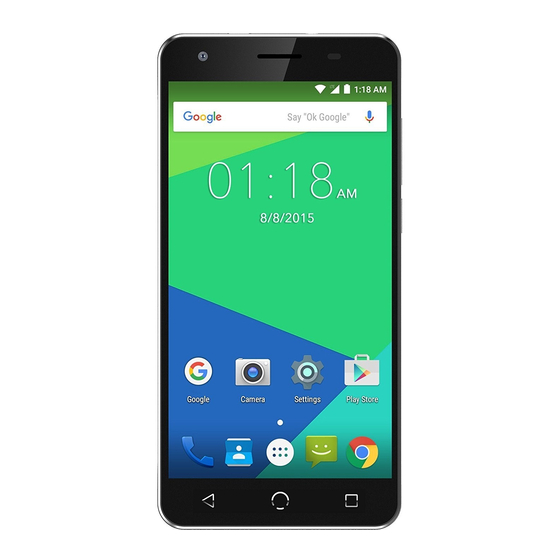

Welcome to Your N5L
To turn on your phone, press and hold the
Wake/Sleep button until the NUU logo appears
on the screen. The first time you turn on your
phone you will prompted to complete initial setup.
Insert SIM (Dual SIM Standby) Simply follow the on-screen instructions.
Orient SIM card to match diagram on slot.
To power off or reboot your phone, press and
SIM 1 (Micro) supports 4GLTE connections.
hold the Wake/Sleep button, then select your
SIM 2 (Micro) supports 4GLTE connections.
desired action/response from the list.
To Lock, press the Wake/Sleep button.
Memory Card
™
Swipe up to unlock your phone.
Insert the Battery
Align the battery contacts, then insert the
Swipe to the left to enable camera.
battery contact-first.
Swipe to the right to enable phone.
Basic Controls Gesture Controls HotKnot
To move between Home screens, swipe left or Your phone is equipped with gesture controls to Share data, links, photos, videos and more
right. The Navigation bar shows which Home quickly and easily access features and settings. using HotKnot, a file transfer technology from
screen you have selected, and is located at the MediaTek.
Air Gestures: Settings Personal: Air
bottom of every Home screen.
Gestures. Switch between photos, and Select the media you wish to share and
Back: tap at any time to return to the
more – all without touching your screen. simply hold the screens of two
previous screen.
Simply hold your finger near the proximiy HotKnot-enabled devices less than one
sensor to perform Air Gestures.
Home: tap at any time to return to the centimeter apart and the media will appear
central Home screen. Press and hold to on both screens.
SmartWake: Settings Personal:
access recent apps.
SmartWake. Instantly access your
most-used functions – directly from your
Recent: tap to see previously opened
lock screen.
applications
While the phone is locked, tap, trace, or
swipe your screen to enable SmartWake.
™ Voice Search Notifications
You can speak to your phone to search, get Receive alert notifications on arrival of new
messages, calendar events, alarms, and other
directions, send messages, and perform
ongoing events. When a notification arrives, the
other common tasks such as send emails or
corresponding icon will appear at the top of the
open apps.
screen.
To activate voice search, tap the microphone
To expand a notification, drag-n-drop the icon
icon located at the top of any home screen.
by slowly swiping downward. When finished,
either swipe it away or tap the dismiss all
button.
Google Now ™ Phone
Google Now is your personal digital Make and receive phone calls via the
assistant. It uses location reporting and following methods:
history to provide you with easy access to
Speed Dial: one-touch dialing for favorites
weather, traffic, scores, and other
and numbers you call frequently.
need-to-know information. You may turn it on
Recent: view call log. Tap an entry to
or off at any time by tapping the Google™
redial.
search bar on any Home screen.
Contacts: view your contacts. Tap a
contact to call.
Keypad: manually enter phone
numbers.
Incoming Call: slide right to answer,
slide left to send to voicemail.
*Please do not charge your phone while making a
phone call.
