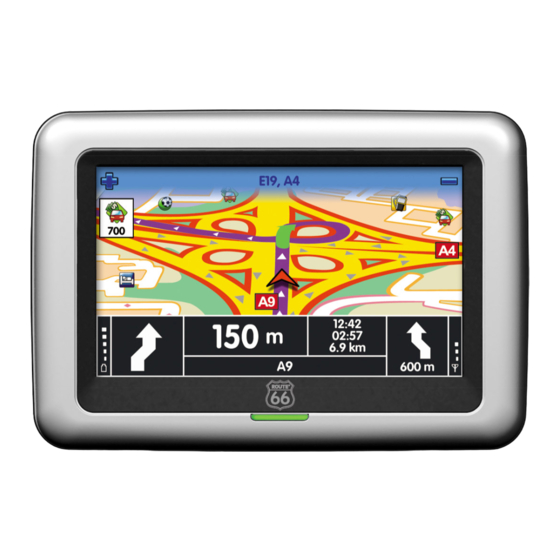

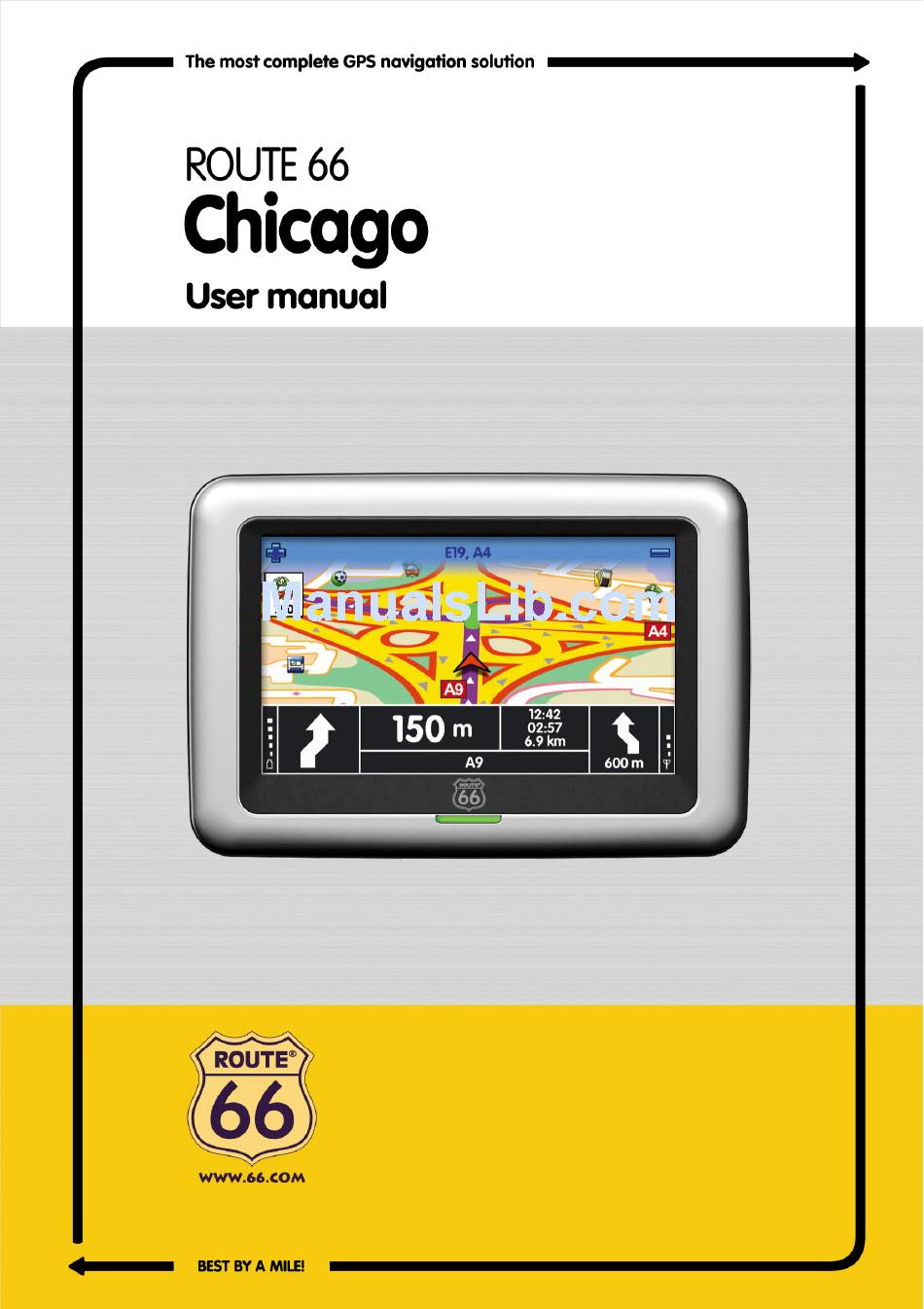

ROUTE 66 Chicago User Manual

Route 66 user manual gps kit chicago
Hide thumbs Also See for Chicago:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Chicago and is the answer not in the manual?

Questions and answers

Related Manuals for ROUTE 66 Chicago

Summary of Contents for ROUTE 66 Chicago

  • Page 2 Trademarks All brand and product names are trademarks or registered trademarks of their respective companies. Note The information in this manual is subject to change without notice.
  • Page 3 Table of Contents Getting Started... 1 1.1 Understanding Hardware Components... 1 Front Components ... 1 Back Components ... 2 Right-Side Components ... 3 Top Components... 3 Bottom Components ... 4 1.2 Performing the Initial Start Up ... 4 1.3 Charging the Battery via the USB Cable... 5 1.4 Using Your Device in a Vehicle...
  • Page 4 Troubleshooting and Maintenance... 19 3.1 Resetting Your System ... 19 3.2 Troubleshooting ... 19 Power Problems ... 19 Screen Problems... 20 Connection Problems... 20 3.3 Maintaining Your Device ... 20 Regulatory Information ... 22 4.1 Regulations Statements ... 22 European Notice ... 22 4.2 Safety Precautions ...

  • Page 5: Getting Started

    Getting Started NOTE: Component Touch Screen Displays the output of your device. Tap the screen with your stylus to select menu commands or enter information. Charge Indicator Glows bright amber to indicate that the battery is charging, and turns green when the battery is fully charged. Description...
  • Page 6 Ref Component External GPS This connector (under rubber dust cover) allows use of an optional Antenna external GPS antenna with magnetic mount, which may be Connector positioned on top of the car for better signal reception in areas with poor reception. Stylus Tap the touch screen to make selections and enter information.
  • Page 7 Component Power Button Navigation Button Component SD/MMC Slot Accepts a SD (Secure Digital) or MMC (MultiMediaCard) card for accessing data such as MP3 music. Description Turns on and off the device. Opens the navigation menu. Description...
  • Page 8 66 Chicago) Headphone/TMC Connector (ROUTE 66 Chicago TMC) Mini-USB Connector Connects to the charger or USB cable. 1. Make sure that power is supplied to your device. (See the next section.) 2. For the initial start up, press the power button for 6 seconds to turn on your device.
  • Page 9 When charging the battery for the very first time, you should charge it for at least 8 hours. 1. Turn on the computer. 2. Connect the mini-USB end of the USB cable to the bottom of your device and the other end to a USB port on your computer. The charge indicator glows amber when charging is in progress.
  • Page 10 A car holder and a car charger are supplied with your device. CAUTION: The car holder consists of a bracket and a stand. Use the car holder to fix your device in a vehicle. Make sure that the GPS antenna has a clear view of the sky.
  • Page 11 The car charger supplies power to your device when you are using the device in a car. CAUTION: 1. Connect one end of the car charger to the power connector of your device. 2. Connect the other end to the cigarette lighter in the car to power and charge your device.
  • Page 12 The TMC receiver and antenna are purchased separately.
  • Page 13 Briefly press the power button to turn on and off your device When you press the power button to turn off the unit, your device actually enters a suspend state and the system stops operating. Once you turn on the system again, it resumes. NOTE: The stylus is your input device.
  • Page 14 Your device has a SD/MMC slot where you can insert an optional Secure Digital or MultiMediaCard storage card. To use a SD/MMC card, insert it into the slot, with the connector pointing to the slot and its label facing the front of the device. To remove a card, first make sure that no application is accessing the card, then slightly push the top edge of the card to release it and pull...

  • Page 15: Playback Controls

    Audio Player Audio Player features: Playback of MP3/WAV/WMA files Basic playback controls such as play, pause, stop, next and previous Playback includes single selection playback, repeat, single repeat, sampling playback, normal sequence and random sequence. 11 preset equalizer audio profiles Play list support Lyrics display When you start the program, the control panel appears on the screen where you...
  • Page 16 Before using the program, have the files ready on either your device’s My Flash Disk\My Audio folder or on a storage card. Use ActiveSync to copy files from your computer to the correct location. Install ActiveSync using the CD supplied. When the “Set up partnership” screen appears, select No and Next to connect as a guest device.

  • Page 17: Settings

    Control Button Name Play/Pause Stop Previous/ Next Volume Playback Mode Lyrics Play List Equalizer Settings Help Exit Description Play or pause the playback. Stop the playback. Play the previous or next file. Increase or decrease the volume. The indicator on the panel shows the current volume level.
  • Page 18 The Audio Player allows you to display the real-time lyrics on the screen while playing songs. This feature is especially handy for you to sing along with the songs. To display the lyrics, you need to have the lyrics files (.lrc) ready on your device’s \My Flash Disk\My Audio\Lyric\ folder or the \Lyric\ folder on your storage card.
  • Page 19 To close the lyrics screen and go back to the control panel, tap anywhere on the screen. You can create your own play lists for future use. 1. Tap on the control panel to open the play list screen. The screen shows the current play list.
  • Page 20 Back Add the selected song(s) Select all songs. to the play list. 4. To save the play list, tap 5. The keyboard screen appears where you can change the default name of the play list. Rename the play list if you want. Tap when finished.
  • Page 21 3. Tap the play list you want to open and tap Back Rename the selected play list. Open the selected play list. Delete the Delete all play lists. selected play list. 4. To return to the control panel, tap The program provides 11 preset audio profiles. Tap to open the equalizer panel.
  • Page 22 to save your selection and return to the control panel. To select the Default profile, tap on the control panel. The Settings screen appears. Tap the check box (√) to turn on the power saving mode. Tap the up/down button to set the timer to 10 seconds, 30 seconds, 1 minute, or 5 minutes.

  • Page 23: Troubleshooting And Maintenance

    Troubleshooting and Maintenance Troubleshooting and Maintenance Occasionally, you may need to reset your device. For example, you should reset your system when it stops responding; or appears to be “frozen” or “locked up.” Insert a small rod, such as a straightened paperclip, into the reset button on the bottom of your device.
  • Page 24 Make sure that your device is not running out of battery power. If the problem still exists, reset your system. Reset your system. Make sure that the backlight of the display is on. Move to a location with more light. Recalibrate the touch screen.
  • Page 25 Avoid exposing your device to direct sunlight or strong ultraviolet light for extended periods of time. Do not place anything on top of your device or drop objects on your device. Do not drop your device or subject it to severe shock. Do not subject your device to sudden and severe temperature changes.

  • Page 26: Regulatory Information

    Regulatory Information NOTE: Products with the CE marking comply with Radio & Telecommunication Terminal Equipment Directive (R&TTE) (1999/5/EEC), the Electromagnetic Compatibility Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) – as amended by Directive 93/68/ECC - issued by the Commission of the European Community.
  • Page 27 Prolonged listening of music in maximum volume can damage the ears. Use only the charger supplied with your device. Use of another type will result in malfunction and/or danger. This product is intended to be supplied by a LISTED Power Unit marked with “LPS”, “Limited Power Source”...

  • Page 28: Limitation Of Liability

    2) The Limited Warranty does not apply to normal wear and tear, does not apply when the Hardware is opened or repaired by someone not authorized by ROUTE 66 and does not cover repair or replacement of any Hardware or part thereof damaged by: misuse, moisture, liquids, proximity or exposure to heat and accident, abuse, non-compliance with the instructions supplied with the Hardware, neglect or misapplication.
  • Page 29 3) In order to make a claim of a Defect, you must contact ROUTE 66 by email during the Warranty Period via www.66.com to explain the Defect and to obtain an RMA number (Return Materials Authorization) if necessary. You must return the Hardware during the Warranty Period, along with an explanation of the Defect, to the address provided to you by ROUTE 66.
  • Page 30 8) This Limited Warranty cannot be transferred to any other person. 9) Neither ROUTE 66 nor its suppliers shall be liable to you or to any third party for any damages either direct, indirect, incidental, consequential or otherwise (including in each case, but not limited to, damages for the inability to use the...
