wink haus blueCompact Operating Manual

Electronic locking system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

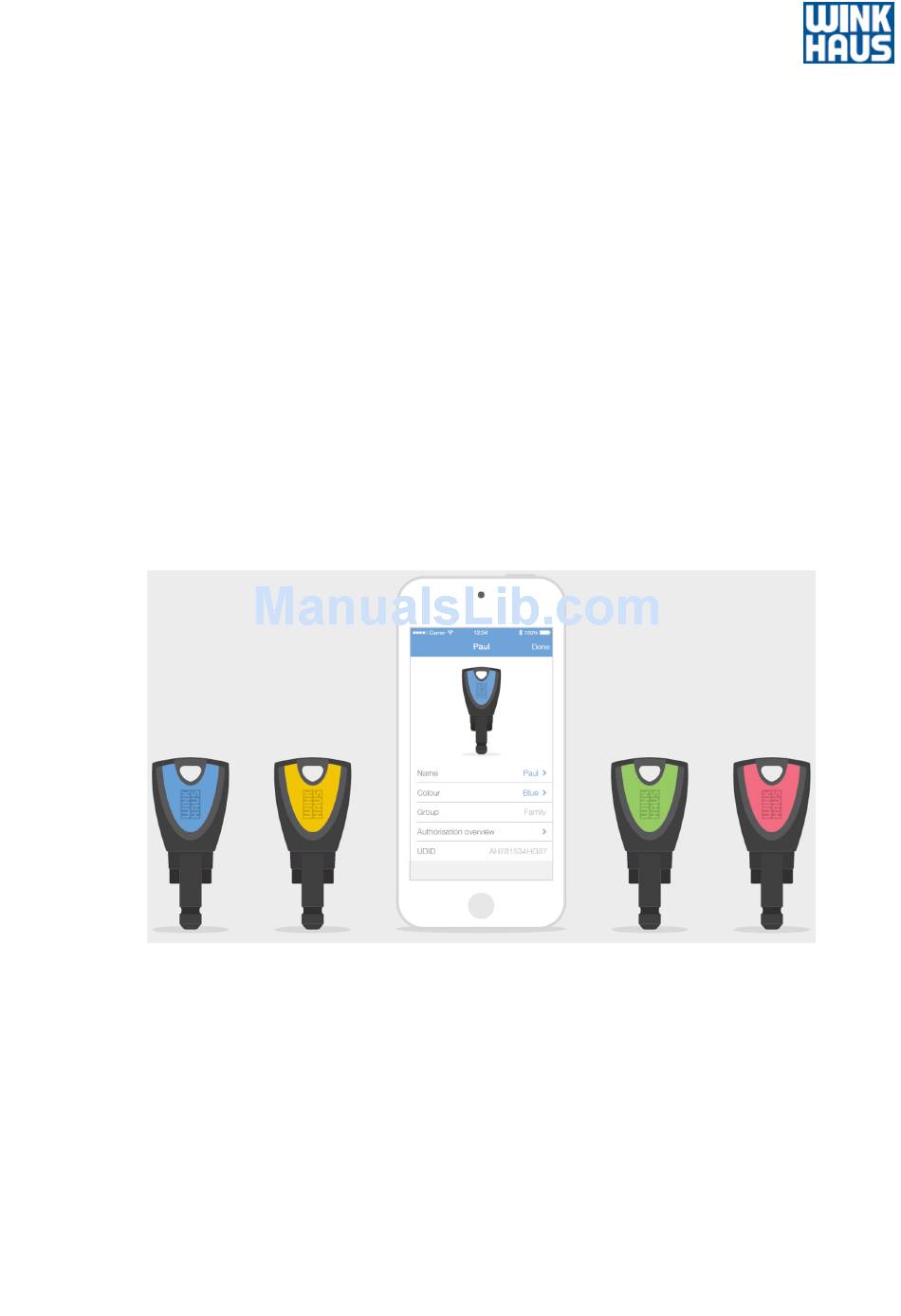

Operating manual
blueCompact
Read the instructions prior to performing any task!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the blueCompact and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for wink haus blueCompact

Summary of Contents for wink haus blueCompact

  • Page 1 Operating manual blueCompact Read the instructions prior to performing any task!
  • Page 2 Aug. Winkhaus GmbH & Co. KG Hessenweg 9 48157 Münster Germany Germany Telephone: +49 251 4908-0 Fax: +49 251 4908-145 Internet: www.winkhaus.com Wink-29491-DE, 5, en_GB © Aug. Winkhaus GmbH & Co. KG 2018 blueCompact Electronics locking system 23.05.2018...
  • Page 3 Supplemental directives What is blueCompact? blueCompact is an electronic locking system which com- prises a maximum of 99 keys and 25 cylinders. The main components of this locking system are the app and an active electronic key which allow you to activate, manage and program keys and cylinders.
  • Page 4 +34 93 6334471 www.bluecompact.com F+W France SARL 6, Rue de la Maison Rouge Bâtiment D 77185 Lognes France +33 160.951.622 +33 160.951.617 www.bluecompact.com Winkhaus Nederland B.V. Landauer 29 3897 AB Zeewolde Nederland +31 365.227.744 +31 365.224.333 www.bluecompact.com blueCompact Electronics locking system 23.05.2018...
  • Page 5 Polska +48 655.255.700 +48 655.255.800 www.bluecompact.com Purpose of the instructions These instructions ensure safe handling of the blueCompact locking system. Read the instructions before starting any work. Always comply with specifications such as operational and safety instructions. Keep instructions in a safe place ready for future use.
  • Page 6 Use a screwdriver to tighten face plate screw by hand. ð The cylinder is installed. Other symbols The following symbols are used to highlight operational instructions, results, lists, references and other elements in these instructions: blueCompact Electronics locking system 23.05.2018...
  • Page 7 The step-by-step instructions for the app explain the different processes using images and texts, even without an Internet connection. You can also call up the individual instructions via the app as an animated video clip if you have access to the Internet. 23.05.2018 blueCompact Electronics locking system...
  • Page 8 The position numbers in the instructions always refer to the previous illustrations. Fig. 1: Open instructions Touch the Instructions menu (1) on the main menu. Select the Installation chapter (2). ð This then displays the sub-sections. Select Instructions (3). blueCompact Electronics locking system 23.05.2018...
  • Page 9 Fig. 2: Select instruction type You can only open the instructional video if you have access to the Internet. Touch Video instructions (1) to open the instructional video. Touch Step-by-step instructions (2) to look at the step-by-step instructions. 23.05.2018 blueCompact Electronics locking system...
  • Page 10 The activation set also includes a quick start guide. This quick start guide contains: Instructions to install app obtained from Google Play Store/App Store QR code for the relevant platform Safety and disposal instructions Start guide (the first few steps before starting the app) blueCompact Electronics locking system 23.05.2018...

  • Page 11: Table Of Contents

    4.7 Install cylinder type 04 and type 04 MK....56 4.8 Install cylinder type 21 and type 22......58 Install app..................61 Manage locking system............63 6.1 Initialise Masterkey............63 6.2 Register................66 6.2.1 Log in with password..........66 23.05.2018 blueCompact Electronics locking system...
  • Page 12 22................124 9.2.6 Replacing batteries in padlock 85...... 127 Fault repair................131 10.1 Malfunctions in the locking process...... 131 10.2 Masterkey loss.............. 133 10.3 Activation card loss........... 135 Spare parts and accessories..........139 Disposal..................141 blueCompact Electronics locking system 23.05.2018...
  • Page 13 Table of contents Technical specifications............143 Index................... 149 Appendix................... 153 A Declaration of Conformity........... 154 23.05.2018 blueCompact Electronics locking system...
  • Page 14 Table of contents blueCompact Electronics locking system 23.05.2018...

  • Page 15: Product Overview

    Product overview Product overview Fig. 3: System overview Smartphone app Cylinder Masterkey Quick start guide Active key Passive keys 4 PUK card Adapter Activation card 23.05.2018 blueCompact Electronics locking system...

  • Page 16: Compile Components As Required

    For a clear allocation of the keys in the app, a Winkhaus UID is engraved on the tip of the key (5). Fig. 5: Active key This Winkhaus UID consists of the logo 4HOME and a six-digit number. Example: 4HOME112773 blueCompact Electronics locking system 23.05.2018...
  • Page 17 – Ä Chapter 1.2.1.2 “Use internal power function” on page 20 User key function if fewer than 1,000 locking transac- tions are possible. – Ä Chapter 1.2.1.1 “Use user key function” on page 19 23.05.2018 blueCompact Electronics locking system...
  • Page 18 Key has been taught in and is awaiting connection to cyl- inder. Error in communication with a passive key or cylinder. Repeat procedure. Active key is authorised to lock. Active key is not authorised to lock. blueCompact Electronics locking system 23.05.2018...

  • Page 19: Use User Key Function

    Ä Chapter 1.2.3 “Passive keys” on page 22 Prerequisites: Battery is sufficiently charged. The active key features the corresponding locking rights. Operate the cylinder Insert active key (1) into the cylinder. Lock cylinder. Fig. 6: Operate the cylinder 23.05.2018 blueCompact Electronics locking system...

  • Page 20: Use Internal Power Function

    ð The LED display (3) on the active key lights up yellow and the lock can be operated using the power in the battery (1) in the active key. Fig. 7: Use internal power function blueCompact Electronics locking system 23.05.2018...

  • Page 21: Use External Power Function

    (2) in the active key (1) within a period of 20 seconds. The locking authorisation for the cylinder expires after 20 seconds. Fig. 9: Operate the cylinder 23.05.2018 blueCompact Electronics locking system...

  • Page 22: Masterkey

    You can view this information in the app. You may only configure one Masterkey per locking system. The Masterkey logs off automatically from the blueCompact App after 4 minutes of inactivity. 1.2.3 Passive keys Ring hole...

  • Page 23: Adapter

    The activation card contains the required system data to convert an active key into the Masterkey of the locking system. The activation card contains the personal identification number (PIN) to establish a Bluetooth link between the Masterkey and smartphone. Fig. 12: Activation card 23.05.2018 blueCompact Electronics locking system...

  • Page 24: Puk Card

    The dimensions for individual cylinders are listed in the technical specifications. You can increase the cylinder length by 5-mm increments on one or both sides, depending on the cylinder. Ä Chapter 13 “Technical specifications” on page 143 blueCompact Electronics locking system 23.05.2018...
  • Page 25 The large battery compartment complete Fig. 14: Type 01 and type 21 with large battery guarantees a high service life on high- traffic doors. 23.05.2018 blueCompact Electronics locking system...
  • Page 26 Type 22 (2) is used indoors and outdoors for high-fre- quency doors, e. g. garden gates. The large battery com- partment complete with large battery guarantees a high service life on high-traffic doors. Fig. 16: Type 02 and type 22 blueCompact Electronics locking system 23.05.2018...
  • Page 27 Product overview Padlock A padlock can be integrated into the locking system with type 85. Fig. 17: Type 85 23.05.2018 blueCompact Electronics locking system...
  • Page 28 Product overview blueCompact Electronics locking system 23.05.2018...

  • Page 29: Security

    Security Security 2.1 Intended use blueCompact is a locking system for private and commer- cial use. This locking system can be used to provide access control and management for a maximum of 99 keys and 25 cylinders. The keys and cylinders are integrated into the locking system using an app.

  • Page 30: Safety When Fitting Cylinders To Fire Doors

    A record must be made of the date, scope and results of inspections and kept in a safe place. Take into account inspections and inspection periods as per technical approval for panic locks. blueCompact Electronics locking system 23.05.2018...

  • Page 31: Safety When Using Cylinders In Low Temperatures

    – Ä Chapter 6.3 “Add and manage key” on page 69 – Instruct users that active keys may only be deposited at temperatures over 5 °C. 23.05.2018 blueCompact Electronics locking system...

  • Page 32: Instructions On Integrating Alarm Systems

    78 Disposing of batteries in the correct manner. – Ä Chapter 12 “Disposal” on page 141 Ensuring functions are tested and maintenance carried out correctly in the case of fire and emergency doors. blueCompact Electronics locking system 23.05.2018...

  • Page 33: Hazards For People

    – Never subject batteries to strong vibra- tions, heavy weights or other damaging effects to ensure that you prevent fire, overheating, explosions or leaks. Leaking battery fluid may catch fire. 23.05.2018 blueCompact Electronics locking system...

  • Page 34: Dangers To Material Goods

    Damage caused by using tools which increase force when locking the cylinder. Using tools which increase force can break off the key and damage the cylinder. – Turn the key by hand only when operating a cylinder. blueCompact Electronics locking system 23.05.2018...
  • Page 35 You may deform or break off the key if you twist the key while taking it out of the cyl- inder. – Always pull the key out of the cylinder in a straight line. 23.05.2018 blueCompact Electronics locking system...

  • Page 36: Risk Of Break-In

    – Report the loss of a key to the adminis- trator immediately. – Remove all locking rights from the key. – Ä Chapter 6.4.5 “Issue and withdraw locking authorisations” on page 78 blueCompact Electronics locking system 23.05.2018...

  • Page 37: Transport And Store

    Inform Customer Service immediately of any damage. Ä “Customer Service” on page 3 Check to ensure supply is complete. Ensure that the PUK card scratch-off panel is undam- aged. Close packaging and leave contents in the packaging until installation or use. 23.05.2018 blueCompact Electronics locking system...

  • Page 38: Storing

    Batteries are separated from one another with Fig. 19: Batteries non-conductive material Battery terminals are not subjected to the weight of the batteries above them Do not unpack the batteries until just before you insert them into the key or cylinder. blueCompact Electronics locking system 23.05.2018...
  • Page 39 Air humidity maximum 70% Protection against damp and moisture Protection against heat Protection against vibration Constituent parts of old batteries must not be dis- posed of in the environment Protection against access by unauthorised persons 23.05.2018 blueCompact Electronics locking system...
  • Page 40 Transport and store blueCompact Electronics locking system 23.05.2018...

  • Page 41: Select And Install Cylinder

    – Ensure that the face plate screw grips into the designated thread in the cylinder. – Use a screwdriver to tighten face plate screw by hand. 23.05.2018 blueCompact Electronics locking system...
  • Page 42 Cylinders which project out more than 3 mm from the fitting on the door provide a vulner- able surface for burglars to gain entry. – Measure and select cylinder to ensure it projects a maximum of 3 mm from the fit- ting. blueCompact Electronics locking system 23.05.2018...
  • Page 43 Fig. 20: Overview of door Door hinges (= hinge side) Fitting system Latch Keyway Deadbolt 10 Cam 4 Face plate screw 11 Backset Cylinder A Outer side Magnetic protection B Inner side Drill hole for face plate screw 23.05.2018 blueCompact Electronics locking system...

  • Page 44: Dismount Old Cylinder

    Carefully remove cylinder (2) with inserted key (3) from the lock. If the cylinder (2) is stuck, carefully jiggle with the key (3) and slowly remove cylinder (2). Contact specialist company if you experience problems. Fig. 22: Place cam in zero position blueCompact Electronics locking system 23.05.2018...

  • Page 45: Determine Cylinder Type

    ð If the cam rotates freely (A), cylinder type 04, type 04 MK and type 05 can be fitted. If the cam does not rotate freely (B), cylinder type 01 and type 21 can be fitted. Fig. 23: Determine cylinder type 23.05.2018 blueCompact Electronics locking system...

  • Page 46: Determine Cylinder Length

    (A) have now been measured. NOTICE! Increased risk of burglary due to incor- rect cylinder length. Fig. 24: Measure old cylinder Select new cylinder, so that the cylinder projects a max. 3 mm from the fitting. blueCompact Electronics locking system 23.05.2018...
  • Page 47 Anti-pulling protection fittings secure mechanical cylinders against plug pulling by burglars. blueCompact cylinders do not con- tain a cylinder core such as those used in mechanical systems. There is thus no need to fit anti-pulling protection for the core.

  • Page 48: Install Old Cylinder

    Push in cylinder (2) from the inner side of the door. If the cylinder (2) is stuck, carefully jiggle with the key (3) and push cylinder (2) in. Contact specialist com- pany if you experience problems. Fig. 27: Place cam in zero position blueCompact Electronics locking system 23.05.2018...
  • Page 49 ð The cylinder has been installed. Perform functional test 'Lock' the door with the door open. ð The lock deadbolt (2) extends. 'Unlock' the door with the door open. ð The lock deadbolt (2) retracts. 23.05.2018 blueCompact Electronics locking system...

  • Page 50: Prepare Cylinder Installation

    – If you intend to install anti-pulling protec- tion fittings, you need to contact a spe- cialist dealer beforehand to select the right anti-pulling protection fitting. blueCompact Electronics locking system 23.05.2018...
  • Page 51 Trim supplied face plate screw to the calculated length if necessary without damaging the face plate screw thread. The cylinder cam can be adjusted to eight different positions. You can place the cam in the required posi- tion to prepare for cylinder installation. 23.05.2018 blueCompact Electronics locking system...
  • Page 52 Repeat steps 1 and 2 until the cam is in the required position. The cam must face the door hinge side after Fig. 31: Adjust cam the fitted cylinder has been locked. blueCompact Electronics locking system 23.05.2018...

  • Page 53: Install Cylinder Type 01, Type 02 And Type 05

    Fig. 32: Insert cylinder netic protection (5) facing the outer side. If the cyl- inder is stuck, carefully jiggle with the key and push cylinder in. Contact specialist company if you experi- ence problems. Align cam 23.05.2018 blueCompact Electronics locking system...
  • Page 54 Material damage due to over-tightening of screw. Use a screwdriver to tighten face plate screw (1) by hand. Fig. 34: Screw face plate screw into position ð The cylinder has been installed. Perform functional test blueCompact Electronics locking system 23.05.2018...
  • Page 55 Select and install cylinder 'Lock' the door with the door open. ð The lock deadbolt (1) extends. 'Unlock' the door with the door open. ð The lock deadbolt (1) retracts. Fig. 35: Operate the cylinder 23.05.2018 blueCompact Electronics locking system...

  • Page 56: Install Cylinder Type 04 And Type 04 Mk

    Push in cylinder from the inner side of the door (3). If the cylinder is stuck, carefully jiggle with the knob and push cylinder in. Contact specialist company if you experience problems. Fig. 36: Insert cylinder Align cam blueCompact Electronics locking system 23.05.2018...
  • Page 57 NOTICE! Material damage due to over-tightening of screw. Fig. 38: Screw cylinder tightly into Use a screwdriver to tighten face plate screw (1) by position hand. ð The cylinder has been installed. Perform functional test 23.05.2018 blueCompact Electronics locking system...

  • Page 58: Install Cylinder Type 21 And Type 22

    Fig. 40: Insert cylinder Push in cylinder from the inner side of the door (4). If the cylinder is stuck, carefully jiggle with the key and push cylinder in. Contact specialist company if you experience problems. blueCompact Electronics locking system 23.05.2018...
  • Page 59 ð The cylinder has been installed. Perform functional test 'Lock' the door with the door open. ð The lock deadbolt (1) extends. 'Unlock' the door with the door open. ð The lock deadbolt (1) retracts. Fig. 43: Perform functional test 23.05.2018 blueCompact Electronics locking system...
  • Page 60 Select and install cylinder blueCompact Electronics locking system 23.05.2018...

  • Page 61: Install App

    Open the App Store. Search for “Winkhaus” . Download blueCompact App. Accept the app permissions. Install blueCompact App. ð The blueCompact App is shown on the display and can be launched. Fig. 44: QR code App Store 23.05.2018 blueCompact Electronics locking system...
  • Page 62 Install app blueCompact Electronics locking system 23.05.2018...

  • Page 63: Manage Locking System

    – The locking system must only be man- aged in one time zone. Precondition: Smartphone Bluetooth link has been switched on. Select Masterkey Fig. 45: Initialise Masterkey Launch app. 23.05.2018 blueCompact Electronics locking system...
  • Page 64 The key can be initialised. Enter PUK code (3). Enter activation card and pass- word Fig. 46: Enter password Place Masterkey (1) on the centre of the activation card (2) and hold in place. Confirm the PUK code entry. blueCompact Electronics locking system 23.05.2018...
  • Page 65 96 ð The Masterkey has been activated and the Key menu (4), the Cylinder menu (5), the Master key menu (6) and the menu Instructions (7) can be opened in the menu bar. 23.05.2018 blueCompact Electronics locking system...

  • Page 66: Register

    Enter password (2) and confirm. ð The Masterkey is activated and the Key menu (3), the Cylinder menu (4), the Master key menu (5) and the menu Instructions (6) can be opened in the menu bar. blueCompact Electronics locking system 23.05.2018...

  • Page 67: Log In With Fingerprint

    Fig. 48: Enable Touch ID for the app Open the Settings (1) menu on the smartphone. Navigate to the blueCompact App (2) in the Settings menu. Enable the use of Touch ID for the blueCompact App (3). The use of Touch ID is activated as standard.
  • Page 68 The smartphone has a fingerprint scanner. The fingerprint scanner was activated on the smart- phone. Touch ID has been activated for the blueCompact App. A log-in has already taken place with the password. Register Masterkey Fig. 49: Register Launch app.

  • Page 69: Add And Manage Key

    Ä Chapter 6.2 “Register” on page 66 Link key with Masterkey Fig. 50: Incorporate key Key menu Open. Touch '+' (1) in the Key menu. Touch Add key (2). Insert Masterkey and key into the adapter (3). 23.05.2018 blueCompact Electronics locking system...
  • Page 70 Manage locking system Enter key specifications Fig. 51: Name key Name key (1). Check information (2) about key. Confirm (3) information. ð The key has been added to the locking system. blueCompact Electronics locking system 23.05.2018...

  • Page 71: Manage Key

    Active keys are indicated with the rele- vant symbol. Select key (1). ð The key details are displayed (2). Touch the key (3) name. Change key name. Touch the colour of the key (4). 23.05.2018 blueCompact Electronics locking system...

  • Page 72: Identify Key

    Touch '+' (1) in the Key menu. Touch Identify key (2). Insert Masterkey (3) and key (4) into the adapter. ð The key's specifications are shown after the key has been scanned, such as the battery status. blueCompact Electronics locking system 23.05.2018...

  • Page 73: Delete Key

    Touch Edit (1). Swipe to the left in the row for the key (2) which is to be deleted. ð The Delete (3) symbol is shown. Touch the Delete (3) symbol. ð The key is deleted. 23.05.2018 blueCompact Electronics locking system...

  • Page 74: Add And Manage Cylinder

    Fig. 55: Add cylinder Open Cylinder menu. Touch '+' in the Cylinder menu (1). Insert Masterkey in the cylinder. Touch Add a new cylinder (2). Enter cylinder specifications Name cylinder (3). Issue access authorisations (4). Confirm (5) information. blueCompact Electronics locking system 23.05.2018...

  • Page 75: Change Cylinder Name

    User is in the Cylinder menu. Fig. 56: Select cylinder Select cylinder (1). Insert Masterkey (2) in cylinder. ð The Masterkey (2) is linked to the cylinder. Touch the cylinder (3) name. Change cylinder name. Confirm (4) input. 23.05.2018 blueCompact Electronics locking system...

  • Page 76: Identify Cylinder

    Fig. 57: Identify cylinder Open Cylinder menu. Touch '+' (1) in the Cylinder menu. Touch Identify cylinder (2). Insert Masterkey (3) in the cylinder. ð The cylinder specifications are shown after the key has been scanned. blueCompact Electronics locking system 23.05.2018...

  • Page 77: Check The Cylinder Battery Charge Status

    ð The Masterkey (2) is linked to the cylinder and the cylinder overview is shown. Check the cylinder battery charge status (3). Replace the cylinder battery if the display says low or replace. Ä Chapter 9.2 “Replace batteries” on page 116 23.05.2018 blueCompact Electronics locking system...

  • Page 78: Issue And Withdraw Locking Authorisations

    Select cylinder (1). Insert Masterkey (2) in the cylinder. ð The Masterkey (2) is linked to the cylinder and the cylinder overview shown. Manage locking authorisations Touch the required key group (4) in Access authorisa- tions (3). blueCompact Electronics locking system 23.05.2018...
  • Page 79 Manage locking system Fig. 60: Adjust locking authorisations Assign or withdraw locking authorisations for the keys (2) of the key group (1). Confirm change to Access authorisations (3). 23.05.2018 blueCompact Electronics locking system...
  • Page 80 Select cylinder (1). Insert Masterkey (2) in the cylinder. ð The Masterkey (2) is linked to the cylinder and the cylinder overview shown. Manage locking authorisations Touch the required key group (4) in Access authorisa- tions (3). blueCompact Electronics locking system 23.05.2018...
  • Page 81 +not The key is not authorised to lock on this day. Touch the authorisation status (5). Set the period for the locking authorisation (6). Touch the authorisation symbol (4) to switch between always, time and not. 23.05.2018 blueCompact Electronics locking system...
  • Page 82 Confirm (1) information. ð The time profile is saved and active. The Time pro- files (2) menu in the Cylinder menu is shown in the colour of the key. Confirm change to Access authorisations (3). blueCompact Electronics locking system 23.05.2018...
  • Page 83 Select cylinder (1). Insert Masterkey (2) in the cylinder. ð The Masterkey (2) is linked to the cylinder and the cylinder overview shown. Manage locking authorisations Touch the required key group (4) in Access authorisa- tions (3). 23.05.2018 blueCompact Electronics locking system...
  • Page 84 +not The key is not authorised to lock on this weekday. Touch the authorisation symbol (4). ð Change the authorisation symbol (6) and the authorisation status (7). ® ® ® blueCompact Electronics locking system 23.05.2018...
  • Page 85 Manage locking system Fig. 66: Confirm changes Confirm Information (1). Confirm change to Access authorisations (2). 23.05.2018 blueCompact Electronics locking system...
  • Page 86 Select cylinder (1). Insert Masterkey (2) in the cylinder. ð The Masterkey (2) is linked to the cylinder and the cylinder overview shown. Manage locking authorisations Touch the required key group (4) in Access authorisa- tions (3). blueCompact Electronics locking system 23.05.2018...
  • Page 87 To withdraw the locking rights from the key on all weekdays, touch not (6). To use the last time profile set with this smartphone, touchKeep most recent (7). Touch Cancel (10) to cancel the process. 23.05.2018 blueCompact Electronics locking system...

  • Page 88: Delete Cylinder

    Swipe to the left in the row for the cylinder which is to be deleted. ð The symbol (2) to delete the cylinder will appear. Touch the symbol (2). Insert Masterkey (3) in the cylinder. blueCompact Electronics locking system 23.05.2018...
  • Page 89 Cylinders with an electronic defect can be deleted without linking to the Mas- terkey. If a functional cylinder is deleted without con- tact to the Masterkey, authorised keys can still lock on this cylinder. 23.05.2018 blueCompact Electronics locking system...

  • Page 90: Show And Send Locking Events

    User is in the Cylinder menu. Connect Masterkey to cylinder Fig. 71: Display locking events Select cylinder (1). Insert Masterkey (2) in the cylinder. ð The Masterkey (2) is linked to the cylinder and the cylinder overview (3) is shown. blueCompact Electronics locking system 23.05.2018...
  • Page 91 ð The locking events can be forwarded in the same way as the locking plan. Ä Chapter 6.7.1 “Forward locking plan manually” on page 94 – Ä Chapter 6.7.2 “Create a locking plan change reminder” on page 96 23.05.2018 blueCompact Electronics locking system...

  • Page 92: Open System Information

    View system information Fig. 73: System information Master key menu should be opened. ð In the Master key menu, information is shown on the system and on the Masterkey, such as the bat- tery charge status. blueCompact Electronics locking system 23.05.2018...

  • Page 93: Open And Forward Locking Plan

    (5) and the cylinder (6). The relevant authorisation symbols are still shown: The key is authorised to lock. The key is not authorised to lock. The key is authorised to lock via a time profile. 23.05.2018 blueCompact Electronics locking system...

  • Page 94: Forward Locking Plan Manually

    Masterkey has been linked to the app. – Ä Chapter 6.2 “Register” on page 66 User is in the Master key menu. Open locking plan Fig. 75: Forward locking plan manually Touch Locking plan (1). blueCompact Electronics locking system 23.05.2018...
  • Page 95 ð The overview of the locking authorisations is shown. Touch the share symbol (3). Forward locking plan Fig. 76: Select and forward format Select format (4). Enter email address (5), CC email address(es) (6) and subject (7). Send email. 23.05.2018 blueCompact Electronics locking system...

  • Page 96: Create A Locking Plan Change Reminder

    ð The user is advised of the locking plan change within the app in the event of changes to locking authorisations. The Masterkey symbol is given a red mark and a red line of text appears. blueCompact Electronics locking system 23.05.2018...

  • Page 97: Issue Remote Authorisation

    The following prerequisites must be met, so that the neigh- bour can access the remote authorisation: The locking system administrator has the Masterkey and their smartphone ready to hand. 23.05.2018 blueCompact Electronics locking system...
  • Page 98 Deposited key is an active key and belongs to the system. Administrator and recipient both have installed the Winkhaus blueCompact App and have access to the Internet on their smartphones. The administrator and recipient have an email account. Additional requirement: User is in the Master key menu.
  • Page 99 (3). Confirm (4) input. ð The e-mail for sending the remote authorisation is generated automatically. Enter the recipient's email address or select from the contact list. Send email. Receive remote authorisation 23.05.2018 blueCompact Electronics locking system...
  • Page 100 Manage locking system Fig. 81: Receive remote authorisation Open email account (1). Touch the link (2) to activate the remote authorisation. ð The app starts. Log on key Press button (3). blueCompact Electronics locking system 23.05.2018...
  • Page 101 Wink- haus-UID. ð The active key is authorised to lock for the speci- fied period (2). The information on the period of time for the locking authorisation requires Firmware version 200 or newer. 23.05.2018 blueCompact Electronics locking system...

  • Page 102: Reset Masterkey

    ð The Masterkey is reset and the Bluetooth connec- tion is ended. The former Masterkey can now be added to the system as an active key. Ä 6.3.1 “Add key to locking system” on page 69 blueCompact Electronics locking system 23.05.2018...

  • Page 103: Lock

    Ensure that the key's side struts fully fit into the cyl- inder slot. Turn key to the left 360° (single-turn cylinder) or 720° (two-turn cylinder). ð The door is locked. NOTICE! Damage caused by pulling out keys incorrectly. Pull the key out straight. 23.05.2018 blueCompact Electronics locking system...
  • Page 104 Lock blueCompact Electronics locking system 23.05.2018...

  • Page 105: Install Software Updates

    Damage caused by outdated software. Outdated software can lead to malfunctions and reduced burglary protection. – Import software updates onto all compo- nents in the locking system. – Ä Chapter 8.1 “Transfer data to the Masterkey” on page 105 23.05.2018 blueCompact Electronics locking system...
  • Page 106 Enter password (2). ð The Masterkey is connected to the app. If the firm- ware is out of date, a prompt appears (3) asking whether the firmware should be updated. Confirm prompt (3) by pressing Yes (4). blueCompact Electronics locking system 23.05.2018...
  • Page 107 Wait a few seconds. Activate Masterkey by pressing on the button. ð The Masterkey flashes yellow for a few seconds. Wait until the Masterkey flashes blue. ð The Masterkey can be connected to the app again. 23.05.2018 blueCompact Electronics locking system...

  • Page 108: Transfer Data To The Masterkey

    Masterkey” on page 105 Prerequisites: Software update has been displayed and executed in the App Store. Software updates have been installed on the Masterkey. – Ä 8.1 “Transfer data to the Masterkey” on page 105 blueCompact Electronics locking system 23.05.2018...
  • Page 109 A software update is available for active keys marked in red in Key menu (2). Install software update on the Use the adapter to connect Masterkey and active key. active key Open Key menu (1). Touch the active key concerned (2). 23.05.2018 blueCompact Electronics locking system...
  • Page 110 The active key flashes yellow for a few seconds and the key details (2) are shown. Confirm by pressing OK. ð Once the installation is complete, the active key switches off automatically. The software update is complete. blueCompact Electronics locking system 23.05.2018...

  • Page 111: Transfer Data To Cylinder

    Masterkey” on page 105 Prerequisites: Software update has been displayed and executed in the App Store. Software updates have been installed on the Masterkey. – Ä 8.1 “Transfer data to the Masterkey” on page 105 23.05.2018 blueCompact Electronics locking system...
  • Page 112 A software update is available for cylinders marked in red in Cylinder menu (2). Install software update on the cyl- Open Cylinder menu (1). inder Touch the cylinder concerned (2). Insert Masterkey (3) in the cylinder. blueCompact Electronics locking system 23.05.2018...
  • Page 113 Install software updates Fig. 89: Software update Press Yes (1) to start installing the software update. ð The software update is installed (2) and completed (3). 23.05.2018 blueCompact Electronics locking system...
  • Page 114 Install software updates blueCompact Electronics locking system 23.05.2018...

  • Page 115: Cleaning And Maintenance

    Check that the system cylinders and doors function correctly. Check the battery charge status in the locking system cylinders and replace bat- teries if they are low. Ä Chapter 9.2 “Replace batteries” on page 116 23.05.2018 blueCompact Electronics locking system...

  • Page 116: Replace Batteries

    Do not use force to press batteries into the battery compartment. – Only use Winkhaus original parts to replace batteries in cylinders. The battery charge status is displayed in the app when the battery is low. blueCompact Electronics locking system 23.05.2018...
  • Page 117 ð The battery charge status (5) low is highlighted in red. Replace battery. Ä Chapter 9.2.2 “Replacing the batteries in cylinder types 01, 04 MK and 05” on page 118 – Ä Chapter 9.2.6 “Replacing batteries in padlock 85” on page 127 23.05.2018 blueCompact Electronics locking system...

  • Page 118: Replace The Battery In An Active Key

    Battery compartment lid with O-ring ment set) 4 Retaining spring A Battery replacement set in packaging Contact strip The battery replacement set is supplied in a package (A) and contains the components in the photo (1 – 6). blueCompact Electronics locking system 23.05.2018...
  • Page 119 Use the replacement tool to turn retaining spring (1) 90° in the groove (5). ð The batteries have now been replaced and secured in the battery compartment. Fit cylinder. Ä Chapter 4 “Select and install cylinder” on page 41 23.05.2018 blueCompact Electronics locking system...

  • Page 120: Replace Batteries In Cylinder Type 02

    Remove used batteries (4). Fig. 96: Remove batteries ENVIRONMENT! Environmental damage is caused when you dispose of batteries incorrectly. Dispose of retaining spring (1), battery compartment lid (2), contact strip (3) and batteries (4) in the correct manner. blueCompact Electronics locking system 23.05.2018...

  • Page 121: Replace Batteries In Cylinder Type 04

    Replacement instructions Battery plug replacement tool Battery A Battery replacement set in packaging 4 Label The battery replacement set is supplied in a package (A) and contains the components in the photo (2 – 7). 23.05.2018 blueCompact Electronics locking system...
  • Page 122 Detach (3) thumb-turn. Fig. 99: Remove knob Disconnect battery plug Disconnect battery plug (1) with battery plug replace- ment tool (2). Unfasten screw (3) with enclosed screwdriver (T6). Fig. 100: Undo screw and battery plug blueCompact Electronics locking system 23.05.2018...
  • Page 123 Fig. 102: Insert battery Fit battery housing Place battery housing (2) in position. Fasten screw (1) with enclosed screwdriver (T6). Use replacement tool (4) to insert battery plug (3). Fig. 103: Insert screw and battery plug 23.05.2018 blueCompact Electronics locking system...

  • Page 124: Replacing The Batteries In Cylinder Types

    Replacement instructions Battery Screwdriver (T6) A Battery replacement set in packaging 4 Screwdriver (TX 20) The battery replacement set is supplied in a package (A) and contains the components in the photo (2 – 7). blueCompact Electronics locking system 23.05.2018...
  • Page 125 Take the used battery (2), including cable (1), out of battery compartment. Use replacement tool (4) to remove battery plug (3). ENVIRONMENT! Environmental damage is caused when you dispose of batteries incorrectly. Dispose of battery in the correct manner. Fig. 107: Remove battery 23.05.2018 blueCompact Electronics locking system...
  • Page 126 Fasten screw (1) with enclosed screwdriver (T6). ð The battery has now been replaced and secured in the battery compartment. Fit cylinder. Ä Chapter 4 “Select and install cylinder” on page 41 Fig. 109: Close battery compart- ment blueCompact Electronics locking system 23.05.2018...

  • Page 127: Replacing Batteries In Padlock 85

    Insert active key (4) into the padlock (1) cylinder. Activate active key (4) by pressing on the button (3). ð The LED display (2) on the active key lights up green and the cylinder can be locked. Fig. 111: Activate key 23.05.2018 blueCompact Electronics locking system...
  • Page 128 ENVIRONMENT! Environmental damage is caused when Fig. 114: Replace batteries you dispose of batteries incorrectly. Dispose of retaining spring (1), battery compartment lid (2), contact strip (3) and used batteries (4) in the correct manner. blueCompact Electronics locking system 23.05.2018...
  • Page 129 ð The cross bar (2) releases the shackle (1) and the lock opens. Swing shackle (1) to the side. Insert fixing screw (3) into the shackle hole (4) and screw firmly into place. Fig. 117: Tighten fixing screw into position 23.05.2018 blueCompact Electronics locking system...
  • Page 130 Cleaning and maintenance Lock padlock Close shackle (1). ð The fixing screw (3) secures the cylinder (2) into place in the padlock. Fig. 118: Lock padlock blueCompact Electronics locking system 23.05.2018...

  • Page 131: Fault Repair

    Ä Chapter 1.2.1.2 “Use internal power function” on page 20 Operate cylinder with external power function in an active key. – Ä Chapter 1.2.1.3 “Use external power function” on page 21 Operate cylinder with the Masterkey. 23.05.2018 blueCompact Electronics locking system...
  • Page 132 – Ä Chapter 4.2 “Determine cylinder type” on page 45 – Ä Chapter 4.3 “Determine cylinder length” on page 46 Masterkey lost. Block and replace Masterkey. Ä Chapter 10.2 “Masterkey loss” on page 133. blueCompact Electronics locking system 23.05.2018...

  • Page 133: Masterkey Loss

    Ä Chapter 6.7.1 “Forward locking plan manually” on page 94 Update active keys via the Identify key function. Ä Chapter 6.3.3 “Identify key” on page 72 ð The active keys are shown in the app. 23.05.2018 blueCompact Electronics locking system...
  • Page 134 Fault repair Fig. 119: Change key name Select key (1). Re-name key and assign a key colour. Ä Chapter 6.3 “Add and manage key” on page 69 blueCompact Electronics locking system 23.05.2018...

  • Page 135: Activation Card Loss

    ð The order code (2) and system number (3) are shown. You can use this information to order a new activation card from your specialist dealer. The new activation card (with new PUK card) is sent by post. 23.05.2018 blueCompact Electronics locking system...
  • Page 136 Fig. 121: Read in activation card Open the Master key menu. Scroll down in the menu. Touch Activation card lost (1). Touch Read in new card (2). Place Masterkey (3) on the activation card (4). blueCompact Electronics locking system 23.05.2018...
  • Page 137 Confirm prompt by pressing OK (1). ð The cylinder overview is shown. Connect all cylinders highlighted in red (2) to the Mas- terkey. Confirm prompt by pressing OK (3). ð The new activation card has been incorporated successfully. 23.05.2018 blueCompact Electronics locking system...
  • Page 138 Fault repair blueCompact Electronics locking system 23.05.2018...

  • Page 139: Spare Parts And Accessories

    Model 04 MK Model 05 Model 85 Battery replacement Model 21 493 423 3 set 21 Model 22 Battery replacement Model 04 296 951 0 set 04 Battery replacement set 493 114 0 aktive Key 23.05.2018 blueCompact Electronics locking system...
  • Page 140 Spare parts and accessories blueCompact Electronics locking system 23.05.2018...

  • Page 141: Disposal

    Take batteries to a local recycling collection point or have a waste management firm dispose of them. Dispose of cylinders and active keys correctly with electronic waste. Dispose of components without batteries or electronic waste in household waste. 23.05.2018 blueCompact Electronics locking system...
  • Page 142 Disposal blueCompact Electronics locking system 23.05.2018...

  • Page 143: Technical Specifications

    Battery Contained in the battery replacement set: Ä Chapter 11 “Spare parts and accessories” on page 139 Temperature at installation location +5 °C Min. +55 °C Max. IP protection rating IP54 VdS environmental class 23.05.2018 blueCompact Electronics locking system...
  • Page 144 Cylinder type 04 MK Dimensions Basic length Outside (A) 30.7 mm Inside (B) 30.7 mm Extension On both sides, increments of 5 mm Total length, maximum 180 mm Cam positions in key with- drawal position blueCompact Electronics locking system 23.05.2018...
  • Page 145 Battery Contained in the battery replacement set: Ä Chapter 11 “Spare parts and accessories” on page 139 Temperature at installation location -25 °C Min. +65 °C Max. IP protection rating IP54 VdS environmental class 23.05.2018 blueCompact Electronics locking system...
  • Page 146 IP protection rating IP67 VdS environmental class Cylinder type 22 Dimensions Basic length 30.7 mm Extension On one side, in 5 mm incre- ments Total length, maximum 80 mm Cam positions in key with- drawal position blueCompact Electronics locking system 23.05.2018...
  • Page 147 In this case, it may no longer be possible to close the cylinder with a passive key. Ä Chapter 2.4 “Safety when using cylinders in low tem- peratures” on page 31 23.05.2018 blueCompact Electronics locking system...
  • Page 148 T30 – T90 resistance class fire doors. Standards Winkhaus access control systems are developed and pro- duced in accordance with the applicable European stan- dards for access control systems. Standard Short description EN 50133-1 Functional requirements EN 50133-7 Planning rules blueCompact Electronics locking system 23.05.2018...
