Johannus LiVE III Quick Reference Manual

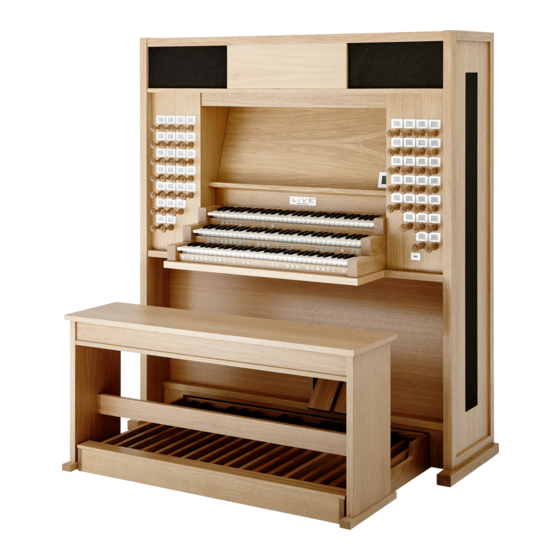

JOHANNUS LiVE III

OVERVIEW OF CONTROLS

A Sample Banks
B Tremulants
C Couplers
D Display
E Headphone connection
F SET
G
Capture Memory locations
H HR: Hand Registration
I HR+: Hand Registration +
J CR: Crescendo
K MB: Manual Bass
L CF: Cantus Firmus
M VOL.: General Volume
N TRANS.: Transposer
O - and + pistons

SWITCH ON

Switch on the organ with the on/off piston at the right, underneath the manuals. Wait several seconds.
The lights of the HR-piston and the as standard set functions light up. The settings appear on the display.
P ENTER
Q MENU
R 0: Reset
S Manual I
T Manual II
U Manual III
V
USB port
W On/Off piston
X Pre-Programmed Memory Locations
Y RO: Reeds Off
Z Listening Positions
AA MIDI registers
AB S/S: All Swells to Swell
AC SEQ- and SEQ+ pistons

ACCESSORIES

Reeds Off (RO):
Reeds Off is a function to switch off all reeds simultaneously.
Sequence - and + (SEQ- and SEQ+):
Sequence is a function to call up capture memory locations in a sequential way.
All Swells to Swell (S/S):
All Swells to Swell transforms the swell pedal for Manual III to a swell pedal for the whole organ.
If no expression pedal is configured as a swell pedal for Manual III, the S/S piston cannot be activated.
Hand Registration (HR):
Only when the HR-piston is activated you will be able to register manually. If you are unable to hear an organ
sound, after you have pulled a draw stop and pressed a key, please check if the HR-piston is activated.
Hand Registration + (HR+):
Only when the HR+ piston is activated, you can join your own registration to the fixed-, as well as to the capture
memory combinations.
Crescendo (CR):
Crescendo is a piston to activate the crescendo pedal.
If no expression pedal is configured as a crescendo pedal, the CR-piston cannot be activated.
Manual Bass (MB):
Couples the Pedal monophonic to Manual II. Only the lowest key that is played on Manual II is coupled from the
Pedal to Manual II.
Cantus Firmus (CF):
Couples Manual III monophonic to Manual II. Only the highest key that is played on Manual II is coupled from
Manual III to Manual II.

Transposer (TRANS.):

The Transposer function shifts the pitch by half-tone increments (from -8 to +8). The set pitch can be read on the
display (Trans:..).
- Press the TRANS. piston.
- Use the - and + pistons to set the pitch.

Reset function (0):

Pressing the 0-piston cancels all registrations.

JOHANNUS MENU (MENU):

In the Johannus Menu several functions of the organ can be set:
- Press the MENU piston to activate the Johannus Menu on the display.
- Navigate the menu with the - and + pistons.
- Confirm a choice with the ENTER-piston.
- Cancel or step back in the menu with the MENU-piston.
Quick Reference Guide
