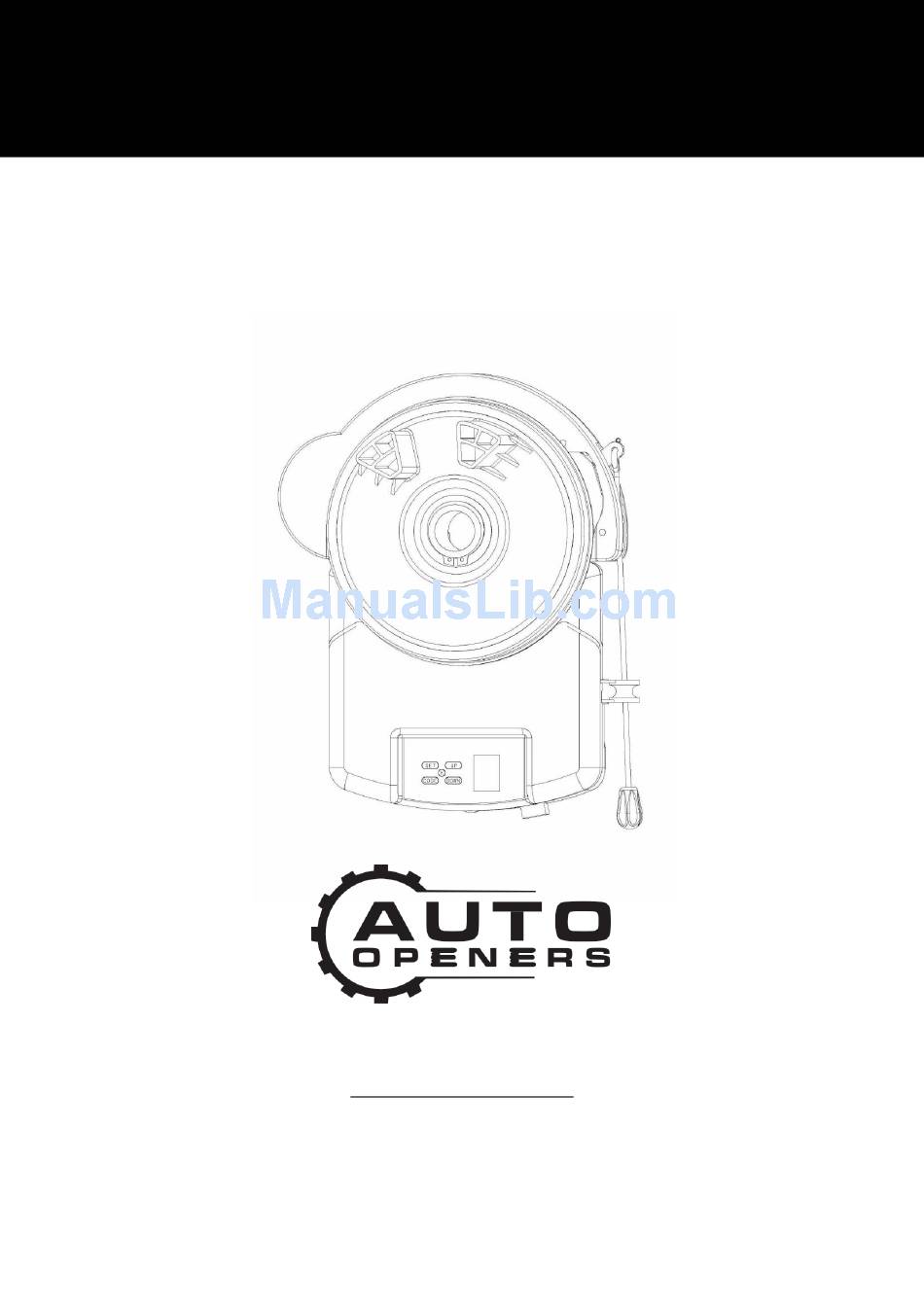

  • Page 1 Roll Master Instruction Manual To view our how to install video visit: www.autoopeners.com.au 1300 42 88 66...

  • Page 2: Table Of Contents

    Table of Contents Installation Instructions ........................4 1. Prepare The Door ........................... 4 2. Fixing of Door Weight Bars ........................4 3. Pinning of the Door ..........................5 4. Proping of the Door ..........................5 5. Fixing the Operator to the Door ......................6 6.
  • Page 3 Disconnect the power cord from mains power before making any repairs or removing covers. Only experienced service personnel should remove covers from the opener. • If the power supply cod is damaged, it must be replaced by an Auto Openers service agent or suitably qualified person. •...

  • Page 4: Installation Instructions

    Installation Instructions SAFETY INSTRUCTIONS FOR INSTALLATION Not following the installation instructions can lead to serious injury or equipment failure. Ensure you follow the steps carefully to avoid complications. SETUP REQUIREMENTS a. The opener must be installed in a dry location, protected from weather. Moisture and corrosion damage is not covered by warranty.

  • Page 5: Pinning Of The Door

    3. Pinning of the Door Pinning the door’s curtain to it’s drum maintains security when the opener is closed. If the curtain is not pinned the door can be partially opened manually. Screw into the low part of grove a. Fully close the door. b.

  • Page 6: Fixing The Operator To The Door

    Fixing the Operator to the Door Please note: The motor is designed to operate on the right side of the door by default. To reverse the drive for left hand side installation, press the set button and hold until the LED displays “5”. Using the “UP”...

  • Page 7: Setting & Operate Diagram

    6. Setting & Operate Diagram 1. Operate Button 2. PB/GND/PE/+24V terminal (For PE Beams / Receivers) 3. Manual Release Lever 4. Battery Backup Terminal 5. Programming Panel 6. K Button (Same as Operate Button) H. Hole for Battery Backup Connection...

  • Page 8: Door Travel Limit Setting

    Door Travel Limit Setting 1. Open the door by hand until the door touches the upper door stop (see fig 7). 2. Close the door by hand until the door touches the ground. 3. Push up the manual release lever and the motor will re-engage. 4.

  • Page 9: Coding Transmitter

    6. Press the RED operate button at the bottom of door operator or K button (FIG.9), confirm the up limit and down limits are correct. If not, please re-set the travel limits according to above processes until the limits are correct. CODING TRANSMITTER The operator should be under standby mode when coding remotes.

  • Page 10: Safety Reverse Force Adjustment

    Safety reverse force adjustment Press ‘SET’ button and hold on until the LED displays figure ’3’. Press ‘UP’ button to increase the force, Press the DOWN’ button to decrease the force. The maximum force is 9, the minimum force is 1. The default is 3. Display from ‘1’...

  • Page 11: Auto Close Setting (Optional)

    Please confirm the photocells are well connected and programmed and check if the door automatically reverses when encountering an obstacle during door closing. Cancelling the photocell function: Press the ‘DOWN’ button and hold on until the LED displays ‘H’. Press the ‘DOWN’ button until the LED displays 11’.

  • Page 12: Battery Backup Connection (Optional)

    Battery backup connection (OPTIONAL) It must use 24V DC 3.5Ah sealed lead acid battery. Please open the light cover to connect the wires of t h e battery with the battery backup terminal in the control board(Fig.12). The ‘H’ of Fig.11 is a hole for the battery connection wires to through.

  • Page 13: Common Troubleshooting

    Common Troubleshooting Symptom Possible reason Solution Mains power not switched on Switch on the main power The door does not move Remove the barrier The door is locked or motor Unlock the door jammed The door is obstructed Check the motor is turning The door won’t reverse when The force of the motor is set Decrease the safety reverse force...
  • Page 14 24V DC Motor no longer operational Motor fault Contact Auto Openers The door has met an obstacle Remove the obstacle 3 short beeps from buzzer means over-load protection Door twisted...

  • Page 15: Optional & Additional Accessories

    Roller Opener Instruction Manual Optional & Additional Accessories...
  • Page 16 •This Warranty is to be read in conjunction with the owner’s copy of the installation instruction manual. •In this warranty, ‘Auto Opener’s Representative’ means an entity authorized by Auto Openers to service Auto Openers products. Please check the Auto Openers website for details.

  • Page 17: Warranty Registration

    (b) No additional warranty will apply for Products repaired during the relevant warranty period. (c) Where the Product is sold by any person other than Auto Openers, except for the warranty set out above, such person has no authority from Auto Openers to give any warranty or guarantee on Auto Opener’s behalf in addition to the warranty set out above.
