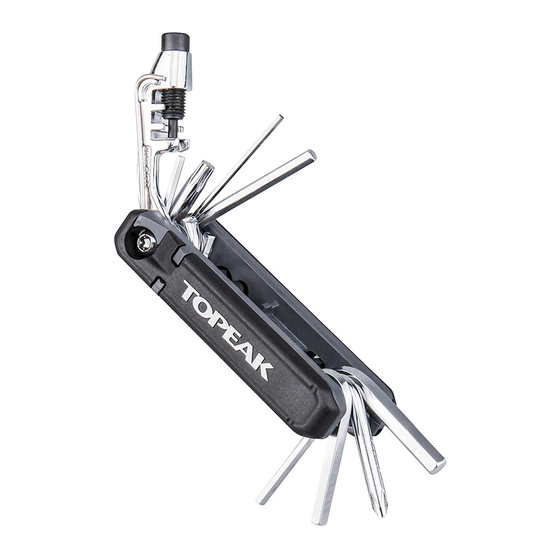

Topeak HEXUS X User Manual

Chain pin breaker
2 mm
Chain
Tool
T30
Torx
Chain
Hook
2.5 mm
T25 Torx
* The chain tool is compatible with
single and multi-speed chains up to 12
speed, NOT including Campagnolo® 11
speed hollow pin chains.
8 mm 5 mm 6 mm 5 mm

USING CHAIN TOOL

Press chain pin
as little as
necessary to
loosen the
stiff link.
HEXUS
4 mm
T15
3 mm
5 mm
4 mm 3 mm 2.5 mm 2 mm
Install new chain pin or remove old chain pin.
Primary Chain Secondary
Link Fence Chain Link Fence
Use Primary Chain Link Fence to install
or remove chain pin. Use Secondary
Chain Link Fence to loosen stiff links.
WARNING
When pressing in the chain pin, push down on the
top of the chain to keep it fully engaged in the
chain tool cradle. Make sure the press pin of the
chain tool is centered against the chain pin.
X
™
4mm for
8 mm
chain pin breaker
T25
6 mm
Phillips
4 mm Phillips T30
USER'S GUIDE
Presta Core tool
Tire Lever
T25 T15
1 4 g
+ +
4 mm 4 mm
4mm
Allen
key
Inspect chain rivet again and be
sure chain links can bend freely
after replacement.
EN
Air Pressure
Release Button
1 5 g
Chain Pin Tool
