trutankless TR Quick Start Manual

NOTE: The User Manual that came with your unit contains an expanded version of this guide with visual aids and additional information.
1 Affix enclosed mounting brackets to the wall where the unit will be located (mount to studs or use wall anchors).
The brackets need to be 10 inches apart. The brackets come supplied with two (2) truss head Phillips machine
screws.
Hang the unit using the four (4) slots on the back that fit over corresponding hooks on each wall bracket. Once
2
hung, install the two (2) truss head screws through the back of the unit into the bottom bracket – tightening with a
Phillips head screwdriver.
Attach incoming cold water supply (be sure to use the provided inlet screen) and outgoing hot water with
3
3/4" plumbing or hard piped with unions (if required by code a pressure relief valve may be necessary).
DO NOT USE PIPE DOPE. ONLY USE TEFLON TAPE.
4
Turn on the water to confirm no leaks are present.
Confirm the unit's DIP switch settings are in the correct position for the desired Maximum Amperage.
5
table on page 24 of the trutankless® User Manual for this step.
here if needed: trutankless.com/service-professionals
the "Digital Toolbox" section.

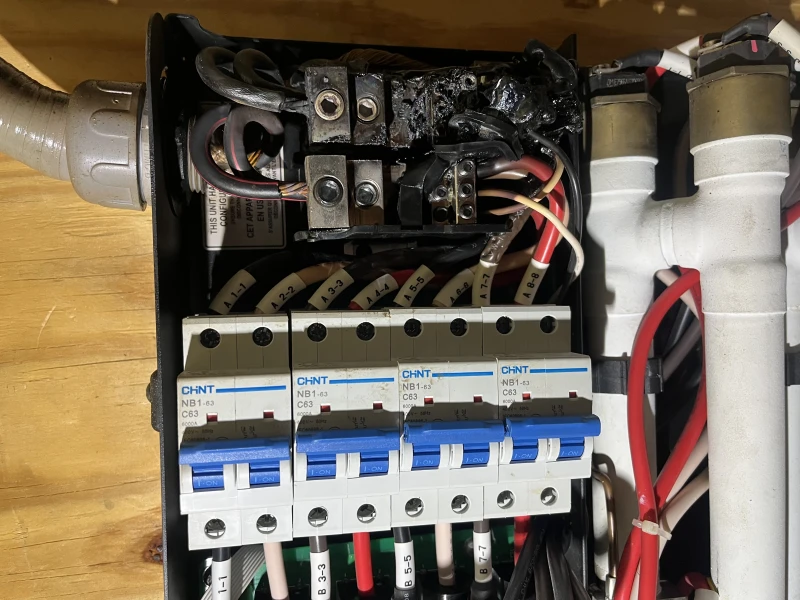

Connect both hot and ground wire(s). NOTE: Refer to the 'Electrical Connections' section in the User Manual for
6
breaker and gauge configurations based on your unit's kW setting. The unit's kW setting was determined in Step 5.
7
Turn main power circuit breakers "ON", check to be sure internal trutankless® unit breakers are in the "ON"
The unit forces the "Startup Lockout" step to ensure the heating elements do NOT dry fire. Open enough hot water
8
faucets inside the residence to achieve 1 GPM for a MINIMUM of 2 minutes.
in the DIAGNOSTICS Tab within the DATA Section of the trutankless® TR Unit.
complete, the unit will begin heating water. You can now turn the faucets off.
Attach provided Wi-Fi Antenna. See reverse side of this Quick Start Guide to register your TR unit
9
and connect to your home network.
trutankless® Residential Unit
TR
What's Included:
• trutankless® TR Unit
• 2 Mounting Brackets (Wall anchors NOT included)
• 2 Truss Head Phillips Machine Screws
• Cold Water Inlet Screen
• WiFi Antenna
Your unit's User Manual can also be downloaded
The download(s) are located near the bottom of the page in
NOTE: You can see the GPM output
Quick Start Guide
trutankless® TR Unit Installation
Reference the
Once the "Startup Lockout" is
