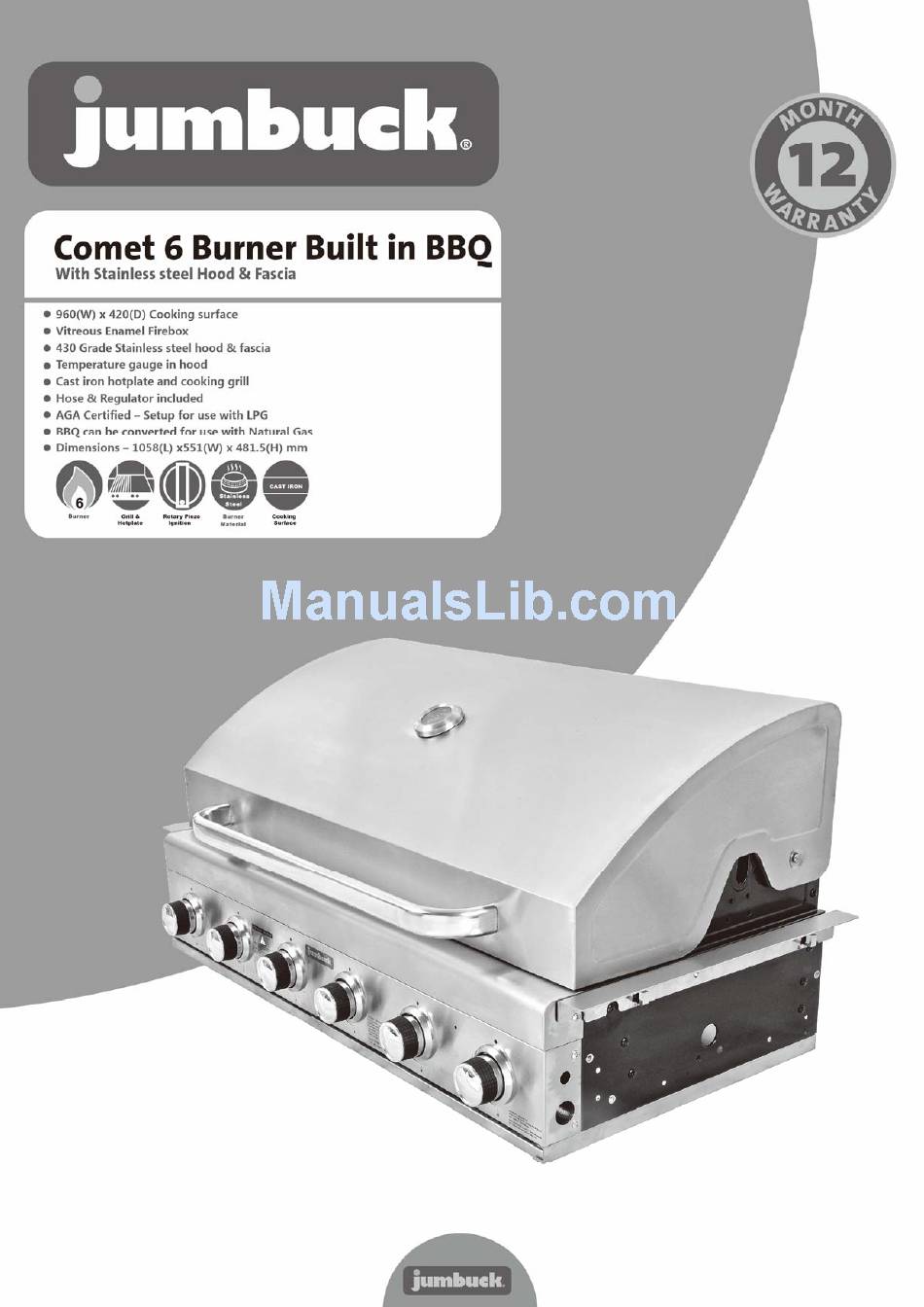

- Page 2 BBQ ASSEMBLY & OPERATION INSTRUCTIONS 6 BURNER BUILT IN BBQ – MODEL HS-16JCG601-B WARNING Important! Please read these instructions carefully before use! FOR OUTDOOR USE ONLY DO NOT OPERATE THIS APPLIANCE BEFORE READING THE INSTRUCTION BOOKLET DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE...
-
Page 4: Important Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT: Read the assembly instructions of this booklet before removing the contents of the carton. IMPORTANT SAFETY INSTRUCTIONS 1. This BBQ is an OUTDOOR APPLIANCE ONLY. It should NOT be used indoors. 2. READ ALL OPERATING INSTRUCTION BEFORE LIGHTING. 3. - Page 5 FOR YOUR SAFETY FOR YOUR SAFETY If you smell gas: 1. Do not store or use gasoline or other 1. Shut off gas to the appliance at the cylinder. flammable vapors or liquids in the vicinity 2. Open hood. of this or any other appliance. 3.
- Page 6 IMPORTANT This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. WARNING A strong gas smell or the hissing sound of gas indicates a serious problem with your BBQ or the LPG gas cylinder.
-
Page 7: Specification
SPECIFICATION LPG REGULATOR & HOSE ASSEMBLY (Supplied with BBQ) : 2.75kPa, POL type regulator and 8mm ID, Class A hose with 3/8SAE Female outlet. AGA approved. NATURAL GAS REGULATOR (Not supplied with BBQ): 1.0kPa, ½” Inlet and Outlet, AGA approved. NATURAL GAS HOSE ASSEMBLY (Not supplied with BBQ): 10mm ID, Class B or D, AGA approved. - Page 8 Assembly instruction steps...
- Page 9 1 Cooing grill 2 Hotplate 3 Warming rack 4 Firebox 5 Flame tamer 6 Firebox left support 7 Firebox right 8 Grease tray support Hardware Pack Bolt:M6*12 Screwdriver...
- Page 10 STEP 1 Assembly the firebox left support(6) and firebox right support(7) on the firebox by screw M6 12pcs as below...
- Page 11 STEP 2 Insert the grease tray (8) on the firebox as below STEP 3 Insert the flame tamer (5) on the firebox as below...
- Page 12 STEP 4 Insert the cooking grill (1) and hotplate (2) on the firebox as below STEP 5 Insert the warming rack(3) on the firebox as below...
- Page 13 Fully assembled BBQ...
- Page 14 Outdoor Areas Any enclosure in which the appliance is installed or used shall comply with one of the following: An enclosure with walls on all sides, but at least one permanent opening at ground level and no overhead cover. Within a partial enclosure that includes an overhead cover and no more than two walls. Within a partial enclosure that includes an overhead cover and more than two walls, the following shall apply: At least 25% of the total wall area is completely open;...
- Page 15 Both ends open OUTDOOR AREA-EXAMPLE 3 Open sides at least 25% of total wall area 30% or more in total of the remaining wall area is open and unrestricted OUTDOOR AREA-EXAMPLE 4 Open sides at least 25% of total wall area 30% or more in total of the remaining wall area is open and unrestricted...
-
Page 16: Installation
INSTALLATION CUT OUT DIMENSIONS The cut out must be made from non-combustible material only. The 400mm tall, non-combustible rear surface is not necessary provided there is no combustible material within 500mm of the rear of the BBQ. If the BBQ is supplied with a duplicate data label, apply this label in the immediate vicinity of the BBQ in an easily accessible area. -
Page 17: Leak Testing
CONNECTION TO LPG CYLINDER LEAK TESTING This should be done the first time you connect up the BBQ, and again each use. Always inspect the hose before each use. Connect the regulator to the LPG cylinder and tighten the connection. Turn the gas on at the cylinder, or make sure gas is available to the BBQ, but do not turn the burners on. - Page 18 CONNECTION TO NATURAL GAS This BBQ has been configured for use with LPG from a gas cylinder. If you want to connect this BBQ to a permanent Natural Gas supply, the following steps must be undertaken. 1/ Contact a licensed plumber or gas fitter and arrange a quote to convert this BBQ to Natural Gas, install any pipework necessary to bring a natural gas supply to the installation area and commission the BBQ.
-
Page 19: Lighting Procedure
LIGHTING PROCEDURE Lighting the BBQ is easy, but must be done with due care. Make sure the LPG cylinder is filled. Make sure that gas is turned on at the cylinder, or that gas is available to the BBQ. ... - Page 20 CONTROLLING THE FLAMES The knobs have three basic positions. You can achieve any flame height between low and high by rotating the knob between these positions. High High High High Note: ‘Light back’ is a situation where the flame burns inside the burner, towards the front, recognized by a sharp roaring sound coming from the burner.
-
Page 21: After Use
BBQ TIPS Before cooking, coat the hotplate with oil. This will prevent food from sticking. Light the burners and leave on high for about 3~5minutes to warm the BBQ up. Avoid continually turning the meat over. When cooking internal juices rise to the surface of the meat and then settle. -
Page 22: Periodic Cleaning
PERIODIC CLEANING Your BBQ will look better and last longer if you keep it clean. You should check the burners periodically for any sort of blockage. To do this, remove and inspect them. If any of the holes are clogged, gently tap the burner onto a hard surface to remove residue. Use a wire brush to unclog the holes. - Page 23 In addition please also complete the following steps to help prolong burner life. 1. Use a wire brush to clean the entire outer surface of each burner until free of food residue, and dirt 2. Clean clogged ports with wire, such as open paper clip. Inspect each burner after installation, check to ensure that the gas valve orifices are correctly placed inside the end of the burner tubes.
-
Page 24: Care And Maintenance
IMPORTANT This product is for outdoor use only. Do not use indoors. Do not use below ground level. Do not store gas cylinders below ground level. LP gas is heavier than air so if a leak occurs the gas will collect at a low level and could ignite in the presence of a flame or spark. -
Page 25: Product Warranty
PRODUCT WARRANTY Thank you for purchasing one of our quality Jumbuck products. Your Jumbuck product is covered against defects for a period of 12 months for parts and labour, repair or replacement. This warranty excludes surface rust and damage caused by abuse or neglect. - Page 26 Any repair does not extend the warranty Purchased from………………………………... period. Location……………………………………….. Any parts other than original Jumbuck parts will void this warranty. Model Name and Number…………………….. INSTALLATION CONDITIONS Date of Manufacture…………………………… All installations must conform to the Receipt number………………………………...
