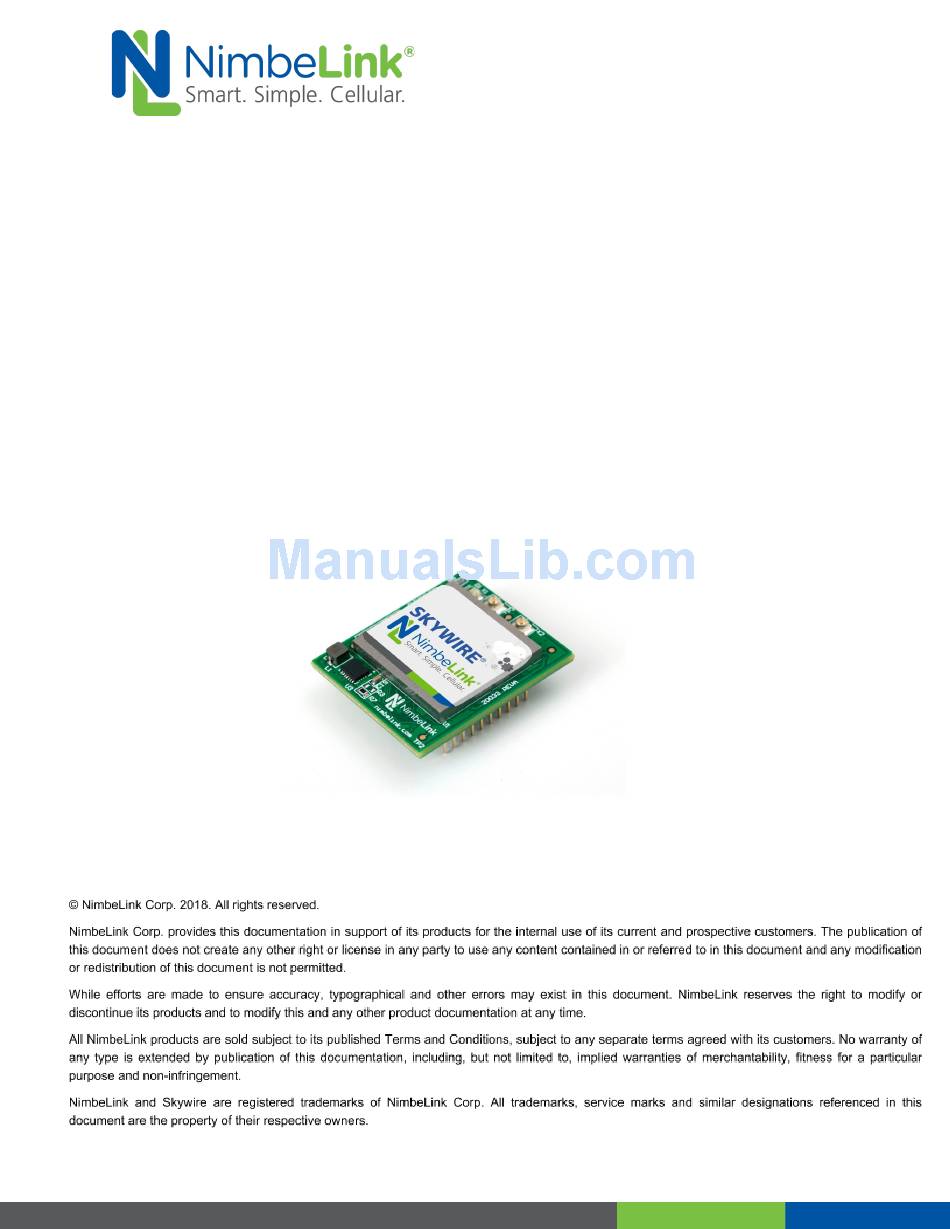

Page 1: User Manual
4G LTE CAT 1 & CAT 4 NL-SW-LTE-S7588 NL-SW-LTE-S7648 NL-SW-LTE-S7618RD Skywire ® Family User Manual NimbeLink Corp Updated: June 2018 PN 30229 rev 9 © NimbeLink Corp. 2018. All rights reserved. -
Page 2: Table Of Contents
2.14 Setup PDP Context 2.15 Test Network Communication 3. APN Setup 3.1 Introduction 3.2 Common Verizon APNs 3.2 Common AT&T/T-Mobile APNs 4. Common Next Steps 5. Additional Resources PN 30229 rev 9 © NimbeLink Corp. 2018. All rights reserved. -
Page 3: Introduction
● To connect the kit to a different processor or development kit, a 14-pin header breaks out the necessary signals for easy connection to any device. The modem supports I/O levels from 1.65-5.5V, simplifying connection to other systems. PN 30229 rev 9 © NimbeLink Corp. 2018. All rights reserved. -
Page 4: Block Diagram
Tiered data plans from Nimbelink can support any application from a few text messages a month to gigabytes of streaming data, and competitive pricing and automatic billing will appeal to both you and your customers. -
Page 5: Connect To Kit Using A Pc
USB2 in the diagram below. USB1 (connector J5) is used for high speed data connections and firmware updates to the modem and is not used in this section. The pictures used in this document show the NL-SW-LTE-S7588 Skywire. However, the setup, connections, and processes are identical across the entire NL-SW-LTE-S7xxx family of Skywire modems. -
Page 6: Unpack Kit Contents
2. Insert the SIM card into the SIM Card socket on the Skywire. The metal contacts should be inserted so they are facing the Skywire's circuit board. As shown in the image on the right. PN 30229 rev 9 © NimbeLink Corp. 2018. All rights reserved. - Page 7 5. Attach the U.FL cable to the top U.FL connector X1 on the Skywire. The x1 connection on the Skywire is for the primary cellular antenna. Attach a second antenna (sold separately, not pictured) to connector X2 to connect the diversity cellular antenna. PN 30229 rev 9 © NimbeLink Corp. 2018. All rights reserved.
-
Page 8: Attach Antenna To Baseboard
A properly mounted Skywire NL-SW-LTE-S7xxx modem with U.FL cable attached to top U.FL connector X1 2.3 Attach Antenna to Baseboard Antenna screws onto SMA connector with a clockwise rotation PN 30229 rev 9 © NimbeLink Corp. 2018. All rights reserved. -
Page 9: Ensure Header J6 Is Shorted With 2 Pin Jumper
This enables USB to UART communication between the PC and the modem. 2.5 Plug in 12V Power Supply to connector J15 -LED's D4 and D5 will illuminate on the development kit (not pictured) PN 30229 rev 9 © NimbeLink Corp. 2018. All rights reserved. -
Page 10: Plug Usb Cable Into Connector J14 And Pc
2.7 Press and hold button S1 to power on the modem Please see the table below for the length of time needed to hold down button S1 for your particular modem. PN 30229 rev 9 © NimbeLink Corp. 2018. All rights reserved. - Page 11 NOTE: Depending on your modem and depending on the setup, the modem may be available for use before t w NOTE: NL-SW-LTE-S7588-x modems will output ' + PBREADY ' onto the serial line after booting is complete. PN 30229 rev 9...
-
Page 12: Open Tera Term Or Similar Terminal Emulator
Enter key, and the terminal program should respond with: Type the following command: to verify you can see the command you are typing. After pressing the Enter key, the terminal program will respond with: PN 30229 rev 9 © NimbeLink Corp. 2018. All rights reserved. -
Page 13: Test Signal Strength
-15 dB ≤ RSRQ < -10 dB -90 dBm ≤ RSRP < -80 dBm 10 - 19 51 - 59 Good ≥ -10 dB ≥ -80 dBm 20 - 34 60 - 97 Excellent PN 30229 rev 9 © NimbeLink Corp. 2018. All rights reserved. -
Page 14: Activate Modem (One-Time Step)
To activate a data plan, visit http://go.nimbelink.com/ and subscribe to a data plan. Please see below pictures for the location of the IMEI PN 30229 rev 9 © NimbeLink Corp. 2018. All rights reserved. -
Page 15: Setup Pdp Context
2.14 Setup PDP Context Before you can successfully communicate with the network using a LTE Skywire, you need to define the PDP context. 2.14.1 For NL-SW-LTE-S7648 and NL-SW-LTE-S7588-T (AT&T/GSM Firmware): In the terminal program, type the command: AT+CGDCONT = 1,"IP","APN","",0,0,0,0,0,0 where ... - Page 16 S ierra AT Command Reference Guide for your particular error number. 2.14.2 For the NL-SW-LTE-S7618RD and NL-SW-LTE-S7588-V (Verizon Firmware): In the terminal program, type the command: AT+CGDCONT = 3,"IP","APN","",0,0,0,0,0,0 where A PN is the individual APN for your network, followed by the Enter key, and the terminal program should respond with: Note: Consult Section 3: APN Setup for help with your APN.
-
Page 17: Test Network Communication
For all other responses, review network status responses in the AT Command Manual. Reset power, and repeat steps 2.5 through 2.15 (as applicable) before moving on to Section 3. PN 30229 rev 9 © NimbeLink Corp. 2018. All rights reserved. -
Page 18: Apn Setup
If you activated your Skywire modem on h ttps://go.nimbelink.com , here are the following APNs to use: AT&T Service 10569.mcs PN 30229 rev 9 © NimbeLink Corp. 2018. All rights reserved. -
Page 19: Common Next Steps
Sierra's HL7618RD AT Command Manual ● Sierra's HL7648 Product Technical Resources ● Sierra's HL7648 AT Command Manual ● Sierra’s HL7588 Product Technical Resources ● Sierra's HL7588 AT Command Manual PN 30229 rev 9 © NimbeLink Corp. 2018. All rights reserved.
