INTRODUCTION
We thank you for purchasing this product. This drone is equipped with a camera that lets you take
pictures and video during the flight. It can be controlled either with the remote control up to a distance of
about 30 meters. It can also be controlled via WiFi directly from your smartphone with a range of about
15 meters and transmit real-time images captured by the camera.
To take full advantage of this product and use it safely, please read this manual before use. Please also
keep this manual for future reference.
WARNING
This product is not a toy. It is a high-tech device that requires accurate assembly and proper use to prevent
any accidents. The user of this device must use it responsibly and ensure not cause any damage to third
parties or to objects belonging to third parties.
This product is not suitable for children under 14 years.
Please use this product only in places where it is legally permitted.
Please refer to the legislation on the use of drones in your country.
Midrone can not be held responsible for any damage, loss, injury or death caused directly or indirectly
by the use of this product, part of the product or the information contained in this manual.
Please refer to our website www.midrone.com for more information.
SAFETY INSTRUCTIONS
The propellers in movement can cause more or less serious injuries, which is why you should never use
the drone near the crowd or flying too close to other people or animals.
Accidents can be caused by improper assembly of the drone or a lack of control, and also by the use of a
drone and / or damaged remote.
Users of this product should be aware of the risks of potential damage and should therefore use it with
great caution.
1. Avoid the crowds and obstacles : the speed and behavior of the drone can sometimes be unstable,
it is strongly advised to use it in places away from the crowds, tall buildings or trees, high voltage
cables, to prevent injury to the user or other persons or damages to the drone.
2. Do not fly the drone in bad weather (rain, wind, storm) to prevent damages or lost. Keep away
from wet places to avoid dis-functioning of electronic parts.
3. Do not use the drone if you're tired because the control requires maximum concentration. Be very
careful during learning until your control of the drone is acquired.
4. Keep the drone and the battery away from heat: this product is made of metal and plastic parts,
and electrical parts. Therefore it should not be exposed to high temperatures such as near fire, near

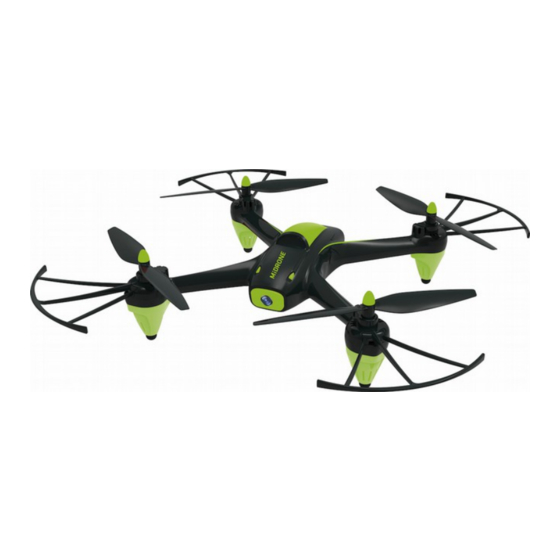

MiDRONE SKY 160 WiFi FPV
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SKY 160 WIFI FPV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MiDRONE SKY 160 WIFI FPV

  • Page 1 Please refer to the legislation on the use of drones in your country. Midrone can not be held responsible for any damage, loss, injury or death caused directly or indirectly by the use of this product, part of the product or the information contained in this manual.
  • Page 2: Description Of The Remote Control

    The drone may be controlled in two ways. Or via the supplied remote control with a range of about 30 meters, or directly through the MiDrone SKY 160 APP on your smartphone in WiFi with a range of about 15 meters. This feature will be detailed later in this manual.
  • Page 3: Battery Installation

    BATTERY INSTALLATION 1. Install batteries in the remote control The operation of the remote requires 4 AAA batteries (not included). Observe the battery polarity when inserting in the compartment at the back of the remote. Remove the batteries from remote control for a long period of non-use to avoid discharge and leakage.
  • Page 4: Manual Landing

    ONE KEY TAKE-OFF AND LANDING After performing the unlock procedure explained above, you can press the auto take-off button on the remote control. The drone’s blade will start to rotate slowly, then the drone will ascend automatically to the height of approx. 1,5 meter. When you press the one key landing button, the drone will descend slowly to the land.
  • Page 5 FORWARD / BACKWARD FLY (right joystick) SIDEWARD FLY (right joystick) FLYING MICRO ADJUSTMENTS (TRIM)
  • Page 6: Emergency Stop

    FLYING IN HEADLESS MODE (DIRECTION LOCK, HEADFREE) When this mode is enabled, the drone uses the direction it has stored at the time of synchronization and takes the pilot's position as a reference when using the right joystick on the remote. The movement front or back of this joystick will move away the drone or let it come closer from the pilot, and regardless of the orientation of the front of the drone.
  • Page 7: Protect Function

    PROTECT FUNCTION If the drone hit an obstacle during flying, the propellers will stop immediately to protect the motors, the drone will fall down vertically. If this happens, when you restart the drone, you will need to calibrate the gyroscope and start the unlock procedure again before new take off. ONE KEY RETURN The drone will return automatically to its starting point when you press the one key return button on the remote control.
  • Page 8 INSTRUCTIONS FOR USE IN WIFI MODE You can either control the drone by Midrone SKY 160 application on the smartphone, or mount the smartphone on the remote control and use the smartphone screen only for video transmission. This second option will be explained later in this manual.
  • Page 9: Control Interface

    CONTROL INTERFACE : 1. Return to previous screen 2. Press once to take a picture 3. Press once to start recording video. Press again to stop the video recording 4. Photo album : press to see your recorded photos and videos. 5.
  • Page 10 20. Throttle control (Altitude) 21/22 : Left / right turn 23/24 : Left / right side flying 25/26 : Forward / Backward flying 27/28 : Forward / Backward fine tune (TRIM) 29/30 : Left / right turn fine tune (TRIM) 31/32 : Left / right side flying fine tune (TRIM) FLIGHT WITH VIRTUAL JOYSTICKS Start-up...
  • Page 11 Forward / Backward fly Slide the ball of the right joystick up to fly the drone forward and slide down to fly it backwards. Left / right sideward fly Slide the ball of the right joystick left to fly the drone leftward and slide it to the right to fly the drone rightward.
  • Page 12: Flight Preparation

    FLIGHT PREPARATION First synchronize the drone with the remote control as explained earlier in this manual. Then start the Midrone 160 App on the smartphone and disable the display of joysticks on the control interface. You can now control the drone with the remote control and enjoy the video transmission on the screen of your smartphone.
  • Page 13: Warranty Conditions

    3. Return Product The product can be returned to your dealer or directly at Midrone after asking in advance a return number on the site www.MiDrone.eu. If the returned unit is out of warranty, no refund or exchange will be allowed.
  • Page 14: Technical Specifications

    The latest updates will be available on our website www.midrone.com. Our company shall under no circumstances be held liable for injury or damage caused by errors or omissions in this manual.
  • Page 15: Ce Declaration Of Conformity

    Brand : MiDRONE Item code: MIDR_SD160 Product description: R/C Drone MiDRONE SKY 160 is in compliance with the essential requirements and other relevant provisions of the European Directive This product has been tested with the listed standards and found in compliance with the RED 2014/53/EU.
