Lorex LBV4711 SERIES Quick Start Manual

Package Contents

• 4MP HD Bullet Security Camera
• Mounting Kit*
• BNC / Power Extension Cable*
• Power Adapter**
* Per camera in multi-camera packs.
** A multi-camera power adapter that provides power to multiple
cameras or individual power adapters may be provided depending on
product configuration.
ATTENTION:
A REGULATED UL / CSA APPROVED power supply is REQUIRED for use
with this camera (included). Use of a non-regulated, non-conforming
power supply can damage this product and voids the warranty.

Safety Precautions

• Read this guide carefully and keep it for future reference.
• Follow all instructions for safe use of the product and handle with care.
• Use the camera within given temperature, humidity and voltage levels
noted in the camera's specifications.
• Do not disassemble the camera.
• Do not point the camera directly towards the sun or a source of
intense light.
• Use only the supplied regulated power supply provided with the
product. Use of a non-regulated, non-conforming power supply can
damage the product and void the warranty.
• Periodic cleaning may be required. Use a damp cloth only. Do not use
any harsh, chemical-based cleaners.
• The supplied cable is rated for surface mounting only. Cables for in-wall
and floor-to-floor installations are sold separately (CMR type). These
and other cables are available at lorextechnology.com

Installation Tips

• Point the camera where there is the least amount of obstructions
(i.e., tree branches).
• Install the camera where vandals cannot easily reach.
• Secure cabling so that it is not exposed or easily cut.
• This camera is rated for outdoor use. Installation in a sheltered
location is recommended.

Disclaimers

• For a full list of compatible recorders, visit
lorextechnology.com/compatibility
• Not intended for submersion in water. Installation in a sheltered
location recommended.
Resources

Need Help?

Visit us online for up-to-date software and
complete instruction manuals
1
Visit lorextechnology.com
Search for the model number
2
of your product
Click on your product in the
3
search results
4
Click on the Downloads tab

Dimensions

2.8" / 71mm
6.3" / 161mm
Copyright © 2017 Lorex Corporation
As our products are subject to continuous improvement, Lorex reserves
the right to modify product design, specifications and prices, without
notice and without incurring any obligation. E&OE. All rights reserved.

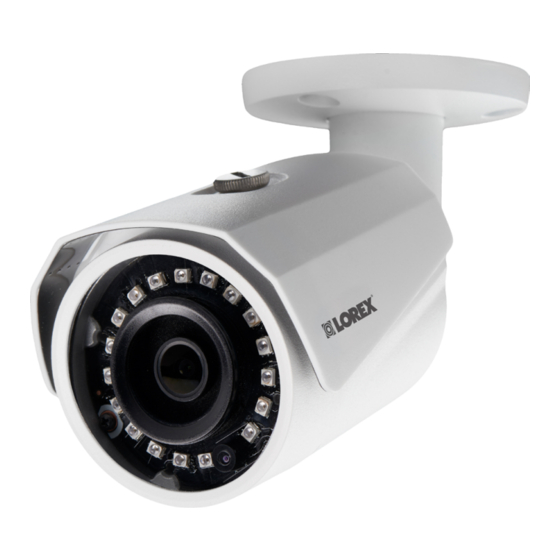

4MP HD Bullet Security Camera

Quick Start Guide

English Version 1.0
www.lorextechnology.com
LBV4711_QSG_EN_R1
LBV4711 SERIES
