Index PRECAUTIONS ..................3 General warnings ..................3 Safety warnings ................... 7 Installing and operating your fridge .............8 Before using your fridge ................9 PARTS OF THE APPLIANCE AND THE COMPARTMENTS ....10 HOW TO OPERATE THE APPLIANCE ........... 11 Thermostat setting ..................11 Warnings about temperature adjustments ..........
PART - 1. PRECAUTIONS Thank you for purchasing this product. Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions.
Page 4
- staff kitchen areas in shops, offices and other working environments. - farm houses and by clients in hotels, motels and other residential type environments. - bed and breakfast type environments; - catering and similar non-retail applications. • If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.
Page 5
• Before performing any operation, unplug the power cord from the power socket. • The refrigeration system positioned behind and inside the Wine Coolers contains refrigerant. Therefore, avoid damaging the tubes. • If in the refrigeration system a leak is noted, do not touch the wall outlet and do not use open flames.
Page 6
• Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction. • Do not place objects and/or containers filled with water on the top of the appliance. • Do not perform repairs on this Wine Coolers. All interventions must be performed solely by qualified personnel.
Notes: • Please read the instruction manual carefully before installing and using your appliance. We are not responsible for damage due to misuse. • Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve problems that may occur in the future. •...
• Do not cover the body or top of fridge with lace. This affects the performance of your fridge. • Do not operate any electrical appliances inside the refrigerator or freezer. • Fix the accessories in the fridge during transportation to prevent damage to accessories. Installing and operating your fridge Before starting to use your fridge, you should pay attention to the following points: •...
Before using your fridge • When it is operated for the first time or after transportation, keep your fridge in the upright position for 3 hours and plug it on to allow efficient operation. Otherwise, you may damage the compressor. •...

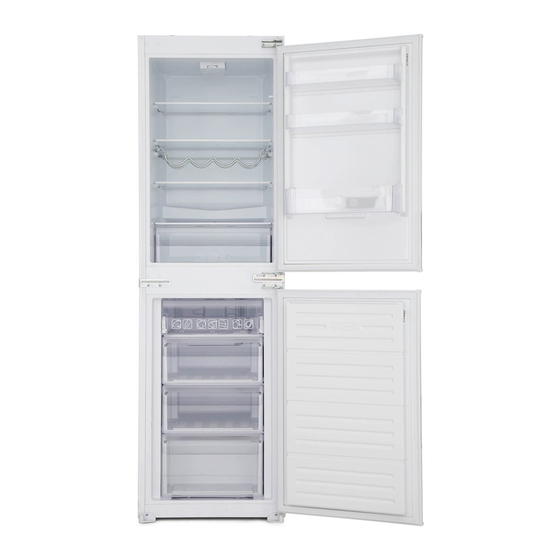

PART - 2. PARTS OF THE APPLIANCE AND THE COMPARTMENTS This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model. A) Refrigerator compartment 6) Freezer room cover B) Freezer compartment 7) Freezer comp.
HOW TO OPERATE THE APPLIANCE PART - 3. Thermostat setting The freezer thermostat automatically regulates the inside temperature of the compartments. By rotating the knob from position 1 to 5, colder temperatures can be obtained. Important note: Do not try to rotate knob beyond 1 position it will stop your appliance. Freezer &...
Accessories Ice tray • Fill the ice tray with water and place in freezer compartment. • After the water completely turned into ice, you can twist the tray as shown below to get the ice cube. Bottle holder In order to prevent the bottles slipping or falling over you can use the bottle holder. All written and visual descriptions in the accessories may vary according to the appliance model.
PART - 4. FOOD STORAGE IN THE APPLIANCE Refrigerator compartment The refrigerator compartment is used for storing fresh food for a few days. • Do not place food in direct contact with the rear wall of the refrigerator compartment. Leave some space around food to allow circulation of air. •...
PART - 5. CLEANING AND MAINTENANCE • Disconnect the appliance from the power supply before cleaning. • Do not pour water over the appliance. • The refrigerator compartment should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water. •...
• When there is more than 5 mm of frost on the shelves, defrosting must be done. • Before defrosting operation, place the frozen food in a cool place after wrapping them in sheets of newspaper in order to obtain its temperature steady for long time. •...
PART - 6. SHIPMENT AND REPOSITIONING • The original packaging and foam may be kept for re-transportation (optionally). • You should fasten your fridge with thick packaging, bands or strong cords and follow the instructions for transportation on the package for re-transportation. •...
• If you won’t be using your refrigerator for a long time (such as on summer holidays), please disconnect the plug from the socket. Clean your refrigerator as per Part 4 of this document and leave the door open to prevent any humidification or odor formation. •...
Page 18
SCRAPPING OLD APPLIANCES This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.
Page 19
ELECTRICAL CONNECTION (FOR UK TYPE PLUG) For your safety please read the following information Warning: This appliance must be earthed. This appliance operates from 220-240 volts and should be protected by a 13 amp fuse in the plug. The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp fuse. Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and approved to BS1362.
