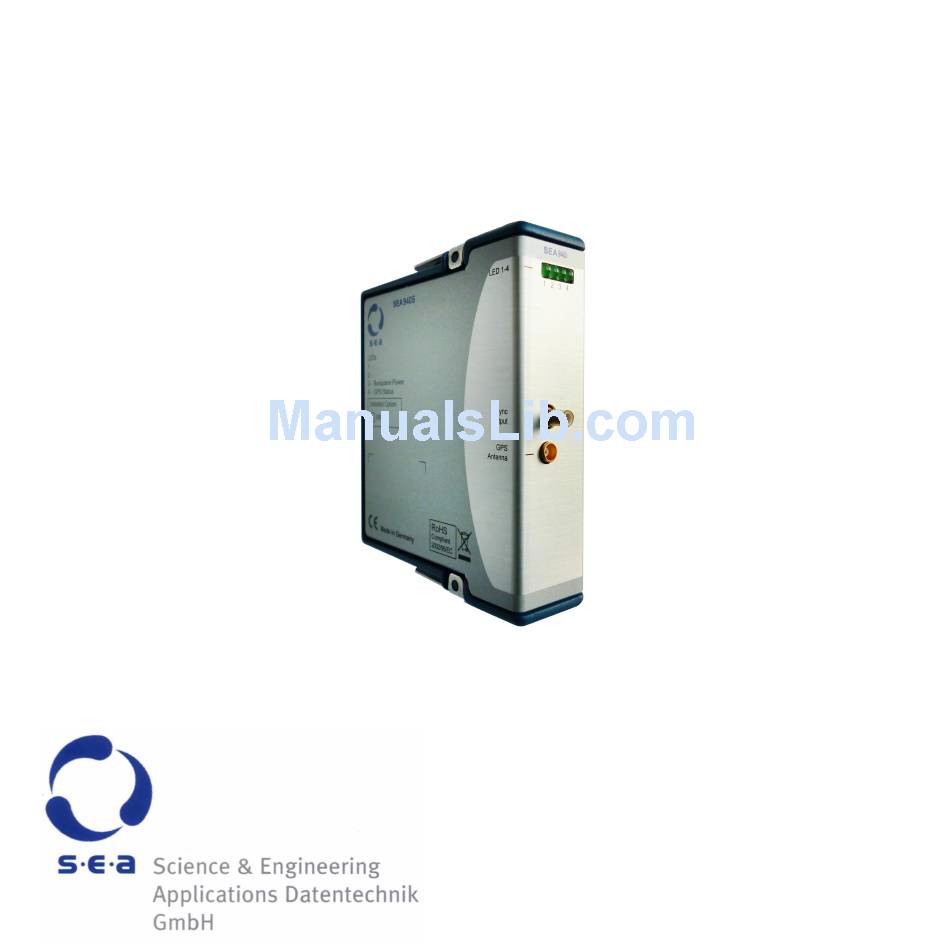

- Page 1 Hardware Manual - Operation Instructions and Safety Guidelines SEA 9405 GPS Module Doc. No.: Hb SEA 9405/2.0.0/Jul/ 13...
-
Page 2: Table Of Contents
Overview................6 Safety Guidelines ..............8 Safety Guidelines for Hazardous Locations ......9 Operator Protection..............10 Prerequisites.................11 Installing................12 Front Side Connectors............13 Wiring the SEA GPS Module...........15 Receiver Operation and Antenna Installation ......16 Sleep Mode................17 LED Indicators...............17 Specifications...............18 Power Requirements & Operating Current......18 Physical Characteristics............19 Maintenance.................19... - Page 3 Shock and Vibration.............23 Contact Information .............24 Operating Instructions...
-
Page 4: Getting Started
Getting Started Before starting to work with the SEA 9405 GPS Module please read the complete hardware and software user manual and the following informa- tion carefully. We believe that all information in this manual is accurate. The document has been carefully reviewed for technical accuracy. In the event of technic-... - Page 5 For information about installation, configuration, programming or operation of the SEA 9405 GPS Modules, please refer to the SEA 9405 GPS Modules software manual. Operating Instructions...
-
Page 6: Overview
Option available Option not available The SEA 9405 module provides a battery switch on the side. Using the switch the battery can be switched On or OFF. The battery should be switched OFF, when module is not conneted to a power supply (i.e. - Page 7 These operating instructions describe how to use the SEA 9405 GPS Mod- ule. For information about software installation, configuration, program- ming of the Compact RIO system, please read the related software user manual carefully. This manual describes the hardware operation and related issues.
-
Page 8: Safety Guidelines
Safety Guidelines Operate the SEA GPS Module only as described in this operation instruc- tions and the SEA GPS Module user manual. Please check the S.E.A. web- site for updates of this manual or technical specifications. Hot or Cold Operated in hot or cold environments less than 10 Surface °C or higher than 30 °C the metallic surface of the... -
Page 9: Safety Guidelines For Hazardous Locations
Safety Guidelines for Hazardous Locations The SEA GPS Modules are suitable for use in non hazardous locations only. If unsure contact your vendor. Please note: Do not use for medical applications. Do not use for autonomous navigation and/or control of any vehicle (e.g. -
Page 10: Operator Protection
It is not allowed to use the system for any kind of medical applica- tion or live supporting apparatus. All SEA GPS Modules may not be operated in hospitals or similar environments. Keep the module and the antenna at least 1 meter away from hu- man bodies during operation. -
Page 11: Prerequisites
Prerequisites To use the SEA GPS Module within the National Instruments Compact RIO system the following additional hardware is required: National Instruments Compact RIO system: NI CompactRIO reconfigurable embedded system Real-Time controller, NI CompactRIO chassis or a compact controller ... -
Page 12: Installing
Installing Before inserting the SEA 9405 GPS Module in the CompactRIO chassis, please disconnect any connectors to the CompactRIO system and switch- off the power supply. Make sure working in an ESD safe environment. Front Side Connectors The SEA 9405 GPS Module offers the following connectors and indicators:... - Page 13 four status LEDs (1) Sync Output connector (2) GPS antenna connector (3) Fig. 1: Connector Side Operating Instructions...
-
Page 14: Wiring The Sea Gps Module
Wiring the SEA GPS Module Follow the steps described below to connect the peripheral components to the front side of the SEA 9405 GPS Module. 1. Disconnect the CompactRIO system 2. GPS antenna Connect the GPS antenna to the GPS antenna connector socket. -
Page 15: Receiver Operation And Antenna Installation
The antenna has to be properly mounted at the desired location. If a roof antenna is used, the antenna has to be dismounted when light- ning strikes are likely. The SEA GPS Module and any antenna or cabling is NOT protected against lightning strikes or any over-voltage. Do NOT oper- ate the transmitter or antenna during thunderstorms, and keep the an- tenna away from any kind of elevation. -
Page 16: Sleep Mode
Do not open or disassemble the SEA GPS Module, antenna or other hardware parts. Sleep Mode The sleep mode can be enabled for the CompactRIO system by software. In sleep mode typically there is no communication with the module. Power consumption is minimized. -
Page 17: Specifications
The GPS Module is powered by the Compact RIO backplane connector (5 Power Requirements & Operating Current Module Type Backplane current [A] typical sleep SEA 9405 0.06 0.004 With active GPS-Patch antenna connected The Sync Output connector supplies a TTL compatible voltage and current level. Operating Instructions... -
Page 18: Physical Characteristics
Physical Characteristics Weight 170-175 g Size Overall 8 0 x 23 x 87 mm Maintenance The module should only be wiped with a dry towel. It is not water resist- ant. The module does not contain components, which have to be serviced by the end customer. -
Page 19: Electromagnetic Compatibility
Electromagnetic Compatibility For EMC compliance, it is recommended to operate the SEA GPS Module with original and shielded antenna cabling only. For further information please refer to: www.sea-gmbh.com In order to satisfy the essential requisite of the R&TTE 99/5/EC directive, the SEA 9405 GPS Modules are compliant with the following standards: ... - Page 20 To meet the RF exposure rules and regulations above: The antennas used for this receiver have to be installed to provide a separation distance of at least 1 m from persons and must not be co-located or operating in conjunction with any other antenna or receiver/transmitter.
-
Page 21: Environmental Conditions
Environmental Conditions SEA 9405 GPS Modules are intended for indoor use only. For outdoor use, mount the CompactRIO system in a suitable rated enclosure. Refer to the installation instructions for the chassis used for more information about meeting these specifications. -
Page 22: Shock And Vibration
Shock and Vibration To meet these specifications, the module has to be panel mounted. Operation vibration: random (IEC 60068-2-64) , 10 to 575 Hz Operation vibration, sinusodial (IEC 60068-2-6) 5 g , 10 to 575 Hz Operation shock, (IEC 60068-2-27) 15 g, 11 ms half sine, 30 g, 11 ms half sine, 50 g, 3 ms half sine,... -
Page 23: Contact Information
Contact Information S.E.A. Datentechnik GmbH is located at: Mülheimer Straße 7 53840 Troisdorf Germany For support check the S.E.A. Datentechnik GmbH website: http://www.sea-gmbh.com or use: email: techsupport@sea-gmbh.com telephone: + 49 2241 12737 - 0 fax: + 49 2241 12737 – 14...
