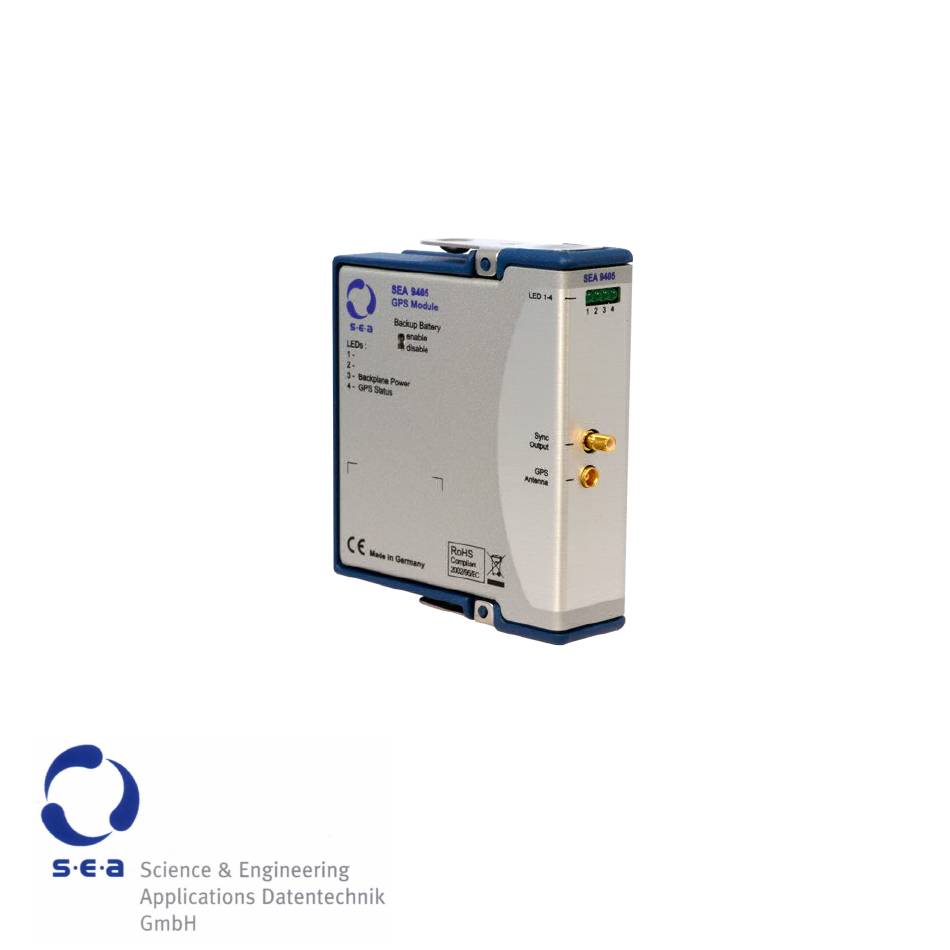

- Page 1 Hardware Manual – Operation Instructions, Safety Guidelines and Specifications SEA 9405 GPS Module for CompactRIO™ Part No.: 60000201 Doc. No.: HB/SEA 9405 Hardware Manual/3.1.a/Feb-2019...
-
Page 2: Table Of Contents
Getting Started...............3 General...................3 End User License Agreement (EULA)..........4 Safety Guidelines..............5 Operator Protection.................5 Safety Critical Applications.............6 Hazardous Locations...............6 Hazardous Voltages.................7 Prerequisites.................8 Connecting SEA 9405..............9 LEDs (1)..................10 Sync Output (2)................10 GPS Antenna (3)................11 Backup Battery (4)................11 Sleep Mode................14 Specifications...............15 Certifications................18 Contact and Support.............20... -
Page 3: Getting Started
To determine the safety ratings and specification of the entire system refer to each component in the system. Before starting to work with the SEA 9405 module please read this docu- ment and the software manual carefully. If there are any questions about operating the module or if any term is not understood, please contact the vendor before using the module. -
Page 4: End User License Agreement (Eula)
The reader should consult the vendor if errors are suspected. End User License Agreement (EULA) Before operating the SEA 9405 and the provided software you have to agree to the terms and conditions (EULA). This agreement is part of the software installation procedure. -
Page 5: Safety Guidelines
Safety Guidelines To protect persons against any harm and the module from damage, the operation of the SEA 9405 module is only allowed according to the rules described in this document. Operator Protection Hot or Cold Surface The metallic surface of the module might be- come hot or cold as well. -
Page 6: Safety Critical Applications
Keep the module and the antennas at least 1 meter away from hu- man bodies during operation. Safety Critical Applications The module is not failure tolerant and therefore not suitable for use in safety critical applications. Do not use the module for medical applications or any live sup- porting apparatus. -
Page 7: Hazardous Voltages
Hazardous Voltages A voltage is hazardous when higher than 25 V or 60 VDC to earth ground according to IEC 60364-4-41 (SELV). If the module specifications al- low to connect hazardous voltages to the module, take the following pre- cautions, when connecting hazardous voltages to the module: Make sure that only qualified personnel wires hazardous voltage adhering to local electrical standards. -
Page 8: Prerequisites
S.E.A. shop at shop.sea- gmbh.com Software driver – available as a free download from the support • area at www.sea-gmbh.com The SEA 9405 module can currently be operated in the following Com- pactRIO™ systems: Reconfigurable Chassis (RIO chassis) • Expansion Chassis: all types •... -
Page 9: Connecting Sea 9405
Connecting SEA 9405 The SEA 9405 is a GPS module for stationary and mobile usage. It pro- vides position data for global localization on earth, as well as precise time base for timing and synchronization purposes. The module is designed to be operated in a FPGA - based RIO chassis only. -
Page 10: Leds (1)
LEDs (1) The LEDs on the front side indicate the status of the module. The meaning of each LED is described in the table below: LED # Meaning unused unused Backplane Power - is steady on when power (through the back- plane connector) is present GPS Status - flashes with Timepulse frequency when GPS re- ceives valid data. -
Page 11: Gps Antenna (3)
Connect only an- tennas which are proven to work with these modules. Refer to the S.E.A. web shop at http://www.sea-gmbh.com for compatible antenna types. If a roof antenna is used, the antenna has to be dismounted when light- ning strikes are likely to happen. - Page 12 This feature significantly speeds up the availability of the first valid GPS data after a power-up, because the module does not need to collect the almanac again, which can take several seconds or minutes. This option requires that the location of the GPS antenna didn't changed significantly since the last switch- off.
- Page 13 the storage conditions (temperature, humidity...). As a general rule: a storage period of 4 weeks is achievable under normal envir- onmental conditions, when the battery is fully charged before. Hardware Manual...
-
Page 14: Sleep Mode
Sleep Mode This module supports a low-power sleep mode. In sleep mode typically there is no communication with the module and the power consumption is minimized. The system thermal dissipation may decrease. Refer to the Specifications section for more information about power consumption and thermal dissipation. -
Page 15: Specifications
Specifications The following specifications are typical for the nominal temperature of 20 °C unless otherwise noted. GPS Characteristics Number of Channels Frequency Band GPS L1 Cold Start Acceleration Yes (Backup Battery) Time-To-First-Fix Cold Start, w/o Battery Cold Start w/ Battery Max. - Page 16 Timepulse Accuracy ± 50 Timepulse Logic 0 to 0.3 High 0.7 to 5 Power Requirements Operating Voltage (RIO chassis) Operating Current Typical Sleep Mode Physical Characteristics Weight ca. 175 Dimensions 80 x 23 x 88 Environmental Conditions Operating Temperature °C -25 to +60 Storage Temperature °C...
- Page 17 Ingress Protection IP 30 Operating humidity 10 to 90 Shock and Vibration Operating Vibration Random (IEC 60068-2-64) , 10 to 575 Sinusoidal (IEC 60068-2-6) 5 g, 10 to 575 Operating Shock (IEC 60068-2-27) 15 g, 11 ms half sine, 30 g, 11 ms half sine, 50 g, 3 ms half sine, (10 shocks at 6 orientations) Tab.
-
Page 18: Certifications
Certifications For EMC compliance, it is only allowed to operate the SEA 9405 with ori- ginal and shielded antenna cabling only. For further information about an- tennas and cabling please refer to our website: http://www.sea-gmbh.- This product meets the essential requirements of the... - Page 19 This product is conform with the following European Union directives (RE-D): 2014/30/EU (EMC) • 2014/35/EU (Health & Safety) • 2014/53/EU (Radio) • The conformity is assessed in accordance with the fol- lowing standards (test pending): EN 301 489-1 v2.1.1 (EMC) •...
-
Page 20: Contact And Support
Contact and Support Address S.E.A. Datentechnik GmbH Muelheimer Strasse 7 53840 Troisdorf Germany Support channels website: http://www.sea-gmbh.com email: techsupport@sea-gmbh.com phone: + 49 2241 12737 – 0 fax: + 49 2241 12737 – 14 Hardware Manual...
