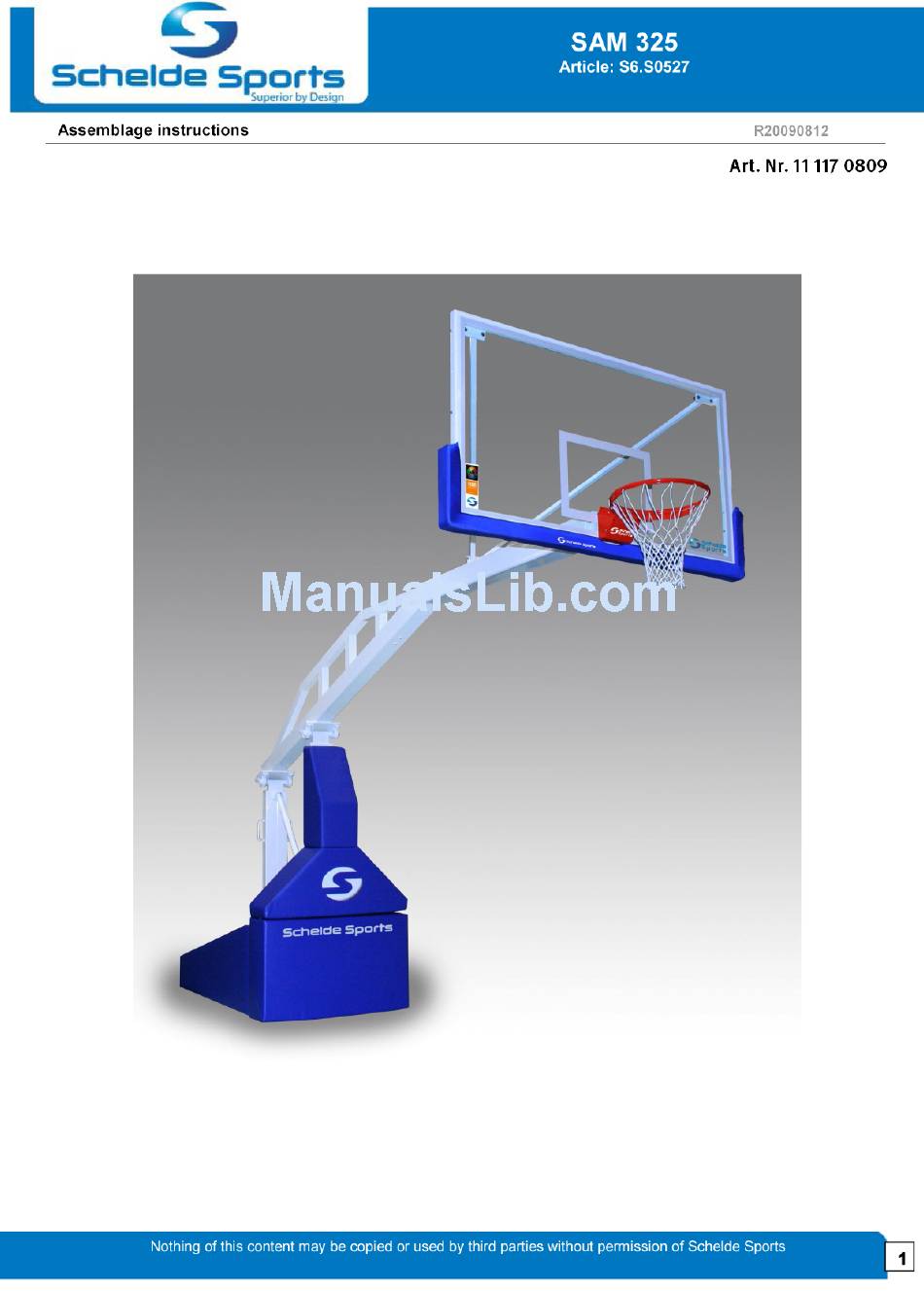

    SAM 325 Article: S6.S0527 Assemblage instructions R20090812 Content. General information How to use this manual Warning Introduction Assembly instructions Options Service Nothing of this content may be copied or used by third parties without permission of Schelde Sports...

  • Page 3: General Information

    The unit is supplied in parts; padding set with two hinges, backboard, V-brace, backboard padding, ring and net, partly mounted unit and a set mounting material. Nothing of this content may be copied or used by third parties without permission of Schelde Sports...

  • Page 4: Assembly Instructions

    Tighten the bolts firmly. Mount the ring with the two bolts Step 3. M10x100 and nuts. Use washers on both sides, tighten firmly. Nothing of this content may be copied or used by third parties without permission of Schelde Sports...
  • Page 5 Mount the carriage bolts to the two Step 6. upper corners of the backboard (two in each corner), mount the nuts hand tight. Nothing of this content may be copied or used by third parties without permission of Schelde Sports...
  • Page 6 The backboard can be adjusted by the M16 nuts mounted to the lug at the main beam. Tighten the nuts firmly. Nothing of this content may be copied or used by third parties without permission of Schelde Sports...
  • Page 7 The paddings and the covers can be mounted now, the paddingset consists out of: Step 13. one front padding hinged, one front padding (on the yoke), two side paddings. Nothing of this content may be copied or used by third parties without permission of Schelde Sports...
  • Page 8 Slide the hinges at the front of the unit Step 14. Mount the front padding to the hinges, Step 15. Mount the front padding on the yoke Step 16. Nothing of this content may be copied or used by third parties without permission of Schelde Sports...
  • Page 9 SAM 325 Article: S6.S0527 Assemblage instructions R20090812 Mount the side paddings, one left, one right Step 17. Nothing of this content may be copied or used by third parties without permission of Schelde Sports...

  • Page 10: Options

    7. Service. Export: Schelde Sports België Ph. De Denterghemlaan 50 B-9831 Deurle +32 (0)9 2825271 +32 (0)9 2828468 Internet www.scheldesports.be E mail sport@scheldesports.be Nothing of this content may be copied or used by third parties without permission of Schelde Sports...
