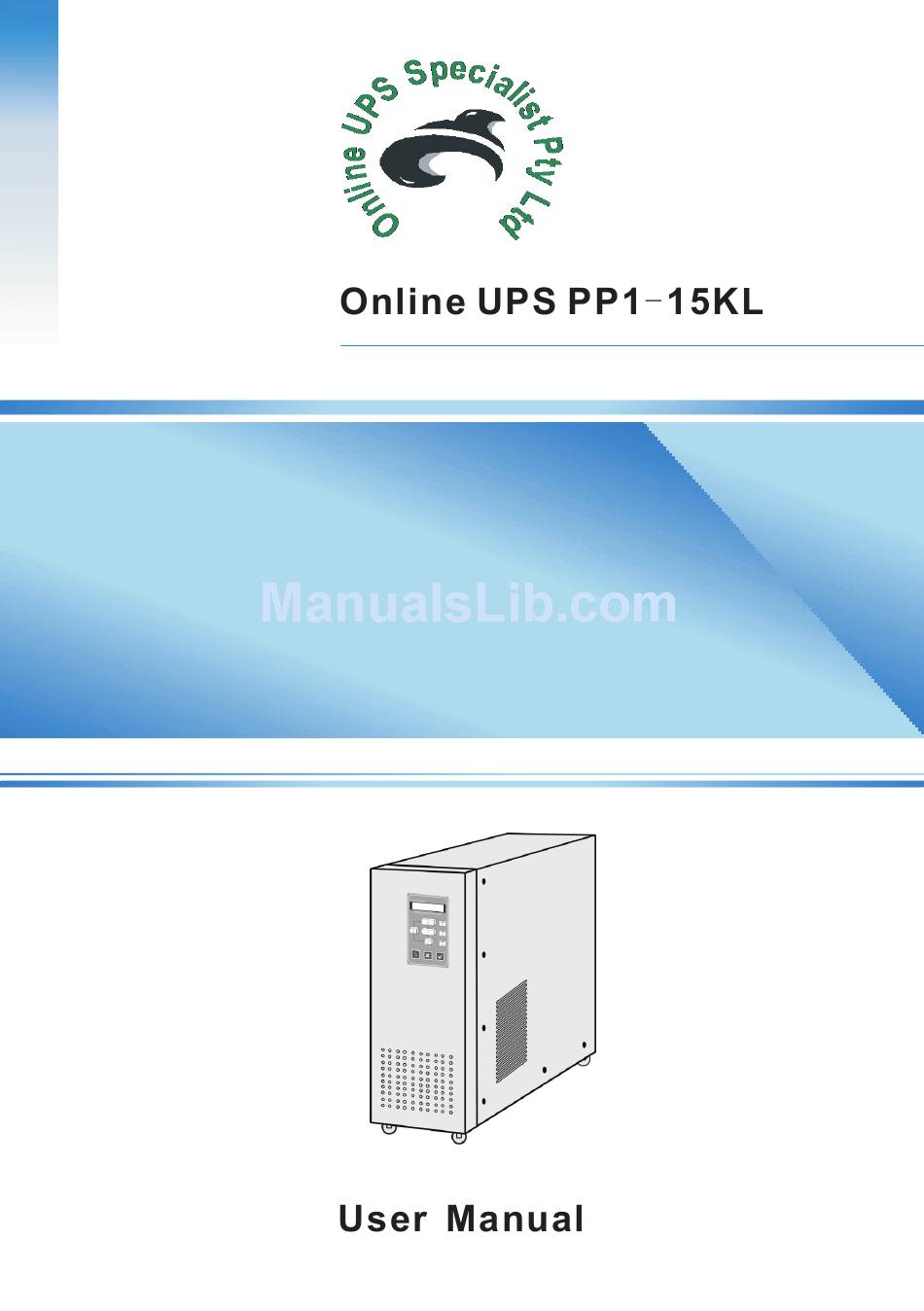

Online UPS Specialist Pty Ltd PP1KL User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Summary of Contents for Online UPS Specialist Pty Ltd PP1KL

  • Page 2: Table Of Contents

    Contents CONTENTS......................I BRIEF INTRODUCTION................1 ..................1 ROLEGOMENON .................1 IVE DESIGN POINTS ......................1 CONFIGURATION AND FUNCTION ............3 ...................3 RONT PANEL ....................5 PPEARANCE PLACEMENT NOTES..................6 ..................6 RANSIT OR MOVE .....................6 LACEMENT INSTALLATION ...................9 .......................9 NPUT ....................13 UTPUT OPERATION PROCESS ................16 ..............16 REPARE BEFORE START ..........16 PERATION PROCESS FOR FIRST START ........18...
  • Page 3 ........28 RUNNING WAY WHEN RUNS NORMALLY ........29 RUNNING WAY WHEN UTILITY DISCONNECTED ......29 RUNNING WAY WHEN RUNS ON BYPASS MODE ................30 ATTERY AND CHARGE ................31 AILY MAINTENANCE COMMUNICATION INTERFACE............32 SPECIFICATION ..................34 SHIPPING LIST ..................36 - ii -...

  • Page 4: Brief Introduction

    1 BRIEF INTRODUCTION 1.1 Prolegomenon The product is designed specially aiming at the requirement of MINI and MICRO level computer with exquisite quality and excellent function, easy to operate. With the development of customer office automatism and computerism, considering the bulk and the position of positing space, the noise disturbance to personnel in office, the light, thin, short and small product is our design direction, and we stress low noise.
  • Page 5 7. Do not use UPS on the condition of overload to avoid UPS fault 8. Please carefully keep the manual for the future reference 9. Please handle the system according to “ABNORMITY HANDLING PROCESS” if there presents any abnormal phenomenon in machine. 10.

  • Page 6: Configuration And Function

    2 CONFIGURATION AND FUNCTION 2.1 Front panel 1) Welcome screen WELCOME ××××××××× 2) Display of system status ××××× ××KVA. 3) Display of input voltage value* ON LINE IN： 220V 4) Display of input frequency value* ON LINE FRE：50Hz - 3 -...
  • Page 7 5) Display of output voltage value* ON LINE OUTPUT： 220V 6) Display of output frequency value ON LINE OUT FRE：50Hz 7) Display of output power Percent ON LINE LOAD： 8) Display of battery voltage value ON LINE BATTERY： 218V 9) Temperature display in machine ON LINE TEMP：...

  • Page 8: Appearance

    2.2 Appearance Figure 2 Front panel Figure 3 Rear panel ① Emission heat ventilation hole: The ventilation hole and other small long elliptic ventilation holes should be kept good ventilation. ② Wiring inlet/outlet hole: Wiring inlet/outlet hole of input, output and battery pack. ③...

  • Page 9: Placement Notes

    3 PLACEMENT NOTES 3.1 Transit or move 1. Please dismantle all barge connection firstly. (First turn off before performing) 2. Place lightly and carefully, forbid to hit. 3. Please do not move UPS inverted. 3.2 Placement 1. Do not place the UPS on the slope or scraggy land. (Figure 4) 2.
  • Page 10 4. Please keep away from fire source and high temperature to avoid over-high temperature. (Figure 8) 5. Do not lay goods on the UPS. (Figure 9) 6. Do not install UPS in the place where contains caustic gas. (Figure 10) 7.
  • Page 11 - 8 -...

  • Page 12: Installation

    4 INSTALLATION 4.1 Input 1. Prohibit using general household socket, because the Max. current of general socket is 15A, the socket may be burned down because of overload. 2. Please connect UPS input terminal to utility power in nearby switchboard. Figure 11. Note: Don’t make anti-connection of polarity - 9 -...
  • Page 13 3. Position and way of connect (1) Remove two screws with “+” screw-driver (Figure 12) (2) Open the back panel and inspect the wiring terminal below the power switch. (Figure 13) 4. Relock the special cover after completing connection. 5. Please first fetch in the power cables of input, output and batteries pack through inlet/outlet hole of distribution electricity and then barge connect to terminal plate.
  • Page 14 - 11 -...
  • Page 15 8. The comparison list of input current rating and input cable size is as follows: Model Max. input current Input wire Terminal specification Online UPS PP1KL 12AWG 5.5~6 Online UPS PP2KL 10AWG 5.5~6 Online UPS PP3KL 10AWG 5.5~6...

  • Page 16: Output

    live and keep safety. 13. Please follow the electrician law when installation. 14. Avoid using the same switch with other equipment when connect to switchboard, try to connect cable to utility terminal. Figure 14. 15. In 3Ø4W system, please respect-Tively measure the voltage between R/N,S/N,...
  • Page 17 3. Output power cable is designed according to load current, do not use over-thin cable. Please refer to Table 2 Model Max. output current Output cable Terminal specification Online UPS PP1KL 12AWG 5.5~6 Online UPS PP2KL 10AWG 5.5~6 Online UPS PP3KL 10AWG 5.5~6...
  • Page 18 origination point in switch- board. Please refer to figure 16. * Please install wiring according to input voltage system purchased Please contact professional personnel or our service department if there is problem in installation. 4.3 DC input wiring 1. DC input connection please refer to AC input installation rules. 2.

  • Page 19: Operation Process

    5 OPERATION PROCESS 5.1 Prepare before start-up. To make UPS normally and correctly run, please confirm the following items. (Refer to figure 2) 1. Verify power switch on back panel is on the “OFF” position. 2. Verify the installation position again. (Figure 4 to 10) 3.
  • Page 20 2. Press the “ON” button on front panel. As right figure. The input indicator bypass indicator are solid on. LCD display is lit on. Output is utility powered via bypass. Figure 19 3. After 20s, input indicator light on front panel is lit on, bypass indicator is off, and output indicator is lit on.

  • Page 21: Operation Process For Routine Turn-Off

    5. Utility indicator will be lit on when UPS input power source is resumed. Press the LCD display cycle switch button to switch items displayed, inspect if the display value is normal, thus first startup procedure has been completed. Please measure output voltage and see if it meets the requirement, then connect load to UPS output terminal.

  • Page 22: Status Handling

    6 STATUS HANDLING 6.1 symbol signification Note: If indicator light flash, the flash period is synchronal with that of buzzer sounds 6.2 UPS run status indication and handling ways when normal Please refer to indicator on UPS panel, LCD indicator value and buzzer sound, you can know if UPS running is normal, if abnormal, please refer to the handling way according to panel indicator status.
  • Page 23 2. panel indicator status is as the right figure : (1) UPS running status: Utility is normal, UPS runs normally battery capacitor is above 90%. (2) Handling way: needn’t handling. Figure 23 3. panel indicator status is as the right figure: (1) UPS running status: Utility supplies power of...
  • Page 24 5. panel indicator status is as the right figure: (1) UPS running status Utility power is normal and it converts to utility mode. UPS don’t start up if didn’t press the “ON” button down on the UPS panel. (2) Handling way: Please deal with it refer to status dealing flow Chart 2.
  • Page 25 7.panel indicator status is as the right figure: (1) UPS running status: Utility power is normal, UPS runs abnormally and convert to be utility powered. (2) handling way: Please refer to flow Chart 4 of status handling. Figure 28 8.panel indicator status is as the right figure: (1) UPS running status: Utility power is disconnected, UPS is battery powered and load...
  • Page 26 9.panel indicator status is right figure: (1) UPS running status: Utility power is disconnected and battery powered. Buzzer beeps once every one second when battery power will be exhausted. (2) Handling way:UPS will be shut down, please save files and close your computer. Figure 30 10.panel indicator status is right figure: (1) UPS running status:...
  • Page 27 Flow chart 1 of status handing - 24 -...
  • Page 28 Flow chart 2 of status handing - 25 -...
  • Page 29 Flow chart 3 of status handing Flow chart 3 of status handing - 26 -...
  • Page 30 Flow chart 4 of status handing - 27 -...

  • Page 31: Movement Handling

    7 Movement handling 7.1 UPS system configuration block Figure: figure 32 Figure 32 7.2 UPS running way when UPS runs normally When UPS runs normally, after high-frequency harmonic noise in utility power is filtered by the filter, on one hand utility power charges battery pack via the inverter and keeps battery power on full voltage level, on the other hand utility power is converted into DC power via the rectifier and is converted into pure sine wave power via the inverter, finally power is...

  • Page 32: Ups Running Way When Utility Disconnected

    7.3 UPS running way when utility disconnected As figure 34, when utility disconnected, power is battery supplied to the inverter then is sustention transmitted to user equipment for using via the static switch and the filter to avoid power disturbance to load. Figure 34 7.4 UPS running way when UPS runs on bypass mode There are five kinds of status when UPS runs on bypass mode(Figure...

  • Page 33: Battery And Charge

    Figure 35 7.5 Battery and charge 1. When power switch on back panel is on the position of “ON”, the batteries can automatically be charged and the charger can charge 90% of the battery capacity after 10 hours. 2. The time that battery supplies power has relation with using rate of load, please refer to figure 36.

  • Page 34: Daily Maintenance

    bold to install the battery to avoid any danger. 4. Please keep the battery full voltage level to extend the battery life. 5. There are many electron components and there also present high voltage in UPS, so non-technician can’t open the panel of UPS to avoid any danger.

  • Page 35: Communication Interface

    8 Communication interface 8.1 The great mass of computer system have equipped UPS to avoid system failure and datum damage due to utility power fault, you can monitor and control the power status through the connection between the communication interface and UPS. 8.2 You can get UPS status through the connection between computer and RS232 communication interface on back panel of UPS.
  • Page 36 Figure 37 8.4 UPS’ hardware equipment RS232 appearance, figure 38 The pin of UPS’ RS is the following: PIN2: RS232 RXD PIN3: RS232 TXD PIN5: GND Figure 38 - 33 -...

  • Page 37: Specification

    9 SPECIFICATION Online Online Online Online Online Online Online Online Online Online Model PP1KL PP2KL PP3KL PP4KL PP5KL PP6KL PP8KL PP10KL PP12KL PP15KL AC input Voltage 176V~264VAC Frequency 50(60) Hz ±5% Phase Single Max. AC output Voltage 220V/230V/240V Frequency 50(60) Hz Voltage ±1%...
  • Page 38 Online Online Online Online Online Online Online Online Online Online Model PP1KL PP2KL PP3KL PP4KL PP5KL PP6KL PP8KL PP10KL PP12KL PP15KL Internal protection equipment LCD panel UPS automatically shutdowns when battery is low power level, there is no fuse switch Battery protection.

  • Page 39: Shipping List

    10 Shipping list Order Consent Number «UPS user manual» Intelligent monitoring software RS232 Computer port cable - 36 -...
