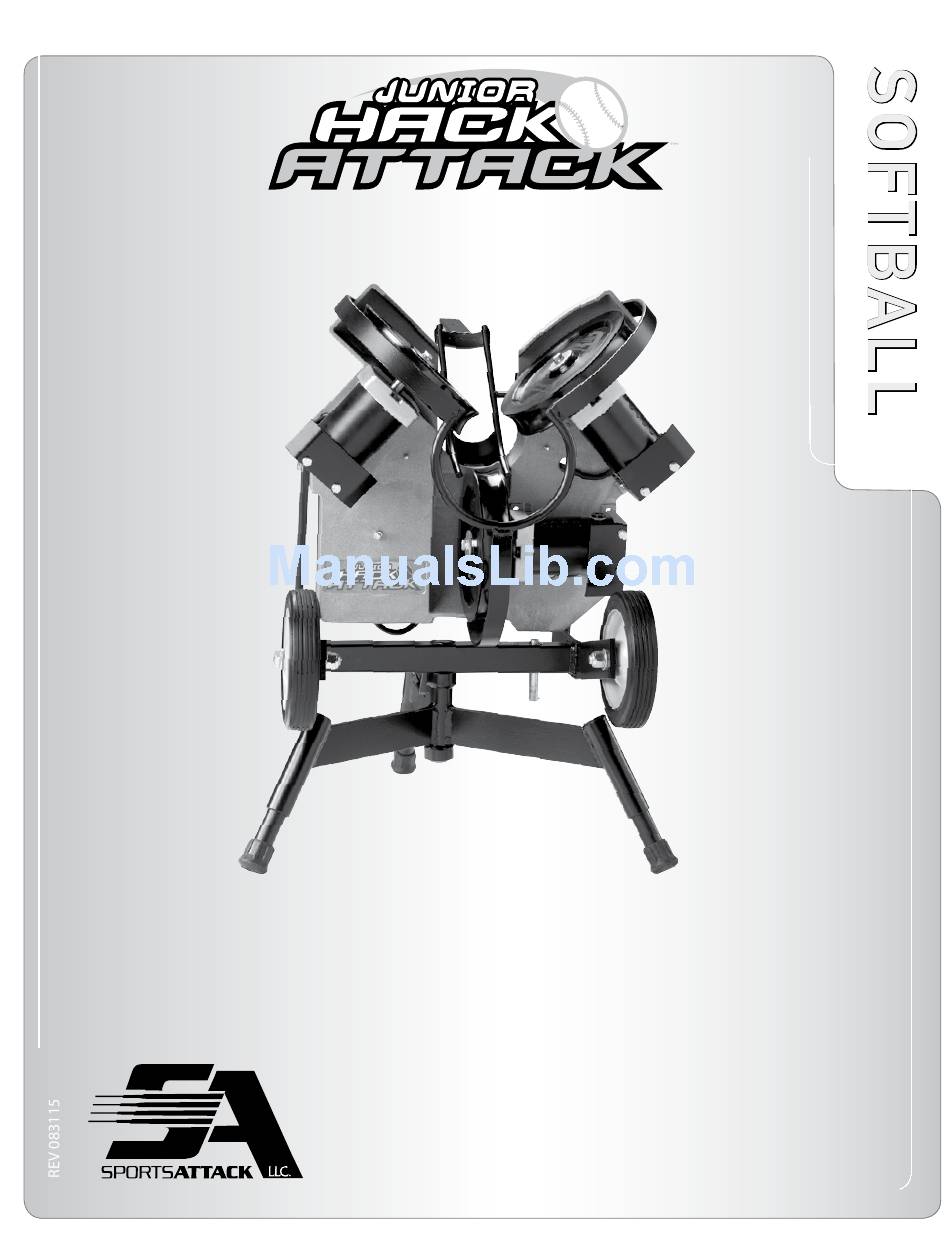

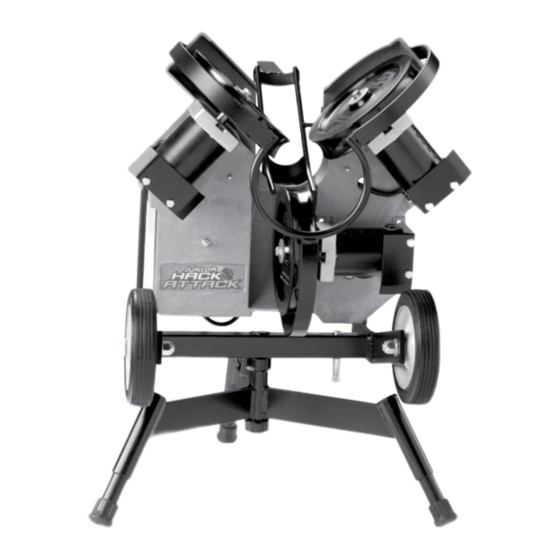

- Page 1 SOFTBALL PITCHING MACHINES JUNIOR HACK ATTACK™ PITCHING MACHINE PATENTS APPLIED FOR INSTRUCTION MANUAL Includes: OPERATION · SETUP · USE & CARE · SERVICE S P ORT S AT TAC K , LLC. 8 00-717 -4 251 sport sattack .c om •...
- Page 2 WARRANTY STATEMENT To register the Warranty, What is most important to Sports Attack is that your machine meets your expectations of please go to our website: quality and performance. We stand behind the material and workmanship of our machines www.sportsattack.com/war-...
-
Page 3: Table Of Contents
This manual contains the information needed to properly set up the Junior Hack Attack, and to use, care for and maintain the Junior Hack Attack in a manner which will ensure its optimum performance. -
Page 4: Safety Instructions
A loose swivel lock can allow a CAUTION: Carefully check Junior Hack Attack for completeness and condition before pitch to be inside which could hit the batter. connecting to electrical power: 1. - Page 5 The horizontal swivel lock must be securely tightened before the batter approaches the plate. ALWAYS test and adjust the Junior Hack Attack before a batter steps up to the plate: 1. Adjust so that Junior Hack Attack throws a ball across the plate.
-
Page 6: Features & Operating Controls
Keep your back straight and lift with your legs. Be ready to grab the wheel guard Figure 4 Carefully tilt Junior Softball Hack and guide Junior Hack Attack into the upright position (See Figure 3). Attack up onto its rear legs... -
Page 7: Set-Up & Preparation
6. See Figure 3 on page 4. Walk around to the front of Junior Hack Attack, and, with your back to home plate, GENERATOR INFOR- reach down and grasp the wheel guards. Then, lift machine up and over the front legs and set it gently onto the rear leg. -
Page 8: Batting Practice
*This is the average setting for a Little League fastball. it is connected to electric power. 3. Check again to make sure no one is in front of Junior Hack Attack or anywhere near Clear all hitters away from home the batter’s box. - Page 9 Never loosen the horizontal swivel will receive. lock while pitching to a batter. Discard old or soft leather balls from your Junior Hack Attack batting sessions. Similarly, If the lock is not secure, the throwing discard older worn synthetic pitching balls.
-
Page 10: Fungo (Fielding Practice)
Store horizontal swivel lock in storage nut (See Photo D). plate, the batter’s box and the By using the handle on the end of the ball chute, you can easily pivot Junior Hack Attack backstop area before connecting to aim at any point on the field. -
Page 11: Shutting Down
Tighten just enough to secure the throwing head. It is not necessary to over tighten. 3. Using the rear leg as a handle, tip Junior Hack Attack up and over onto the wheel guard. 4. Remove (unsocket) both front legs. Remove (unsocket) rear leg and insert the long transport leg. -
Page 12: Care, Cleaning & Maintenance
EXAMINE THE MACHINE Examine Junior Hack Attack for condition and completeness before every use: 1. For batting practice, be sure the horizontal swivel lock is secured. 2. Throwing wheels must be tight on the motor shafts. Check that the keyway retaining bolts are tight. -
Page 13: Component Replacement
COMPONENT REPLACEMENT Hold wheel while loosening bolts. THROWING WHEEL REPLACEMENT 1. Turn the on/off switch “OFF” and unplug the power cord. For the bottom throwing wheel, remove three (3) bolts holding the ball chute to the main casting. 2. Hold the wheel so that it cannot move. Turn the keyway retaining bolt counter-clockwise using a box-end wrench. - Page 14 COMPONENT REPLACEMENT (cont’d) CONTROLLER REPLACEMENT 1. Turn the on/off switch “OFF” and unplug the power cord. 2. Remove four screws holding controller faceplate into main casting. Note the position of the main power and motor wires on the controller, then disconnect the wires. See Figure 12 on page 12 for the three motor wires.
-
Page 15: Component View
COMPONENT VIEW Cane Tip Softball Leg Undercarriage Assembly Swivel Handle Travel Wheel Yoke Assembly Frame Pin Elevation Tension Spring Elevation Screw Throwing Head Casting Wire Clamp Motor, Variable Speed (with Key, Bolt & Washer) Throwing Wheel Softball Chute Assembly Wheel Guard Assembly Grommet, Wiring Control Panel Plate Speed Control Knob... -
Page 16: Exploded View
EXPLODED VIEW Cane Tip Softball Leg Undercarriage Assembly Swivel Handle Travel Wheel Yoke Assembly Frame Pin Elevation Tension Spring Elevation Screw Throwing Head Casting Cable Clamp Motor, Variable Speed (with Key, Bolt & Washer) Throwing Wheel Softball Chute Assembly Wheel Guard Assembly Grommet, Wiring Control Panel Plate Speed Control Knob... -
Page 17: Parts List
PARTS LIST To order additional parts, please contact: REF#s PART NO. DESCRIPTION Sports Attack 533-0002 Cable Clamp Customer Service Dept. 800-717-4251 280-1001 Cane Tip (775) 345-2883 232-0002 Circuit Breaker (New Style Square) 232-0007 Circuit Breaker (Old Style- Round) 17/19 530-0011... -
Page 18: Conversion Softball To Baseball
CONVERSION Photo E Baseball Conversion Kit SOFTBALL TO BASEBALL 1 Baseball 1. Turn the on/off switch “OFF” and unplug the power cord. Label 3 Legs 2. Remove three (3) bolts holding softball feed chute. 3. Remove four (4) bolts holding bottom motor to main casting (See Photo G). 4. - Page 19 JUNIOR HACK ATTACK BASEBALL (shown with optional solo feeder) Please visit our web site sportsattack.com for information about Sports Attack sports training products, or call 800-717-4251 for complete information and specifications. J U N I OR HAC K AT TAC K S O F T B A LL PI TCHI NG M ACH INE ™...
- Page 20 (shown with optional ball bags) (shown with optional ball bags) Please visit our web site sportsattack.com for information about Sports Attack sports training products, or call 800-717-4251 for complete information and specifications. J U N I OR HAC K AT TAC K S O F T B A LL PI TCHI NG M ACH INE ™...
