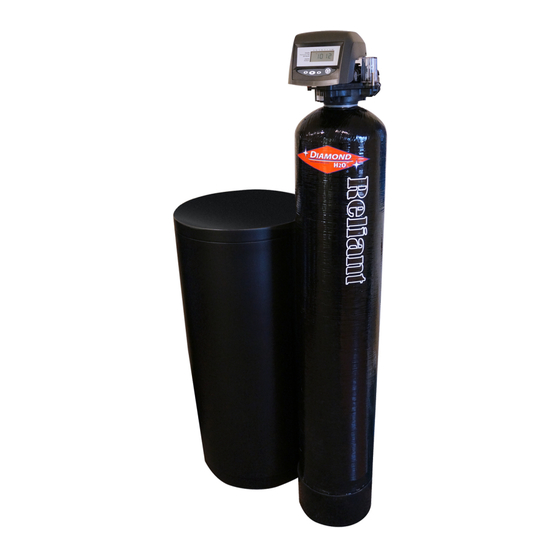

Summary of Contents for Diamond H2O Reliant DRS4-EM-15
- Page 2 _____ 5) Correct Amount of Resin (from Model and Media Requirements Table on page 2) Call Diamond H2O right away if anything is missing. Contact the freight company immediately if anything is damaged. Diamond H2O will not be liable for any damage received after shipping.
-
Page 3: Table Of Contents
Contents Obtain the required tools listed below: ....................2 Place the tanks near a water source..................... 3 Setting up the tank: ..........................3 Connect the brine tank......................... 4 Connect the Valves to the Water Source ....................5 Electrical............................... 5 Start up the system for the first time. -
Page 4: Place The Tanks Near A Water Source
Obtain a funnel to assist placing the resin in the resin tanks. (A funnel designed specifically for our resin tanks can be ordered from Diamond H2O Conditioning. The part numbers for the two types of funnels are table 3.) 3. -
Page 5: Connect The Brine Tank
D. SLOWLY, pour the correct amount of resin Distributer into the tank. Again, try to keep the media Tube level by carefully rocking the tank back and forth. E. Fill the rest of the tank with water to prevent air from getting in the tanks and potentially losing media. -
Page 6: Connect The Valves To The Water Source
Valve Outlet Drain Outlet Figure 13: Control Valve Diagram Valve Inlet 6. Connect the Valves to the Water Source A. Pipe or tube a line from the Control Valve Drain (Figure 13) to the drain. Refer to section 9 for the proper sized drain line. -
Page 7: Start Up The System For The First Time
Run each step of the regen cycle (Figure 20) for a few minutes. C. Program the Valve. Most of the settings were pre-programed by Diamond H2O. The installer must enter the installer settings shown in part 8 section C of this manual. -
Page 8: Bypass Valve Operations
9. Bypass Valve Operations A. The controls of the bypass valve can be turned 90° resulting in four modes of operation. “Treated” Supply Water Supply Water Supply Water Water Exits Enters Exits Enters Figure 16: Normal Operation Figure 17: Bypass Operation Supply Water is Shut Supply Water Supply Water... - Page 9 Figure 20: General Softener Operations Key: Hard Water Soft Water Salinized Water Resin Service/Operation Backwash: Flow reversed to flush debris from resin bed to drain. Regenerant Draw/ Slow Regenerate Fill: Rinse: Water is sent to the After one Tank’s Resin Bed is Brine Tank to create exhausted, Regenerate is regenerant for next...
-
Page 10: Main Operating States
Main Operating States Figure 21 shows the main operating states for the software and how they interact. Self Power Test System Reset Setup In Service Program Standby and Data Power Display Find Regenerating Home Figure 21: 762 State Diagram A. Power On Reset This will monitor the AC input to determine if the control is operating on 50 or 60 hertz power. -
Page 11: Program The Valve
power on reset routine if the initial setting (resin volume) is “no setting”. The initial setting can be cleared in the Program and Data Display State. E. Program and Data Display The program and data display state consists of several routines that allow for setting and displaying programmable values. - Page 12 Table 3: Level I Programming Parameter Range of Minimum Default Units of Notes Description Values Increment Measure Time of Day 1:00 - 12:59 1 minute 12:00 hour Range depends on value AM or PM minute selected for P10 0:00 - 23:59 Day of Week 1 day None...
- Page 13 Table 3: Level I Programming (2). Parameter Range of Minimum Default Units of Notes Description Values Increment Measure Set Calendar 0-99 days 0 = no calendar override, Override 0.5 = regeneration twice a day at time of regeneration and 12 hours later.
- Page 14 Table 4: Level II Programming. Parameter Range of Minimum Default Units of Notes Description Values Increment Measure Units of 0 = US 1 = Metric. measure Clock mode 0 = 12 hour clock 1 = 24 hour clock. pg. 13...
- Page 15 PARTS AND ACCESSORIES RELIANT Valve Exploded View 18A* *Warning: Do not use flow control ball with #18A. pg. 14...
- Page 16 RELIANT VALVE PARTS LIST Code Part # Description N.A. Reliant Valve Assembly 17-0100-XX Reliant Tank Adapter New Style 35-0063-RB O-Ring, Tank Adapter N.A. Top Plate, Reliant Valve 105-0015-XX Spring, One Piece, Reliant Valve 73-0031-XX Cover, Reliant Valve 12-0069-XX O-Ring Group: Valve Body 12-0043-XX O-Ring Group: Meter Block 37-0072-RB 13/16 Rubber Insert (Optional) 129-0001-XX Locking Bar...
-
Page 17: Troubleshooting
12. Troubleshooting A. Manual Backwashing Delayed Manual Backwash A delayed manual regeneration is programmed by pressing the REGENERATION key. The regeneration icon on the LCD will flash indicating regeneration will start when the time of day reaches the programmed time of regeneration. Pressing the REGENERATION key again will turn off the regeneration icon and cancel the delayed regeneration. -
Page 18: Error Codes
14. Error Codes Problem Possible Cause Solution E1, Err-1001, Err-101 Motor not inserted full Disconnect power, make sure motor is fully engaged, check = Control unable to to engage pinion, motor for broken wires, and make sure two-pin connector on sense motor wires broken or motor is connected to the two pin connection on the PC... - Page 19 Error Codes Cont… Problem Possible Cause Solution E3, Err-1003, Err-103 = Motor failure during a Check motor connections. Press NEXT and Control valve motor ran too regeneration REGEN buttons for 3 seconds to resynchronize long and was unable to find software with piston position or disconnect the next cycle position and power supply from PC board for 5 seconds and...
