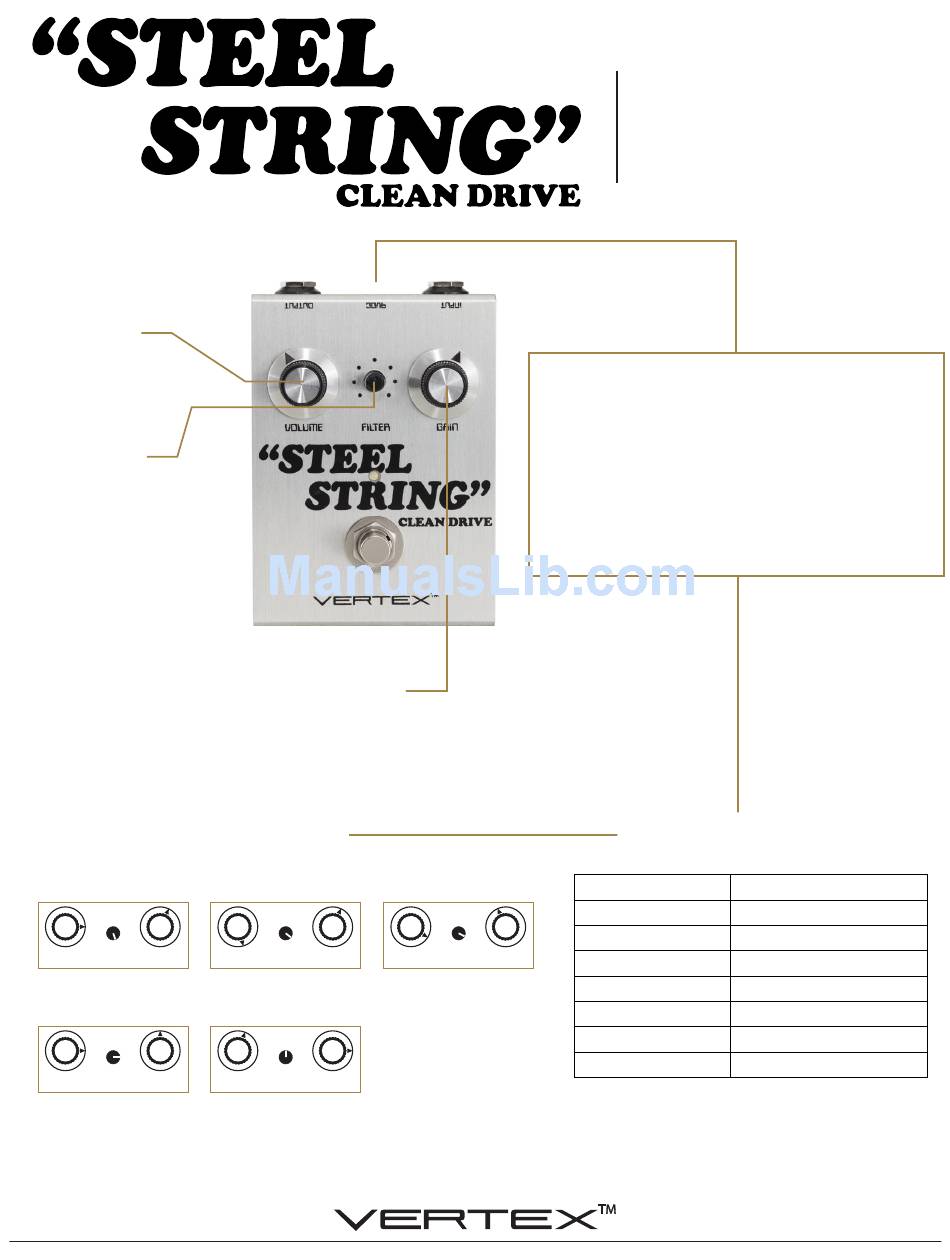

Vertex Steel String Product Manual

VOLUME
Adjust the output
level of the effect.
FILTER
Adjusts the midrange emphasis
from low-mids to the left of
12:00 and upper-mids to the
right of 12:00
SUGGESTED SETTINGS
VOLUME FILTER GAIN
"Gravity"
VOLUME FILTER GAIN
"Little Lowell"
GAIN
Adjusts the amount of saturation
of the signal from boost below
12:00 to overdrive ( from 1:00
and beyond).
VOLUME FILTER GAIN VOLUME
"B.B. Ray Shepherd"
VOLUME FILTER GAIN
"Browne Sound"
www.vertexeffects.com

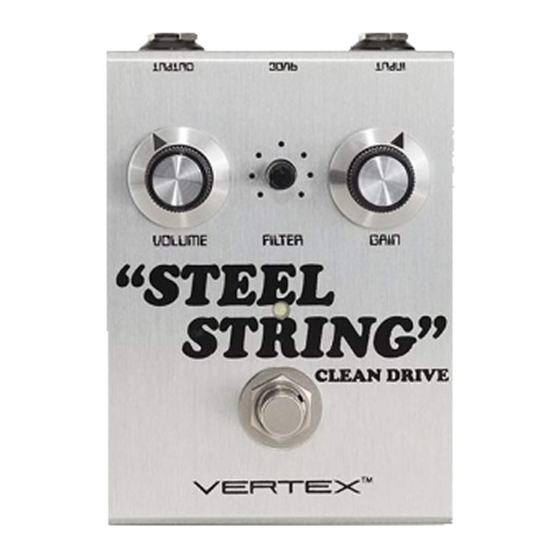

The Steel String Clean Drive faithfully recreates the
tonality and feel of the iconic Dumble Steel String
Singer amplifier in a stompbox format. Designed
alongside a real Steel String Singer (#001), this 100%
analog tone tool will do it all from Overdrive, to Fat
Boost, to Compression, to EQ shaping and more.
Get the unmistakable Crystal-Clear Overdrive and
Fat Clean Tones from albums like "Texas Flood",
"Venus Isle", and "Continuum" through any clean
amp platform.

SPECIFICATIONS

FILTER GAIN
Power Connector
"EJ"
Input Impendance
Current Consumption
Output Impendance
PRODUCT
MANUAL
Controls
Volume, Tone, Gain
Connections
Input, Output, 9VDC
Dimensions 4.6'x3.2"x1.8"
2.1mm barrel (center nagative)
2.2M ohm
DC Voltage 8.0-9.6V
[*9.8V MAX]
Less than 10mA
100k ohms
