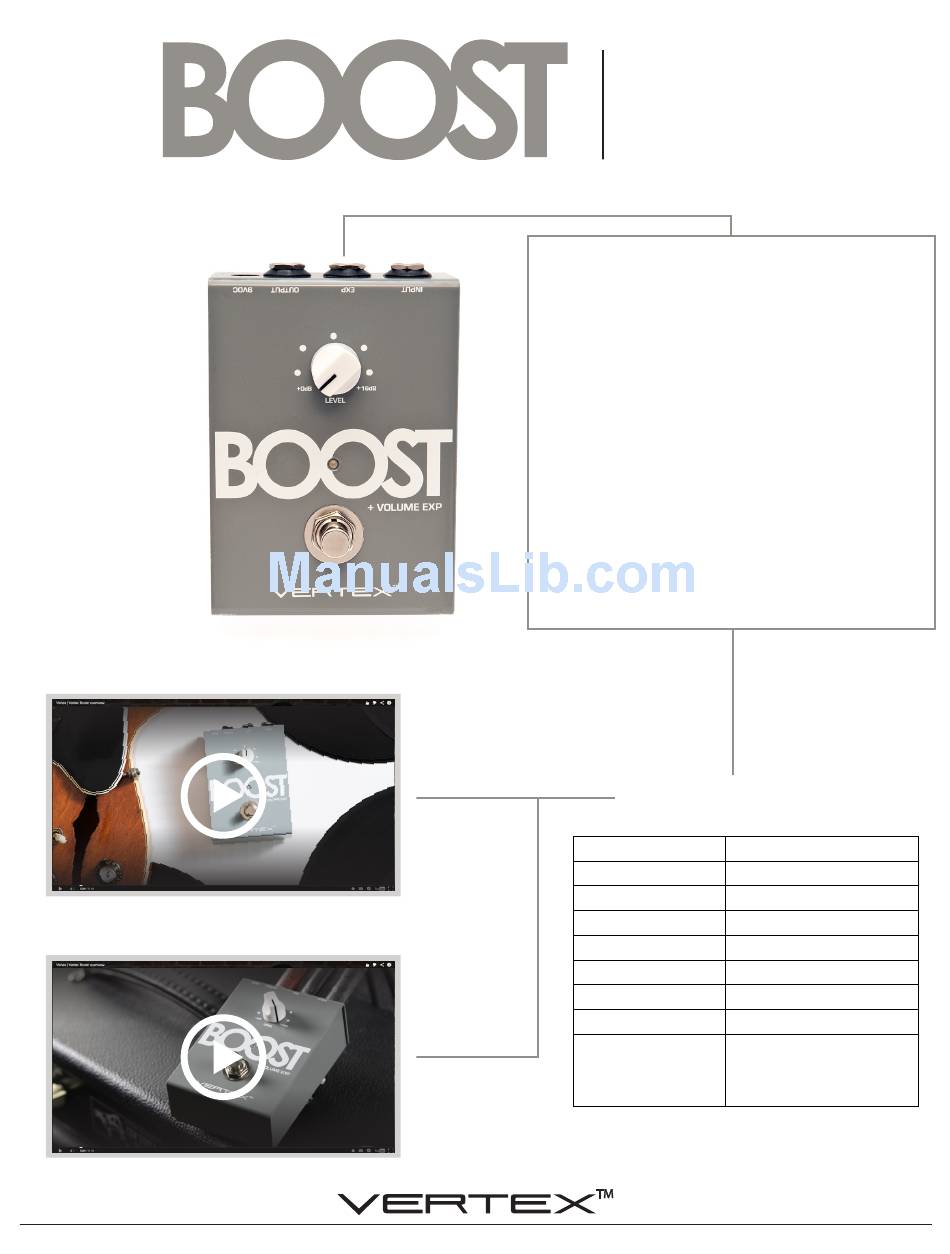

Vertex BOOST Product Manual

VERTEX BOOST OVERVIEW
HOW THE VERTEX BOOST WORKS
+ VOLUME EXP

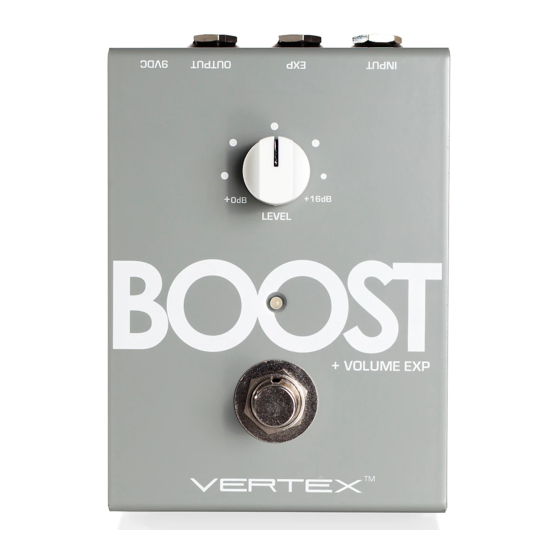

The Vertex Boost is expertly crafted to be a clean
boost, buffer, and volume pedal in one. The Boost
is designed to leave your tone unchanged, while
boosting the level of your signal. The Boost also
features an ultra-linear buffer to condition your line
with ZERO tonal coloration, even with dozens of
pedals in your chain. Additionally, you have total
volume control by connecting the Boost with
any EXP pedal or Volume Pedal (with insert cable
adapter shown below) and adjusting your volume
as you would with a volume pedal. When the
Boost is OFF, the EXP will function as a typical
volume pedal (sweeping from silent to unity
gain). When the Boost is ON, the EXP will control
the boosted volume (sweeping from silent to
wherever the level knob is set). Since your guitar
signal is completely isolated from the EXP pedal,
your tone remains open and full-range, and most
importantly, it feels like your plugged straight into
your amp.
www.vertexeffects.com
PRODUCT
MANUAL

SPECIFICATIONS

Controls
Level (uni t y gai n to +16dB)
Connections Input, Output, EXP, DC Input
Dimensions
4.6" x 3.2" x 1.8"
Power Connector
2.1mm barrel (center negative)
Input Impendance 1M ohms
DC Voltage
8.0-9.6V
Current Consumption
16mA
100 ohms
Output Impendance
An expression pedal of any
EXP Function
impendance with a 1/4"
TRS (stereo) cable can be
used with the Vertex Boost
[*9.8V MAX]
