Huawei M220 Quick Start Quide

1
What's in the box
TO TV IR transmitter
LAN input FROM STB
SPDIF Power input
Source
Switch to the STB/
Go back to M220
OK
USB port
microSD card slot
Back
IR receiver Network status indicator Search
Play/Pause
Power indicator

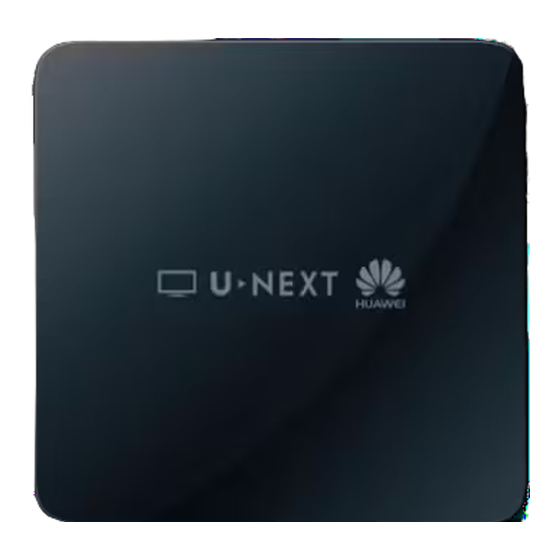

SMART OTT BOX (M220)
1 Power adapter 1 HDMI cable
1 button cell battery (CR2025,3V) 1 Power cable
The figures in this guide are for your reference only. The actual products may vary.
2
Connecting cables
Standby/Wake up
Navigation
Volume down/up
Power adapter
Home
Menu
Picture-in-picture
HDMI
1 2
Press to open Remove the
HD set-top box
the battery cover. insulating material.
Remote control
After being connected to a power supply, your M220 automatically powers on.
4 1
HDMI
Power cable HDMI cable
FROM STB
TO TV
HDTV
(Support 720p or higher)
Optional 3 2 Optional
(Or use a wireless
LAN
internet connection)
HDMI cable cable
Ethernet
Router
3
Extension connections
> microSD card slot: Holds a microSD card to expand your M220's storage space.
Next Steps
> SPDIF:Connects to the audio system using an SPDIF cable.
1
Turn on your TV and switch the TV to HDMI input using the TV remote control.
>
USB port: Connects to a mouse, keyboard, flash drive, or other USB device.
The M220's home screen is then displayed on the TV.
> FROM STB: Connects to an HDMI source device, such as a set-top box (STB) or
2 Follow the on-screen instructions.
Blue-ray player.
Reference
The following table lists how the indicators behave. If the indicators do not behave as
expected, ensure that everything is plugged in correctly.
LED Color Status Description
Blue Steady Working properly.
Power
Indicator
Red Steady Starting or in sleep mode.
Blue Steady Connected to a network.
Network
Steady Disconnected from the network.
status
Red Blinking quickly Restoring to factory settings or updating.
indicator
Blinking slowly Failure.
