Table of Contents

Advertisement

Quick Links

Service
Manual
SECTION
1. TECHNICAL SPECIFICATIONS .................................................................................................... 1
2. SERVICE MODE ............................................................................................................................ 2
3. MAIN MICROPROCESSOR (Q120) UPDATE PROCEDURE ....................................................... 3
4. WIRING DIAGRAM ........................................................................................................................ 5
5. BLOCK DIAGRAM ......................................................................................................................... 6
6. SCHEMATIC DIAGRAM ................................................................................................................. 7
7. PARTS LOCATION ...................................................................................................................... 19
8. EXPLODED VIEW AND PARTS LIST ......................................................................................... 31
9. MICROPROCESSOR AND IC DATA ........................................................................................... 34
10. ELECTRICAL PARTS LIST .......................................................................................................... 53
Please use this service manual with referring to the user guide ( D.F.U. ) without fail.

TABLE OF CONTENTS

PMD560
PMD560 /
Solid State Recorder
PAGE
Part no. 90M39BS855010
F i r s t I s s u e 2 0 0 5 . 1 2
N1S/U1S
ecm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PMD560/N1S and is the answer not in the manual?

Questions and answers

Related Manuals for Marantz professional PMD560/N1S

Summary of Contents for Marantz professional PMD560/N1S

  • Page 1: Table Of Contents

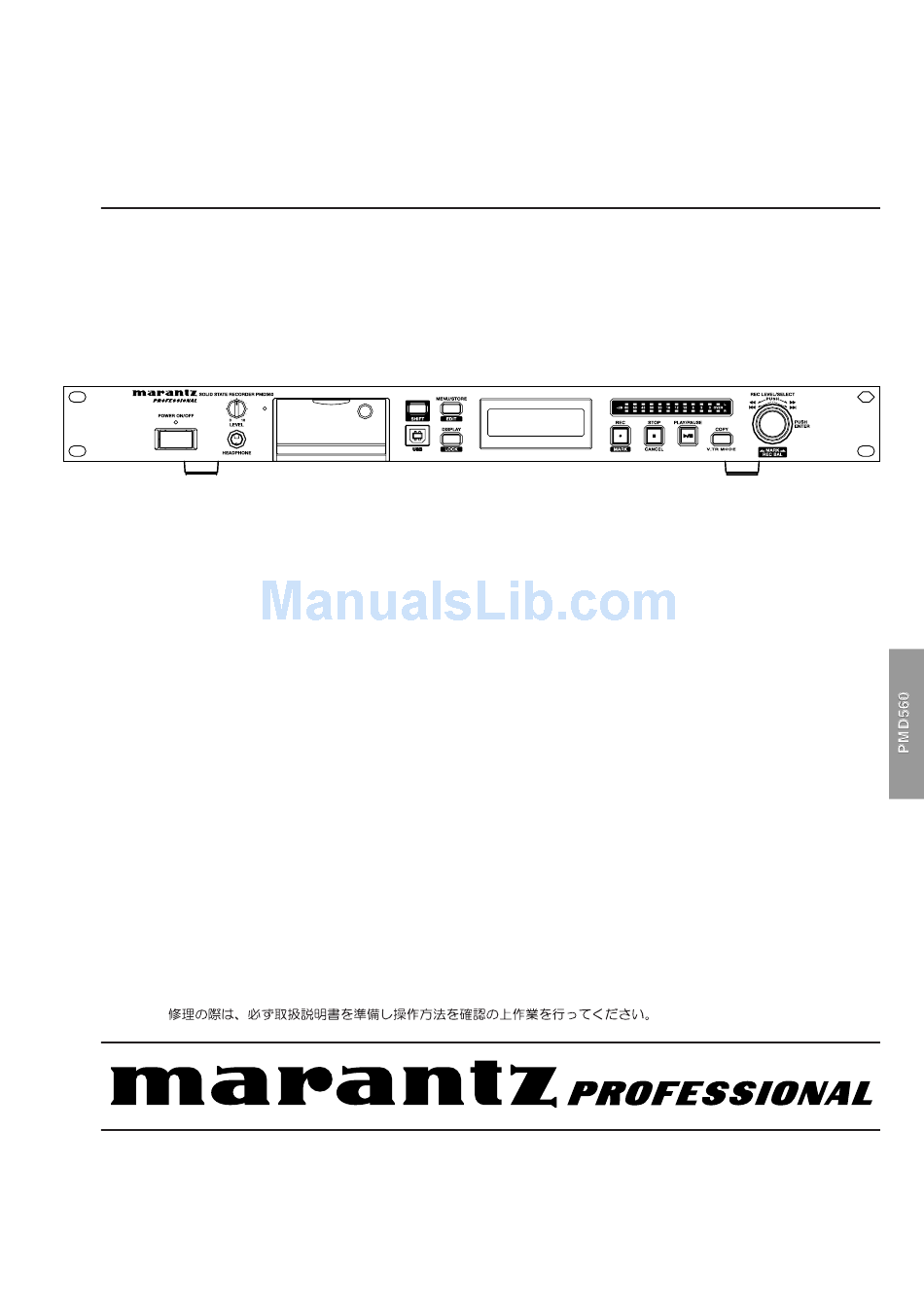

    Service PMD560 / N1S/U1S Manual Solid State Recorder TABLE OF CONTENTS SECTION PAGE 1. TECHNICAL SPECIFICATIONS ....................1 2. SERVICE MODE ..........................2 3. MAIN MICROPROCESSOR (Q120) UPDATE PROCEDURE ............3 4. WIRING DIAGRAM ........................5 5. BLOCK DIAGRAM ......................... 6 6.
  • Page 2 SHOCK, FIRE HAZARD SERVICE TEST : CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom.

  • Page 3: Technical Specifications

    1. TECHNICAL SPECIFICATIONS Digital audio system Included accessories System..........Solid State Recorder Power cord Compatible media ........CF memory cards Americas model ............... 1 Microdrive Europe model ..............2 USB cable ................1 Recording and media methods Audio cable ................2 mp3 ........

  • Page 4: Service Mode

    2. SERVICE MODE 2. SERVICE 1. Micro-Processor(Q120) Version check 1. Micro-Processor(Q120) VERSION 1) POWER 1) Press POWER switch on the unit. 2) MENU/STORE 2) Press MENU/STORE button. 3) DISPLAY Preset-1 3) Preset-1 is displayed on LCD. MARK S.SKIP IN - 44.1K STEREO REMAIN...

  • Page 5: Main Microprocessor (Q120) Update Procedure

    3. MAIN MICROPROCESSOR (Q120) UPDATE 3. MAIN MICROPROCESSOR (Q120) PROCEDURE Necessary Equipment • Windows PC (Windows2000 or WindowsXP) • Windows PC (Windows2000 WindowsXP) • USB cable (Series A - Series B) • (Series A - Series B) • CompactFlash (with format) •...
  • Page 6 4. "pmd560up.bin" of the update disk is copied to the route pmd560up.bin of Removable Disk (CompactFlash). (CompactFlash) 5. Click the "Unplug or Eject Hardware" on the task bar at 5. Windows PC Unplug or Eject Hardware Windows PC, and Click the "Stop USB Mass Storage Stop USB Mass Storage Device Device".

  • Page 7: Wiring Diagram

    4. WIRING DIAGRAM...

  • Page 8: Block Diagram

    5. BLOCK DIAGRAM...

  • Page 9: Schematic Diagram

    6. SCHEMATIC DIAGRAM R566 R587 C553 OPEN C576 C536 100p Q512 J506 R542 4.7K Q508 NJM2068M C582 R595 B8B-PH-K-S D500 NJM2068M C557 10u/16V TPF544 10u/16V LCH_IN DAN202K C549 C539 R552 10u/16V 0.1u OPEN GND_A C578 TPF545 C554 RCH_IN TPF546 MAIN UNIT GND_A GND_A D501...
  • Page 10 Q713 R769 NJM2387DL2 P203 00MWG39BS2030 1/10W VADJ 4 CNT 2 POWER UNIT R731 D_GND 1/10W Q706 L705 BD9778/HFP 100uH TPF706 R728 R732 J705 150k 1/10W B6B-PH-K-S C723 4700p TPF707 D_GND D_GND D_GND R725 D_GND TPF708 R799 POWERSW TPF709 R768 D718 DAN202K POWERRYOFF R711...
  • Page 11 +3.3V R663 D652 SML-512UW (RD) L-OVER P204 00MWG39BS2040 TPF658 P202 00MWG39BS2020 R664 D653 SML-512DW HP JACK UNIT PANEL UNIT TPF659 R665 D654 SML-512DW (ORG) TPF660 R666 D655 SML-512DW C805 R810 TPF661 TPF800 OPEN (MUTE_ON) R667 R800 D656 SML-512DW 1/10W +3.3V TPF801 R807 D801...
  • Page 12 +3.3V_DSY Q110 (1/4) +3.3V_DSY P101 00MWI39BS1010 MAIN UNIT +2.5V_DDS TC74LCX125FT LINE-R R226 DLP11SN161HL2 R236 LINE-L L136 J106 1.5K +3.3V_DSY +3.3V_DSY R227 R204 L118 TP142 R237 (1/3) R228 J104 TP141 R858 17FMN-BMTTN-TFT C212 0.01u R229 R238 TP238 R859 TP140 nEPON D_GND D_GND D_GND REMOTE1...
  • Page 13 MAIN UNIT(2/3) P101 00MWI39BS1010 J113 R385 TP266 R386 TP267 R387 TP268 +3.3V_DSY +3.3V_DCF TP269 D_GND D_GND +3.3V_DSY CPLD_nRES CF_CLK C270 J109 100u/10V SCFB3A0400 C271 TP203 0.01u C272 0.1u TP155 C_D3 +3.3V_DSY C_D3 R404 TP156 C_D4 D_GND C_D4 R405 TP157 C_D5 C_D5 R406 TP158...
  • Page 14 MAIN UNIT(3/3) 2125 P101 00MWI39BS1010 R497 +5V_DLC +5V_DLC J100 2125 2125 Q128 BLM11B601S R102 R135 53398-0371 OPEN L100 TP281 TP290 LEDA VADJ TP282 LEDK BLM11B601S L101 D_GND R150 OPEN +3.3V_DSY C129 2125 2125 10u/16V Q100 R480 R109 NJM2387DL2 TP291 R496 OPEN VADJ R153...

  • Page 15: Parts Location

    7. PARTS LOCATION P101 A C100 F1 C239 B9 J112 E9 R144 E10 R280 E8 C101 F1 C240 B9 J113 A1 R145 E10 R281 E8 C102 F2 C241 B9 L102 D11 R146 E10 R282 F5 C103 F2 C242 B9 L103 D11 R147 E10 R283 F5 C106 E2...
  • Page 16 P101 B C104 E1 C214 F5 L131 D7 R235 F5 R377 D4 C105 E1 C215 F6 L132 D7 R236 B5 R378 D4 C113 D4 C216 F5 L136 B5 R237 B5 R379 D4 C137 C4 C217 F5 L137 D8 R238 B5 R457 E3 C138 C4 C219 B5...
  • Page 17 P201 A C500 D10 C569 D7 Q510 B10 R563 B2 C501 D10 C570 D7 Q511 C7 R564 A2 C502 D9 C571 B6 Q512 B6 R566 B9 C503 D9 C572 C7 Q513 B7 R567 B10 C504 D4 C573 C7 Q516 C3 R568 B10 C505 D6 C576 B6...
  • Page 18 P202 A C650 B4 D657 B9 Q650 B5 R665 B10 R685 B8 C651 B4 D658 B9 Q651 B6 R666 B9 R686 B7 C652 B4 D659 B8 R647 B4 R667 B9 R687 A8 C653 B5 D660 B8 R648 B4 R668 B9 R688 A8 C654 B5 D661 B8...
  • Page 19 P203 A C701 B3 D713 H9 R717 F8 R777 H9 C702 E3 D714 D8 R718 G8 R778 H9 C703 E3 D715 D10 R719 F8 R779 H9 C704 E2 D716 E10 R720 F8 R780 G10 C705 G4 D717 G7 R721 E8 R781 G10 C706 G4 D718 D7...
  • Page 20 P203 B P207 A D970 A1 J970 A2 R970 A1 P207 B Sn-Ag-Cu Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu).

  • Page 21: Exploded View And Parts List

    8. EXPLODED VIEW AND PARTS LIST 5128 ø3X8(U) 5110 ø3X6(A) P203 5110 ø3X6(A) 5128 ø4X8(U) 030G 028G 5110 ø3X6(A) 015Gx3 002D P101 040G P201 5128 ø3X8(U) 006D Z10Z 010G 5405 ø4(R) J701 008G P204 007G 026G 024G 5128 002G ø3X8(U) 5128 5128 ø3X8(U)
  • Page 22 VERS. PART NO. PART NO. POS. NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (MZ) 002B 00M39BS248010 00M39BS248010 FRONT PANEL FRONT PANEL(AL) 004B 00M238H355020 00M238H355020 LENS LENS FOR POWER,ACCESS 006B 00M204N122110 00M204N122110 ADHESIVE ADHESSIVE FOR LENS 008B 00M39BS105020 00M39BS105020 CHASSIS FRONT MOLD 010B 00M04AS162110...

  • Page 23: Microprocessor And Ic Data

    9. MICROPROCESSOR AND IC DATA Q120 : µPD703111AGM (MAIN uP) 1/3 PMD560 PORT Connection Function I/O DET Ext Ini Res JIT1 JIT1 – MODE SELECT for SSCG JIT0 JIT0 – MODE SELECT for SSCG AVcc AVcc – – – – –...
  • Page 24 Q120 : µPD703111AGM (MAIN uP) 2/3 63 A11 – – – – EXT. MEMORY ADDRESS BUS11 ROM/RAM 64 A10 – – – – EXT. MEMORY ADDRESS BUS10 ROM/RAM 65 A9 – – – – EXT. MEMORY ADDRESS BUS9 ROM/RAM 66 A8 –...
  • Page 25 Q120 : µPD703111AGM (MAIN uP) 3/3 PDH10/D26/_INTPD10/ PDH10 – – – – JOG B INTP110/TCUD11 PDH11/D27/_INTPD11/ PDH11 – – – – JOG PUSH INTP111/TCLD11 126 PDH12/D28/_INTPD12/TO11 – – – – USB IN CONNECTER PDH13/D29/_INTPD13/ PDH13 – – – – JOG A TIUD11 128 EVdd EVdd...
  • Page 26 Q119 : CDCV304PW(140-MHz PCI-X CLOCK BUFFER) FUNCTION TABLE INPUTS OUTPUT CLKIN 1Y (0:3) functional block diagram Logic Control CLKIN Q121 : NJU6350B(REAL TIME CLOCK)
  • Page 27 Q123 : AK4537(CODEC)
  • Page 28 Q123 : AK4537(CODEC)
  • Page 29 Q124 : µPD77115 (DSP)
  • Page 30 Q108 : MN1382S-H Block Diagram Voltage Reference 1 Comparator – Level Converter Output Circuit Comparator Voltage – Reference 2 Note * 1 : Circuits vary slightly depending on the output type (CMOS output, N-channel open drain output, or inverted CMOS output) Pin Descriptions Pin No.
  • Page 31 Q110 : TC74LCX125FT Q121 : TC74LCX08FT Q125 : TC74LCX14FT Q130, 132 : TC74LCX00FT...
  • Page 32 Q507 : BU4052BCF Block diagram COMMON OUT / IN COMMON OUT / IN Logic circuit diagram Truth table ON SWITCH (16) INH (6) BINARY TO 1of 4 LEVEL A (10) CONVERTER DECODER WITH INH B (9) NONE X: Irrelevant (12) (14) (15) (13) X...
  • Page 33 Q511 : TC9459BFG TC9459BFG L-OUT R-OUT L-IN R-IN L-ch R-ch L-LD1 R-LD1 L-LD2 R-LD2 L-A-GND R-A-GND DATA L-OUT 3 R-OUT NC 4 91STEP L-IN 5 R-IN Same as L-ch Circuit L-LD1 6 R-LD1 L-LD2 7 R-LD2 L-A-GND 8 R-A-GND NC 9 L-ch 7 to 91 R-ch 7 to 91 decoder...
  • Page 34 Q511 : TC9459BFG...
  • Page 35 Q516 : µPD4721GS-GJG PD4721GS-GJG +10V +3.3V -10V STBY Note 4 300Ω INT1 OUT1 300Ω INT2 OUT2 OUT1 5.5kΩ OUT2 5.5kΩ Q708 : BA9741FS-E2...
  • Page 36 Q650, Q651 : NJU3716AM DATA DATA NJU3716AM Controller Circuit TERMINAL DESCRIPTION SYMBOL FUNCTION Parallel Conversion Data Output Terminals Parallel Conversion Data Output Terminals Serial Data Output Terminal DATA Serial Data Input Terminal Clock Signal Input Terminal Strobe Signal Input Terminal Clear Signal Input Terminal Parallel Conversion Data Output Terminal Parallel Conversion Data Output Terminals...
  • Page 37 Q701 : MIP3E50MY 1 : Control 2 : Control 3 : Drain TO-220-A1 Package At startup Startup constant current Drain Control 1 Light load detection Internal power supply For intermittent Timer intermittent oscillation control operation circuit Overheat Error amplifier protection Circuit Restart trigger...
  • Page 38 Q706 : BD9778HFP ON/OFF L : OFF H : ON Vref SOFT START ERROR AMP COMPARATR DRIVER LATCH RESET CURRENT LIMT Refer to the Technical Note about the details of the application. Pin No. Pin Name...
  • Page 39 Q711 : µPD78F9222 NOTE P121/X1 P20/ANI0 P122/X2 P21/ANI1 P22/ANI2 P123 P23/ANI3 P130 RESET/P34 P31/T1010/TO00/INTP2 P44/RxD6 P30/TI000/INTP3 P43/TxD6INTP1 P41/INTP3 P42/TOH1 ANI0 to ANI3: Analog input RESET: Reset Analog reference voltage RxD6: Receive data INTP0 to INTP3: External interrupt input TI000, TI010: Timer input P20 to P23: Port 2...
  • Page 40 Q711 : µPD78F9222 (1) Port functions Pin Name Function After Reset Alternate- Function Pin P20 to P23 Port 2. Input ANI0 to ANI3 4-bit I/O port. Can be set to input or output mode in 1-bit units. An on-chip pull-up resistor can be connected by setting software. Port 3 Can be set to input or output mode in 1- TI000/INTP0...
  • Page 41 Q711 : µPD78F9222 (2) Non-port functions Pin Name Function After Reset Alternate- Function Pin INTP0 Input External interrupt input for which the valid edge (rising edge, Input P30/TI000 falling edge, or both rising and falling edges) can be specified INTP1 P43/TxD6 INTP2 P31/TI010/TO00...

  • Page 42: Electrical Parts List

    10. ELECTRICAL PARTS LIST NOTE ON SAFETY FOR FUSIBLE RESISTOR : PARTS INFORMATION RESISTORS The suppliers and their type numbers of fusible resistors 1) 00MGD05 × × × 140, Carbon film fixed resistor, ±5% 1/4W are as follows; 2) 00MGD05 × × × 160, Carbon film fixed resistor, ±5% 1/6W 1.
  • Page 43 VERS. PART NO. PART NO. POS. NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (MZ) MAIN PWB P101 (00MWI39BS101-) P101 C100 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C101 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C102 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V P101 C104...
  • Page 44 VERS. PART NO. PART NO. POS. NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (MZ) P101 C163 00MDK98105200 CER. CAP. 1UF 10V F P101 C164 00MDK98105200 CER. CAP. 1UF 10V F P101 C165 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C166 00MDK98104200 CER.
  • Page 45 VERS. PART NO. PART NO. POS. NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (MZ) P101 C239 00MDD95560300 CER. CAP. 56PF (GR39) P101 C240 00MDD95560300 CER. CAP. 56PF (GR39) P101 C241 00MDD95560300 CER. CAP. 56PF (GR39) P101 C242 00MDD95560300 CER. CAP. 56PF (GR39) P101 C243...
  • Page 46 VERS. PART NO. PART NO. POS. NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (MZ) P101 D119 00MHZ30012060 00MHZ30012060 CHIP DIODE NSAD500F SURGE ABSORBER P101 D124 00MHZ30014060 00MHZ30014060 CHIP DIODE NNCD4.3C ESD NOISE CLIPPING DIODES P101 D125 00MHZ30014060 00MHZ30014060 CHIP DIODE NNCD4.3C ESD NOISE CLIPPING DIODES P101 D126...
  • Page 47 VERS. PART NO. PART NO. POS. NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (MZ) P101 Q120 00D2623468001 00D2623468001 U-PRO UPD703111AGM-15-UEU P101 Q121 00MHC12251090 00MHC12251090 IC NJU6350R P101 Q122 00MJX48001390 00MJX48001390 X'TAL SG-8002JF SC F=48MHZ P101 Q123 00D2623466906 00D2623466906 IC AK4537VN P101 Q124...
  • Page 48 VERS. PART NO. PART NO. POS. NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (MZ) P101 R162 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R163 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R165 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R166...
  • Page 49 VERS. PART NO. PART NO. POS. NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (MZ) P101 R227 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R228 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R229 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R230...
  • Page 50 VERS. PART NO. PART NO. POS. NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (MZ) P101 R295 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R296 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R297 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R298...
  • Page 51 VERS. PART NO. PART NO. POS. NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (MZ) P101 R365 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R366 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R367 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R368...
  • Page 52 VERS. PART NO. PART NO. POS. NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (MZ) P101 R428 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R429 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R430 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R431...
  • Page 53 VERS. PART NO. PART NO. POS. NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (MZ) P101 R499 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R850 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R851 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R852...
  • Page 54 VERS. PART NO. PART NO. POS. NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (MZ) P201 C526 00MOA47602520 ELECT. CAP. 47 UF M 25V RA-2 P201 C529 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P201 C531 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P201 C534 00MDK96103300 CER.
  • Page 55 VERS. PART NO. PART NO. POS. NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (MZ) P201 L507 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P201 L508 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P201 L509 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P201 L510 00MFC90020110 00MFC90020110 FERRITE CORE...
  • Page 56 VERS. PART NO. PART NO. POS. NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (MZ) P201 R541 00MNN05332610 CHIP RES. 3.3K OHM +- 5% 1/16W P201 R542 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W P201 R543 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W P201 R544...
  • Page 57 VERS. PART NO. PART NO. POS. NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (MZ) P201 R618 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W P201 R619 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W P201 R620 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W P201 R621...
  • Page 58 VERS. PART NO. PART NO. POS. NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (MZ) P202 R655 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P202 R656 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P202 R657 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P202 R658...
  • Page 59 VERS. PART NO. PART NO. POS. NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (MZ) P203 C712 00MOA47603520 ELECT. CAP. 47UF M 35V RA-2 P203 ! C713 00MDK17681520 00MDK17681520 CER. CAP. # DE1B3KX681KB5B P203 C716 00D2544522783 ELECT CAP. CE04W1V471MC SMG/RE3 P203 C717 00MDK98104200 CER.
  • Page 60 VERS. PART NO. PART NO. POS. NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (MZ) P203 Q705 00MBA20035210 00MBA20035210 TRS. DTC114EU P203 ! Q706 00MHC10209210 00MHC10209210 IC ! BD9778HFP P203 Q707 00MBA20035210 00MBA20035210 TRS. DTC114EU P203 ! Q708 00MHC10226210 00MHC10226210 IC ! BA9741FS-E2 2CH DC/DC ! Q709 P203...
  • Page 61 VERS. PART NO. PART NO. POS. NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (MZ) P203 R754 00MNN05221610 CHIP RES. 220 OHM +- 5% 1/16W P203 R755 00MNN05221610 CHIP RES. 220 OHM +- 5% 1/16W P203 R756 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W P203 R757...
  • Page 62 VERS. PART NO. PART NO. POS. NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (MZ) P204 L803 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P204 L804 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P204 L805 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P204 Q801 00MHC10045090 00MHC10045090 IC...
