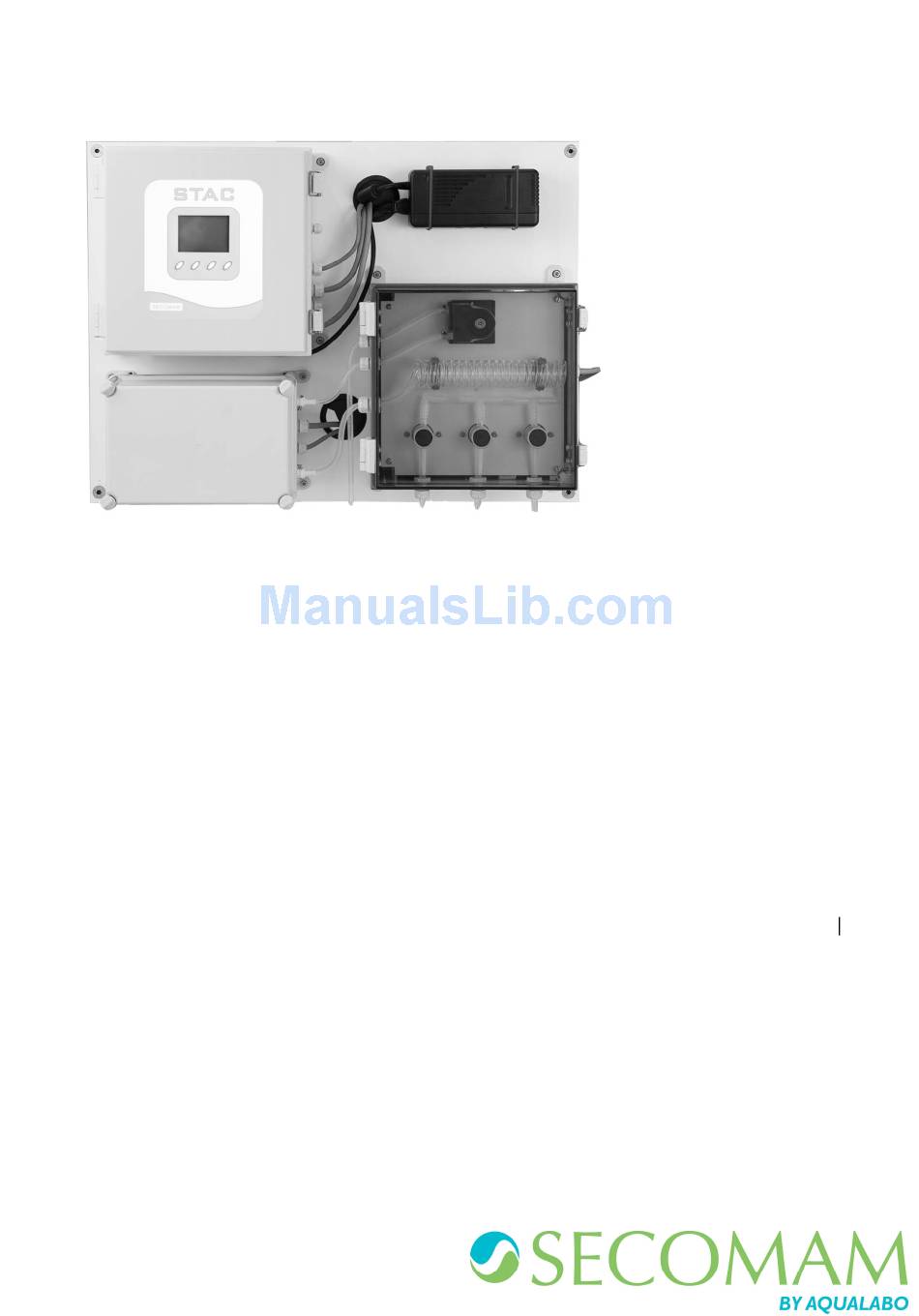

USER MANUAL
Ref. 0M8950
Manual version: 2.6
STAC
ON-LINE ANALYZER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAC and is the answer not in the manual?

Questions and answers

Related Manuals for Secomam STAC

Summary of Contents for Secomam STAC

  • Page 1 USER MANUAL Ref. 0M8950 Manual version: 2.6 STAC ON-LINE ANALYZER...
  • Page 2 STAC - 2 -...

  • Page 3: Table Of Contents

    STAC S U M M A R Y 1 REMARK ................................5 2 WARRANTY..............................6 3 INFORMATION..............................8 4 PRECAUTIONS OF USE ..........................10 5 INSTALLATION ............................. 12 5.1 ANALYZER INSTALLATION........................12 5.2 ANALYZER DESCRIPTION........................12 5.2.1 ELECTRONIC CASE ........................... 13 5.2.1.1 Dimensions..............................
  • Page 4 STAC 6.2.3.4 Sample channel programming......................... 37 6.2.3.4.1 Selection of water type and parameters number................... 37 6.2.3.4.2 Selection of measuring parameters....................... 38 6.2.3.4.3 Programming of 4-20 mA outputs ....................... 38 6.2.3.4.4 Restitution............................39 6.2.3.4.5 Programming of cycles of rinsing, measures and dilution..............39 6.2.3.4.6...

  • Page 5: Remark

    The information contained in this document may be the object of patents or patent applications by SECOMAM. The possession of this document does not confer any license to such patents. The following names are SECOMAM’s registered trademarks throughout the world.

  • Page 6: Warranty

    − Any breakdown due to the use of parts not supplied by SECOMAM, on SECOMAM equipment − Any breakdown due to the transporting of the equipment in packaging which is not its original packaging −...
  • Page 7 SECOMAM's property. It is legally protected by the international copyright (c) laws. SECOMAM grants a license to use its software to the user. This may not be disclosed, used or duplicated with the intention to save it, without SECOMAM's written permission. The beneficiary must attach a copy of this document to all authorized partial or total reproductions.

  • Page 8: Information

    The SECOMAM equipment has been designed, manufactured, tested and inspected according to the ISO 9001 standards. SECOMAM equipment is carefully inspected before it is packed. As soon as you receive your equipment, check the condition of the packaging and if you notice any problems, notify your carrier within 48 hours.
  • Page 9 STAC - 9 -...

  • Page 10: Precautions Of Use

    Exposure average value = 100 ppb Exposure limits value = 200 ppb All operations made inside the instrument, must be done by SECOMAM or by SECOMAM’s authorized technicians. Use of the spectrophotometer without danger...
  • Page 11 STAC - 11 -...

  • Page 12: Installation

    - ventilated during the summer - temperature room must be between 15°C and 40°C. 5.2 ANALYZER DESCRIPTION The standard version of the STAC is made for one sample measurement. It is constituted with four cases installed on a PVC plate: Power supply.

  • Page 13: Electronic Case

    STAC 5.2.1 ELECTRONIC CASE 5.2.1.1 Dimensions Fig. 2 Electronic case Height: 300 mm Width: 300 mm Depth: 180 mm Weight: 5 kg 5.2.1.2 Description Fig. 3 External view of the electronic case The electronic case includes: Electronic boards. 4 galvanic isolators.

  • Page 14: Flowing Case

    STAC 5.2.2 FLOWING CASE 5.2.2.1 Dimensions Fig. 4 Flowing case Height: 300 mm Width: 300 mm Depth: 180 mm Weight: 5 kg 5.2.2.2 Description Fig. 5 External view of the flowing case The flowing case includes: One channel for rinsing solution.

  • Page 15: Monochromator Case

    STAC A dilution loop. 5.2.3 MONOCHROMATOR CASE 5.2.3.1 Dimensions Fig. 6 Monochromator case Height: 190 mm Width: 280 mm Depth: 180 mm Weight: 5 kg 5.2.3.2 Description Fig. 7 External view of the monochromator case The monochromator case includes: Monochromator.

  • Page 16: Fluids Connection

    STAC Weight: 3 kg 5.3 FLUIDS CONNECTION Fig. 8 Fluids connection drawing Tube labeled 1 (Flowing case) is connected to the connection labeled 1 (Monochromator case). Tube labeled 2 (Flowing case) is connected to the connection labeled 2 (Monochromator case).

  • Page 17: Sample Inlet

    The peristaltic pump can bring a sample from a distance of 5 meters maximum and a depth of 2 meters maximum (see drawing under). Fig. 9 STAC positioning. If the sample is not accessible near the device, install a constant level flow cuvette.

  • Page 18: Overflow Can

    STAC Fig. 10 Synoptic of liquid circuit. N.B.: DO NOT FORGET TO INSTALL A DRAIN GUTTER TO CARRY THE SAMPLES AND DRAIN TO THE SEWER. TO BE DONE BY THE USER: The user has to bring the sample close to the analyzer and then install the sample inlet equipped with stopping valve.

  • Page 19: Rinsing Solution

    STAC Overflow can includes: - a cuvette with overflow, - a stopping valve to isolated the system, - a purge valve to empty the cuvette, - a strainer (if necessary) to stop big particles. 5.4.5 RINSING SOLUTION The rinsing solution can be different according with the solution to analyze. Generally we advise you to use chlorine water at 48°...

  • Page 20: The Blank Solution

    To check the quality of demineralized water, realize its spectrum against the air. The spectrum shape must be as the following one. The STAC uses also blank to do the dilution. The consumption of blank solution depends on various things: - the dilution factor;...

  • Page 21: Electrical Connections

    STAC 5.5 ELECTRICAL CONNECTIONS 5.5.1 GENERAL WIRING Fig. 12 General connection drawing Cable diode array monochromator From input A (Electronic case) to input A (Monochromator case). Cable deuterium lamp monochromator From input B (Electronic case) to input B (Monochromator case).
  • Page 22 STAC Fig. 13 General wiring drawing Fig. 14 Connection points of different cases - 22 -...

  • Page 23: Power Supply

    STAC Fig. 15 Synoptic of connection points 5.5.2 POWER SUPPLY If connected to the main through power supply case Mains: 230 V single phases, 50/60 Hz. Power: 300 W If connected to an external source without power supply case. Characteristic: 12V/10A DC TO BE DONE BY THE USER: Install a plug near the analyzer.

  • Page 24: Rs232 Connection

    The standard RS 232C is not compatible with bus mode. 5.5.3.4 Connection with a modem When a modem is used with the STAC analyzer, it must be compatible with the command A&T type. - “AT”: To initialize the AT command.

  • Page 25: Current Loop Connection

    STAC 5.5.4 CURRENT LOOP CONNECTION Fig. 16a: Current loops connection 1 to 4 Optional 4 extra current loops from 5 to Fig. 17 Loop connection 1 to 8 (4 in option) - 25 -...

  • Page 26: Current Loop For Blank Energy Level

    STAC NOTE: The STAC has in standard 4 current loops outputs. These current loops are active and include galvanic insulators. Optional 4 current loops can be added to equip the STAC with 8 current loops. 20 mA Scale maximum value...

  • Page 27: Current Loop For Restitution Gap

    STAC Measure executed with a 50 mm optical path flow cuvette full of good quality distilled water and a new deuterium lamp : Blank energy level 900 5.5.4.2 Current loop for restitution gap It is B2 current loop for channel 1 restitution The restitution gap is the difference between the shape of a theoretical sample spectrum (for the selected water type) and the shape of measured spectrum.

  • Page 28: Current Loops For Parameters Concentration

    STAC 5.5.4.3 Current loops for parameters concentration Distribution of the current loops following the programming made by the user: Energy restitution Use of the current loops following energy and restitution programming programming Energy Restitution Current loop Current loop Current loop...
  • Page 29 STAC - 29 -...

  • Page 30: Start Up And Measure

    STAC START UP AND MEASURE The STAC can analyze one sample type. In its standard version, the STAC analyzer measure TOC, TSS and nitrate. It can export these values by its current loops. The programming of ways is retailed in this chapter.
  • Page 31 It gives the first results (in mg/l) for NO3 and COT of the first channel at the bottom of the screen with the time of the measure. 1145 is the time given in seconds before STAC starts a new measure. 08/15/00 12 :11...

  • Page 32: Measuring Error Codes

    STAC 6.1.2 MEASURING ERROR CODES Sometimes when the results are displayed on the screen, some errors code appear next to the parameters values. Below, is given an example of different error codes. 08/15/00 12 :11 Hour 2 :NO3 2 :TOC 11 :00 21.5...

  • Page 33: Set-Up

    STAC 6.2 SET-UP When the screen displays: 08/15/00 12 :11 08/15/00 10 :55 Hour 1 :NO3 1 :TOC STAC 11 :00 10.5 15.3 SECOMAM 11 :20 10.3 15.0 11 :40 10.3 15.2 12 :00 10.4 15.3 Rinse… PARA PARA - Push on the" PARA» key...

  • Page 34: Choice Of Channels Number

    - Press on "MODI" key to enter in the menu. The number of channel is equal to n + 2 (In the STAC analyzer n = 1). There are always two channels reserved for the blank (Blk) and the rinsing solution (Rin).

  • Page 35: Pump Working Time, Cadence, Pump Overrun

    We advise to program measurement cycles so that the pump is not working at least 50% of the time. The pump working time depends on the parameters set for dilutions and the number of channels. Example n°1 of a measuring sequence: STAC: 1 one channel, no dilution Pump working time Dilution...

  • Page 36: Rinsing Channel Programming

    It is important to notice that there is no cadence parameter to set for rinsing. The time between two rinsing cycles is the same than the time between two measure cycles. When STAC runs a measure, it automatically runs a rinsing cycle too.

  • Page 37: Sample Channel Programming

    - Natural waters "Nwat". - Press “NEX” to change the number of parameters measured by channel (for example 3 parameters). In its standard version the STAC analyzer measures 3 parameters. These parameters are: TOC, TSS, and No3. - Press “+” or “-“ keys to choose the number of parameters.

  • Page 38: Selection Of Measuring Parameters

    STAC 6.2.3.4.2 Selection of measuring parameters From the following screen: Channel number : 1 Water type, Nr paras Parameters Out put 4-20 mA Restitution Aspiration, Rinse MODI - Press "NEX" and "MODI" keys to choose "Parameters". The screen displays: Channel number : 1...

  • Page 39: Restitution

    STAC 6.2.3.4.4 Restitution Restitution parameter inform on the measurement quality. From this screen: Channel number : 1 Water type, Nr paras Parameters Output 4-20 mA Restitution Aspiration, Rinse MODI - Press “MODI” key The screen displays: Channel number : 1...

  • Page 40: Dilution

    How is the sample diluted? To get a dilution with a dilution factor of 10, the STAC will aspirate the sample during 1 unit of time, and distilled water during 9 units of time. The mixture is going to occur in the dilution loop and the diluted sample is pushed until the flow through cuvette by an undiluted sample.

  • Page 41: Export The 255 Last Results

    Results are expressed in mg/l. For the nitrate, verify if the results are expressed in NO or in NNO The STAC can memorize 255 results and the result number 256 will be deleted the first one. 6.3.1 CHOICE OF THE TYPE OF EXIT LINK (PC or printer) From this screen: Print.

  • Page 42: Exportation On Printer

    ->PC - Press “NEX” key to choose" Results ". - Press “MODI” key to send the last 255 results. 6.3.3 EXPORTATION ON PRINTER - Connect printer to the STAC - From this screen: Language, date Nr of channels Channels programming.

  • Page 43: Recalibration

    STAC 6.4 RECALIBRATION From this screen Language, Date, Nr of channels Channels programming Results Recalibration Rinse SUIV MODI ->PC Press “MODI” key to choose "Recalibration “. − Print Calibr. coefs − Modification Calibr. − Choice NO3 or NNO3 − Test Loop 4-20 −...

  • Page 44: Modification Of Calibration Coefficients

    STAC 6.4.2 MODIFICATION OF CALIBRATION COEFFICIENTS When the user notes a constant gap on a parameter in relation to measures done with the normalized methods, it is possible to correct this parameter while introducing a correction coefficient. It can be done on each of parameters (TSS, TOC, NO3) and for each water type .

  • Page 45: Test Loop 4-20 Ma

    STAC 08/15/00 15 :52 STAC SECOMAM Res. in NO3 NNO3 Press “NO3" key to express the results of the nitrate in NO3. Press "NNO3" key to express the results of the nitrate in NNO3. Press "RET" key to validate and to return to the previous menu.

  • Page 46: Enter The Secret Code

    6.4.5 ENTER THE SECRET CODE The secret code is used when user download water types models from the UV-PRO software. User has to enter, in this software, the STAC secret code to be authorized to download new water types models.
  • Page 47 STAC Print Calibr. Coefs. Modification coefs. Choice NO3 or NNO3 Test loop 4-20 Secret code Select. Output MODI - Press “MODI” to choose “Select. Output”. It displays: 08/15/00 13:07 STAC SECOMAM Data PRIN JBUS - Press “PRIN” or “PC” keys in accordance with the results exportation mode.

  • Page 48: Piloting By A Pc

    STAC 6.5 PILOTING BY A PC It is possible to pilot STAC from a distance by a PC with UV-PRO software. For it, make sure that STAC is correctly configured. From the main menu: Language, date Nr of channels Channels programming.
  • Page 49 STAC - 49 -...

  • Page 50: Start Up Procedure

    STAC START UP PROCEDURE Install electronic case, monochromator case and flowing case. Make the electrical connections between the different cases Connect the power supply case to the electronical case. Make the tubes connections between monochromator case and flowing case. Connect the sample tube to the sample inlet.
  • Page 51 Put the rising and blank solutions tubes into 50 liters can. The blank should be good quality distilled or demineralized water and the rinsing solution is tape water with hypo chlorine. Switch on the STAC. The following sequence start - 51 -...
  • Page 52 Aspiration of the blank solution STAC zeroing Aspiration of the sample Measure of the sample Dilution? YES or NO STAC makes the dilution Measure of the diluted sample Calculation and displaying of the parameters Count down for the next measure...
  • Page 53 - The fluids are moving at approximately 6.5 seconds per meter (if not, check there is no obstruction in the fluid circuit or air coming). - If the STAC is connected to a computer through UV-PRO software, check if the sample spectra are smooth without any negative absorbance.

  • Page 54: Stand-By & Storage Procedure

    7/ Remove all the silicon tubes out of the electro-valves 8/ Remove the silicon tube out of the peristaltic pump head. NOTE: STAC not used during a long time - Empty completely the tube and flow-through cuvette. - Clean and dry the flow-through cuvette.
  • Page 55 STAC - 55 -...

  • Page 56: Maintenance

    When these quartz windows are dirty (blank energy at 204 nm lower than 300) it is advisable to clean or to change them. See drawing under. Fig. 20 How to open the monochromator case - Switch off the STAC. - Open the Monochromator case. - 56 -...
  • Page 57 STAC Fig. 21 Inside of the monochromator case Fig. 22 How to remove the flowthrough cuvette - 57 -...
  • Page 58 STAC Fig. 23 How to disconnect tube of the flowthrough cuvette. - Remove the inlet and outlet tube. - Remove fastening nuts. - Slide out flow-through cuvette subset. Fig. 24 Flow-through cuvette assembly QUARTZ WINDOW REF: 0M6991 LOCKING RING REF: 0M6992...

  • Page 59: Deuterium Lamp Changing

    STAC 9.3 DEUTERIUM LAMP CHANGING Fig. 25 How to open the monochromator case - Switch off the STAC. - Open the Monochromator case. Fig. 26 Inside of the monochromator case - 59 -...
  • Page 60 STAC Fastening nuts for lamp Fastening bolt for cell Fastening nuts for lamp Fig. 27 How to remove deuterium lamp DEUTERIUM LAMP REF: 80MI0146 - Disconnect deuterium lamp connector. - Unscrew the fastening nuts for the lamp - Unscrew the fastening nuts for the cell - Take away the cell - Take away the deuterium lamp.

  • Page 61: Peristaltic Pump

    STAC 9.4 PERISTALTIC PUMP 9.4.1 PERISTALTIC PUMP TUBE CHANGING WARNING: For proper operation, this subset must be change every three months. Fig. 28 Peristaltic pump head PERISTALTIC PUMP SUBSET REF: 0M8951 - Switch off the device. - Remove the external tubes connected to the peristaltic pump subset - Turn round the clip for peristaltic pump subset as is shown by A arrows.

  • Page 62: Changing Peristaltic Pump Wheel

    STAC 9.4.2 CHANGING PERISTALTIC PUMP WHEEL IMPORTANT: The life of this subset, given by the manufacturer, is 1500 hours. It is therefore advisable to replace the wheel of peristaltic pump as a function of using time of the peristaltic pump, estimated following programming entered the user - Switch off the device.
  • Page 63 STAC Screws + washers Screws + washers Fig. 29 How to remove the peristaltic pump head Remove screws and washers shown above. Fig. 30 Peristaltic pump head disassembling - Slide up the peristaltic pump head. - 63 -...
  • Page 64 STAC Fig. 31 After peristaltic pump removing Peristaltic pump wheel Fig. 32 Peristaltic pump wheel removing - Remove outside the peristaltic pump wheel. - Change the peristaltic pump wheel. PUMP PERISTALTIC WHEEL REF: 0M8612 - Proceed as reverse way to reassemble this subset.

  • Page 65: Display Backlit Adjustment

    STAC 9.5 DISPLAY BACKLIT ADJUSTMENT Open the electronic case. Fig. 33 How to adjust the backlit - Adjust the display backlit, through the hole, with a small cross-shaped screwdriver. 9.6 REPLACEMENT FREQUENCY OF SPARE PARTS DESIGNATION REFERENCE FREQUENCY Peristaltic pump wheel...

  • Page 66: Spare Parts

    STAC SPARE PARTS Designation Ref SECOMAM Electronic case 40MP111 Monochromator case 40MP222 Flowing case 40MP333 12 V cutting power supply case 0M8937 Flow through cell module with 50 mm optical path 70MP0537 Flow through cell module with 5 mm optical path...

  • Page 67: Appendix: Indicative Chart Of Tube In Tygon Compatibility

    APPENDIX: INDICATIVE CHART OF TUBE IN TYGON COMPATIBILITY A: very good compatibility B: Good compatibility C: Almost good compatibility D: Bad compatibility. - : unknown Compatibility. Fluid compatibility Chromic acid Lithium hydroxide Sodium bisulfate Acetaldehyde Chromic acid 30% Magnesium chloride Sodium bisulfite Acetic acid<5% Chromium salts...
