RedPort wXa-112 Optimization Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Optimizer User's Guide
RedPort Router - wXa-112
Copyright © Global Marine Networks, LLC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the wXa-112 and is the answer not in the manual?

Questions and answers

Related Manuals for RedPort wXa-112

Summary of Contents for RedPort wXa-112

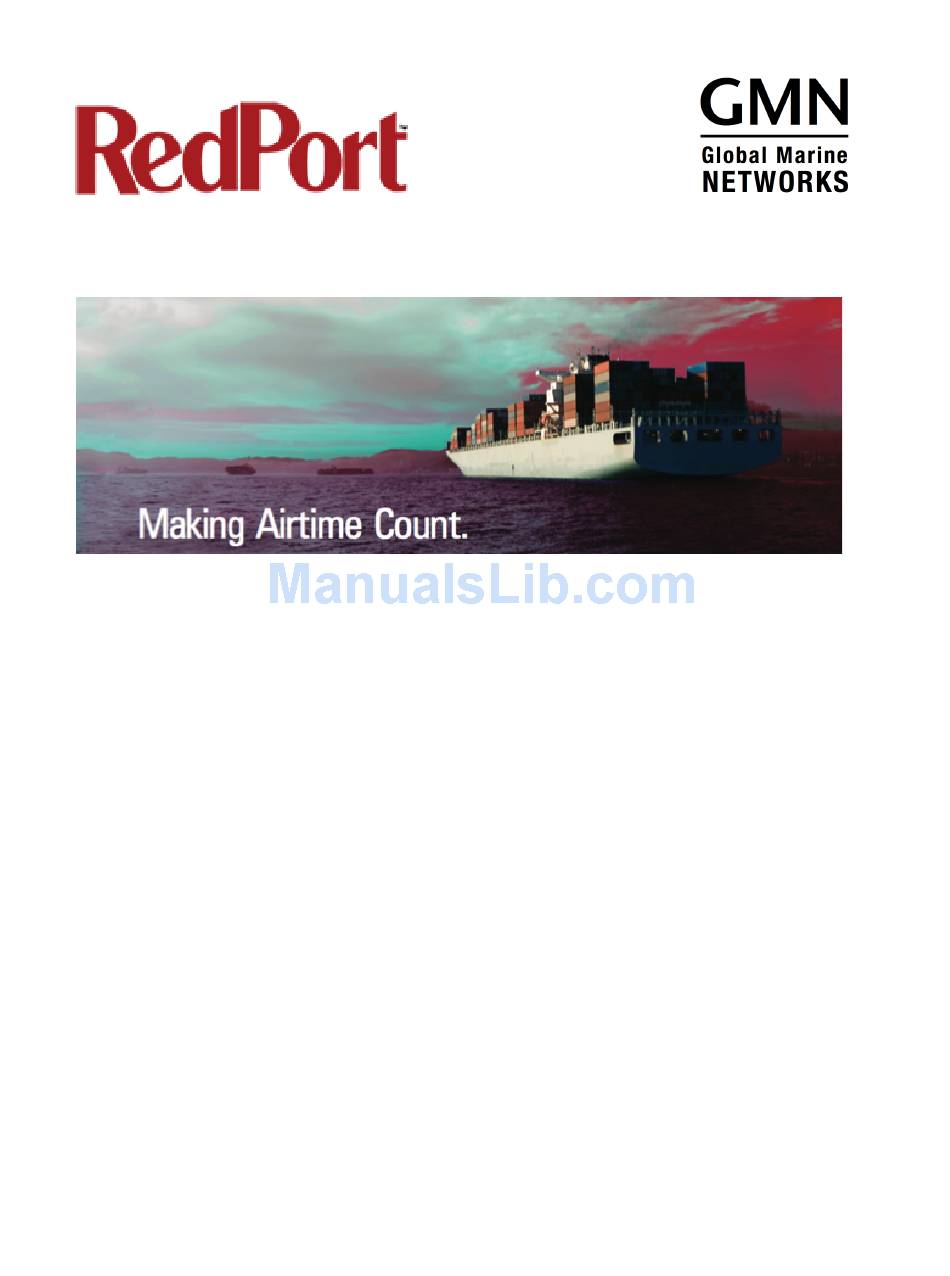

  • Page 1 Optimizer User’s Guide RedPort Router - wXa-112 Copyright © Global Marine Networks, LLC...
  • Page 2 Copyright © Global Marine Networks, LLC...

  • Page 3: Table Of Contents

    Table of Contents 1.0 About this guide 2.0 Introduction to RedPort Optimizer 3.0 Getting Started - Router Administration 4.0 GPS Tracking 5.0 GPS/NMEA Repeater . 6.0 Signal Monitor 7.0 GSM 8.0 Restrict Wireless Network Access 9.0 Rename the Wireless Network.
  • Page 4 Optimizer User’s Guide Revision History Date Revision Author December 15, 2014 Initial Release D. Brickhouse Optimizer User’s Guide Copyright © Global Marine Networks, LLC Page 4 of 38...

  • Page 5: About This Guide

    It includes important information regarding the physical connection setup and initial configuration for email. wXa refers to the webXaccelerator by RedPort, a trademark of Global Marine Networks, LLC. The following chapter references will help you in administering the most-used features of the Optimizer.

  • Page 6: Introduction To Redport Optimizer

    The company’s products include XGate high-speed satellite email, WeatherNet weather and oceanographic data software, and vessel tracking systems. Ship to shore network management solutions are sold by GMN under the RedPort Global brand name at www.redportglobal.com and as white-label solutions for the world’s premier satellite data service service providers.

  • Page 7: Getting Started - Router Administration

    On a Windows PC, go to: Windows Start > Control Panel > Network Connections On a MAC, go to: Apple > System Preferences > Network The Network Name will look something like: ‘wxa-112-XXXX’ where ‘XXXX’ may represent the last four digits of the Optimizer Mac address. Select this wireless network.
  • Page 8 Once logged in, you will see the Optimizer's Tracking Services screen. An alternate method to access the user interface: With power to the Optimizer, connect the Optimizer to your computer using a standard ethernet cable in the LAN port and follow the directions above, starting with Step 2, entering the URL http:192.168.10.1 Use the tabs to navigate through the user interface.

  • Page 9: Gps Tracking

    4.0 GPS Tracking If you wish to have tracking service using your satellite device, the Optimizer offers GPS Tracking service powered by GSatTrack or Tracking service via SMS message. There are two tracking options available in the Optimizer: 4.1 Tracking powered by GSatTrack Using a GPS-enabled satellite device, the Optimizer can be configured to submit position reports to a central database for viewing on the tracking website.
  • Page 10 2. In "General Tracking Parameters", select the Tracking Interval in minutes; the default is set to hourly reporting (60 minutes). This means that every 60 minutes a position report will be transmitted over your satellite link. Keep in mind that standard airtime charges will apply to each postition report.

  • Page 11: Gps/Nmea Repeater

    5.0 GPS/NMEA Repeater The Optimizer supports USB and RS-232 NMEA devices allowing multiple applications to share the GPS/NMEA data. If you have a NMEA RS-422 device, adding a RS-422 to RS-232 converter to your setup may allow the sharing of data. The Optimizer does not transmit data but can be configured to receive and repeat GPS/NMEA data from: •...

  • Page 12: Equipment Setup

    5.1 Equipment Setup A physical connection is required from the source (satellite terminal or satellite phone that transmits GPS coordinates, or other GPS/NMEA device) to the Optimizer. 5.1.1 Broadband Satellite Terminal with Integrated GPS When using a supported broadband satellite terminal with integrated GPS, connect the terminal to the Optimizer SAT port using a standard ethernet cable.
  • Page 13 5.1.2 Handheld Satellite Phone with Integrated GPS When using a supported USB connected satphone with integrated GPS, connect the satphone to the Optimizer using the Mini-USB (satphone) to USB (Optimizer) cable. (OPTIONAL: Use an ethernet cable to connect the computer with the destination software, like a navigation program, to the Optimizer LAN port.) The Optimizer will broadcast the GPS signal both over Ethernet and WiFi, so you can connect your computer either way in order to establish a successful connection with...
  • Page 14 5.1.3 USB NMEA Device When using a NMEA device that supports a USB connection, connect the GPS/NMEA device to the Optimizer with an appropriate USB to NMEA device cable as indicated by the NMEA device manufacturer. (OPTIONAL: Use an ethernet cable to connect the computer with the destination software, like a navigation program, to the Optimizer LAN port.) The Optimizer will broadcast the GPS signal both over Ethernet and WiFi, so you can connect your computer either way in order to establish a successful connection with...
  • Page 15 5.1.4 RS-232 NMEA Device With Serial Port Connector When using a NMEA device with Serial Port connection, a USB to Serial Adapter (PL-2303HX) is required to connect the device to the Optimizer. Please Note: The PL-2303HX is the only USB to Serial Adapter that is compatible with the Optimizer.
  • Page 16 Without Serial Port Connector Some NMEA devices do not have a serial port; instead they have a group of wires extending from the back or bottom of the unit. These devices require proper wiring to a serial port. As the Optimizer does not transmit, it only repeats the data, you will only need two of the wires.
  • Page 17 5.2 GPS/NMEA Repeater Parameters Configuration In order for the destination software to properly route the GPS data you must configure the GPS/NMEA Repeater Parameters in the Optimizer User Interface. From the Optimizer Home page select Services > GPS/NMEA Repeater tab. 1.
  • Page 18 5. TCP Port - Enter the TCP port number to broadcast the GPS data to. The default is set to the standard TCP Port for NMEA 183 devices of 11102. (Note: configure the destination software to match this port number; or, change this entry to match the requirements of the destination software.) The data will be broadcast to both the UDP Port and the TCP Port.

  • Page 19: Signal Monitor

    6.0 Signal Monitor Signal monitor queries your satellite device to determine if the signal strength is sufficient to make a successful data connection. Typically, a minimum of 60% signal is required; however, 100% is ideal for the fastest possible data transfer rate. Some of the older satellite phones (for example, the Iridium 9505a) do not support the signal monitor feature.
  • Page 20 When you are done making changes, click <Save & Apply>. As an alternative, Signal monitor can also be changed from within the XGate Settings. See the XGate Help File > User Interface > Settings > Optimizer, wXa, & Sat-Fi for details.

  • Page 21: Gsm

    7.0 GSM The GSM feature is offered for your convenience but we are not able to support it. The information provided here is general in nature but may not be sufficient to establish a GSM connection. If you run into any difficulties you must contact your GSM network provider for support.
  • Page 22 4. Configure the Optimizer for GSM service. Login to the Optimizer and go to: Services > USB Phone > Settings > GSM tab. In APN, enter the Access Point Name (APN) as provided to you by your cellular carrier. In Pincode, if you have protected your cellular SIM card with a pincode, enter the pincode here.
  • Page 23 In Username, enter the username required for access to the APN, if any. In Password, enter the password required for access to the APN, if any. Click <Save & Apply> Optimizer User’s Guide Copyright © Global Marine Networks, LLC Page 23 of 38...
  • Page 24 7.2 Using GSM When you want to use GSM service instead of satellite service: Plug the USB data dongle you obtained from your cellular provider into the Optimizer's USB port. IMPORTANT: If your satellite terminal is connected to the Optimizer's SAT port, unplug the cable from the SAT port before attempting a GSM connection.
  • Page 25 7.3 Changing from GSM service to satellite service When you travel beyond GSM range you must: • Remove the GSM data dongle from the Optimizer's USB port. • Connect you satellite phone/terminal to the Optimizer (either via USB port or SAT port).

  • Page 26: Restrict Wireless Network Access

    As an alternative you can add password protection to the WiFi hotspot via the Optimizer user interface. Add/change a password to the WiFi Hotspot (wxa-112-xxxx) Login to the Optimizer and go to: Network > WiFi Tab. Select your WiFi hotspot from the Wireless Overview list and click on <Edit> to open the Device and Interface Configuration window.
  • Page 27 Go to the Wireless Security Tab and click on the Encryption drop down menu. Select the encryption mode; we suggest WPA-PSK/WPA2-PSK Mixed Mode. Enter your desired password in the Key field. Click <Save & Apply> This procedure adds/changes the password for the WiFi hotspot only. When connecting your computer, iOS or Android device to the wireless network, this is the password you will use.

  • Page 28: Rename The Wireless Network

    Android device. The default name is wXa-112-xxxx where the xxxx represents a unique number. The easiest way to change the wireless network (WiFi hotspot) name is to modify the XGate Settings.
  • Page 29 Enter the new wireless network in ESSID field. Click <Save & Apply> This procedure changes the name for the WiFi hotspot only. When connecting your computer, iOS or Android device to the wireless network, this is the network name that will appear in the wireless network list. This name does not change the router admin name when logging in to access the Optimizer user interface.

  • Page 30: Change Admin Password

    10.0 Change Admin Password The default login admin password is set to: webxaccess. The easiest way to change the login admin password is to modify the XGate Settings. See the XGate Help File > User Interface > Settings > Optimizer, wXa, & Sat-Fi for details.

  • Page 31: Update Firmware

    11.0 Update Firmware Get the latest Optimizer firmware version from here: http://www.redportglobal.com/support/technical-downloads/ Save the .bin file to your computer (pc or mac) Access the Optimizer Home Page (see Chapter 3.0 Getting Started) Go to System > Backup/Flash Firmware 1. Keep Settings: remove the check in the box to uncheck keep settings. 2.

  • Page 32: Access System Log

    12.0 Access System Log If you are experiencing connection issues your service provider may request that you send them a copy of the Optimizer System Log. 1. First, attempt an email connection 2. Access the router (see Chapter 3.0 Getting Started) to get to the Home page. 3.

  • Page 33: Reboot

    13.0 Reboot the Optimizer Router The easiest way to reboot the Optimizer is to use the reset button on the bottom of the router. Using a pointed instrument, press and hold the red reset button for 20-30 seconds and release. Wait for the Optimizer reboot, this will take several minutes. After this reset, the Optimizer will be configured with its factory defaults.

  • Page 34: System Status For Monitoring Usage

    14.0 System Status for Monitoring Usage For those that are interested, you can view the connection status in Status > Realtime Graphs Optimizer User’s Guide Copyright © Global Marine Networks, LLC Page 34 of 38...

  • Page 35: Profiles

    15.0 Profiles Profiles is designed for users of multiple satellite devices and integrators of custom installations. You can configure the Optimizer for a specific satellite device and save the profile. This is good for failover situations when using multiple devices. An extreme example would be that you might have the firewall wide open on a VSAT device but in an emergency must use an Iridium handheld device where you want the full protection o the Optimizer firewall.
  • Page 36 Enter a Name of the new profile and a description. Select <Install> to add the new profile. Select <Save & Apply>. Optimizer User’s Guide Copyright © Global Marine Networks, LLC Page 36 of 38...

  • Page 37: Firewall Modification

    16.0 Firewall Modification By default, the Optimizer ships with a powerful firewall configured to block ALL inbound or outbound traffic except XGate email, web and weather. This configuration protects you from experiencing runaway satellite airtime bills. If you have a need to open the firewall, go to: Network > Firewall > Traffic Rules These are the firewall rules that protect you.
  • Page 38 This concludes the RedPort Optimizer User Guide. If you have a question that is not addressed in this Guide or if you have recommendations to improve the usefulness of this Guide, please contact us at: support@gmn-usa.com Optimizer User’s Guide Copyright © Global Marine Networks, LLC...

  • Page 39: Appendix A - Optimizer Quick Start Guide

    • BGAN - “Network Connection” (Unmanaged Connection) • Thuraya - “webXacc Thuraya” GPS Tracking Optimizer works as a tracking device with the industry-leading RedPort Tracking service. Optimizer provides tracking data using the GPS chip built into many satellite terminals. For more information, visit http://tracking.redportglobal.com Optional Equipment •...

  • Page 40: Advanced Settings

    Inmarsat BGAN / Iridium Pilot /
 FleetBroadband Settings OpenPort Settings Optimizer supports both managed and unmanaged Optimizer supports both managed and unmanaged connections for Inmarsat broadband users. connections for Iridium Pilot/OpenPort. Managed connections are intended for satellite Managed connections are highly preferable for most Pilot/ terminals configured to be offline except when a data OpenPort installations with an Optimizer.
