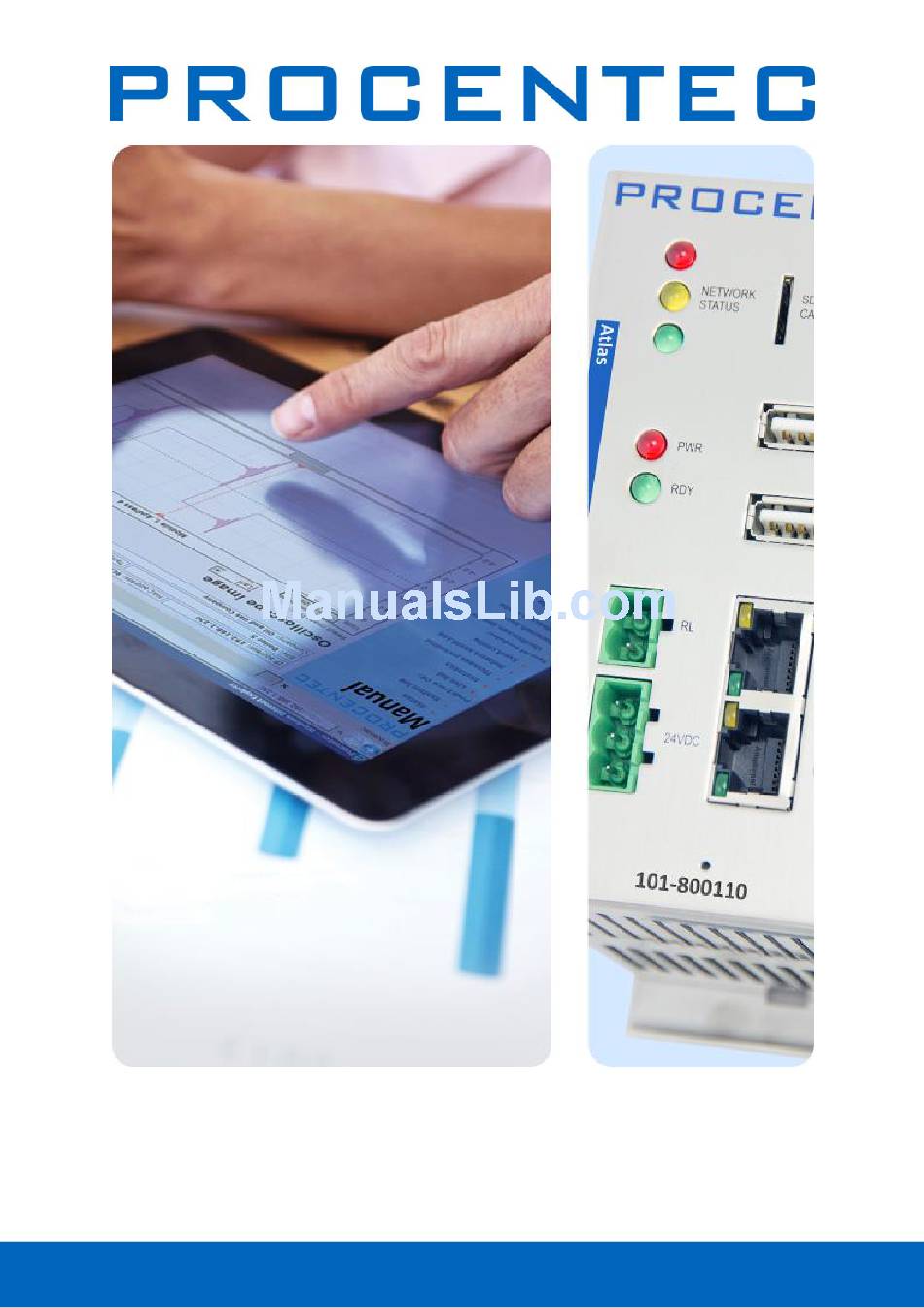

- Page 1 Atlas User Manual...
- Page 2 This product can only function correctly and safely if it is transported, stored, set up, installed, operated and maintained as recommended. Atlas is a CE class A product. In a domestic environment it may cause radio interference in which case the user may be required to take adequate measures.
-
Page 3: Important Information
Purpose of the Manual This user manual provides information how to work with Atlas. Recycling and Disposal The parts of the Atlas can be recycled. For further information about environment-friendly recycling and the procedure for disposing of your old equipment, please contact: PROCENTEC... -
Page 4: Table Of Contents
4.8.1 Traffic light state explained ......................21 4.8.2 Traffic light triggers..........................21 Device list............................21 4.9.1 Table customization ........................22 4.9.2 Available columns ..........................23 4.10 Trending ............................24 4.11 OPC UA ............................25 4.12 Settings ............................25 Technical specifications ................26 Atlas User Manual v1.1 | June 2017 | © PROCENTEC 4/38... - Page 5 Order codes ....................29 Certificates ....................30 Sales offices and distributors ............... 31 About PROCENTEC ..................36 10. Notes ......................37 Atlas User Manual v1.1 | June 2017 | © PROCENTEC 5/38...
-
Page 6: Product Description
The ease of use and clear overview makes this an ideal solution for complete understanding of networks, always and anywhere. Atlas contains a compact device, that can be installed on a DIN rail and plugged in to the network. Atlas does not require additional and time consuming software installations on the PC. You can get all the information using a custom designed web application. -
Page 7: Quick Start
Dashboard and follow all the steps. (4.5) The Atlas is now operational. From here you can change settings, layout and behavior of the Atlas. If connected to a factory network, it will start scanning and gathering information. -
Page 8: Installation Instructions
Position Atlas can only be installed on a horizontal 35mm DIN rail with the front plates facing forward (see Fig. 1 for an example). In this position the generated heat of the module can escape through the grid in the top of the housing. -
Page 9: Ethernet Connections
Ethernet connections The Atlas has two physical network interfaces named Office and Factory. The networks are not connected with each other one-on one. The scanning, measuring and reporting of the network does not occur on the Office side, only on the Factory side. -
Page 10: Web Server
Atlas displays all information by means of the internal web server. To access this information, simply open a web browser and type in the address of the Atlas (the default address is 192.168.1.10 for the office side and 192.168.0.10 for the factory side). - Page 11 Figure 4 - Terminology used in the webserver (continued) Atlas User Manual v1.1 | June 2017 | © PROCENTEC 11/38...
-
Page 12: Dashboard
The dashboard is a matrix of tiles and can be organized in 3 different ways: • Show all: All available tiles are shown in a fixed arrangement • Show recommended: Only tiles are shown which PROCENTEC deems most important • Show customized (see 4.3.3) Atlas User Manual v1.1 | June 2017 | © PROCENTEC... -
Page 13: Customize Dashboard
This saved personalized dashboard will remain available after a logout or restart. These settings are stored in a browser session and not in the Atlas, so this is a personalized setting for a specific user, computer and browser. Opening a customized Dashboard of an Atlas on a different computer or browser will result in a default view. -
Page 14: Default Users
View/use the Q-Factor page View/use the Device List page View/use the ‘Factory Reset’ button View/use the System Bar View/use the Setup Wizard Edit the users and passwords Edit Atlas settings Atlas User Manual v1.1 | June 2017 | © PROCENTEC 14/38... -
Page 15: Password Best Practice
(system bar) and in the reports. Step 2 Next, fill in the name and the location of the network that the Atlas will be connected to. This name will be used in the web interface and reports. You can also enter optional contact details for colleagues in need of assistance. -
Page 16: Topology
In many of those cases it can also be that non-managed switches are used. For stand-alone devices (not connected to any other) no topology/localization information could be retrieved. Atlas User Manual v1.1 | June 2017 | © PROCENTEC 16/38... -
Page 17: Visual Layouts
Chrome or Firefox users can right-click on the Topology and choose ‘Save image as…’ to save the Topology directly as a .png file. 4.6.2 Icons in the Topology view The following icons are used in the Topology view. Icon Meaning This is an Atlas station. Atlas User Manual v1.1 | June 2017 | © PROCENTEC 17/38... - Page 18 The port statistics of this device have a number that is over the threshold. 1..28 The number is the physical switch port of the device that this cable is connected to. Atlas User Manual v1.1 | June 2017 | © PROCENTEC 18/38...
-
Page 19: Device Details
Warning: some devices report an incorrect link speed (e.g. 10 Mbps instead of 100 Mbps). Since the link speed is used to calculate the load, the reported load can be incorrect. If the reported load is very high, check the link speed. Atlas User Manual v1.1 | June 2017 | © PROCENTEC 19/38... -
Page 20: Link Details
Ping packet loss: how many ping requests were not answered. • A single overall Q-Factor, indicating the quality of a complete network. Currently the overall Q-Factor equals to the lowest Q-Factor of an individual network device. Atlas User Manual v1.1 | June 2017 | © PROCENTEC 20/38... -
Page 21: Traffic Light
The Network indicator on the front of the Atlas unit (LEDs) corresponds with the traffic light state in the web browser. The traffic light can also be read in the live tile in the Dashboard. -
Page 22: Table Customization
It is also possible to combine two or more filters. Simply enable a filter for each column that you want to filter, for example an IP address filter and a MAC address filter: Combined filter Figure 9 - Combined IP and MAC address filter Atlas User Manual v1.1 | June 2017 | © PROCENTEC 22/38... -
Page 23: Available Columns
Order ID: For certain industrial network protocols the order/article number can be retrieved (e.g. for PROFINET). This can help if the product needs to be re-ordered or documented (e.g. when there is a defect or a spare is needed). Atlas User Manual v1.1 | June 2017 | © PROCENTEC 23/38... -
Page 24: Trending
Min: The minimum value of Q-Factor found during a period It is possible to select which of these values you want to have displayed in Trending by clicking on the respective legend items. Atlas User Manual v1.1 | June 2017 | © PROCENTEC 24/38... -
Page 25: Opc Ua
SCADA systems. The OPC UA server functionality is switched off by default. On the OPC UA page you will see the address you can use to connect from a client to Atlas and the ability to start the server. -
Page 26: Technical Specifications
9 .. 32 VDC Nominal power use 4.5 W Maximum power use 20 W Input current (24 VDC) Typ. 180 mA, Max 840 mA RL contact Max. 220 VDC / 270 mA Atlas User Manual v1.1 | June 2017 | © PROCENTEC 26/38... - Page 27 ARP, ICMP, DCP, SNMP, PROFINET I&M0 Default IP address after reset/purchase Factory: 192.168.0.10 Office: 192.168.1.10 Default login / password admin / admin Connections Up to 20 concurrent web server clients Atlas User Manual v1.1 | June 2017 | © PROCENTEC 27/38...
- Page 28 Maximum 4 amps for voltages 21 .. 24 V, or is supplied by a Class 2 power supply, or equivalent. SD card Supported types SD and SDHC Size Max. 32 GB Others MTBF To be defined Atlas User Manual v1.1 | June 2017 | © PROCENTEC 28/38...
-
Page 29: Order Codes
Order codes Component Order code Remarks • Atlas main unit including mounting materials Atlas 101-800110 Atlas User Manual v1.1 | June 2017 | © PROCENTEC 29/38... -
Page 30: Certificates
Certificates Atlas User Manual v1.1 | June 2017 | © PROCENTEC 30/38... -
Page 31: Sales Offices And Distributors
W: www.procentec.net China CZECH REPUBLIC FOXON s.r.o. T: +420 484 845 555 Polní 367 F: +420 484 845 556 460 01 Liberec 12 E: foxon@foxon.cz Czech Republic W: www.foxon.cz Atlas User Manual v1.1 | June 2017 | © PROCENTEC 31/38... - Page 32 Netanya, 42170 W: www.inst-ic.co.il Israel ITALY PROCENTEC Italy T: +39 030 200 8610 Via Branze n. 43/45 F: +39 030 238 0059 25123 Brescia E: www.procentec.it Italy W: www.procentec.it Atlas User Manual v1.1 | June 2017 | © PROCENTEC 32/38...
- Page 33 T: +966 2 691 27 41 Al-Zahra Dist. – Attas st. F: +966 2 682 89 43 cross section with helmy Kutby St. E: info@asmestablishment.com Villa no.25 W: www.asmestablishment.com Jeddah-21553 Saudi Arabia Atlas User Manual v1.1 | June 2017 | © PROCENTEC 33/38...
- Page 34 United Kingdom Hi-Port Controls T: +44 (0)8452 902 030 The Hub 2 Martin Close F: +44 (0)2392 552 880 Lee-on-Solent E: sales@hiport.co.uk Hampshire PO13 8LG W: www.hiport.co.uk United Kingdom Atlas User Manual v1.1 | June 2017 | © PROCENTEC 34/38...
- Page 35 For the complete list of our Sales Offices and Distributors see www.procentec.com/company/distributors. If your country or region is not listed, please contact us. We are still searching for distributors who can cover complete areas or countries. Atlas User Manual v1.1 | June 2017 | © PROCENTEC 35/38...
-
Page 36: About Procentec
About PROCENTEC PROCENTEC is a specialist in PROFIBUS and PROFINET technology and develops products to optimize the production processes of end users. Our innovative solutions ensure that our customers successfully operate in the world of industrial automation and enjoy maximum results from their process. -
Page 37: Notes
10. Notes Atlas User Manual v1.1 | June 2017 | © PROCENTEC 37/38... - Page 38 PROCENTEC BV Klopperman 16 2292 JD Wateringen The Netherlands T: +31 (0)174 671 800 F: +31 (0)174 671 801 E: support@procentec.com W: www.procentec.com...
