Visonic WCDMA-3G PG2 Installation Instructions

WCDMA-3G PG2
Internal WCDMA-3G module for PowerMaster control panels
1. INTRODUCTION
The internal WCDMA-3G module enables the PowerMaster control panel to
operate over a GSM/GPRS/UMTS cellular network. The WCDMA-3G
model is optional and can be installed in any of the following control panels:
• PowerMaster-10 G2, see figure 1a for details.
• PowerMaster-30 G2, see figure 1a for details.
• PowerMaster-33 G2, see figure 1a for details.
• PowerMaster-360R, see figure 1b for details.
2. INSTALLATION

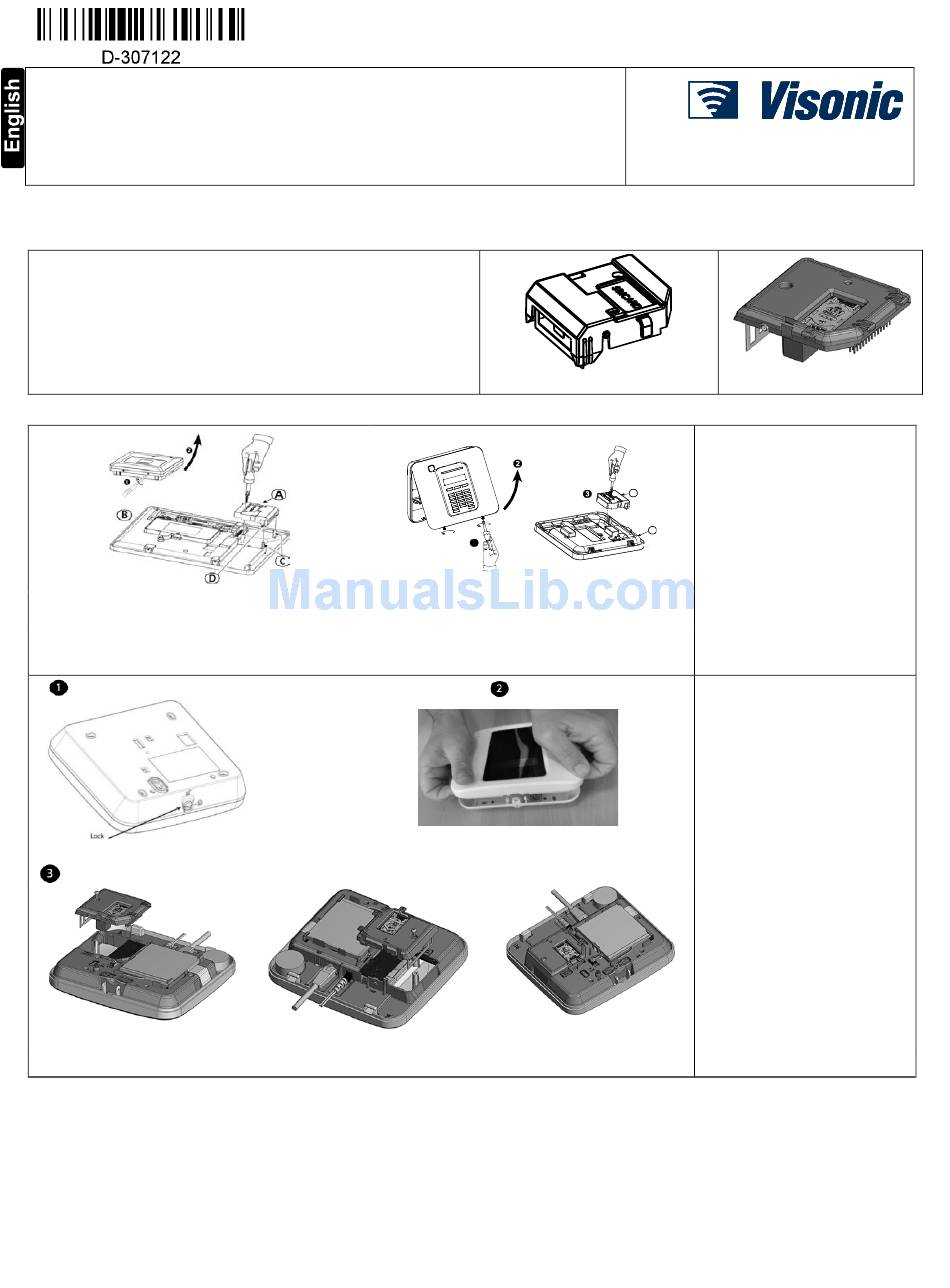

Fig. 2.1 WCDMA-3G PG2 module mounting
PowerMaster-33 G2
A. WCDMA-3G PG2 module
*PowerMaster-33 G2 only
Fig. 2.3 WCDMA-3G PG2 module mounting PowerMaster-360R
D-307122 WCDMA-3G PG2 Installation Instructions
Fig. 2.2 WCDMA-3G PG2 module mounting
PowerMaster-10 G2 and PowerMaster-30 G2
B. Front unit C. *Leading ribs
Installation Instructions

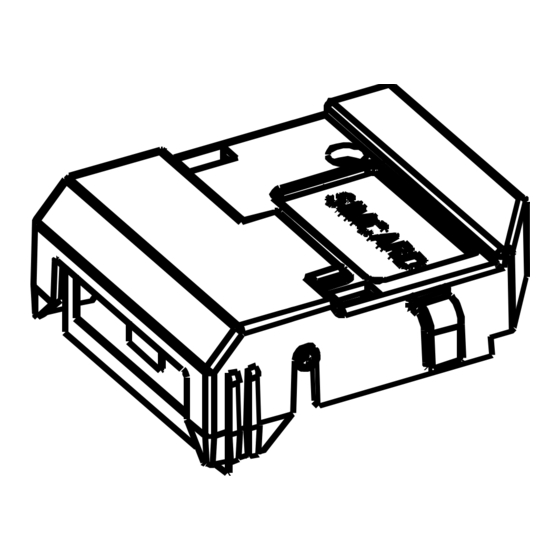

Fig. 1a WCDMA-3G PG2
A
B
1
D. *Leading slot (1 of 2)
Fig. 1b WCDMA-3G PG2
1. Release screws.
2. Remove front unit.
3. Plug in the WCDMA-3G
module and fasten it with the
screw.
4. For PowerMaster-33 G2,
ensure that the two leading
slots (D) on both sides of the
module slide along the two
leading ribs (C) on the front
unit.
1. Use a coin or 3 mm flathead
screwdriver to rotate the lock
by 90 degrees counter
clockwise to the unlocked
position.
2. Use minimal force to pull the
panel from the base.
3. Plug in the WCDMA-3G
module and fasten it with the
screw.
