Scottoiler eSystem Installation Manual

English-Yamaha-XT 125 X-29th August 2011

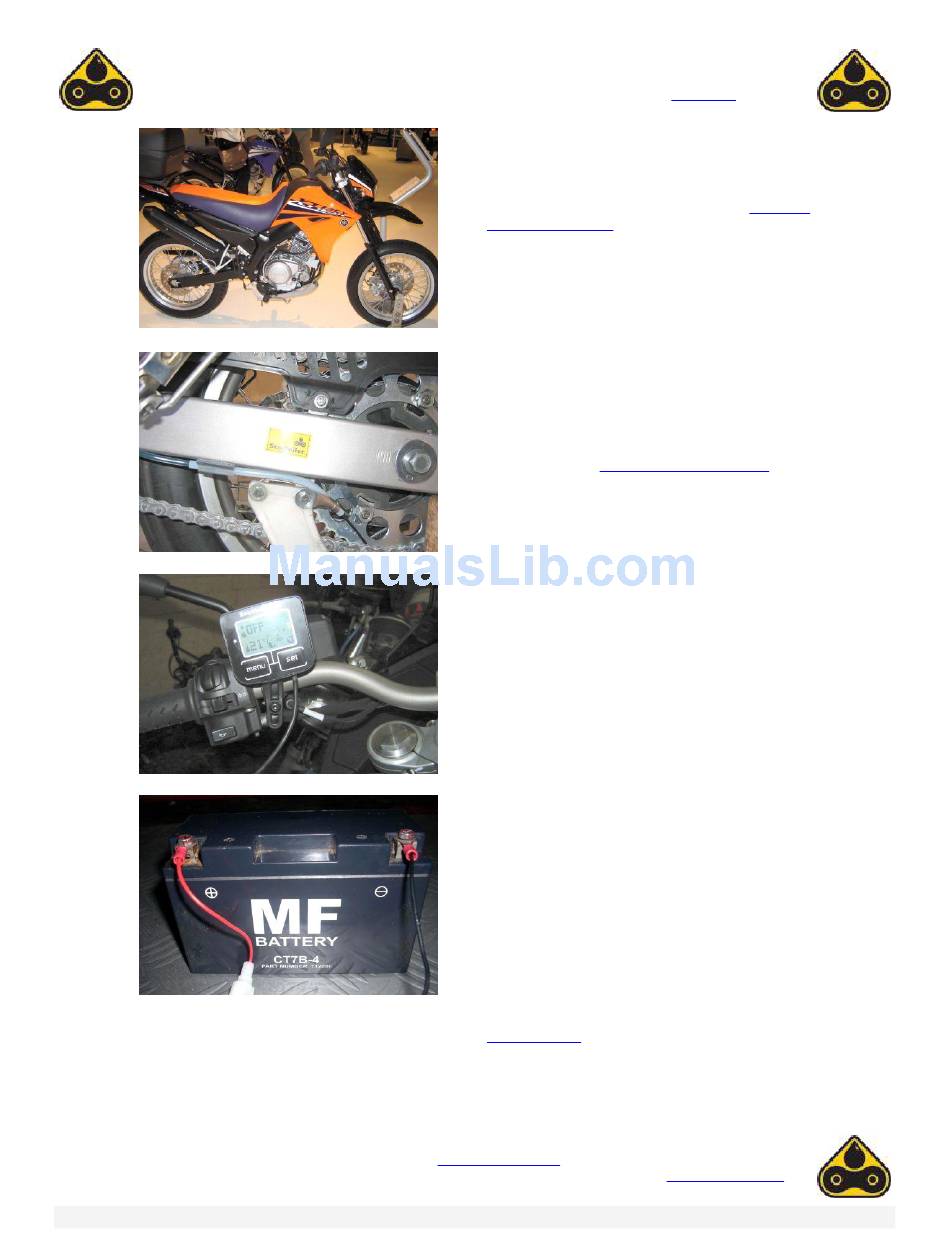

Scottoiler eSystem (the electronic Scottoiler) Installation Guide
Note: The HCR (sold separately) is not compatible with this model, we recommend the
Note: Picture shows a similar Swingarm
Note: This is a generic image
Note: This is a generic image
If you have any further comments or queries, and are unable to resolve them using our website, please do not hesitate to call
Scottoiler Ltd. 2 Riverside, Milngavie, Glasgow, G62 6PL Tel. 0141 955 1100 Fax. 0141 956 5896
Page 1 of 1
Scottoiler: Yamaha XT 125 X
technical on 0141 955 1100 or email
The Dispenser assembly can be secured on the chain
guard bolt using the small dispenser plate and clip.
The delivery tubing can be routed along the swing
arm using conduit and glue or self adhesive cable
clips. See our easy step installation guide
Assemblies, General. The nib should feed the rear
sprocket between 6 and 7 o'clock with the slash cut
facing outwards.
Connect the delivery tubing to the check valve but do
not connect the check valve, part 6, to the REP, part
7, until you are priming the system.
See picture below left
The REP can be mounted on the frame or under the
seat and can be orientated anywhere between
horizontal and vertical, as long as the nozzle is
inclined upwards. Remember to avoid exhaust and
engine components and to keep the filling hole
accessible. For further information, see our easy step
installation guide – Reservoir Positions,
The Display Bracket, part 5, can be rotated through
360° to give 4 mounting options and can also be
flipped to provide 4 further options. The bracket can
be secured to any M5 / M6 bolt e.g. brake or clutch
lever, brake cylinder or fairing mountings, in some
cases you might need to trim the supplied bolt. It is
possible to bend the bracket to shape, do so before
fitting the Display Unit, part 1, to prevent damage to
the unit. Alternatively, the Sticky Fastener, part 4, can
be used to securely fasten the Display Unit to any flat
surface e.g. the fork yokes.
See third picture
Locate the bikes' battery and attach the red terminal
from the display unit to the +ve terminal on the battery,
and attach the black terminal to the -ve terminal of the
battery. Take care when routing the wires, avoiding
hot engine and exhaust components also avoiding
moving parts such as the throttle linkages. Where
possible follow existing wiring and secure using
cable ties.
Once fitted, fill the REP and prime the pump, then
connect the check valve to the REP and prime the
delivery tubing following the instructions supplied with
the kit. For further information, see the website
eSystem page which includes the Setup and

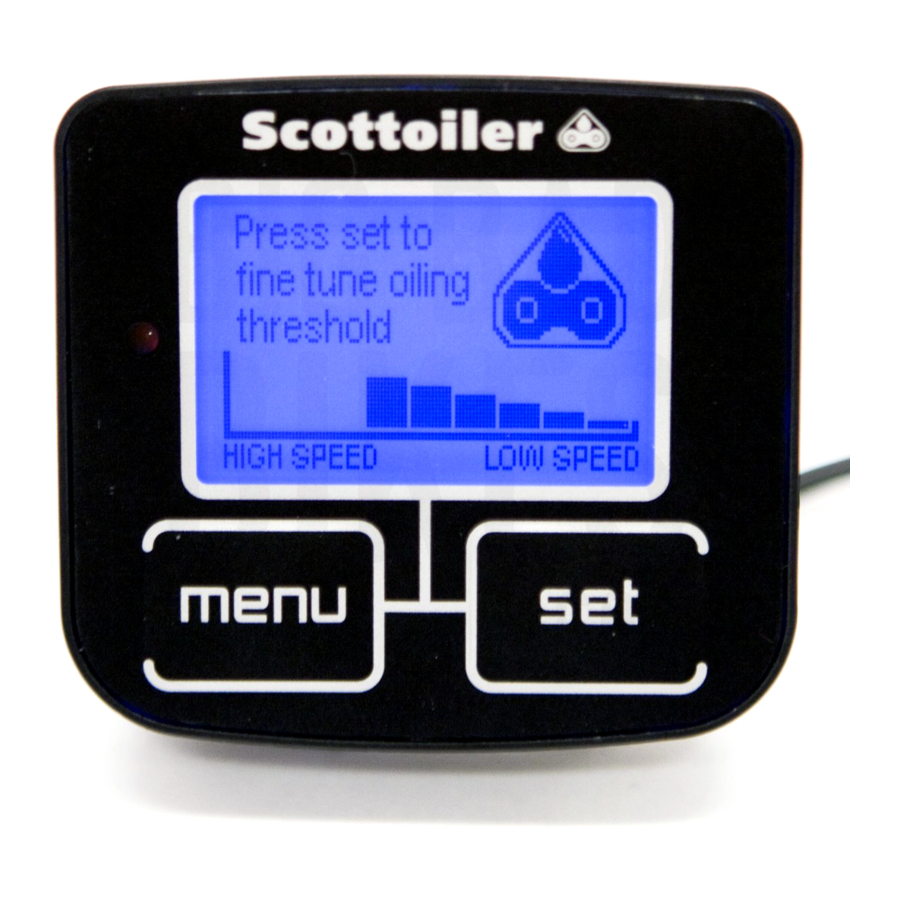

Installation Guide. Set the flow rate using the 'Driving
Screen' on the Display Unit to 60-70 seconds per drop
(s/dp), check the condition of your chain after a ride,
and then adjust as required.
See picture bottom left
technical@scottoiler.com for assistance. Thank you.
YAM-041
Lube Tube instead
Dispenser
General.
www.scottoiler.com
