Toucan Surveillance Kit
Camera & Smart Socket
User's Manual
Model: TSK100KU

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSK100KU and is the answer not in the manual?

Questions and answers

Related Manuals for Toucan TSK100KU

Summary of Contents for Toucan TSK100KU

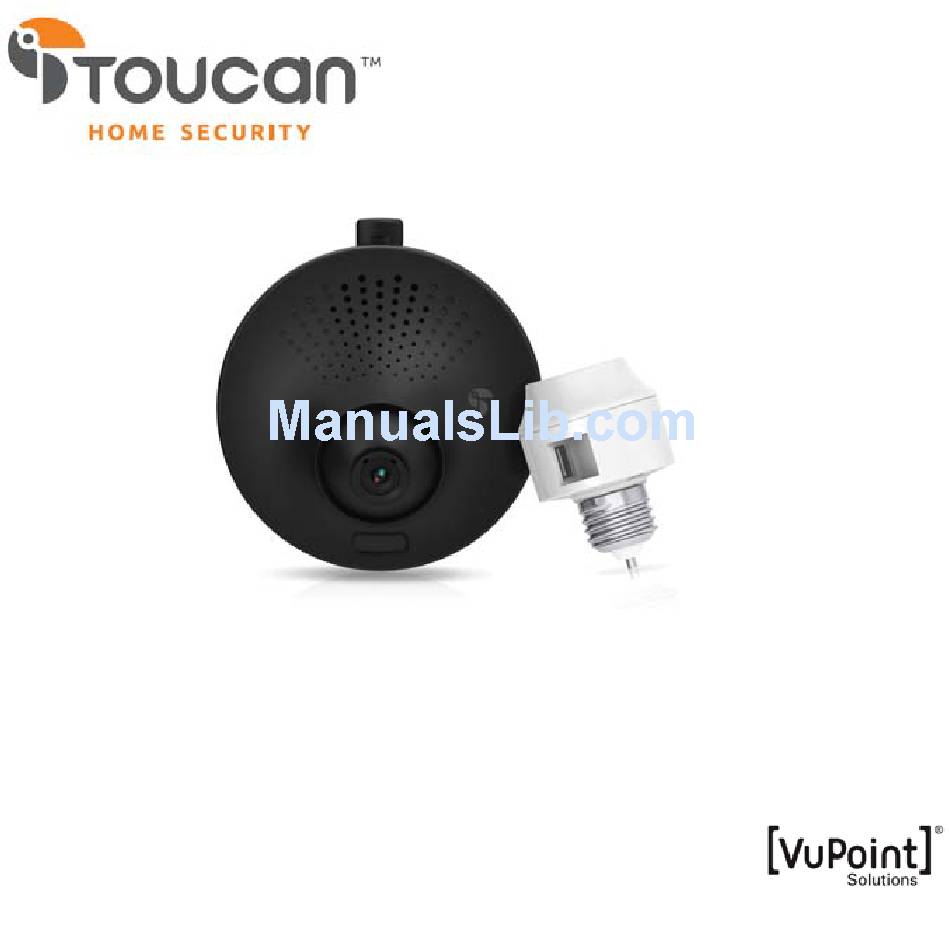

  • Page 1 Toucan Surveillance Kit Camera & Smart Socket User’s Manual Model: TSK100KU...

  • Page 2: Table Of Contents

    Table of Contents Key Features.............................. 3 What Is Included ............................6 Toucan Camera & Socket Installation......................8 Getting The Kuna App..........................12 Setting up a Light Schedule ........................16 Setting Your Location..........................17 Setting Motion Detection Sensitivity......................18 Viewing & Downloading Your Recordings ....................19 Setting Alerts For Individual Toucans .......................

  • Page 3: Key Features

    1. Key Features...
  • Page 4 Toucan Smart Socket...

  • Page 6: What Is Included

    2. What Is Included Before installing Toucan, make sure all parts are present. If any part is missing, please contact VuPoint Solutions at support@vupointsolutions.com Item Part Description Application Mount Camera On Mount Plate Toucan Mount camera under light fixture Camera Thread in between light fixture and light bulb.
  • Page 7 Wall mount purpose Wall Inserts Wall mount purpose Hexagonal Lock the camera on base plate Wrench Manual and Labels User’s Manual Warranty Card Secure Alert intruder that home is secured by Toucan Stickers Power Sticker Stick on main power switch...

  • Page 8: Toucan Camera & Socket Installation

    3. Toucan Camera & Socket Installation Refer to “What Is Included” in Section 2 for part installation for the steps below: Step 1: Socket installation Install Smart Socket Thread in light bulb Remove USB cover to fixture Attach USB Cable...
  • Page 9 Step 2: Mounting the camera’s back plate Remove optional inner temporary adhesive for camera positioning and use leveler to align and balance back plate. You can use a pencil or Position Sticker (included) to mark placement before adhering to your wall Refer to Option 1 to mount camera to wall with adhesive or Option 2 to mount camera to wall with screws...
  • Page 10 OPTION 2: Mounting with screws After using the leveler to adjust the Drill holes for screws placement balance of the place, you can use a pencil to mark the placement for the screws Install Wall Inserts Mount back plate with Washers Screws...
  • Page 11 Step 3: Cable management Plug USB Cable into the back of the Attach Conduit to align the Position camera and camera and loop the cable around cable. Extend/retract conduit’s Cable Clips the rings; continue looping the cable length by sliding it. Then attach manage the cable if necessary Conduit Cover...

  • Page 12: Getting The Kuna App

    In order to set up your Toucan, please make sure it's successfully installed, and the status LED on the bottom left side of your light is flashing red. This means that your Toucan is ready to be set up! Step 1 - Download the Kuna App...
  • Page 13 Step 4 - Add your Toucan to Your Account Once logged in, you will see the Cameras page. Select the Camera Plus button in the upper right hand corner to display your new Toucan. Because the set-up process uses Bluetooth technology, you will need to be close to your Toucan.
  • Page 14 Step 5 - Set Your Location Connecting to your Toucan can take up to a minute. Once the app connects, set your time zone and enter your city (or a city within 100 miles or so) under location. Toucan uses your approximate location...
  • Page 15 Step 7 – Connect Your Kuna to Wi-Fi Next, enter the password for your local Wi-Fi network. Make sure that your Toucan is able to see a strong signal (by checking the Wi-Fi signal bars next to your network’s name).

  • Page 16: Setting Up A Light Schedule

    “dusk” for when the light comes on, “10 pm” for when the light turns off, and have the motion sensor turn the light on at night. Your light schedule will work best if your Toucan knows your general location. To set up or change your location, refer to Section 6.

  • Page 17: Setting Your Location

    You can make your location as specific as your full address, or you can choose a city within about a hundred miles. If you have already taken your Toucan through setup and are ready to set your location, head to the Cameras tab of your mobile app, and hit the Settings icon “gear” next to your Toucan’s name.

  • Page 18: Setting Motion Detection Sensitivity

    7. Setting Motion Detection Sensitivity If your Toucan is picking up a lot of false alarms or missing you when you walk by, you can adjust the motion detection sensitivity yourself. Tap on the settings “gear” icon for the Toucan you wan to adjust in the “Cameras” tab.

  • Page 19: Viewing & Downloading Your Recordings

    8. Viewing & Downloading Your Recordings To view your past recordings, tap “Recordings” to view animated video thumbnails or tap into the video of your choice. To download a recording, simply select the recording to view it. Then tap the download button and the recording will be saved to your phone.

  • Page 20: Setting Alerts For Individual Toucans

    9. Setting Alerts For Individual Toucans I want to get alerts from my front door Toucan, but I don’t want to get alerts for my garage Toucan You can set the alerts for your Toucans in two different ways. First is to go into the global setting view, then select the alerts.

  • Page 21: Share & Access From Different Devices

    10. Share & Access From Difference Devices I want my spouse or family member to use my Toucan, how do I share it with them? You can access your Toucan from multiple logins and devices as long as you have the Kuna app downloaded, so you can share access with your spouse or another family member.

  • Page 22: Specifications

    Siren Alarm 100 dB Lighting Control On/Off/Scheduling with app Weatherproof Design IP44 Dimensions (L×H×W) 4.6” x 4.6” x1.9” Toucan Smart Socket Lamp Base Type Socket type E26 USB Output 5V/1A USB Input 100-240VAC, 50/60Hz Lighting Control On/Off/Scheduling through BLE Mesh Network Bluetooth®...

  • Page 23: Troubleshooting & Faq

    Toucan uses Bluetooth® LE 4.0 for setup. You will need to be within about 10 feet of the I do not see any Toucan show up in setup screen Toucan and have Bluetooth enabled on your mobile device. Try rebooting your mobile...
  • Page 24 * may be caused by weak Wi-Fi signal. Improve performance by moving your router closer to your Toucan, or adding a Range Extender in between Note: Model Number and Serial Number (S/N) is located on the packaging, instruction manual, on the product or inside the battery compartment.
  • Page 25 FCC Statement Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
