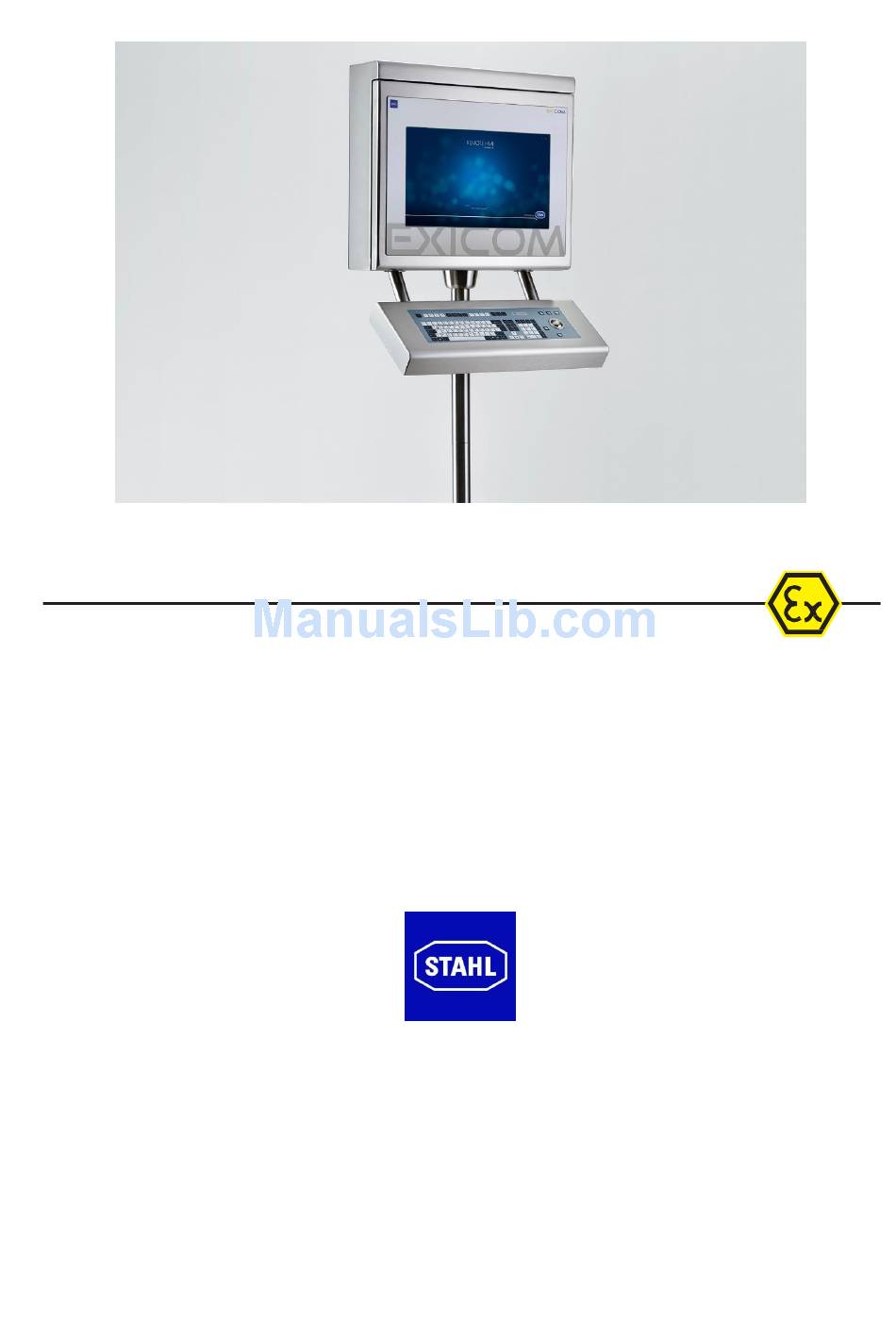

Installation Manual SERIES 400 Panel PC SERIES 500 Thin Clients SERIES 600 KVM Systems Device platform MANTA ET-xx7 / MT-xx7 HW-Rev. ET-4x7-*-BT: 01.03.02 HW-Rev. ET-5x7-*-BT: 01.03.02 HW-Rev. ET-6x7: 01.03.00 HW-Rev. MT-4x7-*-BT: 01.01.02 HW-Rev. MT-5x7-*-BT: 01.01.02 HW-Rev. MT-6x7: 01.01.00 Installation Manual version: 01.00.01... -
Page 2: Publisher
Trademark The terms and names used in this document are registered trademarks and / or products of the companies in question. Copyright © 2018 by R. STAHL HMI Systems GmbH. Subject to alterations. Page 2 of 24 R. STAHL HMI Systems GmbH / IM_ET_MT-xx7_en_V_01_00_01.docx / 05.01.2018... -
Page 3: Table Of Contents
Ethernet interface X16 8.3.1 TX or 2TX with SERIES 400 / 500 8.3.2 TX with SERIES 600 8.3.2.1 Cable adaptation Ethernet optical fibre interface Release notes R. STAHL HMI Systems GmbH / IM_ET_MT-xx7_en_V_01_00_01.docx / 05.01.2018 Page 3 of 24... -
Page 4: Intended Use And Location
Intended use and location Intended use and location The ET-/MT-xx7 devices, device platform MANTA (SERIES 400 / 500 / 600) have been developed specially for process automation and for GMP and cleanroom applications. Suitable for hazardous areas zone 1, 21, 2 and 22 (depending on type), these devices are ideal for a great number of applications. -
Page 5: Enclosure Types
Enclosure types Enclosure types HSG-xx7-VxA-FR HSG-xx7-VxA-CFR with front door as standard with front door for cleanroom HSG-xx7-VxA-BD HSG-xx7-VxA-FR / HSG-xx7-VxA-CFR with rear door (Backdoor) for wall mounting R. STAHL HMI Systems GmbH / IM_ET_MT-xx7_en_V_01_00_01.docx / 05.01.2018 Page 5 of 24... -
Page 6: Versions Mounted On Stand Or Elbow
Installation Manual ET-/MT-xx7 Versions mounted on stand or elbow Versions mounted on stand or elbow mounted upright on elbow mounted hanging from elbow MPFL stand Page 6 of 24 R. STAHL HMI Systems GmbH / IM_ET_MT-xx7_en_V_01_00_01.docx / 05.01.2018... -
Page 7: Mounting
In regards of different applications and ambient conditions we recommend following installation types: Mounting options Mounted on stand Ceiling mounting Elbow upright mounting Mounted hanging from elbow Wall mounting R. STAHL HMI Systems GmbH / IM_ET_MT-xx7_en_V_01_00_01.docx / 05.01.2018 Page 7 of 24... -
Page 8: Recommended Mounting Type
/ without Not recommended 90 min. external keyboard Change cycle 1 oct/min Wall mounting Y, Z axes No restriction with / without external keyboard Page 8 of 24 R. STAHL HMI Systems GmbH / IM_ET_MT-xx7_en_V_01_00_01.docx / 05.01.2018... -
Page 9: Assembly Notes
1x Phillips screwdriver size 2 1x flat-bladed screwdriver 2.5 mm 1x Allen key 5 mm Mounting the stand or wall-mounting will require other tools not NOTE specified here. R. STAHL HMI Systems GmbH / IM_ET_MT-xx7_en_V_01_00_01.docx / 05.01.2018 Page 9 of 24... -
Page 10: Mechanical Installation
Installation Manual ET-/MT-xx7 Mechanical Installation Mechanical Installation CAUTION Always have two people mount the device. Dimensions Dimensions in mm. HSG-xx7-VxA-FR 34° HSG-xx7-VxA-CFR 34° Page 10 of 24 R. STAHL HMI Systems GmbH / IM_ET_MT-xx7_en_V_01_00_01.docx / 05.01.2018... - Page 11 NOTICE Choose suitable mounting screws, rawlplugs and bolts depending on the actual local requirements and possibilities. Dimensions mounting tongue 10,5 10,5 R. STAHL HMI Systems GmbH / IM_ET_MT-xx7_en_V_01_00_01.docx / 05.01.2018 Page 11 of 24...
-
Page 12: Mounted On Stand
7.2.1 View 7.2.2 MPFL Stand All dimensions in mm. Stand 1216 Ø 60.3 Ø 88.9 Cable glands M25 x 1.5 M25 x 1.5 M20 x 1.5 Page 12 of 24 R. STAHL HMI Systems GmbH / IM_ET_MT-xx7_en_V_01_00_01.docx / 05.01.2018... -
Page 13: Mounting - Step By Step
Choose suitable mounting screws, rawlplugs and bolts depending on NOTE the actual local requirements and possibilities. 8x Ø16 see dimensions "stand" Earth of the stand (see 8.1 Connection power supply) R. STAHL HMI Systems GmbH / IM_ET_MT-xx7_en_V_01_00_01.docx / 05.01.2018 Page 13 of 24... - Page 14 Installation Manual ET-/MT-xx7 Mechanical Installation Coupling (pre-mounted) mounting holes, hanging mounting mounting holes, standing mounting Operator interface enclosure Mounting holes in the enclosure of the operator interface Page 14 of 24 R. STAHL HMI Systems GmbH / IM_ET_MT-xx7_en_V_01_00_01.docx / 05.01.2018...
- Page 15 Installation Manual ET-/MT-xx7 Mechanical Installation M6 allen screw Mounting coupling Stand / wall bracket R. STAHL HMI Systems GmbH / IM_ET_MT-xx7_en_V_01_00_01.docx / 05.01.2018 Page 15 of 24...
- Page 16 Installation Manual ET-/MT-xx7 Mechanical Installation tighten all 4 screws with a torque of 10 Nm Page 16 of 24 R. STAHL HMI Systems GmbH / IM_ET_MT-xx7_en_V_01_00_01.docx / 05.01.2018...
- Page 17 Installation Manual ET-/MT-xx7 Mechanical Installation Connection bolt for equipotential bonding. Already wired to the multiple connection (*2) in operator stations (OS). R. STAHL HMI Systems GmbH / IM_ET_MT-xx7_en_V_01_00_01.docx / 05.01.2018 Page 17 of 24...
-
Page 18: Electrical Installation
WARNING mains ! Earthing of stand see 7.2.3 step 2 Stand mounting plate Washer 2x Toothed washer Hexagon screw M6x16 Split washer Cable lug with eyelet Page 18 of 24 R. STAHL HMI Systems GmbH / IM_ET_MT-xx7_en_V_01_00_01.docx / 05.01.2018... -
Page 19: Ethernet Interface X16
2nd 100Base-TX interface (only for option 2TX) TRD2- Orange TRD3+ White / Green TDR3- Green SHLD Screen Connect screen separately to the screen connection rail (see diagram) R. STAHL HMI Systems GmbH / IM_ET_MT-xx7_en_V_01_00_01.docx / 05.01.2018 Page 19 of 24... -
Page 20: Tx With Series 600
White / Orange TRD2- Orange TRD3+ White / Green TDR3- Green SHLD Screen Connect screen to the screen connection rail (see diagram) 8.3.2.1 Cable adaptation Wrong Right Page 20 of 24 R. STAHL HMI Systems GmbH / IM_ET_MT-xx7_en_V_01_00_01.docx / 05.01.2018... -
Page 21: Ethernet Optical Fibre Interface
Installation Manual ET-/MT-xx7 Electrical Installation Ethernet optical fibre interface R. STAHL HMI Systems GmbH / IM_ET_MT-xx7_en_V_01_00_01.docx / 05.01.2018 Page 21 of 24... -
Page 22: Release Notes
Changing HW-Rev. at xT-4x7-*-BT and xT-5x7-*-BT at cover Changing picture at cover Correction data and content according to enclosure for wall mounting Text-, layout- and formal corrections Page 22 of 24 R. STAHL HMI Systems GmbH / IM_ET_MT-xx7_en_V_01_00_01.docx / 05.01.2018... -
Page 24: Stahl Hmi Systems Gmbh / Im_Et_Mt-Xx7_En_V_01_00_01.Docx / 05.01.2018
R. STAHL HMI Systems GmbH Adolf-Grimme-Allee 8 D 50829 Köln Phone: (switchboard) +49 (0) 221 76 806 - 1000 (Hotline) - 5000 Fax: - 4100 E-mail: (switchboard) office@stahl-hmi.de (hotline) support@stahl-hmi.de www.r-stahl.com www.stahl-hmi.de...
