Lascar EL-WiFi-TH Quick Start Manual

Changing Sensor Settings

This is done via EL-WiFi. Open the software
package, click on the 'View Sensors' icon,
select the sensor you wish to change and
click on the 'Adjust Sensor Settings' icon. The
software will lead you through the options that
can be amended.

Recharging

The sensor will automatically start recharging
whilst connected to a PC. The battery life
of your sensor depends on the regularity of
transmissions. Battery life is indicated on the
'Existing Sensors' software screen accessed
via the 'View Sensors' button or on the unit
itself. When the low symbol
LOW
the sensor LCD you should recharge the unit
with the USB cable provided. Whilst recharging
the unit accuracy tolerance will be exceeded.

Wall Bracket

Your sensor is a free standing product but it
also comes with a click-in bracket so that the
product can be clearly displayed and attached
onto a flat surface or wall.
(wall screws not included)
When placing your sensor consider local
heat sources and radio obstructions.
optimum WiFi performance you may need to
try positioning your sensor in various different
locations/positions. Any physical obstructions
between your router and sensor will affect the
range of the sensor. WiFi extenders can also be
used to gain improvements.

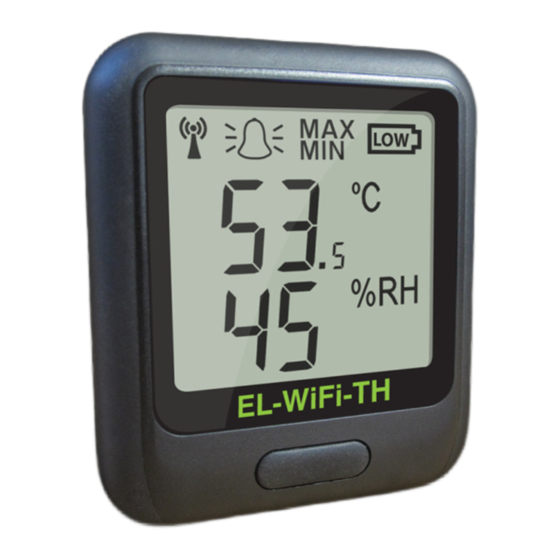

The signal strength of the sensor is displayed
on the LCD (see above). Number 10 is a strong
signal, number 1 is a weak signal. When on
this screen, the user will automatically activate
an immediate transmission that will send
any stored readings. If the syncing screen is
appears on
displayed data is being transferred.
The signal icon has three states: not displayed
– the sensor has not yet been set-up and
configured to a WiFi network, flashing – not
communicating with EL-WiFi software, solid
– successful
software.
Technical Support
For technical support visit: www.lascarelectronics.com

Sensor Placement

For
communication with EL-WiFi
Issue 01 -04/18/2012
EL-WiFi-TH
Quick Start Guide
