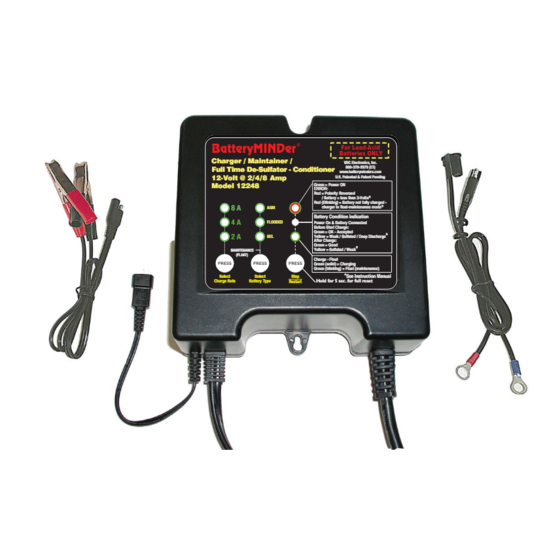

VDC Electronics BatteryMINDer 12248 Instruction Manual
  1. Manuals
  2. Brands
  3. VDC Electronics Manuals
  4. Battery Charger
  5. BatteryMINDer 12248
  6. Instruction manual

VDC Electronics BatteryMINDer 12248 Instruction Manual

Charger / maintainer / desulfator-conditioner
Hide thumbs Also See for BatteryMINDer 12248:
Table of Contents

Advertisement

Quick Links

Download this manual

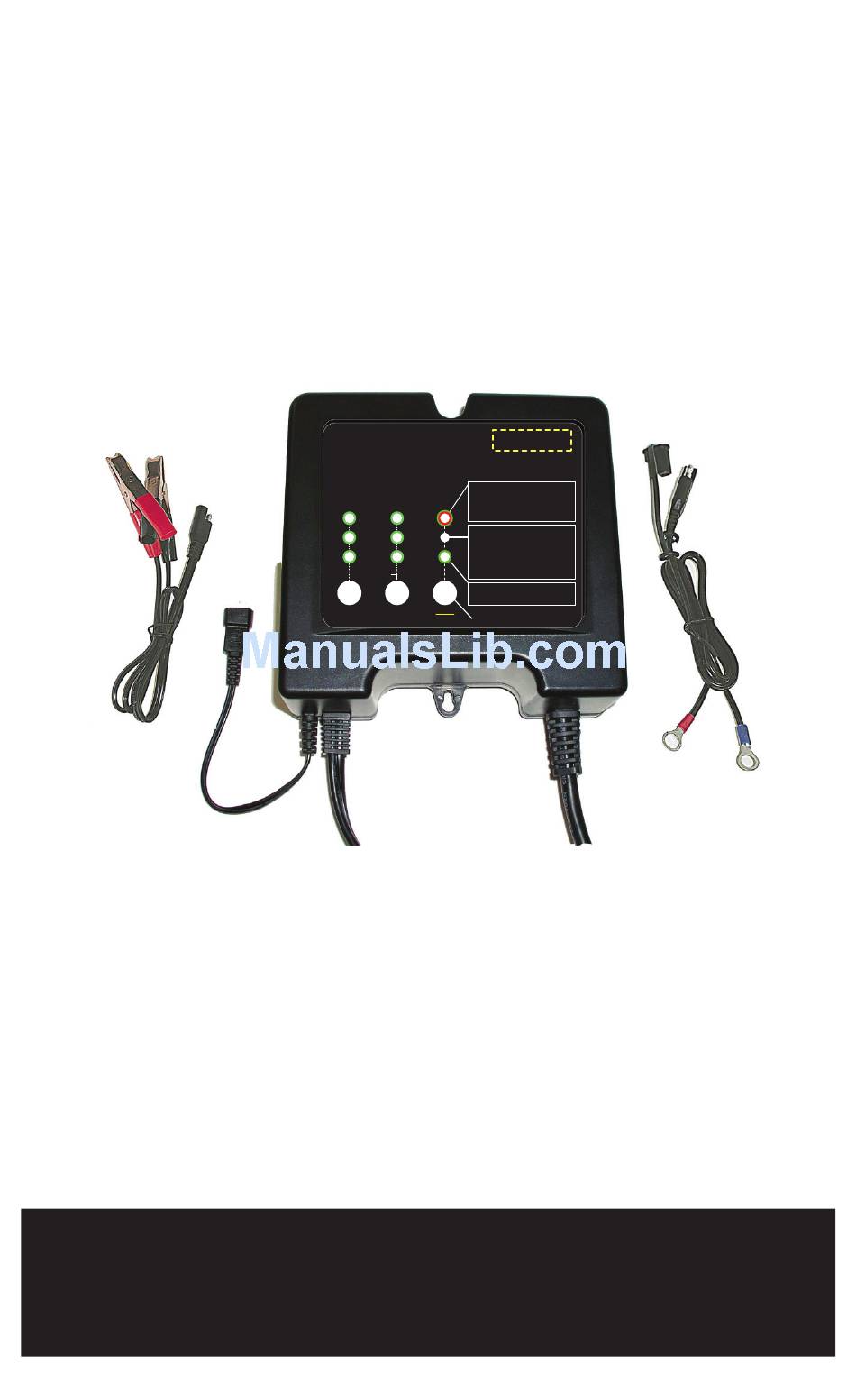

INSTRUCTION MANUAL

BatteryMINDer
Charger / Maintainer /
Desulfator-Conditioner
*NOT for use with
Aviation Type 12-V Batteries
VDC Electronics, Inc.
147 D Woodbury Rd.
Huntington, NY 11743
www.batteryminders.com
techsupport@vdcelectronics.com
READ AND SAVE THESE
INSTRUCTIONS
Rev. P-071510
Model
®
BatteryMINDer
®
Charger / Maintainer /
Full Time De-Sulfator - Conditioner
12-Volt @ 2/4/8 Amp
Model 12248
Green = Power ON
ERROR:
Red = Polarity Reversed
/ Battery = less than 3-Volts
Red (Blinking) = Battery not fully charged -
8 A
charger in float-maintenance mode
AGM
Battery Condition Indication
4 A
FLOODED
Power On & Battery Connected
Before Start Charge:
Green = OK - Accepted
2 A
Yellow = Weak / Sulfated / Deep Discharge
GEL
After Charge:
Green = Good
Yellow = Sulfated / Weak
MAINTENANCE
(FLOAT)
Charge - Float
PRESS
PRESS
PRESS
Green (solid) = Charging
Green (blinking) = Float (maintenance)
Select
Select
Stop
Hold for 5 sec. for full reset
Charge Rate
Battery Type
Restart
12248*
For Lead-Acid
Batteries ONLY
VDC Electronics, Inc.
800-379-5579 (ET)
www.batteryminders.com
U.S. Patented & Patent Pending
*
*
*
*
*
See Instruction Manual
P/N VDC12248-MNL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BatteryMINDer 12248 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VDC Electronics BatteryMINDer 12248

Summary of Contents for VDC Electronics BatteryMINDer 12248

  • Page 1: Instruction Manual

    Charger / Maintainer / Desulfator-Conditioner BatteryMINDer ® For Lead-Acid Batteries ONLY Charger / Maintainer / VDC Electronics, Inc. 800-379-5579 (ET) Full Time De-Sulfator - Conditioner www.batteryminders.com 12-Volt @ 2/4/8 Amp U.S. Patented & Patent Pending Model 12248 Green = Power ON...

  • Page 2: Table Of Contents

    Model 12248 BatteryMINDer ® TABLE OF CONTENTS Safety Instructions.................3 Preparing To Charge...............5 Charger Location................5 DC Connection Precautions.............6 Qualifying Your Battery: ..............8 Testing a Filler Cap or Manifold-type Lead Acid Battery......8 Testing With A Hot/Cold Calibrated Hydrometer Tester......10 Testing a Sealed, AGM or Gelled-type Lead Acid Battery ......10 Unit With Call-outs ..............12 Simplified Operating Instructions ............13 LED Indicator Functions ............14, 15...

  • Page 3: Safety Instructions

    Model 12248 BatteryMINDer ® Underwriters Laboratories (UL) REQUIRED SAFETY INSTRUCTIONS WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSON, OBSERVE THE FOLLOWING: Do not expose charger to rain or snow. It is designed to operate ONLY INDOORS. USE of any attachment not specifically recommended by the battery charger manufacturer for use with this exact model of charger may result in risk of fire &...
  • Page 4 Model 12248 BatteryMINDer ® manufacturer of any equipment you plan to use in the vicinity of the battery. Review cautionary markings on the products and the engine. PERSONAL PRECAUTIONS when working with or near a lead acid battery. a. Someone should be able to hear your voice or close enough to aid you when working near a lead acid battery.

  • Page 5: Preparing To Charge

    Model 12248 BatteryMINDer ® NEVER CHARGE A FROZEN BATTERY OR ONE AT A TEMPERATURE ABOVE 123° F. PREPARING TO CHARGE If necessary to remove battery from equipment to charge. Always remove ground terminal first. Turn off all accessories in the vehicle, so as not to cause an arc. Be sure area around battery is well ventilated while bat- tery is being charged.

  • Page 6: Dc Connection Precautions

    Model 12248 BatteryMINDer ® DC CONNECTION PRECAUTIONS Connect and disconnect DC output clips from battery only after removing charger power cord from outlet. Attach clips to battery posts and twist or rock back and forth several times to make good contact. This tends to keep clips from slipping off terminals and reduces risk of sparking.
  • Page 7 Model 12248 BatteryMINDer ® FOLLOW THESE STEPS WHEN BATTERY IS OUTSIDE OF VEHICLE OR EQUIPMENT. A SPARK NEAR THE BATTERY MAY CAUSE BATTERY EXPLOSION. TO REDUCE RISK OF A SPARK NEAR BATTERY: Check polarity of battery posts. POSITIVE (POS, P, +) usually has a large diameter than NEGATIVE (NEG, N, -) battery post.

  • Page 8: Qualifying Your Battery

    Model 12248 BatteryMINDer ® QUALIFYING YOUR BATTERY: Preliminary Requirements NOTE: The BatteryMINDer has no electrical output unless it is connected to a healthy battery. Testing the BatteryMINDer with a volt or an Amp meter without the unit being connected across a good battery will result in a false reading.
  • Page 9 Model 12248 BatteryMINDer ® Recharge the battery with the BatteryMINDer to ensure that it is slowly and completely charged before you determine its con- dition. Allow battery to “rest”* overnight for a minimum of 12 hours before testing with a temperature compensated hydrometer and/ or digital type voltmeter only.

  • Page 10: Testing With A Hot/Cold Calibrated Hydrometer Tester

    Model 12248 BatteryMINDer ® Testing with a Hot/Cold Calibrated Hydrometer Tester Read the tester instructions carefully for most accurate readings. When using the tester the first time or after a long period of non-use, fill the tester with the battery fluid and let it sit for 1/2 hour or longer.
  • Page 11 Model 12248 BatteryMINDer ® Connect the BatteryMINDer to the battery. Charge battery to its maximum level. Press Maintenance- Float (select Battery type) button, if it does not go into this mode automatically. Allow battery to remain for a minimum of 72 hours before retesting.

  • Page 12: Unit With Call-Outs

    Model 12248 BatteryMINDer ® Rev. P-071510 Page 12 P/N VDC12248-MNL...

  • Page 13: Simplified Operating Instructions

    Model 12248 BatteryMINDer ® Simplified Operating Instructions (Read and thoroughly understand ALL SAFETY Instructions on pages (3-7) and Qualifying Your Battery pages 8-11, BEFORE proceeding further. Attach a battery connector assembly (supplied) to output cordset of charger, either the clips or ring terminal assembly, - NEVER BOTH at same time.

  • Page 14: Led Indicator Functions

    Model 12248 BatteryMINDer ® LED INDICATOR FUNCTIONS -- Tables 3 (top) and 4 A&B (bottom) Rev. P-071510 Page 14 P/N VDC12248-MNL...

  • Page 15: Led Indicator Functions

    LED indicators refer to charger label at right BatteryMINDer ® For Lead-Acid Batteries ONLY Charger / Maintainer / VDC Electronics, Inc. Full Time De-Sulfator - Conditioner 800-379-5579 (ET) www.batteryminders.com 12-Volt @ 2/4/8 Amp U.S. Patented & Patent Pending Green = Power ON...

  • Page 16: Detailed Operation Instructions

    If you have several applications you may wish to purchase additional Ring Terminal Assemblies (RTA) available from your dealer or VDC Electronics, Inc. directly. Note: this assembly contains a 15 Amp automotive type fuse and is replaceable should for any reason it were to blow.
  • Page 17 Model 12248 BatteryMINDer ® ground installations such as most modern cars, trucks, boats, RVs, etc.) as far away from battery as possible for maximum safety. Never connect to any type of fuel line. Note: Older vehicles or other devices may be Positive ground installations requiring different connection recommendations.
  • Page 18 Model 12248 BatteryMINDer ® rate setting. For batteries whose capacity rating is greater than 30AH or a fast recharge is needed set charger to the 8 Amp rate. If unsure or recharge time is not important, always choose a low setting (2 or 4 Amp).
  • Page 19 Model 12248 BatteryMINDer ® been subjected to a long period of continuous discharge under a load such as can occur with leaving lights on or cranking an engine excessively. Allow such a battery to “Rest” for several hours (overnight if possible) before determining if it is defective. Be very suspicious of any 12-V battery that does not have at least 11-Volts (OCV) before it is recharged.
  • Page 20 Model 12248 BatteryMINDer ® a time without confirming the individual condition of each battery and monitoring the charging and batteries closely. A better solution is to charge each battery separately using model 12248 BatteryMINDer and then connect them together, if desired for long term maintenance-float charging. We suggest your reading the detailed specifications on pages 29 - 34, including the additional LED indicator functions (pgs.

  • Page 21: Temperature Sensor Abs-248 (At-The-Battery Sensor) (Included)

    Model 12248 BatteryMINDer ® INSTRUCTIONS: TEMPERATURE SENSOR Type: ABS-248 (At-the-Battery Sensor) (Included) If battery is being charged or maintained in temperatures as low as 32°F to a high of 125°F this sensor must be used. Congratulations on purchasing the most advanced charger-main- tainer-desulfator conditioner on the market today.
  • Page 22 Model 12248 BatteryMINDer ® temperature increases above 25°C (77°F), the life of the battery decreases. The chart below shows the effects of temperature. Effects of Temperature on Battery Life* Maximum Annual Maximum Battery Percent Reduction in Average Temperature Battery Life Battery Tempera- ture 25°C (77°F)
  • Page 23 Model 12248 BatteryMINDer ® The chart below shows the need to regulate the output voltage of the charger to ensure against over or under charging your battery over a wide range of temperatures. Using your At-the-Battery Sensor will accomplish this better than any other known method. AGM Charge and Float Voltages at Various Temperature Ranges** Temp Charge...
  • Page 24 Model 12248 BatteryMINDer ® Gel Charge and Float Voltages at Various Temperature Ranges** Temp Charge Float Temp °F °C Opti- Maxi- Opti- Maxi- ≥120 13.00 13.30 12.80 13.00 ≥49 110 – 120 13.20 13.50 12.90 13.20 44 – 48 100 -109 13.30 13.60 13.00...

  • Page 25: Maintaining Multiple Batteries

    Model 12248 BatteryMINDer ® MAINTAINING MULTIPLE BATTERIES BatteryMINDer 12248 maintenance charger Desulfators can be used to maintain up to six (6) 12-volt batteries at a time, providing each battery is fully operational (no dead-dying cells), free of sulfate and meeting the minimum full charge “rested” (see pg.

  • Page 26: Battery Configurations

    NEVER connect multiple batteries together for charging purposes using less than #18 Gauge insulated wire. VDC Electronics, Inc. does not make nor can it supply or recommend, any type of wire harness to connect individual batteries for the purpose of charging them in groups, due to the many battery terminal sizes and configurations that exist.

  • Page 27: Troubleshooting

    Model 12248 BatteryMINDer ® Troubleshooting - Model 12248 charger to begin an attempt to We use the word “Indicator” to fully recharge it. If after battery has mean the various LEDs (Light “rested” (see pg. 9) it may not be Emitting Diodes) showing the able to be recovered –...
  • Page 28 Model 12248 BatteryMINDer ® connected to charger and remain (faster) rates of charge. in Maintenance-Float mode Problem: (GREEN blinking indicator) for Error and Charge LEDs blink 72 hours or longer. Then stop simultaneously Solution: charger by pressing Stop/Restart button and observe Indicator. If Charger has timed out before still YELLOW...

  • Page 29: Detailed Specifications

    Model 12248 BatteryMINDer ® DETAILED SPECIFICATIONS - VDC Model No. 12248 14.1V / 14.4V / 14.6V---2/4/8A MCU controlled H.F. Battery Charger Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 30 Model 12248 BatteryMINDer ® DETAILED SPECIFICATIONS - VDC Model No. 12248 (con’t.) Charging Output Control Characteristics • Charging Flow : Battery condition detect>Soft Start Charge>Bulk Charge>Absorption Charge>Sulfate Check>Float Charge • Soft Start Charging Activity conditions: Battery Voltage is over 3 Vdc and less than 10.5Vdc (the charger will start at 2A mode &...
  • Page 31 Model 12248 BatteryMINDer ® DETAILED SPECIFICATIONS - VDC Model No. 12248 (con’t.) Absorption mode transitions to Float mode conditions in AGM setting: Mode: 1) Charging current 2) 5 Hours Time-out: after 5 Hours unit switches to Float Charge Mode Absorption mode Thermal Runaway Protection: Stops Charging when the second current sample is larger the first current sample (Positive dI/dt) Switch to Float mode in Bulk charge or Absorption mode when...
  • Page 32 Model 12248 BatteryMINDer ® DETAILED SPECIFICATIONS - VDC Model No. 12248 (con’t.) Battery sulfation check period (After absorption charge is finished): 10 minutes Unloaded output voltage when battery is disconnected: 0.5 Vdc (max.) Output short-circuit current when battery disconnected: 5mA dc (max.) Battery flow back current (to the charger) when connected to 12V battery, AC Power disconnected: 30 (max.) mA dc Maintenance-Float min.
  • Page 33 Model 12248 BatteryMINDer ® DETAILED SPECIFICATIONS - VDC Model No. 12248 (con’t.) Transformer Transformer Type: Ferrite core transformer Rising Temperature of Transformer: 80ºC Max. Insulation Primary to Secondary insulation Test: 1240 Vac 60Hz with 1 minutes, 10mA ac no break down found Primary to core insulation test: 1240 Vac 60Hz with 1 minutes, 10mA ac no break down found Secondary to core insulation test:...

  • Page 34: Charging Profile

    Model 12248 BatteryMINDer ® Rev. P-071510 Page 34 P/N VDC12248-MNL...

  • Page 35: For Repair Or Replacement

    FOR REPAIR OR REPLACEMENT In the event that you believe your product may be defective, you MUST speak to a VDC Electronics technician at 1-800-379-5579 x206 (ET) before proceeding further. If after speaking with our tech support personnel it is necessary to return the unit, you MUST request an RMA number.

  • Page 36: Guarantee And Warranty

    Model 12248 BatteryMINDer ® Guarantee and Warranty NOTE: ALL returns must be authorized by VDC Electronics after speaking to a VDC Electronics technician at 1-800-379-5579 x6 (ET). Please see Page 35 for details. Rev. P-071510 Page 36 P/N VDC12248-MNL...
