ESP PTZCON User Manual

Pan, tilt and zoom controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

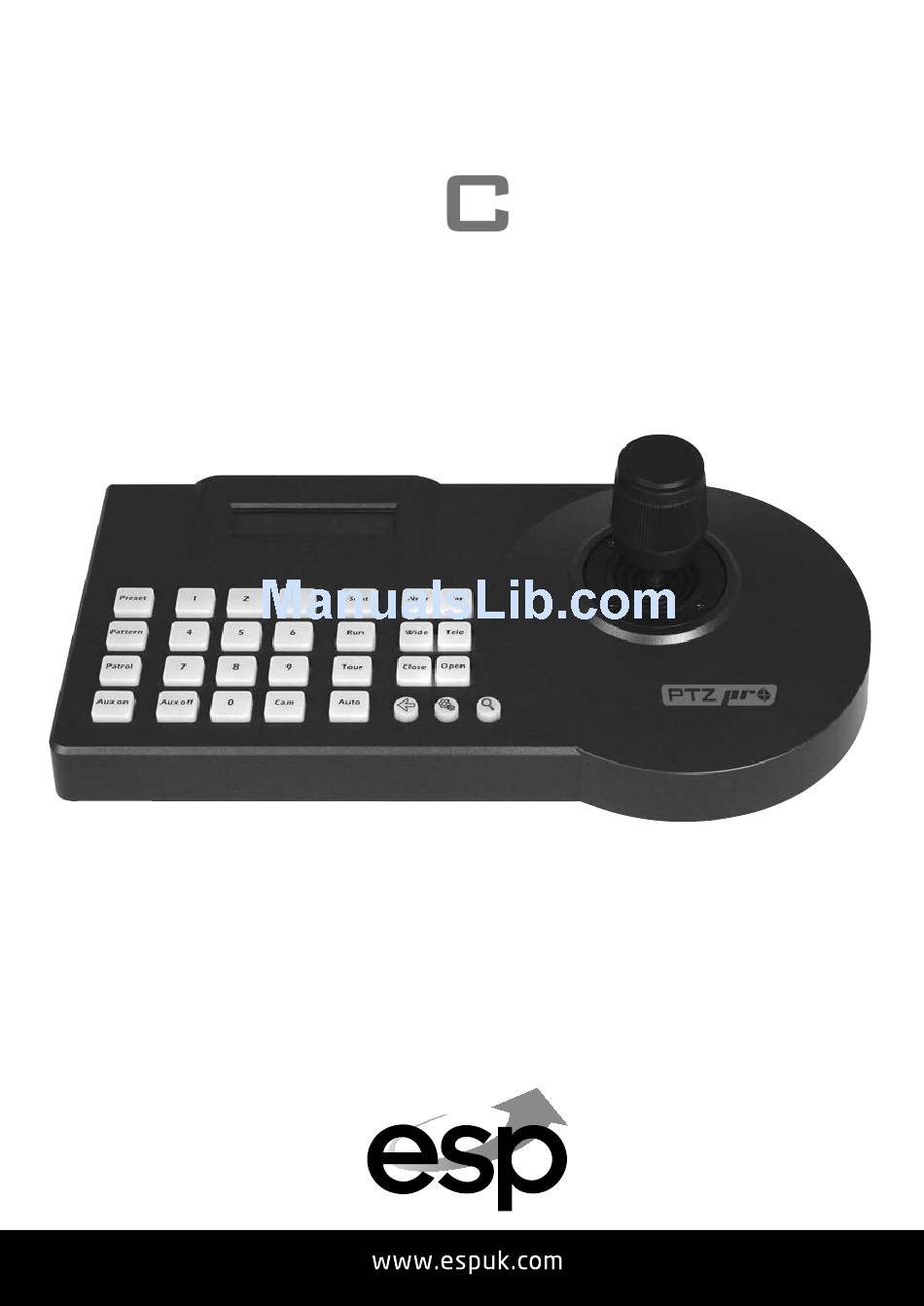

PTZ ON
PA N , T I LT A N D Z O O M C O N T R O L L E R
U S E R M A N U A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PTZCON and is the answer not in the manual?

Questions and answers

Related Manuals for ESP PTZCON

Summary of Contents for ESP PTZCON

  • Page 1 PTZ ON PA N , T I LT A N D Z O O M C O N T R O L L E R U S E R M A N U A L...

  • Page 2: Product Overview

    Product Overview FEATURES • Supports up to 255 PTZ cameras • Multiple protocols and baud rates supported across multiple PTZ cameras • LCD display • Control lock feature to deny unauthorised use • Supports Pelco-D, Pelco-P, Samsung, Panasonic and HikVision protocols •...

  • Page 3: Installation

    Installation It is highly recommended that a screened cable is used to connect the RS485 control wires from PTZ controller, or interference may occur. 1. Connect Ta to the RS485+ on the PTZ camera(s) 2. Connect Tb to the RS485- on the PTZ camera(s) 3.

  • Page 4: Keyboard Functions

    Keyboard Functions PLEASE NOTE Availability of some features will depend on compatibility and specification of your PTZ camera. Some controller functions may not be supported by your PTZ camera, please check with the product manufacturer. Function Function Camera set keys recall keys control keys Menu/setup keys...

  • Page 5: Configuration Menu

    FUNCTION RECALL KEYS To recall a specific preset camera position, press (0-255) + [Shot] Press to run recorded pattern. To recall a specific patrol tour, press (0-255)+[Patrol] Configuration menu To enter menu press for 1s then enter password (default 8888) Use the joystick up/down to navigate through menu tree Use the joystick left/right to alter the current value where applicable Press...

  • Page 6: Key Lock Function

    Key lock can only be engaged if not in setup menu. Press then enter password PIN to lock keyboard. Repeat process to unlock. To reset a lost password, please call ESP Technical Support on 01527 51 51 50. Warnings Do not disassemble product, warranty will become void.

  • Page 8: Technical Specifications

    Technical Specifications Protocol Pelco-P, Pelco-D, Panasonic, HikVision, Samsung, RULE, Dahua, SAE Baud rate bps 1200, 2400, 4800, 9600, 19200 Max camera support Controllers supported 16 in total (15 auxiliary) Power supply DC 12V±10% Power consumption 6W MAX Working temperature 0°C-50°C Dimension 420 x 260 x 170mm Elite Security Products...
