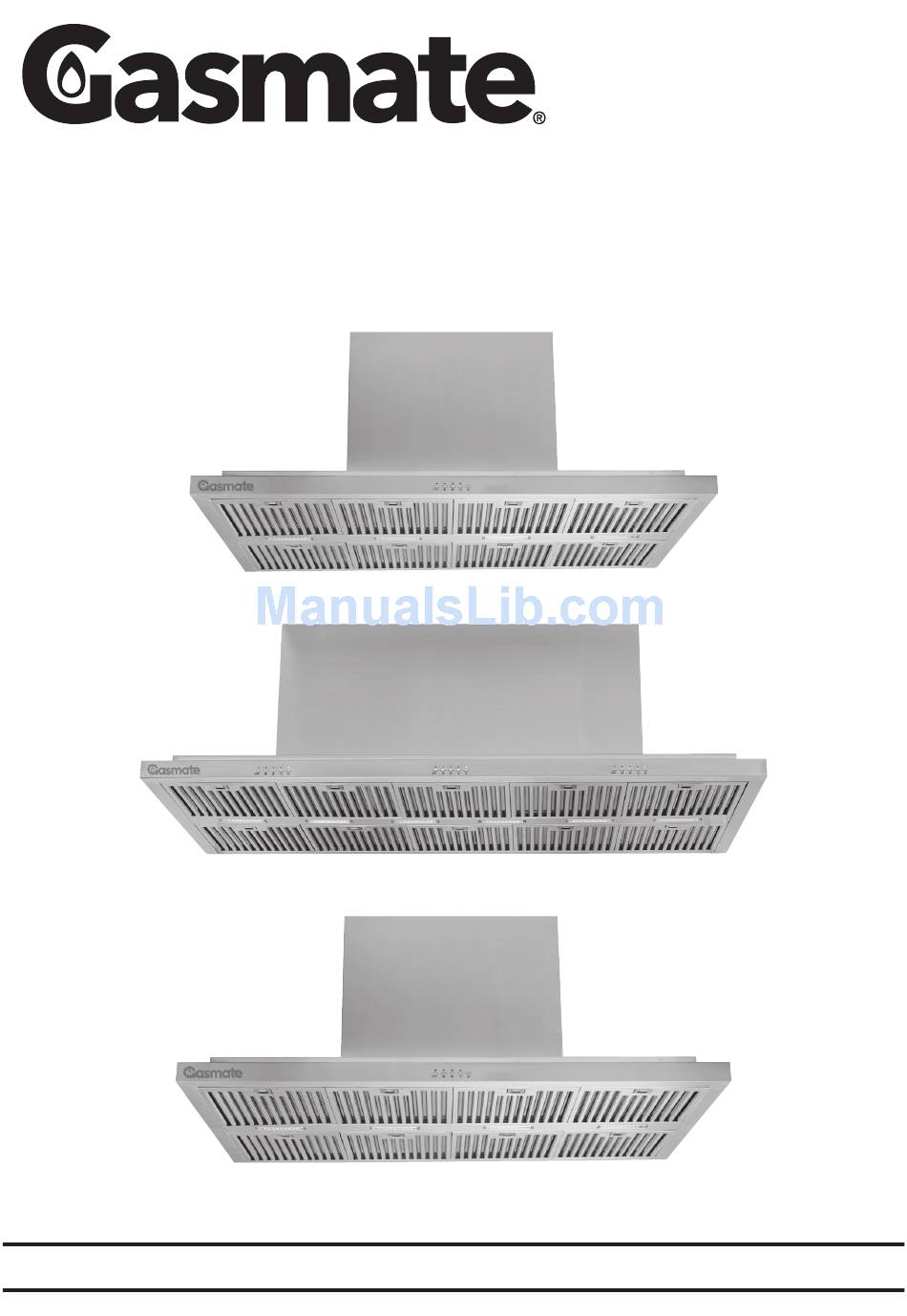

- Page 1 RANGEHOOD SERIES WALL MOUNTED Medium GRHM Large GRHL CEILING MOUNTED Island GMHIS Important: Retain these instructions for future use. 03362 05/16...
-
Page 2: Customer Service
WARRANTY TERMS & CONDITIONS This warranty is not transferable to a subsequent This warranty does not apply to any defect, purchaser if the product is sold by the original deterioration, loss, injury or damage occasioned by or purchaser during the warranty period. as a result of misuse or abuse, negligent handling or storage, normal wear and tear or if the product has not If a warranty fault appears within the warranty period,... -
Page 3: Important Safety Rules
INSTALLATION - OUTDOOR USE ONLY Read all instructions before installing and operating this The following situations are considered to provide the Rangehood. natural ventilation required for an outdoor domestic barbecue or patio heater to be used: This Rangehood is designed for use above an outdoor domestic gas (propane/natural) barbecue. - Page 4 INSTALLATION - OUTDOOR USE ONLY BALCONIES & VERANDAS An outdoor barbecue or rangehood may be installed and used on a balcony or veranda if, by location and use, it will not cause a hazard and the manufacturer’s instructions allow for such use. It may also be necessary to consult local building laws before installing or using a gas barbecue on a balcony or veranda.
-
Page 5: Important Safety Notice
IMPORTANT SAFETY NOTICE • Disconnect the power supply when changing • Remove any plastic coating from the product light bulbs. before use. • This appliance is not intended for use by • Do not attempt to modify this appliance as this persons (including children) with reduced could cause injury and will void your warranty. - Page 6 Rangehood. CONTENTS REqUIRED FOR USE Accessible power pointed fitted within 1m of Medium - GRhM Rangehood mounting position. The power point must 1 x Rangehood with 2 x 150mm duct adaptors fitted be supplied through a residual current device (RCD) 2 x Chimney covers each 400mm high having a tripping current not exceeding 30mA.
-
Page 7: Rangehood Installation
RANGEhOOD INSTALLATION BEFORE INSTALLING Please consider the following before commencing to install your rangehood. Your rangehood will need to be ducted to ensure it operates and complies with local and national regulations. DUCT MOUNTING OPTIONS You will need some additional parts to complete these installations. - Page 8 1. Height above cooking surface – 1200mm 2. Distance from cooking surface to Rangehood mounting bracket bottom screw hole: GRHM Medium – Bracket is part of the rangehood frame - 1582mm GRHL Large – 1562mm and top screw 1622mm 395mm...
- Page 9 All motors need to be ducted individually to ensure air flow and suction is adequate and meets all regulations. WARNING - FIRE GRHM Medium – 2 Ducts 150mm Ø GRHL Large – 3 Ducts 150mm Ø NEVER Exhaust air or terminate duct work into spaces between walls, crawl spaces, ceilings, GRHIS Island –...
- Page 10 INSTALLING - MEDIUM WALL MOUNT RANGEhOOD Mounting bracket is attached and part of the medium 3. Your rangehood is very heavy. Please use suitable fixings and hole size for this weight. rangehood motor cover. Medium – 50Kg Note: Rangehood must be level, if not rangehood will not operate correctly.
-
Page 11: Wall Bracket
INSTALLING - LARGE WALL MOUNT RANGEhOOD WALL BRACKET FITTING 1. Lift and position the Rangehood so that the wall Note: Bracket must be level, if not rangehood will not bracket slides into all lifting holes on the top wall operate correctly. side of the motor box. - Page 12 INSTALLING - MEDIUM & LARGE WALL MOUNT RANGEhOOD DUCTING FLUE SURROUND 1. Remove all tape from the ducts butterfly flaps and Provided are 2 x flue surrounds both 400mm high. ensure they move up and down freely. These are used to finish and cover the motor box and installed ducting.
-
Page 13: Range Hood
INSTALLING - ISLAND CEILING MOUNT WALL BRACKET DUCTING 1. Remove all tape from the ducts butterfly flaps and Note: Bracket must be level. If not Rangehood will not ensure they move up and down freely. operate correctly. 2. Position the butterfly flaps up. 1. -
Page 14: Operation
Read all instructions before installing and operating this appliance. IMPORTANT SAFETY NOTICE Read all instructions in this manual before operating the appliance. Save these instructions for future reference. Always leave safety grills and filter in place. Without these components, operating blowers could catch on to hair, fingers and loose clothing. -
Page 15: Specifications
SPECIFICATIONS MEDIUM - GRhM 395 - 400mm 395 - 400mm 76mm LARGE - GRhL 395 - 400mm 395 - 400mm 76mm... - Page 16 SPECIFICATIONS ISLAND - GMhIS 395 - 400mm 395 - 400mm 76mm Medium - GRhM Large - GRhL Island - GMhIS Description Finish Marine grade stainless steel #316 Size (mm) 1200 W x 800 D 1480 W x 800 D 1200 W x 800 D...
