Double K Industries 9000 II Instruction Manual

REQUIRED MAINTENANCE
FILTERS:
(The maintenance obligations below must be performed on a regular basis or as needed to
protect warranty status)
If the lters become heavily coated with hair and/or dirt, it will reduce the air output of your
dryer and can cause damage to the motor or cause the motor to overheat.
*Never operate the dryer without lter in place.
Filter Cleaning: The top lter may be cleaned after each use by wiping away hair that is on
the lter. The lter must periodically be shaken out, or vacuumed o to remove excessive dirt,
hair and dander that is in the lter. The lter may also be washed with water and mild soap. Let
dry completely before installing back on the dryer. (Never run dryer without lter in place.)
Cleaning Dryer Interior: Dust will accumulate inside the dryer. Blow clean as needed using a
Challengair Forced Air Dryer or suitable high pressure air outlet.
Any maintenance not explained in this manual should be performed by Double K Industries,
or an Authorized Service Center. Call Double K Industries for the name of an Authorized
Service Center nearest you. All warranty service must be performed by an Authorized Service
Center (or Double K Industries) to protect your warranty status.
Instructions for Changing the Arm Extension Sleeve (PN 7046A)
and Arm Nozzle (PN 7007) on 9000 Series Dryers
*Use of Safety Gloves is advisable as internal metal components may have small burrs that can cut bare skin.
1
Carefully remove the Nozzle Retaining Screw (PN 7073)
from your Dryer Assembly and put it aside.
3
Pull rmly on the Arm Extension Sleeve (PN 7046A) to
remove it.
5
Slide the replacement Arm Nozzle back over the Arm
Extension Sleeve.
8
2
Pull rmly on the Arm Nozzle (PN 7007) to disengage it
from the Arm Extension (PN 7045). Heating with hair
dryer may ease this process.
4
Push on the replacement Arm Extension Sleeve that is
included in your Arm Nozzle Replacement Kit.
6
Reinstall the Nozzle Retaining Screw. Drive the screw
until it contacts the metal groove underneath. Do not
over-tighten.
TM

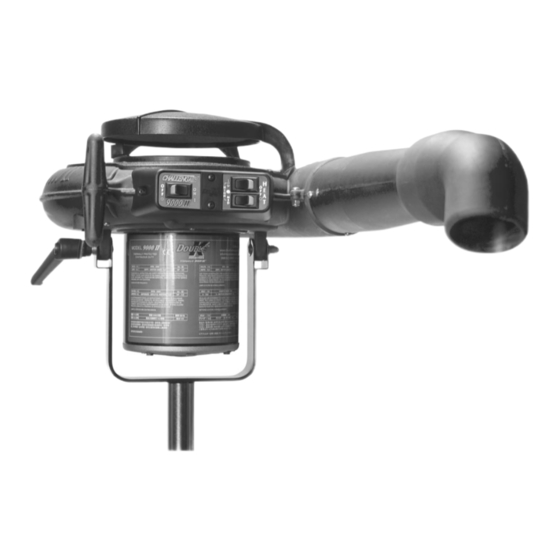

Animal Dryer
INSTRUCTION MANUAL
PLEASE READ ALL INSTRUCTIONS AND SAFETY
PRECAUTIONS BEFORE OPERATING PRODUCT!
SAVE FOR FUTURE REFERENCE; WARRANTY
PERTINENT CONTENT.
Product Speci cations:
9000 ΙΙ
Model -
Voltage - 115v
Amperage - 16.08
Wattage - 1849.2
Hertz - 60
RPM - 3450
Horse Power - 1/3
Product Air Vol. - 260CFM Product Air Vol. - 240CFM
9711 Mason Avenue, Chatsworth, CA 91311
(818) 772-2887 • (800) 821-9449 • fax: (818) 886-0218
www.DoubleKIndustries.com • info@DoubleKIndustries.com
TM
Voltage - 230v
Amperage - 16.08
Wattage - 3698.4
Hertz - 50
RPM - 2850
Horse Power - 1/3
8/20/14
