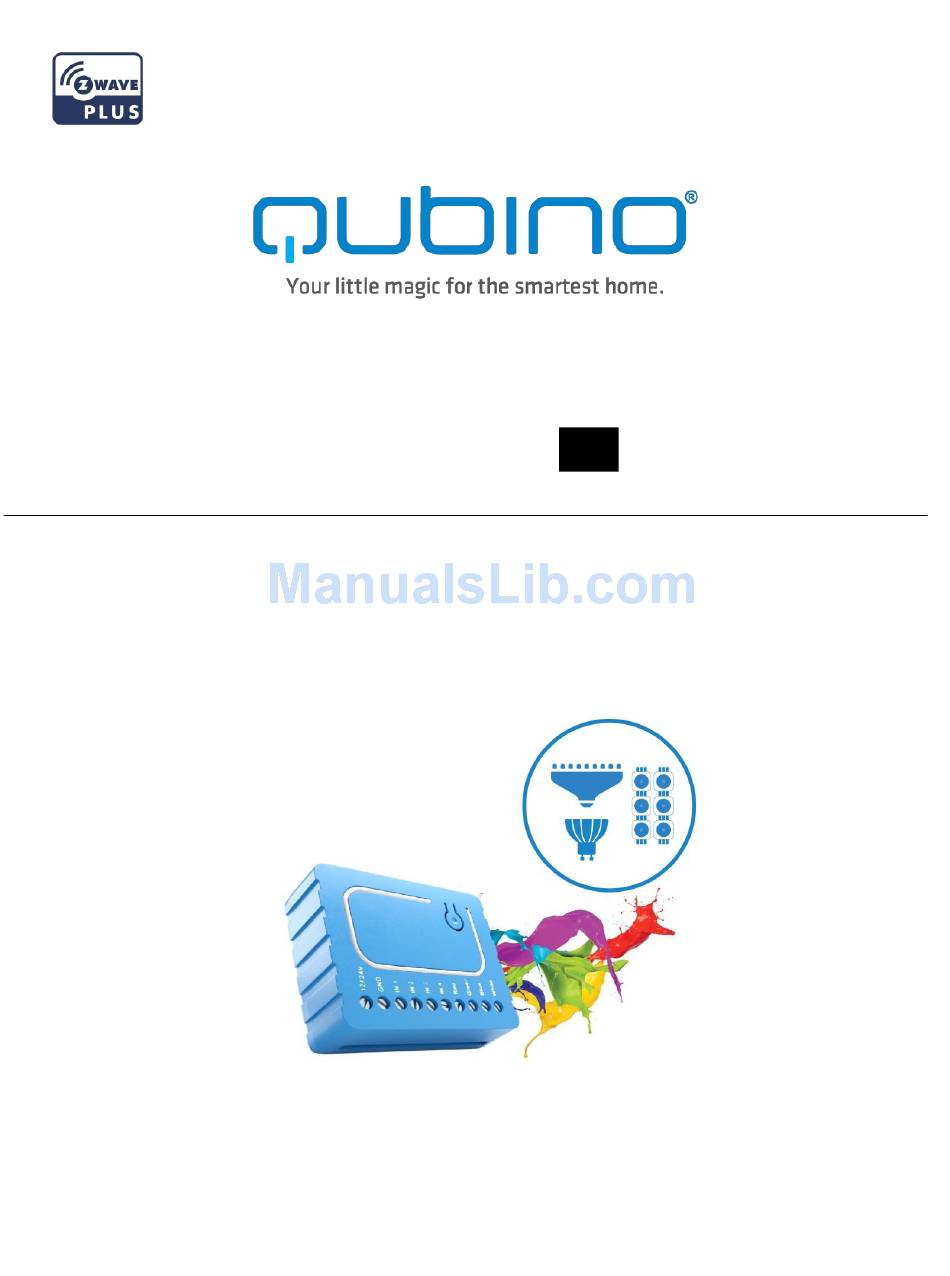

USER MANUAL EN.
QUBINO FLUSH RGBW DIMMER
The Qubino Flush RGBW Dimmer is ideal for dimming 12/24VDC RGB/RGBW strips, LED strips
and bulbs, or even halogen bulbs. It can create different lighting effects (scenes) and adjust
the colour and intensity of the light source.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZMNHWD2 and is the answer not in the manual?

Questions and answers

Related Manuals for QUBINO ZMNHWD2

Summary of Contents for QUBINO ZMNHWD2

  • Page 1 USER MANUAL EN. QUBINO FLUSH RGBW DIMMER The Qubino Flush RGBW Dimmer is ideal for dimming 12/24VDC RGB/RGBW strips, LED strips and bulbs, or even halogen bulbs. It can create different lighting effects (scenes) and adjust the colour and intensity of the light source.

  • Page 2: Table Of Contents

    2.1. Installation examples for Flush RGBW Dimmer .................... 9 2.2. Additional features of Flush RGBW Dimmer which can make your life easier ..........11 3. Qubino Flush RGBW Dimmer Advantages and Highlights ................... 12 3.1. Advantages ............................... 12 3.2. Highlights ..............................15 4.

  • Page 3: About Qubino

    About Qubino Qubino is a family of innovative Z-Wave devices, many of them the smallest of their kind. Numerous breakthrough innovations, 100% quality control, and responsive customer service make Qubino the number one choice for making your life more comfortable.
  • Page 4 About Z-Wave: The Z-Wave protocol is an interoperable, wireless, RF-based communications technology designed specifically for control, monitoring, and status reading applications in residential and light commercial environments. Mature, proven, and broadly deployed (with over 50 million products sold worldwide), Z-Wave is by far the world market leader in wireless control, bringing affordable, reliable, and easy-to-use 'smart' products to millions of people in every aspect of daily life.

  • Page 5: Safety Information

    Safety Information For Qubino, safety is first, so we have prepared lots of safety tips and information that can be found throughout this manual. To ensure your safety, please read this manual carefully before installing the device; follow the instructions exactly. The manufacturer (GOAP d.o.o. Nova Gorica) shall not be legally responsible for any equipment damage or personal injury caused by incorrect installation or operation other than that covered in this manual.

  • Page 6: Flush Rgbw Dimmer - Available Frequencies

    Flush RGBW Dimmer - Available Frequencies ORDERING CODE Z-WAVE FREQUENCY* (MODEL NUMBER) ZMNHWD1 868,4 MHz ZMNHWD2 921,4 MHz ZMNHWD3 908,4 MHz ZMNHWD4 869,0 MHz ZMNHWD5 916,0 MHz ZMNHWD6 868,4 MHz ZMNHWD7 919,8 MHz ZMNHWD8 865,2 MHz ZMNHWD9 922,5 MHz ZMNHWDA 919,7 –...

  • Page 7: Where To Buy

    1. Introduction The Qubino Flush RGBW Dimmer is designed to control your RGB/RGBW strips, LED strips or bulbs and even halogen bulbs in order to create countless colour options and includes 6 special lighting effects (Ocean, Lightning, Rainbow, Snow, Romantic and Party). The wide range of colours let you "paint"...
  • Page 8 Flush RGBW Dimmer supported functions: Control lighting lighting lighting lighting lighting lighting Automatically Z-Wave Auto- RGB/RGBW effect- effect- effect- effect– effect- effect- turn ON/OFF Repeater inclusion strips, LED Ocean Lightning Rainbow Snow Romantic Party strips or bulbs, halogen bulbs ✓ ✓...

  • Page 9: Use Cases

    We have prepared a few of them for you so you can get an idea for your next smart home project. Of course, there are countless of other options for how to use Qubino Flush RGBW Dimmer to remotely control devices via your smartphone.
  • Page 10 • Remotely dim up to 4 LED bulbs or turn them ON/OFF...

  • Page 11: Additional Features Of Flush Rgbw Dimmer Which Can Make Your Life Easier

    2.2. Additional features of Flush RGBW Dimmer which can make your life easier • Do you often forget to turn off the lights/RGBW/RGB strips when you leave your home, like in the basement or attic? • The Flush RGBW Dimmer can automatically turn lights/RGBW/RGB strips on or off after a set period of time (when you’re away from home).

  • Page 12: Qubino Flush Rgbw Dimmer Advantages And Highlights

    Highlights 3.1. Advantages • Qubino Flush RGBW Dimmer has a function to behave as usual dimmer, but it also allows a direct connection of LED lights which are working on 12/24DC voltage. • With Qubino Flush RGBW Dimmer you can choose from among 16 million different shades.
  • Page 13 Lightning, Rainbow, Snow, Sun and Party, so you can come home from work to a relaxing atmosphere created by the pre-set lighting effects. • Qubino Flush RGBW is the only Z-Wave dimmer for controlling LED strips which can be used without a Z-Wave gateway. Without gateway you can use its functions with 4 push...
  • Page 14 • By scanning the QR code on the back of your Qubino device, the serial and part numbers will be automatically copied on your mobile phone; they also provide direct access to Qubino’s technical support team.

  • Page 15: Highlights

    • The Qubino Flush RGBW Dimmer has CE, LVD, EMC and FCC certificates to ensure the highest safety standards. 3.2. Highlights • Remote (via smartphone or PC) and local on/off control of RGB/RGBW strips, up to 4 LED strips or bulbs and up to 4 halogen bulbs •...

  • Page 16: Package Contents

    4. Package Contents • Flush RGBW Dimmer Device • Installation Manual...

  • Page 17: Technical Terms For Switches

    5. Technical Terms for Switches Symbol Switch example images Definition Qubino Other names Single pole, single throw Two-way (SPST) - One Switch; One-way switch Toggle switch Bi-stable switch (regular switch controlling one switch switch) light / circuit of lights Single pole,...

  • Page 18: Compatibility With Z-Wave Gateways (Hubs)

    Please check compatibility with your Z-Wave gateway (hub) before you purchase this device. If you don’t see your gateway (hub) in the table below, please contact us at: http://qubino.com/support/#email. ⓘ Please note that the gateway (hub) compatibility was tested on 1.7.2017 and it may not include the latest testing data.

  • Page 19: Installation

    7. Installation Before installing the device, please read the following carefully and follow the instructions exactly: ⓘ Danger of electrocution! Installation of this device requires a great degree of skill and may be performed only by a licensed and qualified electrician. Please keep in mind that even when the device is turned off, voltage may still be present in the device’s terminals.
  • Page 20 The installation process, tested and approved by professional electricians, consists of the following simple steps: Step 1 – Turn OFF the fuse: • To prevent electrical shock and/or equipment damage, disconnect electrical power at the main fuse or circuit breaker before installation and maintenance. •...
  • Page 21 Step 2 – Installing the device: • Connect the device exactly according to the diagrams shown below INSTALLATION EXAMPLE Controlling RGBW led strip...
  • Page 22 After Qubino installation:...
  • Page 23 INSTALLATION EXAMPLE Controlling four halogen or LED lights...
  • Page 24 After Qubino installation:...
  • Page 25 ⓘ Note! • Place the antenna as far as possible from metal elements as they may cause signal interference. • Do not shorten the antenna. The device’s antenna should be as upright as possible. This ensures the device’s operational range is maximized (up to 98 feet (30 m) line of sight). Step 3 –...
  • Page 26 Step 4 – Add the device to your Z-Wave network: • For more details on how to include the device, please refer to the Z-Wave Inclusion chapter.
  • Page 27 Step 5 – The Installation is now complete. It’s time to make your life more comfortable with the help of the Qubino Flush RGBW Dimmer...

  • Page 28: Device Information And Support

    By scanning the QR code on the back of your Qubino, its device title, serial number, and part number are automatically copied to your mobile phone. You can also use the code for direct access to the device page for more information.

  • Page 29: Electrical Diagram (12/24Vdc)

    9. Electrical Diagram (12/24VDC) Notes for diagram: 12/24V Input for 12VDC or 24VDC (+) Ground (-) Push button – Brightness control (in default configuration) Push button – Rainbow mode (in default configuration) Push button – Scene mode (in default configuration) Push button –...

  • Page 30: Adding The Device To A Z-Wave Network (Inclusion)

    10. Adding the device to a Z-Wave network (Inclusion) AUTOMATICALLY ADDING THE DEVICE TO A Z-WAVE NETWORK (AUTO INCLUSION) 1. Enable add/remove mode on your Z-Wave gateway (hub) 2. Connect the device to the power supply 3. Auto-inclusion will be initiated within 5 seconds of connection to the power supply and the device will automatically enrol in your network.

  • Page 31: Removing The Device From A Z-Wave Network (Exclusion)

    11. Removing the device from a Z-Wave network (Exclusion) REMOVAL FROM A ZWAVE NETWORK (Z-WAVE EXCLUSION) 1. Connect the device to the power supply 2. Make sure the device is within direct range of your Z-Wave gateway (hub) or use a hand- held Z-Wave remote to perform exclusion 3.

  • Page 32: Additional Information

    12. Additional Information 1. Flush RGBW Dimmer is suggested to operate within low voltage circuits (12VDC or 24VDC). Connecting loads powered by higher voltage to the device may damage Flush RGBW Dimmer. Please refer to the following table when wiring the device. RGBW Strip Current Stranded Wire High current...
  • Page 33 LED Indication Status LED Signal Remark Not included to the Z- Red & Green blinking Wave network interchangeably Included to the Z-Wave Solid Green network Inclusion Blinking Green Press 3 times in 2 (Interval: 1 sec) seconds Exclusion Blinking Green Press 3 times in 2 (Interval: 1 sec.) seconds...

  • Page 34: Flush Rgbw Dimmer Mode Descriptions

    13. Flush RGBW Dimmer Mode Descriptions NORMAL MODE: 1. Momentary switch type Controlling output (Q is defined as output) assigned to given input terminal. In this setting outputs will be controlled independently from one another, e.g. allowing for free adjusting each colours saturation.
  • Page 35 2. Toggle switch type • Switch position -> turn the Qx OFF o Dimming time depends on Parameter no. 12 value. • Switch position -> turn the Qx to “MAX dimming value” o Dimming time depends on Parameter no. 12 value. 3.
  • Page 36 BRIGHTNESS MODE: All outputs are controlled together, i.e. one switch controls brightness of all channels at the same time. 1. Momentary switch type INx (for orientation this function is set on IN1 by default) • Fast press on input INx (less than 1 second) -> turn the Q1, Q2, Q3, Q4 brightness to the “last non zero value”...
  • Page 37 RAINBOW MODE: Rainbow mode is intended to change output Colour by using Input Button. Rainbow mode is in a relation to Brightness mode: o For instance, if the brightness level is set to 80%, this will have effect also on Rainbow mode (brightness will be 80% even between changing output Colours) 1.
  • Page 38 4 DIMMERS MODE: If this option is set, the device would be presented as 4 independent dimmers in one device. For example: Using this option, 4 independent LED strips could be connected and controlled using one device. NOTE: re-inclusion of device is required NOTE: In 4 DIMMERS mode, Parameter no.5 and Parameter no.6 has no influence.

  • Page 39: Configuration Parameters

    14. Configuration Parameters Parameter no. 1 – Input IN1 configuration Available configuration parameters (size is 1 Byte DEC) • Default value: = 4 (BRIGHTNESS mode – momentary switch type) • 1 – NORMAL mode – momentary switch type • 2 – NORMAL mode – toggle switch type •...
  • Page 40 Parameter no. 2 – Input IN2 configuration Available configuration parameters (size is 1 Byte DEC) • Default value: = 7 (RAINBOW mode – momentary switch type) • 1 – NORMAL mode – momentary switch type • 2 – NORMAL mode – toggle switch type •...
  • Page 41 Parameter no. 3 – Input IN3 configuration Available configuration parameters (size is 1 Byte DEC) • Default value: = 8 (SCENE mode – momentary switch type) • 1 – NORMAL mode – momentary switch type • 2 – NORMAL mode – toggle switch type •...
  • Page 42 Parameter no. 4 – Input IN4 configuration Available configuration parameters (size is 1 Byte DEC) • Default value: = 1 (NORMAL mode – momentary switch type) • 1 – NORMAL mode – momentary switch type • 2 – NORMAL mode – toggle switch type •...
  • Page 43 Parameter no. 5 – Auto Scene Mode Set Available configuration parameters (size is 1 Byte DEC) • Default value 1 • 1 – Ocean (soft flowing between shades of blue colour) • 2 – Lightning (fast flashing of white colour) •...
  • Page 44 Parameter no. 7 – Memorize device status at power cut Device will be set to status memorized before power cut. Available configuration parameters (size is 1 Byte DEC) • Default value 0 • 0 – device does not memorize its status at power cut. Load is disconnected •...
  • Page 45 Parameter no. 9 – Automatic turning on output after set time Output is turned automatically on after the time, set in this parameter. Available configuration parameters (size is 2 Byte DEC) • Default value 0 • 0 – Auto ON disabled •...
  • Page 46 Parameter no. 11 – MIN dimming value Available configuration parameters (size is 1 Byte DEC) • Default value 1 • 1-98 = 1 % – 98 % NOTE: The minimum level may not be higher than the MAX dimming value. Parameter no.
  • Page 47 Parameter no. 13 – Dimming time when key pressed Available configuration parameters (size is 1 Byte DEC) • Default value 3 = 3 s • 1 – 127 = from 1 to 127 seconds NOTE: Dimming time depends also on Min and Max dimming value.
  • Page 48 Parameter no. 14 – 4 Dimmers mode Available configuration parameters (size is 1 Byte DEC) • Default value: = 0 (4 dimmers mode disabled) • 0 – Four dimmers mode disabled • 1 – Four dimmers mode enabled – momentary switch type •...

  • Page 49: Technical Specifications

    15. Technical Specifications Power supply 12 / 24V DC PWM output frequency 488Hz Rated output power 8A for single output channel,13A at max. (3,25A for R.G.B.W. single output channel is suggested) Max load (e.g. halogen bulbs) At 12V- 156W combined at 24V- 312W combined LED Indicator Red/Green *1 Operation temperature...

  • Page 50: Z-Wave Command Classes

    16. Z-Wave Command Classes ZWAVEPLUS_INFO_REPORT_ROLE_TYPE_SLAVE_ALWAYS_ON GENERIC_TYPE_SWITCH_MULTILEVEL SPECIFIC_TYPE_POWER_SWITCH_ MULTILEVEL Supported Z-Wave Command Classes: COMMAND_CLASS_ZWAVEPLUS_INFO_V2 COMMAND_CLASS_VERSION_V2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 COMMAND_CLASS_DEVICE_RESET_LOCALLY_V1 COMMAND_CLASS_POWERLEVEL_V1 COMMAND_CLASS_SWITCH_MULTILEVEL_V2 COMMAND_CLASS_SWITCH_COLOR_V2 COMMAND_CLASS_CONFIGURATION_V1 COMMAND_CLASS_ASSOCIATION_V2 COMMAND_CLASS_ASSOCIATION_GRP_INFO_V1 COMMAND_CLASS_SWITCH_BINARY_V1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 4Dimmers mode Device class: GENERIC_TYPE_SWITCH_MULTILEVEL SPECIFIC_TYPE_POWER_SWITCH_ MULTILEVEL Command classes: COMMAND_CLASS_ZWAVEPLUS_INFO_V2...
  • Page 51 COMMAND_CLASS_VERSION_V2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 COMMAND_CLASS_DEVICE_RESET_LOCALLY_V1 COMMAND_CLASS_POWERLEVEL_V1 COMMAND_CLASS_SWITCH_MULTILEVEL_V2 COMMAND_CLASS_CONFIGURATION_V1 COMMAND_CLASS_MULTI_CHANNEL_V4 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 COMMAND_CLASS_ASSOCIATION_V2 COMMAND_CLASS_ASSOCIATION_GRP_INFO_V1 COMMAND_CLASS_SWITCH_BINARY_V1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 Endpoint 1, 2, 3, 4: Device class: GENERIC_TYPE_SWITCH_MULTILEVEL SPECIFIC_TYPE_POWER_SWITCH_ MULTILEVEL Command classes: COMMAND_CLASS_ZWAVEPLUS_INFO_V2 COMMAND_CLASS_SWITCH_MULTILEVEL_V2 COMMAND_CLASS_ASSOCIATION_V2 COMMAND_CLASS_ASSOCIATION_GRP_INFO_V1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from any other manufacturers.

  • Page 52: Important Disclaimer

    (hub) or shows up incorrectly, you may need to change the device type manually and make sure your gateway (hub) supports multi-channel devices. Contact us for help before returning the device: http://qubino.com/support/#email 18. Warning Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.
  • Page 53 Declaration of Conformity Qubino Flush RGBW Dimmer device is in compliance with the essential requirements and other relevant provisions of the Low voltage (LVD) Directive (2014/35/EU), Electromagnetic Compatibility (EMC) Directive (2014/30/EU), Radio Equipment Directive (2014/53/EU), Directive RoHS (2011/65/EU) and Directive ErP (2009/125/EC).
