QUBINO ZMNHWD1 User Manual

Rgbw dimmer
Hide thumbs Also See for ZMNHWD1:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual

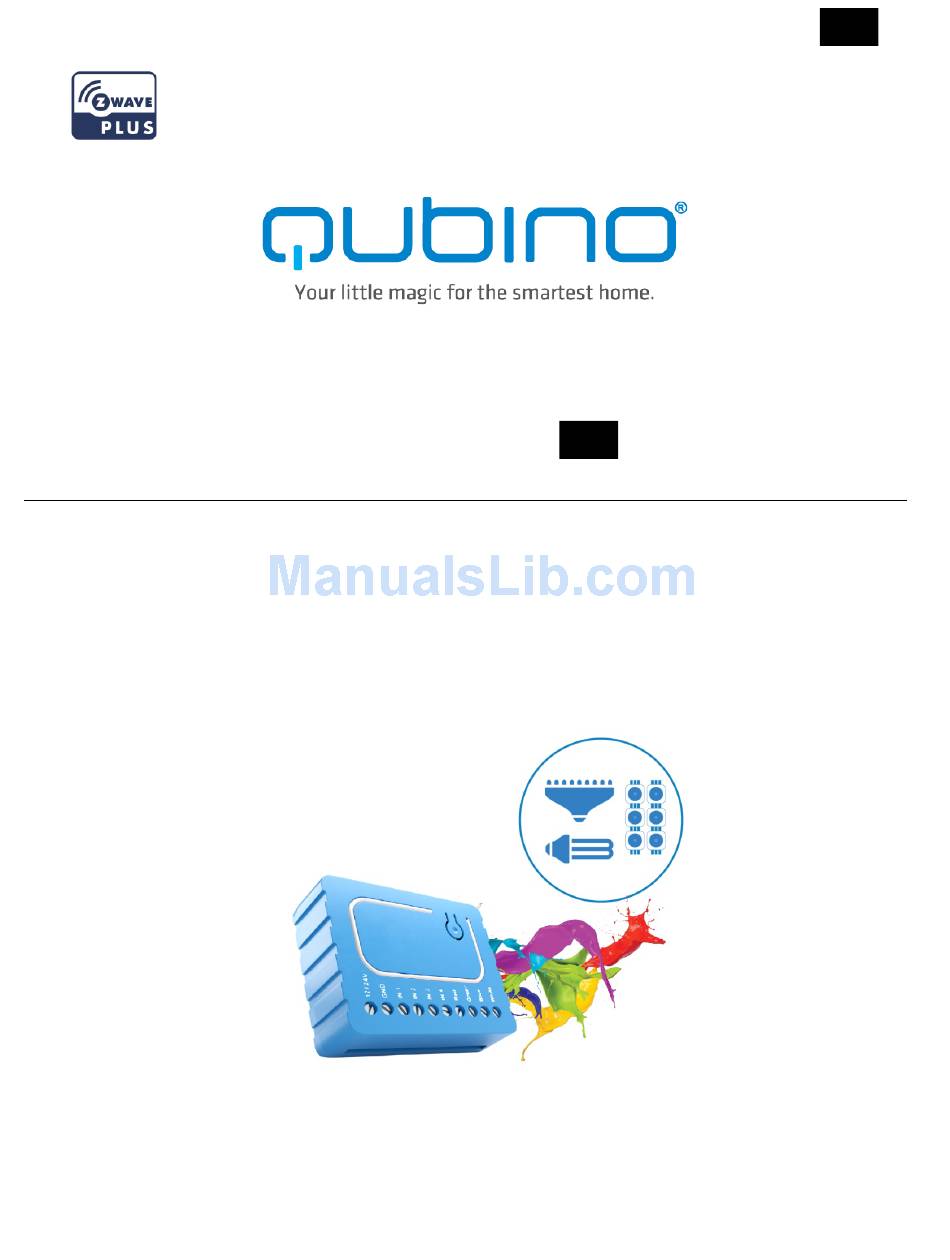

EN.
USER MANUAL EN.
QUBINO RGBW DIMMER
The Qubino RGBW Dimmer is ideal for dimming RGB/RGBW strips, LED strips and bulbs, or
even halogen bulbs. It can create different lighting effects (scenes) and adjust the color and
intensity of the light source.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZMNHWD1 and is the answer not in the manual?

Questions and answers

Related Manuals for QUBINO ZMNHWD1

Summary of Contents for QUBINO ZMNHWD1

  • Page 1 USER MANUAL EN. QUBINO RGBW DIMMER The Qubino RGBW Dimmer is ideal for dimming RGB/RGBW strips, LED strips and bulbs, or even halogen bulbs. It can create different lighting effects (scenes) and adjust the color and intensity of the light source.

  • Page 2: Table Of Contents

    Safety Information ........................4 Flush RGBW Dimmer - Available Frequencies ................4 1. Introduction ..........................5 2. Qubino Flush RGBW Dimmer Advantages and Highlights ............6 3. Package Contents ........................8 4. Technical Terms Used In the Manual ..................9 5. Installation ..........................10 6.

  • Page 3: About Qubino

    About Qubino Qubino is a family of innovative Z-Wave modules, many of them the smallest of their kind in the world. Numerous breakthrough innovations, 100% quality control and responsive customer service make Qubino the number one choice for ambitious DIYers.

  • Page 4: Safety Information

    Flush RGBW Dimmer - Available Frequencies ORDERING CODE Z-WAVE FREQUENCY ZMNHWD1 868,4 MHz ZMNHWD2 921,4 MHz ZMNHWD3 908,4 MHz...

  • Page 5: Introduction

    1. Introduction The Qubino RGBW Dimmer is designed to control your RGB/RGBW strips and LED strips or bulbs in order to create countless color options and includes 6 special scene effects (Ocean, Lightning, Rainbow, Snow, Romantic and Party). The wide range of colors lets you "paint" your home according to your mood.

  • Page 6: Qubino Flush Rgbw Dimmer Advantages And Highlights

    • By scanning the QR code on the back of your Qubino, the serial and part number of the module are automatically copied on user’s mobile device and they can have direct access to Qubino’s technical support team.
  • Page 7 ADDITIONAL PRODUCT HIGHLIGHTS: • Local and wireless control of all LED strips • Use it with toggle and push-button (momentary) wall switches or hide it completely behind a dry wall • Straightforward installation • Remembers and restores its state after power outage •...

  • Page 8: Package Contents

    3. Package Contents • Flush RGBW Dimmer Module • Installation Manual...

  • Page 9: Technical Terms Used In The Manual

    4. Technical Terms Used In the Manual Symbol Switch example images Definition Qubino Other names Two-way Single pole, Switch; One-way switch Toggle single throw Bi-stable switch (regular switch (SPST) switch switch) Single pole, Three- Two-way Two-way double throw switch switch...

  • Page 10: Installation

    5. Installation...
  • Page 12 After Qubino installation:...
  • Page 13 The installation process, tested and approved by professional electricians, consists of the following simple steps: 1. Before the installation disconnect power supply (12 - 24VDC). 2. Connect the module exactly according to the diagram. 3. Pull out the antenna and keep it at 90 degree to enhance the RF signals. 4.

  • Page 14: Product Information And Support

    By scanning the QR code on the back of your Qubino module, its product title, serial number, and part number are automatically copied to your mobile device. You can also use the code for direct access to the module’s product page for more information.

  • Page 15: Electrical Diagram 12/24 Vdc

    7. Electrical Diagram 12/24 VDC Notes for diagram: 12/24V Input for 12VDC or 24VDC (+) Ground (-) Push button – Brightness control (in default configuration) Push button – Rainbow mode (in default configuration) Push button – Scene mode (in default configuration) Push button –...

  • Page 16: Z-Wave Inclusion

    8. Z-Wave Inclusion...
  • Page 17 AUTO-INCLUSION 1. Enable inclusion mode on your Z-Wave controller 2. Connect the module to the power supply 3. Auto-inclusion will be initiated within 5 seconds of connection to the power supply and the module will automatically enrol in your network. If the device is properly included, the RGBW strip will blink once.

  • Page 18: Z-Wave Exclusion

    9. Z-Wave Exclusion Z-WAVE EXCLUSION 1. Connect the module to the power supply 2. Make sure the module is within direct range of your Z-Wave controller or use a hand-held Z- Wave remote to perform exclusion 3. Press and release the S (Service) button 3 times within 2 seconds 4.

  • Page 19: Additional Information

    10. Additional Information 1. Flush RGBW Dimmer is suggested to operate within low voltage circuits (12VDC or 24VDC). Connecting loads powered by higher voltage to the module may damage the Flush RGBW Dimmer. Please refer to the following table when wiring the module. RGBW Strip Current Stranded Wire High current...
  • Page 20 LED Indication Status LED Signal Remark Not included to the Z- Red & Green blinking Wave network interchangeably Included to the Z-Wave Solid Green network Inclusion Blinking Green Press 3 times in 2 (Interval: 1 sec) seconds Exclusion Blinking Green Press 3 times in 2 (Interval: 1 sec.) seconds...

  • Page 21: Flush Rgbw Dimmer Mode Descriptions

    11. Flush RGBW Dimmer Mode Descriptions NORMAL MODE: 1. Momentary switch type Controlling output (Q is defined as output) assigned to given input terminal. In this setting outputs will be controlled independently from one another, e.g. allowing for free adjusting each colours saturation.
  • Page 22 2. Toggle switch type • Switch position -> turn the Qx OFF o Dimming time depends on Parameter no. 12 value. • Switch position -> turn the Qx to “MAX dimming value” o Dimming time depends on Parameter no. 12 value. 3.
  • Page 23 • Press and hold (more than 1 second) -> decrease brightness on Q1, Q2, Q3, Q4 -> decrease brightness on Q1, Q2, Q3, Q4 and set new “last non zero value” for Q1, Q2, Q3, o Dimming time depends on Parameter no. 13 value. •...
  • Page 24 • Fast press (less than 1 second)-> change RGBW Colours by steps from the last set value • Fast double press (less than 1 second) -> change RGBW Colours by step from the last set value in opposite direction SCENE MODE: 1.

  • Page 25: Configuration Parameters

    12. Configuration Parameters Parameter no. 1 – Input IN1 configuration Available configuration parameters (data type is 1 Byte DEC) • Default value: = 4 (BRIGHTNESS mode – momentary switch type) • 1 – NORMAL mode – momentary switch type • 2 – NORMAL mode – toggle switch type •...
  • Page 26 Parameter no. 2 – Input IN2 configuration See parameter no. 1 Available configuration parameters (data type is 1 Byte DEC) • Default value: = 7 (RAINBOW mode – momentary switch type) Parameter no. 3 – Input IN3 configuration See parameter no. 1 Available configuration parameters (data type is 1 Byte DEC) •...
  • Page 27 Parameter no. 4 – Input IN4 configuration See parameter no. 1 Available configuration parameters (data type is 1 Byte DEC) • Default value: = 1 (NORMAL mode – momentary switch type)
  • Page 28 Parameter no. 5 – Auto Scene Mode Set Available configuration parameters (data type is 1 Byte DEC) • Default value 1 • 1 – Ocean (soft flowing between shades of blue color) • 2 – Lightning (fast flashing of white color) •...
  • Page 29 • Default value 3 • 1-127 – delay duration is 1 sec to 127 sec • 1001-1127 – delay duration is from 1 min to 127 min. This parameter has no effect on Lighting and Party Scene. Parameter no. 7 – Memorize device status at power cut Device will be set to status memorized before power cut.
  • Page 30 Parameter no. 8 – Automatic turning off output after set time Output is turned automatically off after the time, set in this parameter. Available configuration parameters (data type is 2 Byte DEC) • Default value 0 • 0 – Auto OFF disabled •...
  • Page 31 Parameter no. 10 – MAX dimming value Available configuration parameters (data type is 1 Byte DEC) • Default value 99 • 2-99 = 2 % – 99 % Parameter no. 11 – MIN dimming value Available configuration parameters (data type is 1 Byte DEC) •...
  • Page 32 Parameter no. 12 – Dimming time (soft on/off) Available configuration parameters (data type is 1 Byte DEC) • Default value 10 = 1 s • 5 – 25 = from 0.5 to 2.5 seconds Parameter no. 13 – Dimming time when key pressed Available configuration parameters (data type is 1 Byte DEC) •...
  • Page 33 Parameter no. 14 – 4 Dimmers mode Available configuration parameters (data type is 1 Byte DEC) • Default value: = 0 (4 dimmers mode disabled) • 0 – 4 dimmers mode disabled • 1 – 4 dimmers mode enabled – momentary switch type •...

  • Page 34: Technical Specifications

    13. Technical Specifications Power supply 12 / 24V DC PWM output frequency 488Hz 8A for single output channel,13A at max. (3,25A for Rated output power R.G.B.W. single output channel is suggested) Max load (e.g. halogen bulbs) At 12V- 156W combined at 24V- 312W combined LED Indicator Red/Green *1 Operation temperature...

  • Page 35: Z-Wave Command Classes

    14. Z-Wave Command Classes ZWAVEPLUS_INFO_REPORT_ROLE_TYPE_SLAVE_ALWAYS_ON GENERIC_TYPE_SWITCH_MULTILEVEL SPECIFIC_TYPE_POWER_SWITCH_ MULTILEVEL Supported Z-Wave Command Classes: COMMAND_CLASS_ZWAVEPLUS_INFO_V2 COMMAND_CLASS_VERSION_V2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 COMMAND_CLASS_DEVICE_RESET_LOCALLY_V1 COMMAND_CLASS_POWERLEVEL_V1 COMMAND_CLASS_SWITCH_MULTILEVEL_V2 COMMAND_CLASS_SWITCH_COLOR_V2 COMMAND_CLASS_CONFIGURATION_V1 COMMAND_CLASS_ASSOCIATION_V2 COMMAND_CLASS_ASSOCIATION_GRP_INFO_V1 COMMAND_CLASS_SWITCH_BINARY_V1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 4Dimmers mode Device class: GENERIC_TYPE_SWITCH_MULTILEVEL SPECIFIC_TYPE_POWER_SWITCH_ MULTILEVEL Command classes: COMMAND_CLASS_ZWAVEPLUS_INFO_V2 COMMAND_CLASS_VERSION_V2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2...
  • Page 36 COMMAND_CLASS_DEVICE_RESET_LOCALLY_V1 COMMAND_CLASS_POWERLEVEL_V1 COMMAND_CLASS_SWITCH_MULTILEVEL_V2 COMMAND_CLASS_CONFIGURATION_V1 COMMAND_CLASS_MULTI_CHANNEL_V4 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION COMMAND_CLASS_ASSOCIATION_V2 COMMAND_CLASS_ASSOCIATION_GRP_INFO_V1 COMMAND_CLASS_SWITCH_BINARY_V1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 Endpoint 1, 2, 3, 4: Device class: GENERIC_TYPE_SWITCH_MULTILEVEL SPECIFIC_TYPE_POWER_SWITCH_ MULTILEVEL Command classes: COMMAND_CLASS_ZWAVEPLUS_INFO_V2 COMMAND_CLASS_SWITCH_MULTILEVEL_V2 COMMAND_CLASS_ASSOCIATION_V2 COMMAND_CLASS_ASSOCIATION_GRP_INFO_V1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION...

  • Page 37: Important Disclaimer

    Contact us for help before returning the product: http://qubino.com/support/#email 16. Warning Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.

  • Page 38: Regulations

    Gorica reserves all rights to revise and update all documentation without any obligation to notify any individual or entity. Declaration of Conformity Qubino Flush RGBW Dimmer Module is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. WEEE According to the WEEE (Waste electrical and electronic equipment) Directive, do not dispose of this product as household waste or commercial waste.

This manual is also suitable for:

Zmnhwd2Zmnhwd3Zmnhwd4Zmnhwd5Zmnhwd8
