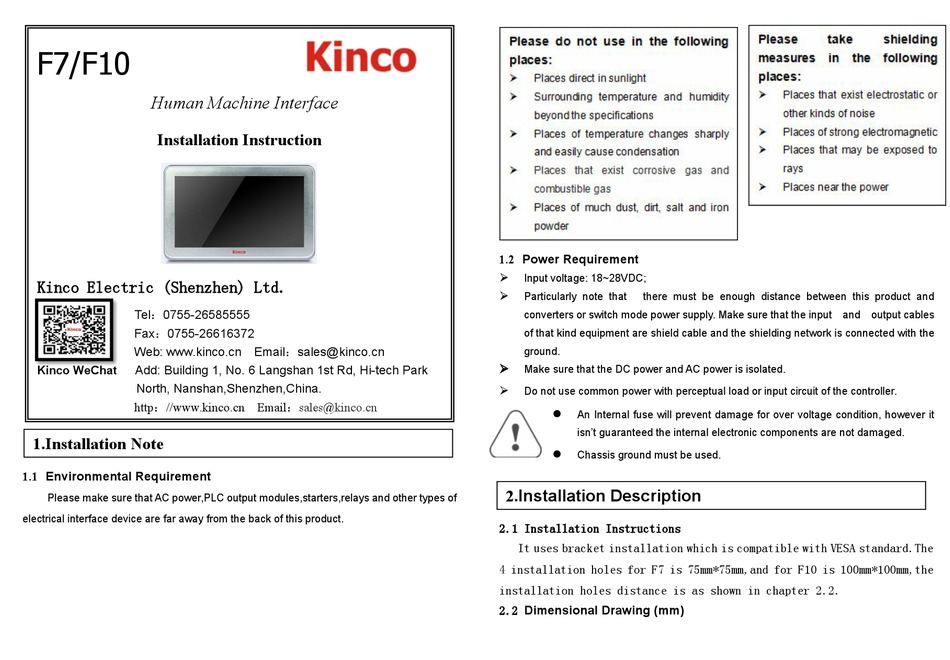

Kinco F7 Installation Instructions And Instructions For Use

F7/F10
Human Machine Interface
Installation Instruction
Kinco Electric (Shenzhen) Ltd.
Tel：0755-26585555
Fax：0755-26616372
Web: www.kinco.cn Email：sales@kinco.cn
Add: Building 1, No. 6 Langshan 1st Rd, Hi-tech Park
Kinco WeChat
North, Nanshan,Shenzhen,China.
http：//www.kinco.cn
1.Installation Note
1.1 Environmental Requirement
Please make sure that AC power,PLC output modules,starters,relays and other types of
electrical interface device are far away from the back of this product.
Email：sales@kinco.cn
1.2 Power Requirement

Input voltage: 18~28VDC;

Particularly note that there must be enough distance between this product and
converters or switch mode power supply. Make sure that the input and output cables
of that kind equipment are shield cable and the shielding network is connected with the
ground.

Make sure that the DC power and AC power is isolated.

Do not use common power with perceptual load or input circuit of the controller.

An Internal fuse will prevent damage for over voltage condition, however it
isn't guaranteed the internal electronic components are not damaged.

Chassis ground must be used.
2.Installation Description
2.1 Installation Instructions
It uses bracket installation which is compatible with VESA standard.The
4 installation holes for F7 is 75mm*75mm,and for F10 is 100mm*100mm,the
installation holes distance is as shown in chapter 2.2.
2.2 Dimensional Drawing (mm)
