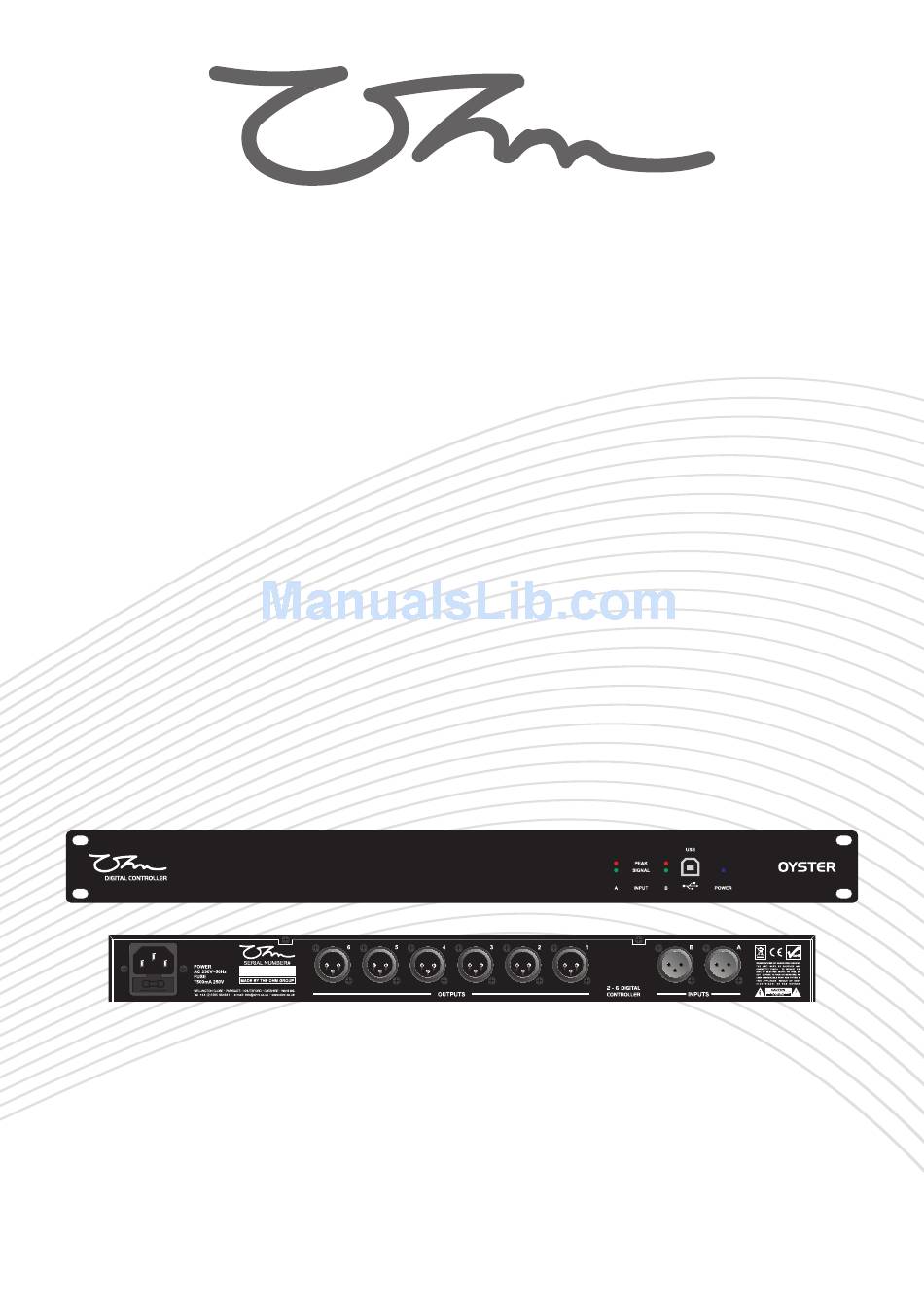

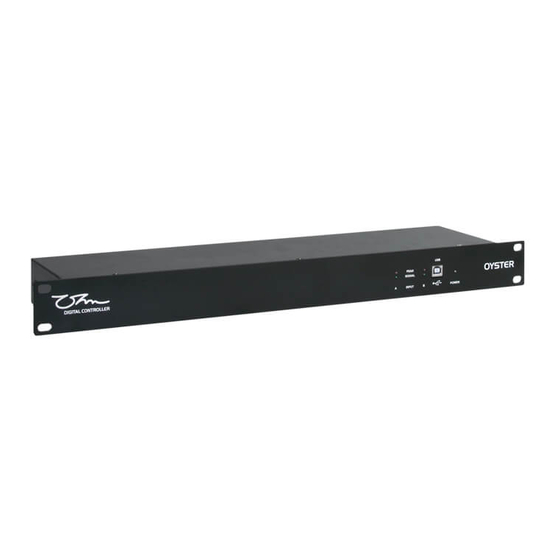

OYSTER 2-6 LOUDSPEAKER
MANAGEMENT SYSTEM
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Oyster 2-6 and is the answer not in the manual?

Questions and answers

Summary of Contents for OHM Oyster 2-6

  • Page 1 OYSTER 2-6 LOUDSPEAKER MANAGEMENT SYSTEM USER MANUAL...
  • Page 2: Information

    • No front panel access making the unit tamper proof 73/23/EEC, amended by 93/68/EEC and to the following standards: • Uses the OHM SPYDER digital signal processing platform EMC Emission EN55103-1 (1996) • The front panel has a USB port for easy access when...
  • Page 3: Table Of Contents

    OYSTER 2-6 LOUDSPEAKER MANAGEMENT SYSTEM Contents Information................page 2 features Introduction................page 4 Unpacking Packing List Precaution Installation Guide..............page 5 Oyster Installation Software Installation Quick Reference Guide............page 6 Front Panel Guide Rear Panel Guide Specifi cations................page 7 Input Section Output Section General Performance...
  • Page 4: 1X Oyster 2-6 Loudspeaker Management System

    This modern design is combined with OHM Factory Presets to deliver the optimal match for OHM cabinets and systems. These presets allow the user to simply achieve the best possible sound quality.
  • Page 5: Installation Guide

    “BROWSE” to the new folder location. Once the new location is selected click “NEXT”. 5. The OHM SPYDER control software is now ready to install, if you need to make changes to any of the previous screens click “BACK” otherwise click “INSTALL” to continue.
  • Page 6: Quick Reference Guide

    Green LED Indicating that there is a signal present on the input. 3 USB Connector The USB connector on the front panel allows connection to a PC. Once connected the OHM proprietary software will allow control of the unit. Mac software is under development.
  • Page 7: Specifi Cations

    OYSTER 2-6 LOUDSPEAKER MANAGEMENT SYSTEM SPECIFICATIONS Input Section 10 kΩ Input Impedance Nominal Input Level +6 dBu Maximum Input Level +22 dBu -48 to +12 variable in 0.25db steps Input Gain CMRR Better than 50dB (30Hz-20kHz) Input connector 2 x female 3 pin XLR, balance...
