Summary of Contents for Algo 1127
-

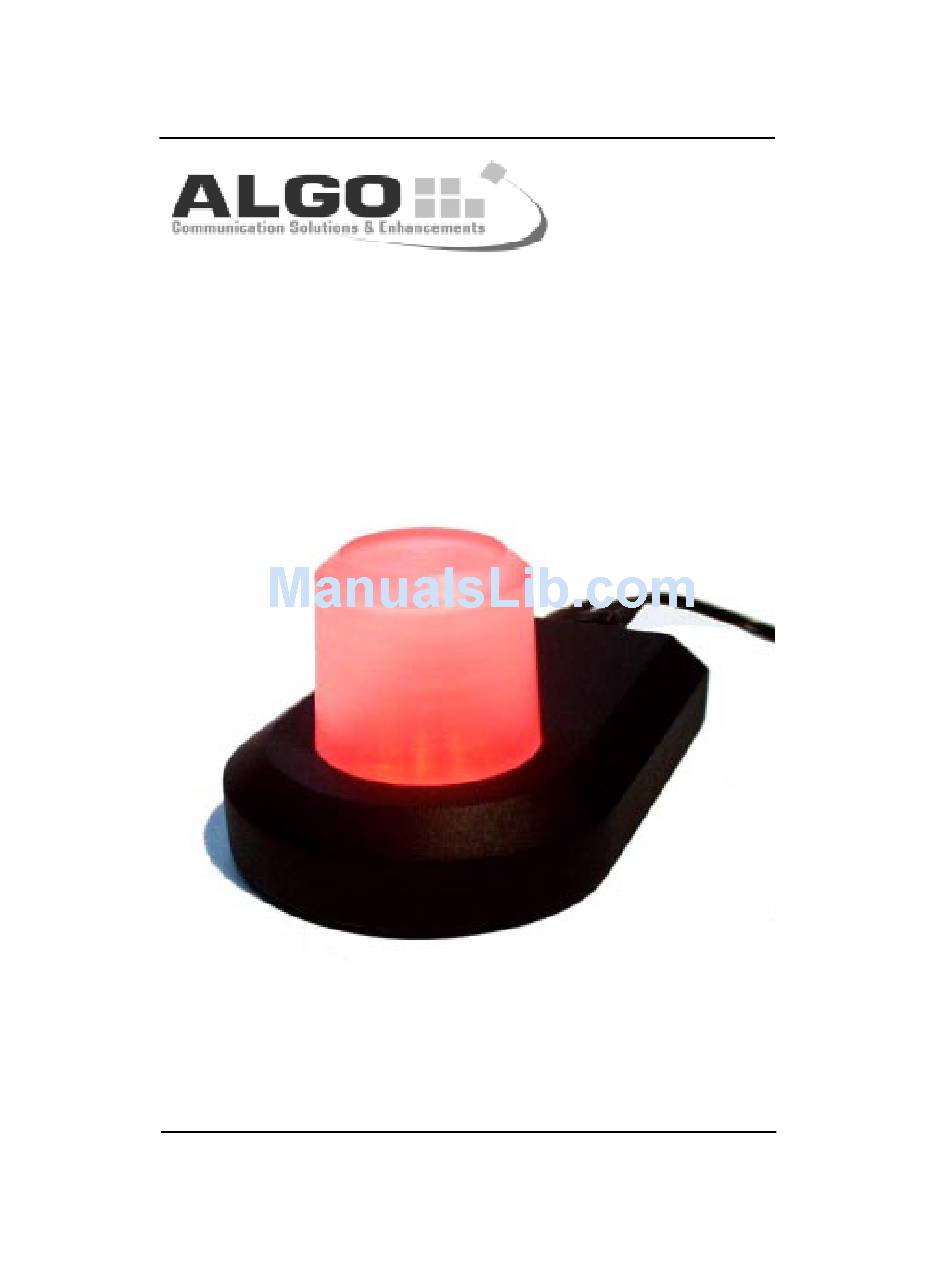

Page 1: Installation Guide
DC112700-03 May 2001 1127/ 1127P Desktop Visual Alerter Installation Guide Algo Communication Products Ltd. 1127 User Guide... -
Page 2: Table Of Contents
Looking into the LED’s with- out the lens may be damaging to your eyesight! In order for the 1127 to function the cover must be firmly closed by screwing the lens clockwise. Do not over-tighten. -
Page 3: Description
(counter-clockwise) the diffusing lens and removing the cover. The 1127 may be wall mounted with the supplied screws while the cover is removed, or fastened using the supplied hook and loop self-adhesive tape. Many cubicle walls will support hook fasteners. -
Page 4: Application 1: Wiring "Plug & Play" (Dry Contact)
Connect the Algo 3242 power supply (supplied with 1127P) into the power jack of the 1127. Connect the supplied 2.5mm cord into the 2.5mm jack of the 1127 and the other end into the RELAY jack of the activating equipment (such as Algo’s 4100 AuxBox). -
Page 5: Application 2: Connection To Algo 1825P Ringer
Duet Plus. To connect to the output of the Algo 1825P Duet Plus, set the shunt for audio detect, located in- side the 1127 and wire to RELAY terminals on the 1127 and to the AUX SPKR terminals inside the 1825P Duet Plus. -
Page 6: Application 3: Remote Wiring To Algo 4100 Auxbox
The RELAY INPUT detects either dry contact closure (relay contacts) or audio signal according to the shunt setting as in Figure 1.0. Set the 1127 to the desired flash (see figure 5.0) Figure 4.0 Remote Wiring to Algo 4100 AuxBox 1127 User Guide... -
Page 7: Flash Options
Upto 16 seconds of audio signal can be recorded into the device for playback as an alerter. The Talking Duet Plus also includes an am- plifier for direct or delayed paging applications. Algo Communication Products Ltd. 1127 User Guide... - Page 8 Toll Free (877) 884-2546 or support@algosolutions.com Nortel Networks, Nortel, Meridian 1 , Northern Telecom and the Globemark logo are trademarks of Nortel Networks Corporation. Duet Plus, AuxBox logo and Algo logo are trademarks of Algo Communication Products Ltd. 1127 User Guide...
