EMAC PPC-4510 Quick Setup Manual

PPC-4510

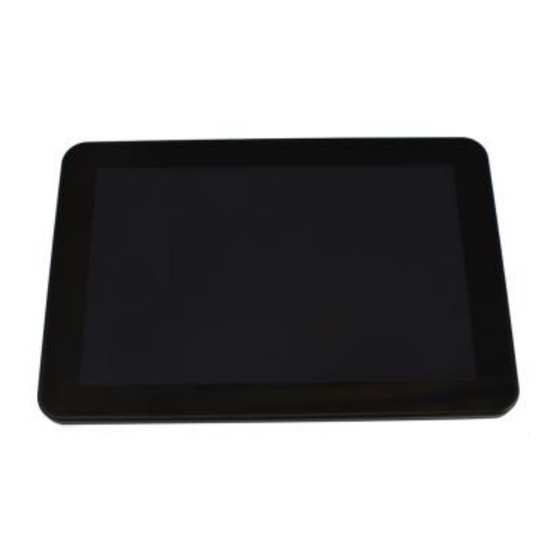

HIO i.MX6 10.1" PC Quick Setup Guide

Package Include:

 1 x HIO-EMB-1200 Core Board
 1 x HIO-PIO-1200 Carrier Board
 1 x 10.1" Touch Panel (1280 x 720 px)
 1 x WiFi Module and Antenna
 1 x 12V Adapter

Safety Warning

The use and installation of this system should only be performed by
professionals. Improper installation of any electronic device or electrical
component can result in serious injury or death. Please make sure that all
safety precautions are taken into account.

Static-Sensitive Devices

Electrostatic-Discharge (ESD) can damage electronic components. To avoid
damaging your system board, it is important to handle it very carefully. The
following measures are generally sufficient to protect your equipment from
ESD.

Precautions

 Use a grounded wrist strap designed to prevent static discharge.
 Touch a grounded metal object before removing the board from the
antistatic bag.
 Handle the board by its edges only; do not touch its components,
peripheral chips, memory modules or gold contacts.
 When handling chips or modules, avoid touching their pins.
 Put the motherboard and peripherals back into their antistatic bags
when not in use.
QSG_PPC-4510-KIT_1-00

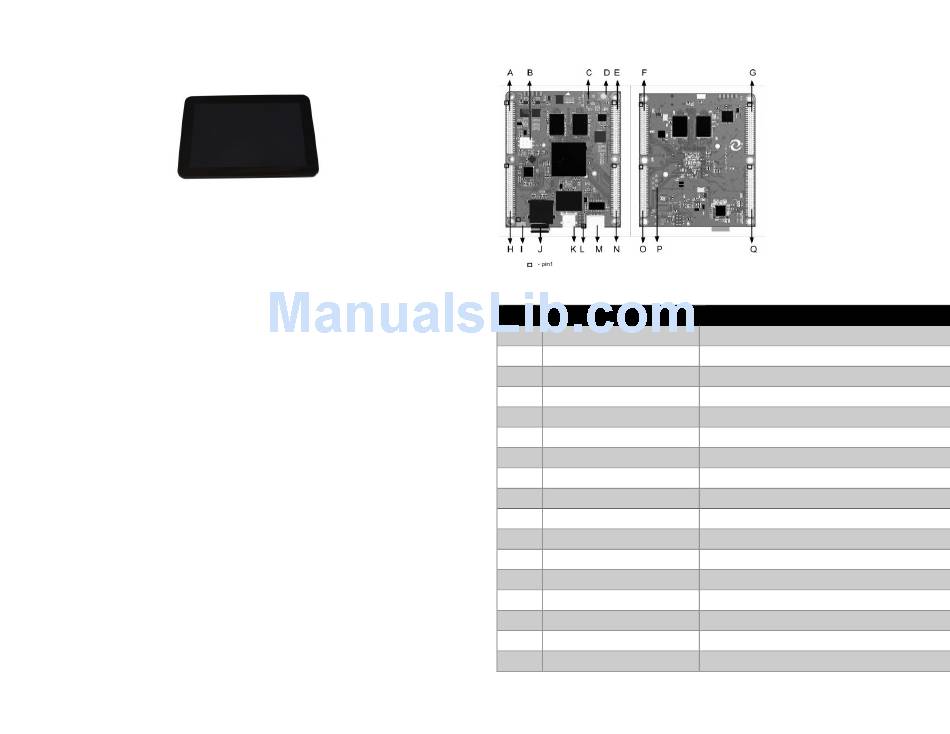

HIO-EMB-1200 Core Board Layout

Figure 2: HIO-EMB-1200 Core Board
Item Connector
A J606 (top of J600)
B DIP Switch
C DC Jack
D Power Button
E J608 (Top of J602)
F J602 (Bottom of J608)
G J600 (Bottom of 606)
H J607 (Top of J601)
I Console UART
J SD Card Socket
K OTG
L USB
M Mini HDMI
N J609 (top of J603)
O J603 (Bottom of J609)
P JTAG
Q J601 (Bottom of J607)
Description
Power, RTC and 24bit parallel display port
2-bit DIP switch for boot selection TF/iNAND
5V DC Jack
LVDS, UARTs, CAN, I2C, GPIOs, VDD, VCC
LVDS, UARTs, CAN, I2C, GPIOs, VDD, VCC
Power and 24bit parellel display port
Audio, USB, SDIO, Ethernet, I2C and SPI
TTL serial port
Micro SD socket
OTG Device only
2x USB 2.0 headers
HDMI with audio
GPIO, I2C, PCIe PH, MIPI DSI, CSI, Camera
GPIO, I2C, PCIe PH, MIPI DSI, CSI, Camera
Audio, USB, SDIO, Ethernet, I2C, and SPI
page 1
