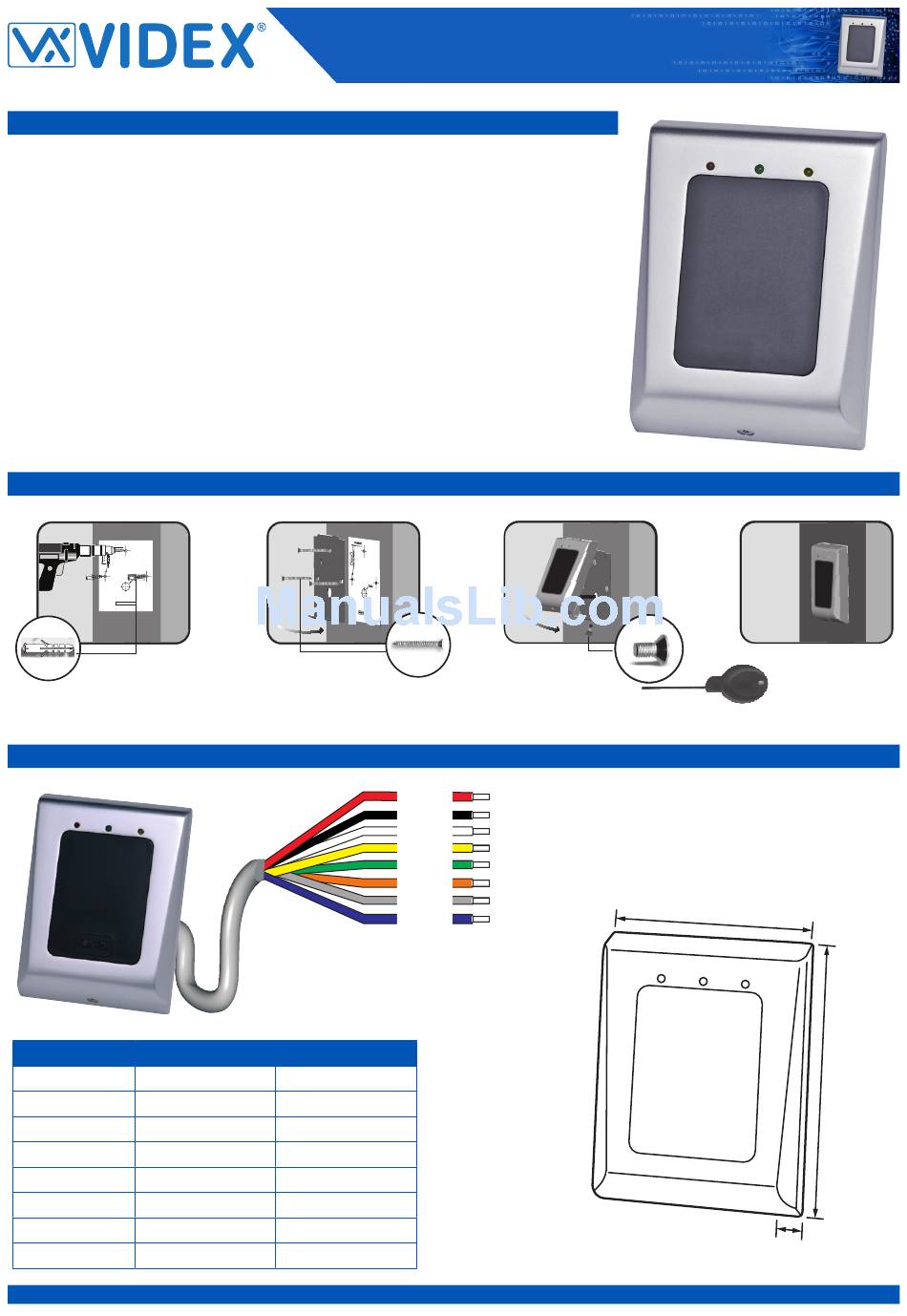

Videx VPROX2-M Manual

1. FEATURES
• Multi-protocol vandal resistant proximity reader;
• Resin potted, moulded aluminium matt chrome finish (IP65 rated);
• Pre-wired 3m, 8 core (AWG24) cable;
• Compatible with Wiegand 26 - 40 bit, CLOCK & DATA or codix protocols
bit Wiegand. For setup of other protocols a MULTIPRO programmer module must be used);
• Read range of 3 - 5cm distance;
• Reads EM4100 compatible fobs or cards;
• 125kHz operating frequency;
• 2 free tension LED's (red and green);
• Audible and visual reassurance tones;
• Compatible with Portal Plus access control or 3rd party controllers;
• 9 - 12Vdc operating voltage;
• Current rating 45mA (max.).
2. READER MOUNTING
1.
Ø6.0(3NoS)
Cable
DG/DT/0011 IS -01
3. READER WIRES, CONNECTIONS & DIMENSIONS
Wire Colour Connection
Red +positive
Black -negative
White DATA/D0/CLOCK
Yellow D1/DA
Green LG-
Orange LR-
Grey BZ-
Blue CP-
VPROX2-M MANUAL
2.
3 (3 x 30mm
CSK Philips)
Red
Black
White
Yellow
Green
Orange
Grey
Blue
Description
9 - 12Vdc input
Ground
Data 0 (clock)
Data 1 (data)
Green LED
Red LED
Internal buzzer
Card present
VPROX2-M MANUAL
(by default 26
3.
1 (M3 x 6mm)
09-12V DCV
GND
D0
D1
LG-
LR-
BZ-
CP-
1
4.
CABLE: 3m, 8 core (AWG24)
86mm
22mm
ENUK - VB2 - 01/03/17
116mm
