LG V20 Quick Reference Manual

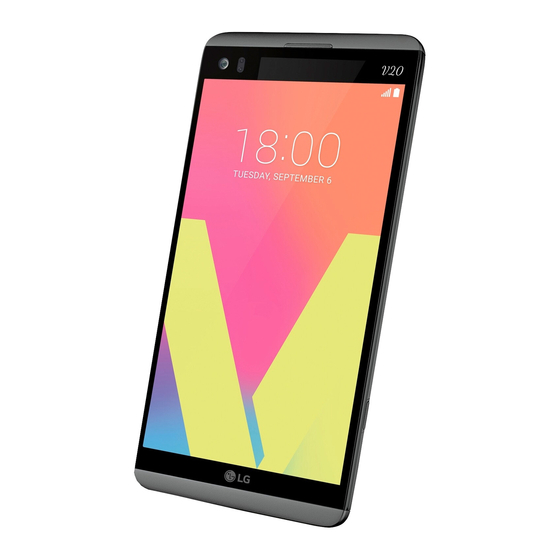

Meet your
About your phone
phone.
Front camera
Back button
Home button
Para la versión en español, visite
verizonwireless.com/Support
NOTE: Devices and software are constantly evolving—the
screen images and icons you see here are for reference only.
Proximity/
Ambient light sensor
Back cameras
Earpiece
NFC touchpoint
Second
screen
Flash
Power/
Lock button,
Fingerprint ID
scanner
Back cover
release button
Recent
apps
button
Speaker
USB/Charger port
Microphone
Setting up your phone
Your phone already has a SIM card installed.

Step 1. Remove the back cover

With the phone facing down, press the Back cover
release button to release the back cover and then
gently lift the cover.
Laser detection
auto-focus
Volume
Back cover
release button
Headset jack
Optional: Insert the microSD card.

Step 3. Replace the back cover

If you have a microSD card, slide it into the upper 1. Line up the bottom edge of the back cover with the
card slot (above the SIM card) with the gold contacts bottom of the phone. Then press gently along the
facing down as shown. bottom edge to start securing the cover.
NOTE: The microSD card is sold separately.
2. Starting at the bottom edge, press gently up the
sides of the cover to fully secure it.

Step 2. Insert the battery

Insert the battery, making sure the gold contacts line
up. Press down gently to secure it.
