Summary of Contents for LVI MagniLink Zip PREMIUM

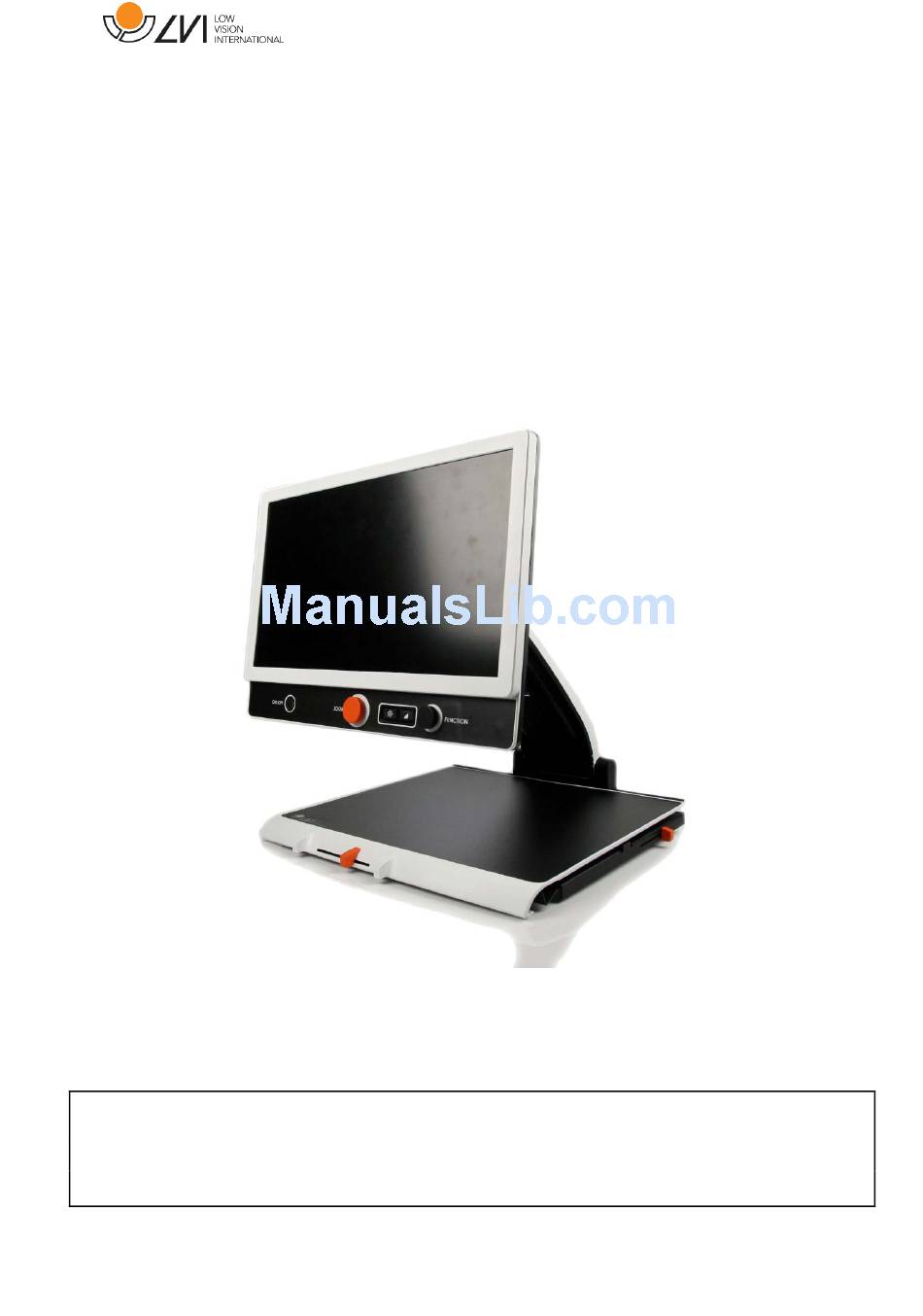

- Page 1 User Manual MagniLink Zip PREMIUM LVI Low Vision International Verkstadsgatan 5 Tel: +46 470-727700 info@lvi.se SE-352 46 Växjö Faks: +46 470-727725 www.lvi.se...
-
Page 2: Table Of Contents
MagniLink Zip Table of Contents About LVI ..................5 Introduction to MagniLink Zip ............6 Safety information ................8 Unpacking ..................9 4.1 Packaging ..................9 Accessories ................... 10 Installation ..................11 Use ....................12 7.1 Panel ..................12 7.2 Menu ..................13 7.3 Basic mode ................ -
Page 3: About Lvi
MagniLink Zip 1 About LVI LVI Low Vision International AB was founded in 1978 and is one of the world's leading manufacturers of equipment for persons with visual impairments. Development of new products takes place in close cooperation with users and professional staff within the low vision rehabilitation industry. -
Page 4: Introduction To Magnilink Zip
MagniLink Zip 2 Introduction to MagniLink Zip Thank you for choosing this video magnifier. Our aim is for you to be satisfied with your choice of supplier and reading aid. MagniLink Zip is a video magnifier designed for people with visual impairment. -
Page 5: Safety Information
Pull out the power cable and contact service staff or the product distributor. Only use spare parts that are specified by LVI. Always switch off the power when the system is not being used. -
Page 6: Unpacking
For further information on installation, please see the chapter on Installation page 11. 4.1 Packaging The packaging consists of the following packaging material (LVI recommends that the packaging be kept in case you have to return the system or you need to move it):... -
Page 7: Installation
MagniLink Zip 6 Installation Open your MagniLink Zip 1. Place your MagniLink Zip far enough in on the table in front of your seat, but at least 10 cm from the edge of the table. Remember that the reading table can be pulled out approximately 30 cm in three directions. -
Page 8: Use
MagniLink Zip 7 Use 7.1 Panel 1. Power on/off with LED Press to start or shut down the system. Press for more than six seconds to do a reset. A green light indicates that the unit is on. A flashing yellow light means that autofocus is switched off. The light flashes green when the system is starting. -
Page 9: Menu
MagniLink Zip 7.2 Menu The menu is opened by pressing the function control. In order to navigate in the menu, turn the function control. The current mode is displayed on the screen. After 30 seconds of inactivity, the system returns to normal mode. - Page 10 MagniLink Zip 6. Shut-off time for screen and lamp ("SLEEP" is displayed on the screen) In this mode, you can set whether and after what length of time the system will turn off the lamp and the screen if the camera has not detected any movement.
-
Page 11: Basic Mode
MagniLink Zip 7.3 Basic mode It is possible to switch between basic mode and a mode with full functionality. To switch, do the following. 1. Press and hold button 4. 2. Press and hold button 3. 3. While the buttons 3 and 4 are held, press button 5 once. Basic mode is perfect for users who want the simplest possible reading camera. -
Page 12: Camera
MagniLink Zip 7.5 Camera The camera has two modes. Reading mode and distance mode. Turn the camera to switch it from reading mode (1) to distance mode (2). When the camera is in distance mode, it can be angled laterally, depending on what you want to look at. -
Page 13: Ergonomics
MagniLink Zip 8 Ergonomics Your reading camera is now ready to use. It is important that the workplace around your MagniLink is comfortable, and that you sit correctly. This is so that you can use the camera for as long as possible without putting undue strain and stress on your neck and back. -
Page 14: Troubleshooting
MagniLink Zip 9 Troubleshooting No image is displayed on your MagniLink Zip after you start the system: Check that the power is on. Check that all connectors are properly connected as explained in the 'Installation' section. The LED to the left of the start button shines red for five seconds. The battery needs to be charged. -
Page 15: Technical Information
MagniLink Zip 10 Technical information MagniLink Zip with a 13" screen. Dimensions collapsed 330 x 450 x 90 mm (W x D x H) 13 x 17.5 x 3.5” (W x D x H) Dimensions in use 330 x 450 x 510 mm (W x D x H) 13 x 17.5 x 20.1”... - Page 16 MagniLink Zip Power consumption, standby 0,1 W General properties Refresh rate 60 Hz Mains voltage 100-240 V, 50-60 Hz Focal range 0-60 mm Lighting Battery capacity 65 Wh Charging time 2,5 hours Battery life (use) Up to 5 hours (13.3") or 4.5 hours (17.3") Battery life (standby) Up to 45 hours Battery weight...
- Page 17 MagniLink Zip Disposal of old electrical and electronic equipment (applies for EU countries and all other European countries that have specific collection systems) If the product or its packaging has this symbol on it, it is not to be handled as regular domestic waste.
-
Page 18: Declaration Of Conformity
MagniLink Zip 11 Declaration of Conformity User Manual 7943529c | MagniLink Zip... - Page 19 MagniLink Zip Alphabetical index About LVI ....................5 Accessories ................... 10 Basic mode ................... 15 Battery ....................16 Camera ....................16 Declaration of Conformity ..............22 Ergonomics ................... 17 Installation ..................... 11 Introduction to MagniLink Zip ............... 6 Menu ..................... 13 Packaging ....................
