Summary of Contents for ASTEL LIGHTING VOLCANO

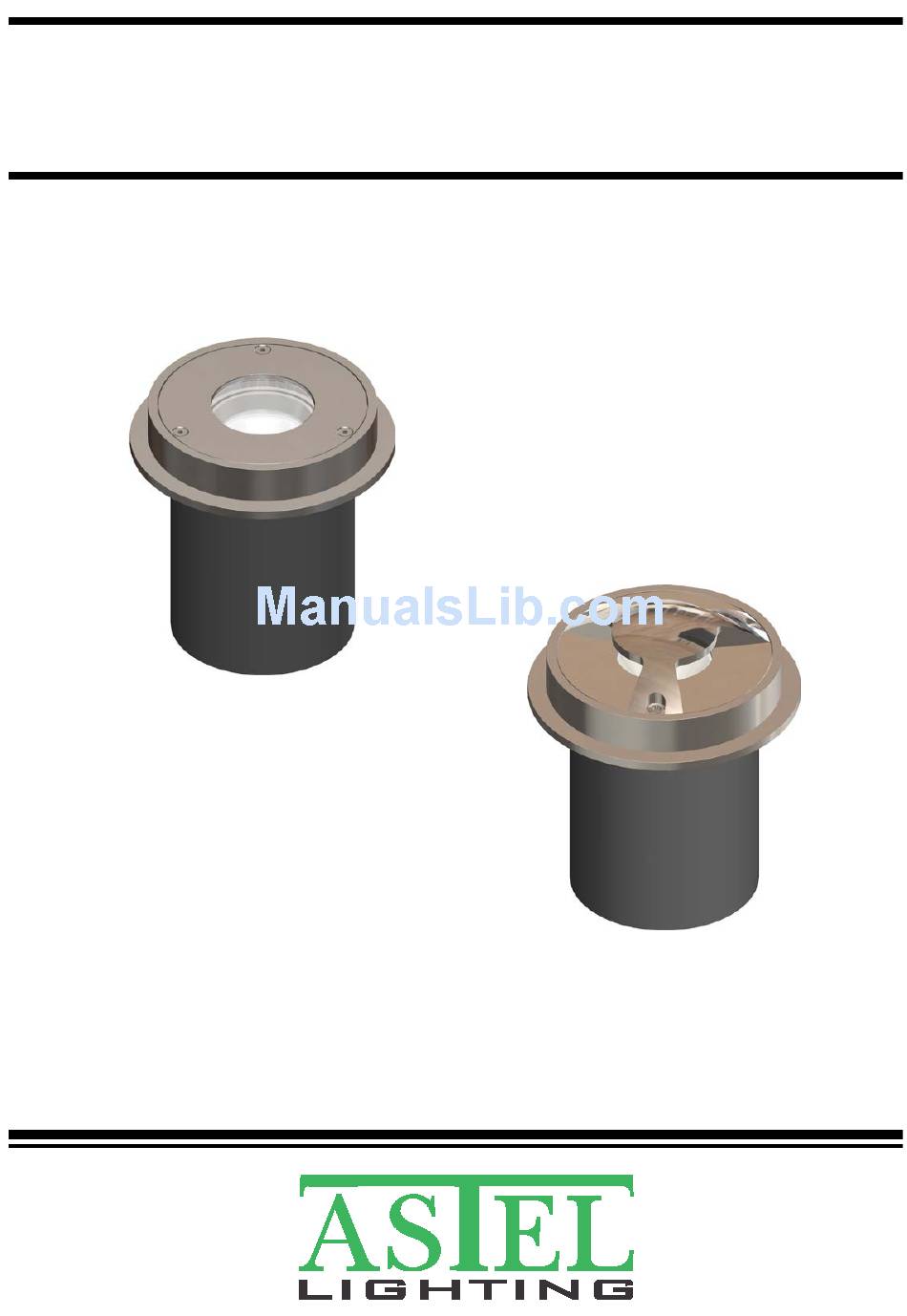

- Page 1 VOLCANO INGROUND LIGHT Operating Instructions...
-
Page 2: Table Of Contents
CONTENTS Preface ................................3 Features ................................3 Precautions ................................3 Components ...............................4 Assembling and Installation ..........................6 Connection .................................7 Controls ................................8 Technical Specifications ...........................10 Warranty ................................14 Declaration of Conformity ..........................15 _________________________________________________________________________________... -
Page 3: Preface
PREFACE PRECAUTIONS The VOLCANO series of modular outdoor light • The inground light has to be installed and with built-in driver is designed to use the latest used in accordance with the instructions of LED lighting technology. this manual only. -
Page 4: Components
COMPONENTS (1) Engine assembly LED lighting assembly built-in sand-blasted anodized aluminium casing with different lighting color, power and beam options. Code 1 Color of lighting ENGWW Warm White ENGDW Daylight White ENGCW Cool White ENGR ENGG Green ENGB Blue ENGRGB Red + Green + Blue ENGRGBW Red + Green + Blue + Warm White... - Page 5 (2) Inground beam assembly Sand-blasted stainless steel assembly for direct or reflective spreading of lighting in different angles. Code Description IGBDSS Direct no reflective beam, Stainless steel, Sand-Blasted IGBR120SS Reflective beam 120 degrees, Stainless steel, Sand-Blasted IGBR240SS Reflective beam 240 degrees, Stainless steel, Sand-Blasted IGBR360SS Reflective beam 360 degrees, Stainless steel, Sand-Blasted IGBDSB...
-
Page 6: Assembling And Installation
• Inground niche assembly The assembling and installation have to be realized by qualified personnel. The VOLCANO has to be assembled and fixed as shown in the drawing below: a) Insert the connection cable and build-in the Inground niche assembly to the ground. -
Page 7: Connection
Note: • Do not cover the inground light body with any kind of temperature isolating material. The inground light is protected by a temperature sensor against over-heating. When the temperature of the inground light exceeds 85°C the inground light is automatically switched off. -
Page 8: Controls
CONTROLS Single-color warm white (ENGWW), daylight white (ENGDW), cool white (ENGCW), red (ENGR), green (ENGG) or blue (ENGB) models: Control by momentary switch Remote control by momentary switch can be used to turn-on and turn-off the light and to control the luminosity. - Page 9 Setting the Custom Color At the selected Rainbow Color Spectrum mode press the momentary switch shortly to turn the light off. After that press the momentary switch for 5 seconds or until the light is switched to the selected color and then the Custom Color is set and selected. Dimming When the light is turned-on press the momentary switch until the desired illumination is achieved.
-
Page 10: Technical Specifications
Dimming When the light is turned-on press the momentary switch until the desired illumination is achieved. By another pressing of the momentary switch the luminosity will increase to the maximum illumination. Set default Press the momentary switch for min. 40 seconds or until the light is turned off. DMX512 control The built-in ASTEL protocol enables the network connection to control the lights with the standard DMX512 protocol by using optional LXU01 or LXU03 interfaces. - Page 11 Inground niche assembly Material Stainless steel (SAE316L) and PMMA Dimensions Ø140 x 140mm Weight 1.2 kg (stainless steel) 500 g (aluminium) The model specification: VOLCANO - NICHE code ENGINE code BEAM code Design and specifications subject to change without notice.
-
Page 14: Warranty
WARRANTY 1. The equipment manufactured by ASTEL d.o.o. is warranted to be free from defects in workmanship and materials under normal use and service. 2. This Warranty is in effect for of two years from the date of purchase by the user. Proof of purchase must be included, to establish that it is inside the warranty period. -
Page 15: Declaration Of Conformity
Dutovlje 138 6221 Dutovlje Slovenija declares that the products Item, Product Name and Model Number: 1. INGROUND LED light VOLCANO series conform to the following Product Specifications: EMC: EN 55015:2006 + A1:2007 EN 61547:1995 + A1:2000 + A2:2009 EN 61547:2009... - Page 16 ASTEL d.o.o., Dutovlje 138, 6221 Dutovlje, Slovenia Tel: +386 5 7310771, +386 5 7310772 Fax:+386 5 7310789 info@astel-lighting.com E-mail: www.astel-lighting.com Web:...
