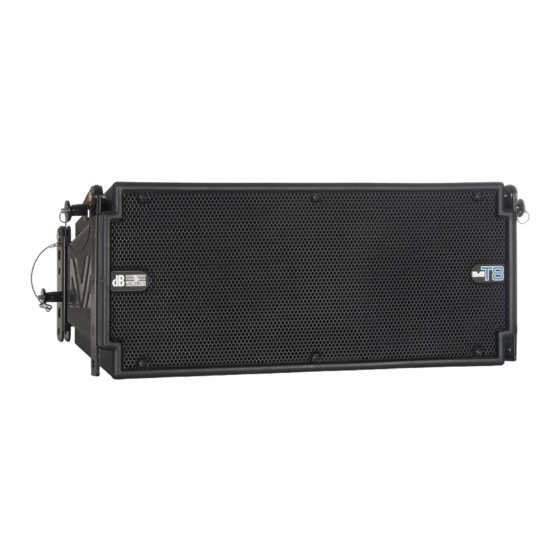

dBTechnologies DVA T8 User Manual

Digtal vertical array
Hide thumbs
Table of Contents

Advertisement

Quick Links

T8
Digital Vertical Array
Digital Vertical Array
MANUALE D'USO - Sezione 1
USER MANUAL - Section 1
BEDIENUNGSANLEITUNG - Abschnitt 1
CARACTERISTIQUES TECHNIQUES - Section 1
COD. 420120203
Rev 2.0
Made in Italy

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVA T8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for dBTechnologies DVA T8

Summary of Contents for dBTechnologies DVA T8

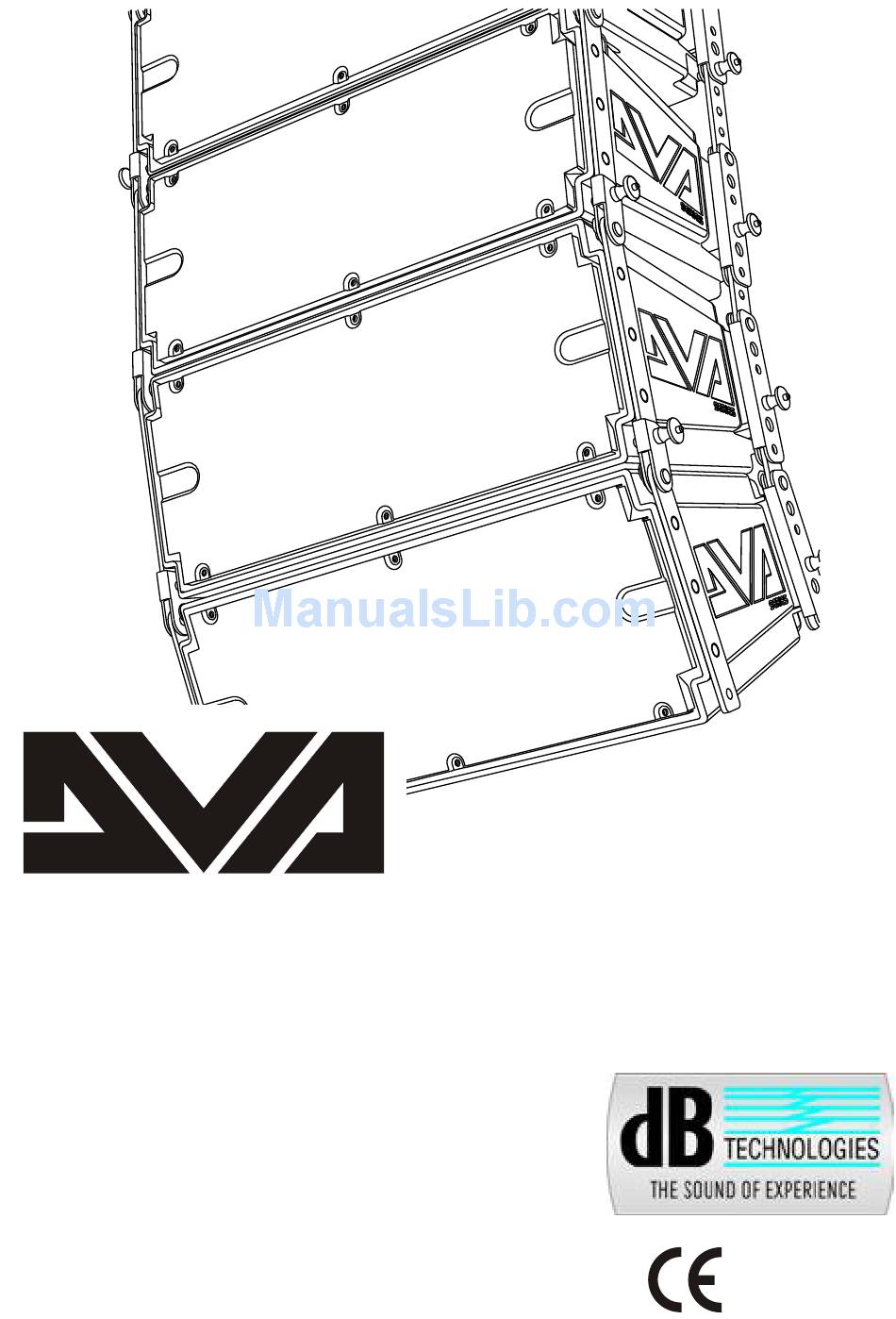

  • Page 1 Digital Vertical Array Digital Vertical Array MANUALE D’USO - Sezione 1 USER MANUAL - Section 1 BEDIENUNGSANLEITUNG - Abschnitt 1 CARACTERISTIQUES TECHNIQUES - Section 1 Made in Italy COD. 420120203 Rev 2.0...
  • Page 2 DESCRIPTION The DVA T8 is equipped with three class D amplifiers of DIGIPRO® G2 series, high efficiency, which delivers high output power in a compact size and low weight. Thanks to its high efficiency the cooling of the amplifier module is obtained statically, thus avoiding the use of a fan.
  • Page 3 100° 15° DVA Network DVA T8 is equipped with proprietary network interface, called RDNET, for PC interface through a device (RDNET control). For this purpose, a proprietary communication protocol has been developed for receiving and sending data; this connection permits real-time monitoring of the diffuser parameters, such as output power, amplifier temperature, limiter status, etc...

  • Page 4: Controls And Functions

    CONTROLS AND FUNCTIONS "Balanced Audio" section " INPUT” INPUT CONNECTOR Balanced input at line level. It is able to accept “XLR” sockets. "LINK” OUTPUT CONNECTOR The “XLR” connector connected in parallel with input (1) can be used to send the input audio signal to another amplified speaker.
  • Page 5 Refer to the table for the correspondence of the equalization curve. 14) “Service Data USB” Connector Via this USB connector, it is possible to update the firmware of the DVA T8 amplifier module using the computer and a dedicated program.
  • Page 6 CHARACTERISTICS AND PROTECTION Front Grille The speakers’s components in the box are protected by 1.2mm metal steel grille covered by foam on backside. Cooling Thermal control is managed by the main microprocessor that interacts with the local microprocessors (amplifiers and power supply) and communicates the data to the DSP for any corrections.

  • Page 8: Technical Specification

    TECHNICAL SPECIFICATION System Active 3-Amps Type of amplifier Digital - Class D DIGIPRO G2 technology RMS power 700W High (HF) RMS 175W Mide (MF) RMS 175W Low (LF) RMS 300W Musical power 1400W Frequency response (-6dB) 66-18.000Hz Frequency response (-10dB) 61-19.900Hz Crossover MF-HF (Mid-High) 1900Hz...
  • Page 9 MAINTAINED DRK 10 DVA system has obtained the TÜV certification for suspension of DVA T4, DVA T8, DVA T12, DVA S09dp, DVA S10dp, DVA S1518N and DVA S2585N speakers through flybar stirrup DRK 10 for maximum weight applying is 250Kg.
  • Page 10 (Neodymium woofer) DRK 20 The DRK 20 flybar system and its rigging systems used for DVA T4, DVA T8, DVA T12, DVA S09dp, DVA S10dp, DVA S1518N e DVA S2585N speakers is designed and verified by tests in accordance with safety requirements documents, Italian Ministerial Decree DM of 14.01.2008 "New technical standards for construction"...
  • Page 11 390Kg DVA T8 90Kg Mixed configuration with DVA T8 and DVA S10dp (Neodimium woofer) The modular structure of DVA System permits mixed suspension configuration between DVA T8 and DVA S10dp (Neodymium woofer). For this reason, it is necessary to calculate the total weight.
  • Page 12 Structural modification of flybar It is prohibited to make any changes to the structure of the flybar and on the stirrups assembling of the speakers. Tampering and/or modify the structure or the accessories may be causes risk of failure or breakage.
  • Page 13 DVA T8 QUICK CONFIGURATIONS SET-UP EXAMPLES CONFIGURATION FRONT FIELD CONFIGURATION FRONT FIELD °OF BOX: °OF BOX: set-up 0 set-up 1 0° 6° set-up 0 set-up 1...
  • Page 14 SET-UP EXAMPLES CONFIGURATION LINE ARRAY CONFIGURATION LINE ARRAY °OF BOX: °OF BOX: set-up 6 set-up 2 set-up 6 set-up 2 set-up 3 set-up 6 set-up 3 set-up 6 set-up 6 CONFIGURATION LINE ARRAY set-up 6 °OF BOX: set-up 7 set-up 4 set-up 7 set-up 4 set-up 7...
  • Page 15 DIMENSIONI DIMENSIONS ABMESSUNGEN DIMENSIONS “CAUTION” RISK OF ELECTRICAL SHOCK DO NOT OPEN “AVIS” RISQUE DE CHOCH ELECTRIQUE NE PAS OUVRIR Made in Italy...
  • Page 16 SCHEMA A BLOCCHI BLOCK DIAGRAM BLOCKSCHALTBILD SCHEMAS FONCTIONNELS Filtered AC...
  • Page 17 DRK 10 accessorio Accessory DRK 10 Appeso Hanging on In appoggio Groundstack Appeso Hanging on INSTALLAZIONE INSTALLATION INSTALLATIONEN INSTALLATIONS Phase 2 Phase 1 Phase 4 Phase 3...
  • Page 18 Phase 6 Phase 5 Phase 7 Phase 8 INCLINAZIONE INCLINATION NEIGUNG INCLINAISON S RI S S RI S...
  • Page 19 In appoggio INSTALLAZIONE INSTALLATION Groundstack INSTALLATIONEN INSTALLATIONS Phase 1 Phase 2 Phase 4 Phase 3 Phase 5 Phase 6...
  • Page 20 Phase 7 Phase 8 INCLINAZIONE INCLINATION NEIGUNG INCLINAISON SE IE SE IE 5° 5° 5° 5° 2,5° 2,5° 2,5° 2,5° 0° 0° 0° 0° -2,5° -2,5° -2,5° -2,5° -5° -5° -5° -5° -7,5° -7,5° -7,5° -7,5° GROUND STACKED GROUND STACKED USE ONLY USE ONLY...
  • Page 21 DRK 20 accessorio Accessory DRK 20 Appeso Hanging on Appeso Hanging on INSTALLAZIONE INSTALLATION INSTALLATIONEN INSTALLATIONS Phase 1 Phase 2 Phase 3 Phase 4...
  • Page 22 Phase 5 Phase 6 Phase 7 Phase 8 INCLINAZIONE INCLINATION NEIGUNG INCLINAISON S RI S S RI S...
  • Page 23 DVA T8 + DVA S1518N Utilizzo in appoggio verticale (DVA T8 montaggio “Ground stacking”) Supported use (DVA T8 “Ground stacking” assembling)
  • Page 24 DVA T8 + DVA S30N Utilizzo in appoggio verticale (DVA T8 montaggio “Ground stacking”) Supported use (DVA T8 “Ground stacking” assembling)
  • Page 25 Opzione DSA 4 DSA 4 Option In appoggio Floor stack Per supporto asta Stand adaptor In appoggio Floor stack...
  • Page 26 Per supporto asta Stand adaptor...
  • Page 27 Per supporto asta Stand adaptor Solo con / Only with DVA S10dp or DVA S1518N Staffa a muro - opzione DWB 3 Wall bracket - DWB 3 option Gli accessori per il fissaggio della staffa non sono forniti in dotazione The fixing accessory for wall bracket are not suppling with the kit Fissaggio a muro con staffe...
  • Page 28 Fissaggio a muro con staffa e catene Wall bracket and chains fixing Fissaggio su strutture a traliccio Fixing on truss structures Carello - opzione DT 6 Trolley - DT 6 option Flybar Carello Trolley...
  • Page 29 Flightcase per 4 DVA T8 - opzione DF 4 Flightcase for 4 DVA T8 - DF 4 option Opzione DTF 4 DTF 4 = DT 6 + DF 4 DTF 4 Option...
  • Page 30 Sollevatore per diffusori - opzione DRL 45 Lift for speakers - DRL 45 option Nota: Utilizzare il sollevatore solo con l’accessorio DRK 10 (flybar) Note: To use the lift of speaker only with DRK 10 accessory (flybar) Quando viene utilizzato un carrello, usare cautela durante lo spostamento dell’apparecchio per evitare infortuni a causa di capovolgimenti.
  • Page 31 A.E.B. INDUSTRIALE s.r.l. Via Brodolini, 8 - 40056 Crespellano (Bo) - ITALIA Tel. + 39 051 969870 - Fax. + 39 051 969725 Internet: www.dbtechnologies.com E-mail: info@dbtechnologies-aeb.com...
